Maitinimo šaltinis, CHIEFTEC, PS / 2, PC, 200–240 V, 500 W, ELP-500S
Prekės kodas:
2-4710713230958
Maitinimo šaltinis, CHIEFTEC, PS / 2, PC, 200–240 V, 500 W, ELP-500S
Prekės kodas:
2-4710713230958
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
- Įtraukti į patikusias prekes
- Pridėta į patikusias prekes
- Pašalinta iš patikusų prekių
Garantija
24 mėn.
Pristatymas iš Lietuvos
per 3 - 5*
d. d.

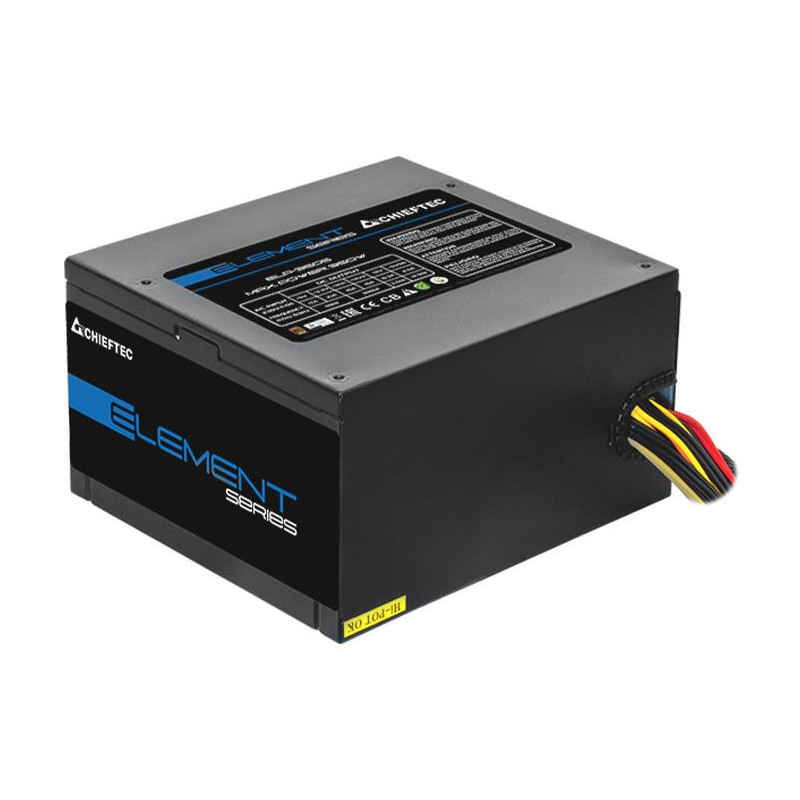

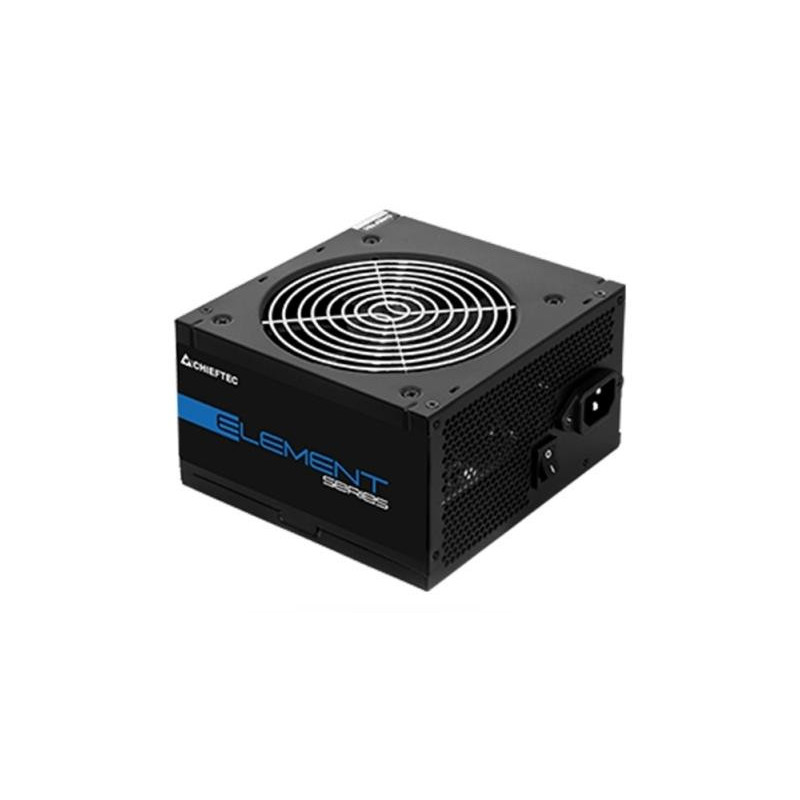

Chieftec ELEMENT ELP-500S
The brand new ELEMENT series combines innovation, high quality, great design and efficiency. With a silent running 12cm fan, the PSU is held in decent black, equipped with long native cables, a power cord, and a solid and eye catching retail box. With an efficiency of over 85% (BRONZE) @230V, the ELEMENT series fulfills the requirement of GREEN IT at an attractive price.
| 80 PLUS certification | 80 PLUS Bronze |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 200 - 240 V |
| ATX version | 2.3 |
| Cables included | AC,PCIe,Peripheral (Molex),SATA |
| Cabling type | Non-Modular |
| Certification | CE, CB, EAC, ErP, RoHS, interseroh, TÜV |
| Combined power (+12V) | 456 W |
| Combined power (+3.3V) | 110 W |
| Combined power (+5V) | 110 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Connector(s) | 20+4 PIN ATX 1 8 PIN EPS(4+4) 1 8 PIN PCIe (6+2) 1 SATA 3 MOLEX/FLOPPY 2/1 |
| Cooling type | Active |
| Depth | 150 mm |
| Efficiency | 85 % |
| EPS power connector (4+4 pin) | Yes |
| Fan diameter | 120 mm |
| Floppy disk drive connector | Yes |
| Height | 86 mm |
| Input current | 4 A |
| Max output current (+12V1) | 38 A |
| Max output current (+3.3V) | 18 A |
| Max output current (+5V) | 17 A |
| Max output current (+5Vsb) | 2.5 A |
| Motherboard power cable length | 500 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of fans | 1 fan(s) |
| Number of SATA power connectors | 3 |
| On/off switch | Yes |
| Package type | Box |
| Package weight | 1700 g |
| PCI Express connector | Yes |
| PCI Express power cable length | 500 mm |
| PCI Express power connectors (6+2 pin) | 1 |
| Peripheral (Molex) power cable length | 150/500 mm |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over power/Over voltage/Short circuit/Under voltage |
| Power supply unit (PSU) form factor | PS/2 |
| Product colour | Black |
| Product Net Weight | 1.44 kg |
| Purpose | PC |
| SATA power cable length | 150/500 mm |
| Shipping Box Depth | 50.5 cm |
| Shipping Box Height | 20.5 cm |
| Shipping Box Weight | 14.5 kg |
| Shipping Box Width | 45 cm |
| Summary | Chieftec ELP-500S. Total power: 500 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, PCIe, Peripheral (Molex), SATA |
| Supported motherboard form factors | ATX |
| Total power | 500 W |
| Unit Box Height | 0.095 |
| Unit Box Length | 0.235 |
| Unit Box Width | 0.17 |
| Unit Calculated Volume | 0.004659 cubm |
| Unit Calculated Weight | 1.45 kg |
| Unit Depth | 23.5 cm |
| Unit Height | 9.5 cm |
| Unit Width | 17 cm |
| Units per Shipping Box | 10 |
| Vendor Homepage | https://www.chieftec.eu/products-detail/123/ELEMENT_SERIES/126/ELP-500S |
| Weight | 1440 g |
| Width | 140 mm |
