Wago 750-348 fieldbus module

Wago 750-348. Product colour: Grey, Mounting type: DIN 35 × 15, Strip length (max): 6 mm. Power source type: DC, DC input voltage: 24 V, Current consumption: 260 mA. Width: 49.5 mm, Depth: 96.8 mm, Height: 71.9 mm

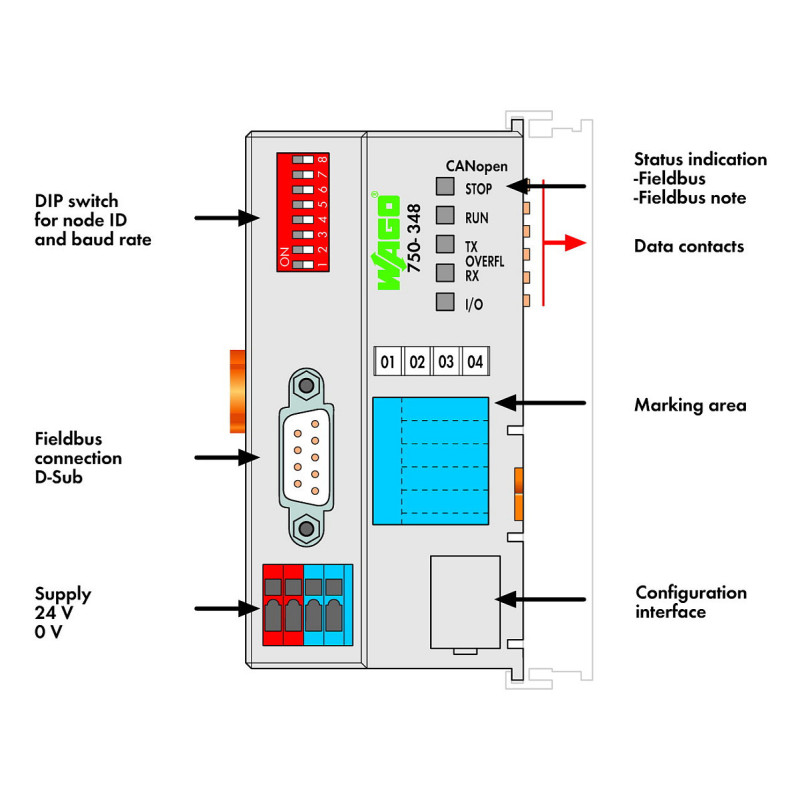

Fieldbus Coupler CANopen; D-Sub; ECO
The ECO fieldbus coupler is designed for applications with a reduced scale I/O requirement. Using digital only process data or small amounts of analogs, while retaining all of the choice that's offered by the Series 750 I/O.

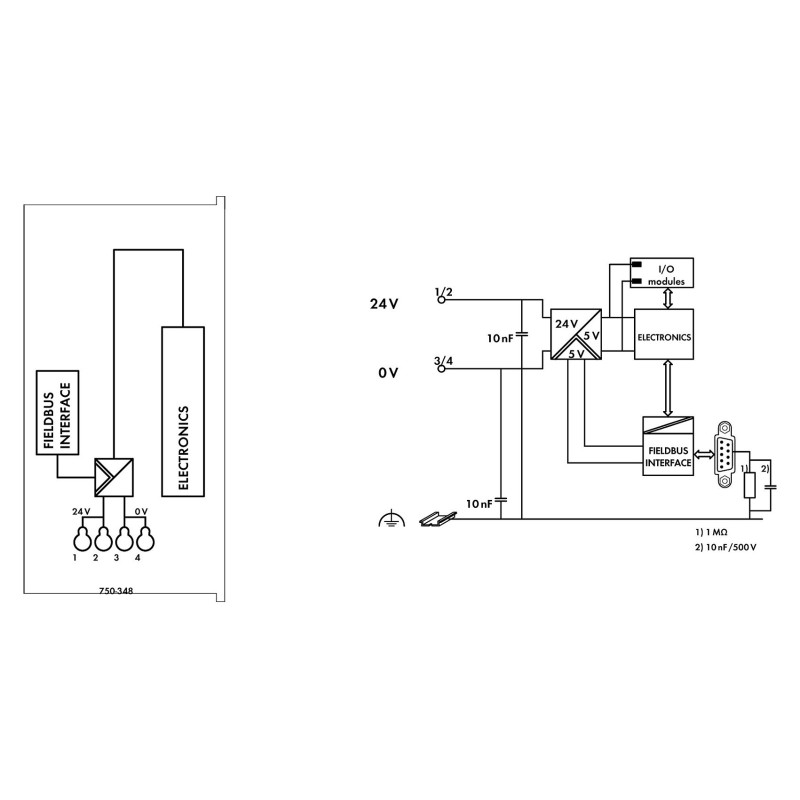

The coupler has an integrated supply terminal for the system voltage. The field power jumper contacts are supplied via a separate supply module.

The CANopen bus coupler is capable of supporting all I/O modules and automatically configures, creating a local process image.

The local process image is divided into two data zones containing the data received and the data to be sent. The process data can be sent via the CANopen fieldbus to the PLC, PC or NC for further processing, and received from the field via CANopen.

The data of the analog modules is stored in the PDOs according to the order in which the modules are connected to the buscoupler. The bits of the digital modules are sent byte by byte and also mapped in the PDOs. If the amount of digital information exceeds 8 bits, the buscoupler automatically starts with a new byte.

All entries of the object dictionary can be mapped ‐ as the user likes ‐ in the 5 Rx PDOs and 5 Tx PDOs.

The complete input and output process image can be transmitted using SDOs.

"Spacer modules" can be set via software.

Features

Product colour: Grey
Mounting type: DIN 35 × 15
Strip length (max): 6 mm
Baud rate: 10000 Bd
AWG wire size (max): 14
AWG wire size (min): 28
Conductor area (min): 0.8 mm²
Conductor area (max): 1.5 mm²
Wire clamp type: Cage clamp
International Protection (IP) code: IP20
Feature: Shock-resistant
Feature: Vibration resistant
Certification: CEEN 61000-6-4EN 61000-6-2IEC 60068-2-27IEC 60068-2-6

Power

Power source type: DC
DC input voltage: 24 V
Current consumption: 260 mA
Current consumption (internal): 350 mA
Current consumption (field side): 650 mA

Operational conditions

Storage temperature (T-T): -25 - 85 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 49.5 mm
Depth: 96.8 mm
Height: 71.9 mm
Weight: 115 g

Technical details

Compliance certificates: RoHS
