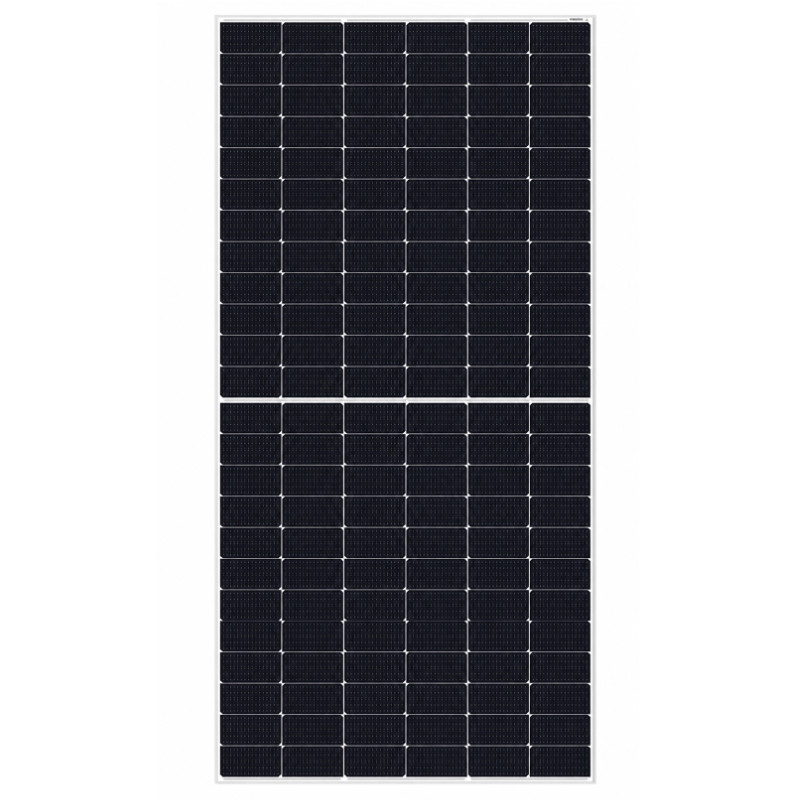

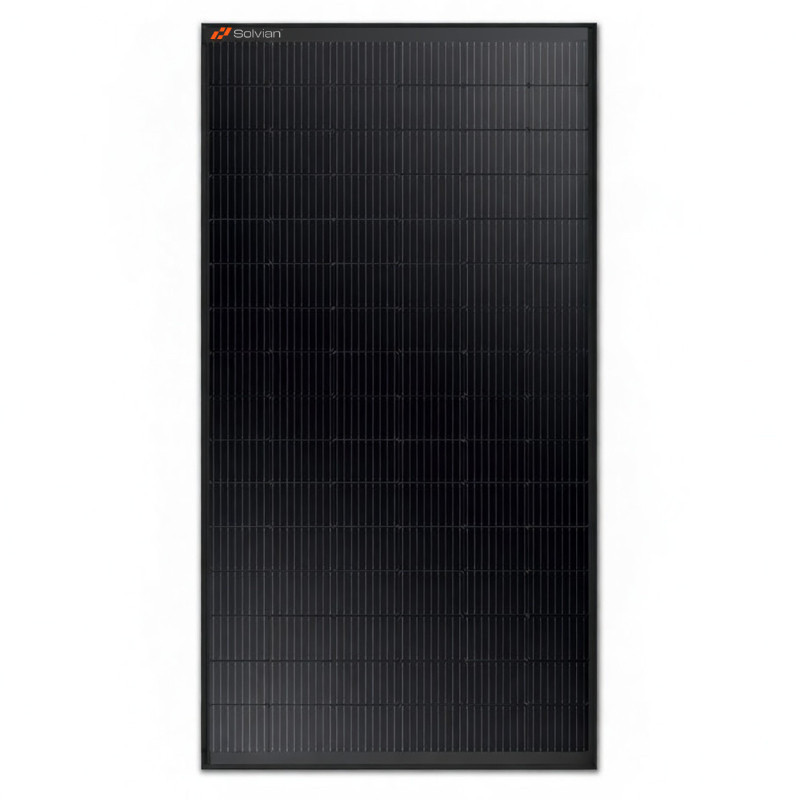

2x435W solar panel with 60A MPPT charge controller 12V/24V

• Model: AS-7M108N-HC


• Cell technology: Monocrystalline N-type TOPCon 182 × 91 mm


• Number of links: 108 (6 × 18), half-cut


• Maximum power (Pmax): 435 W


• Module efficiency: 22.28%


• Power tolerance: ±3%


• Open Circuit Voltage (Voc): 38.6V


• Short circuit current (Isc): 14.12 A


• Voltage at maximum power point (Vmp): 32.4V


• Current at maximum power point (Imp): 13.43 A


• Power at NOCT conditions: 328 W


• Maximum system voltage: 1000V DC / 1500V DC


• Maximum series fuse: 25 A

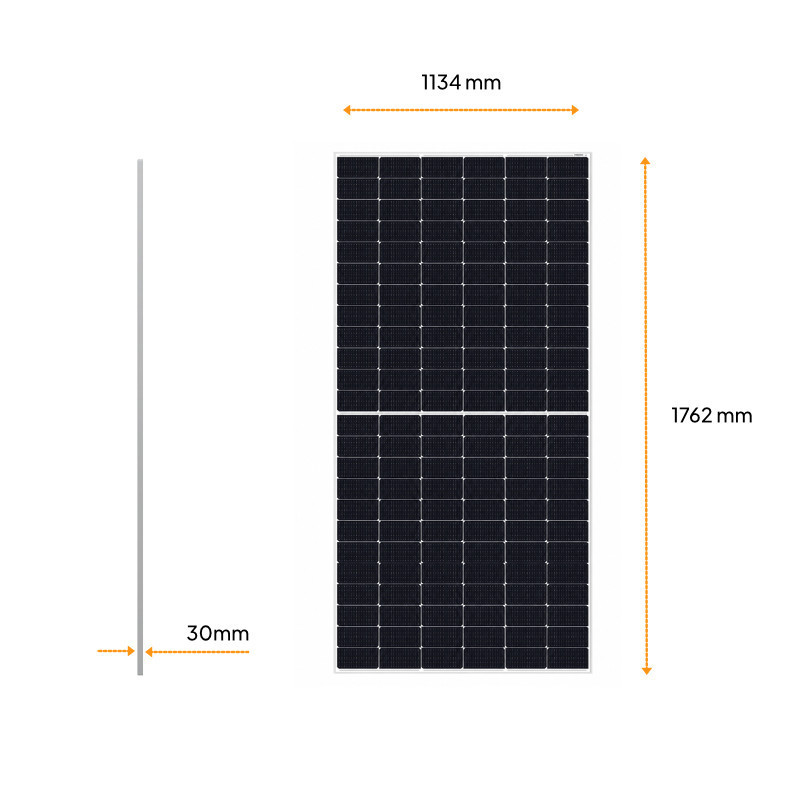

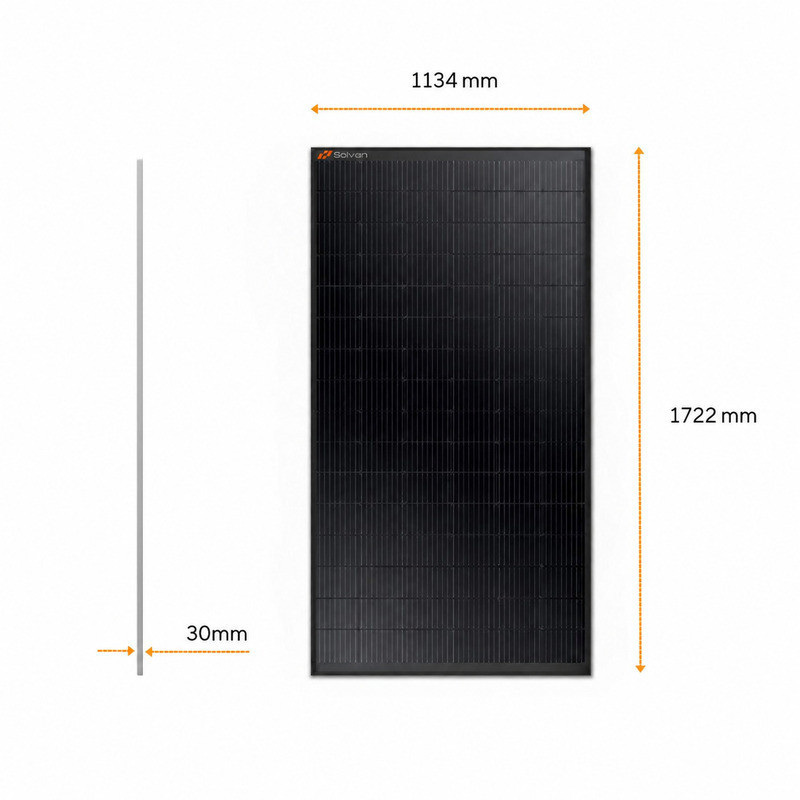

• Dimensions: 1722 × 1134 × 30 mm


• Libra: 20.5 kg


• Windshield: Tempered 3.2 mm with anti-reflective coating


• Frame: Anodized aluminum


• Junction box: IP68, 3 diodes


• Wires: 4 mm² ; vertical 300 mm, horizontal 1200 mm


• Connectors: MC4 or compatible


• Wind load: 2400 Pa


• Snow load: 5400 Pa


• Operating temperature: -40 °C to +85 °C


• NOCT: 43 °C ± 2 °C


• Temperature coefficient Pmax: -0.30%/°C


• Temperature coefficient Voc: -0.25%/°C


• Temperature coefficient Isc: +0.045%/°C


• Fire resistance class: C


• Certificates: IEC 61215, IEC 61730, CE


• Guarantee: 20 years for the product, 30 years for linear power


• Packaging: 36 pcs / pallet


• STC Conditions: 1000 W/m², 25 °C, AM1.5

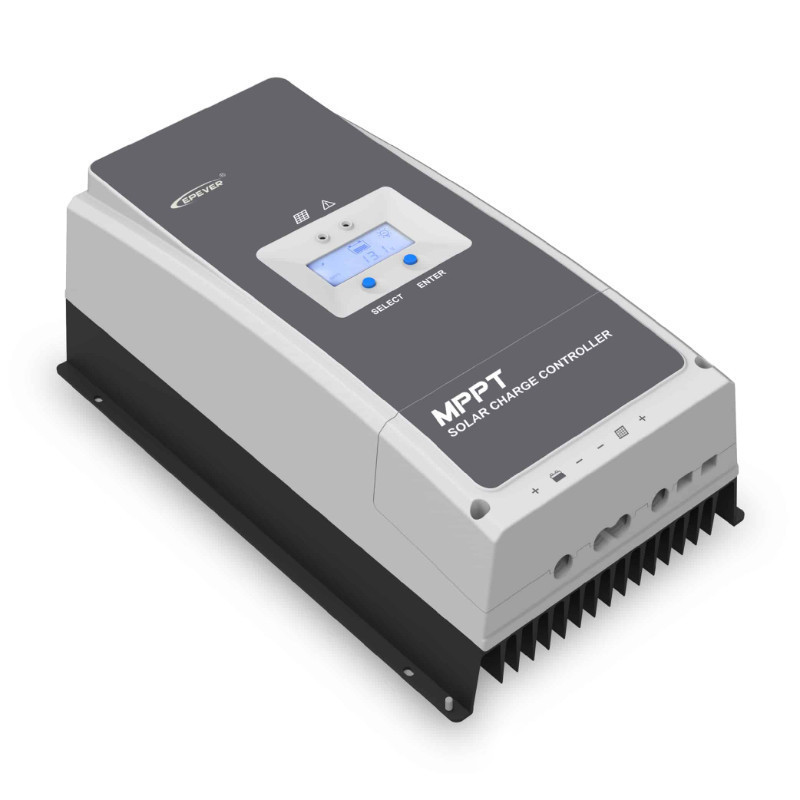

Charge controller EPEVER MPPT Tracer 6420AN 60A

Technical Specifications:

• Model: Tracer 6420AN


• Nominal system voltage: 12/24/36/48VDC (automatic)


• Battery type:



  • Lead-acid (sealed/gel/flooded)


  • Lithium ( LiFePO4/Li(NiCoMn)O2 )


  • User






• Battery input voltage range: 8V-68V


• Rated charging current: 60A


• Rated charging power:



  • 750W (for 12V )


  • 1500W (for 24V )


  • 2250W (for 36V )


  • 3000W (for 48V )






• Maximum conversion efficiency: 98.10%


• MPPT tracking efficiency: ≥99.5%


• Maximum PV open circuit voltage:



  • 200V (at minimum temperature)


  • 180V (under standard conditions)






• MPPT voltage range: Battery voltage + 2V to 144V


• Equalizing voltage:



  • Sealed: 14.6V


  • Flooded: 14.8V


  • Username: 9-17V






• Increasing the voltage:



  • Gel: 14.2V


  • Sealed: 14.4V


  • Flooded: 14.6V


  • Username: 9-17V






• Trickle charge voltage:



  • Gel/Sealed/Flooded: 13.8V


  • Username: 9-17V






• Low Voltage Reconnect Voltage:



  • Gel/Sealed/Flooded: 12.6V


  • Username: 9-17V






• Low voltage disconnect voltage:



  • Gel/Sealed/Flooded: 11.1V


  • Username: 9-17V






• Self-consumption:



  • 98mA (for 12V )


  • 60mA (for 24V )


  • 50mA (for 36V )


  • 46mA (for 48V )






• Temperature compensation (for lead-acid batteries): - 3mV / / 2V (default)


• Relative humidity: 5% to 95% (non-condensing)


• Protective barrier: IP20


• Communication interface: RS485 ( 5VDC/200mA, two ports RJ45 )


• Ground: Common negative


• Dimensions (L x W x H): 340mm x 236mm x 119mm


• Libra: 4.5 kg

Solar cable for connecting the 4mm2 - 2x5m ( 10m ) installation

Serial port MC4

The kit includes all necessary components for assembly: solar cables with a 4mm2 cross-section, a set of MC4 connectors, and mounting accessories. The cables are equipped with MC4 connectors, allowing for quick and trouble-free connection of the panels to the charge controller. The cable sets are UV-resistant, ensuring their durability in various weather conditions. For larger installations, optional cable extensions and additional PV connectors are available.
