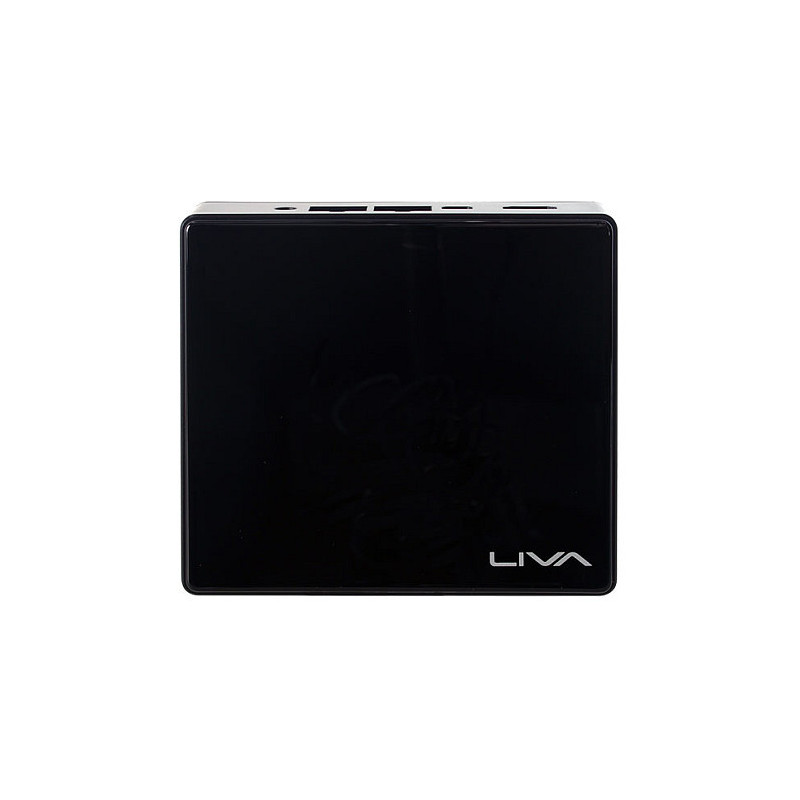

ECS LIVA Z3 Plus

ECS LIVA Z3 Plus. Chassis type: USFF, Product type: Mini PC barebone. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: SSD, Storage drive interface: PCI Express. Ethernet LAN (RJ-45) ports: 2. Wi-Fi standards: Wi-Fi 6 (802.11ax). Power supply: 90 W
Lightning Speed
Intel® Comet Lake-U 10th Gen Intel® Core™ processors feature evolutionary enhancement on the performance and up to 6 cores allowing you to do daily computing task smoothly and more efficiently.
Blazing Connectivity*
802.11ax MU-MIMO provides higher connection speeds up to 10GBps, greater efficiency of data transmission to stream high quality movies and YouTube videos among multiple devices simultaneously.
Get More Done with Alexa
Thanks to four digital microphones built in the system, it recognizes sounds clearly and better to let you manage to control tasks on PC easily through the voice.
Vibrant Visuals
4K resolution at 60 fps gives four times as many pixels as the commonly used 1920 x 1080 resolution presenting much more vivid and clear visuals.

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i3
Processor generation: 10th gen Intel® Core™ i3
Processor model: i3-10110U
Processor cores: 2
Processor threads: 4
Processor boost frequency: 4.1 GHz
Processor frequency: 2.1 GHz
Built-in processor: Yes
Processor lithography: 14 nm
Processor cache: 4 MB
Thermal Design Power (TDP): 15 W
CPU configuration (max): 1

Memory

Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 64 GB
Supported memory clock speeds: 2666 MHz
Supported memory types: DDR4-SDRAM

Storage

Supported storage drive types: SSD
Storage drive sizes supported: M.2
Storage drive interface: PCI Express
Number of storage drives supported: 1

Graphics

On-board graphics card: Yes

Network

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Ethernet LAN: Yes
Wi-Fi: Yes

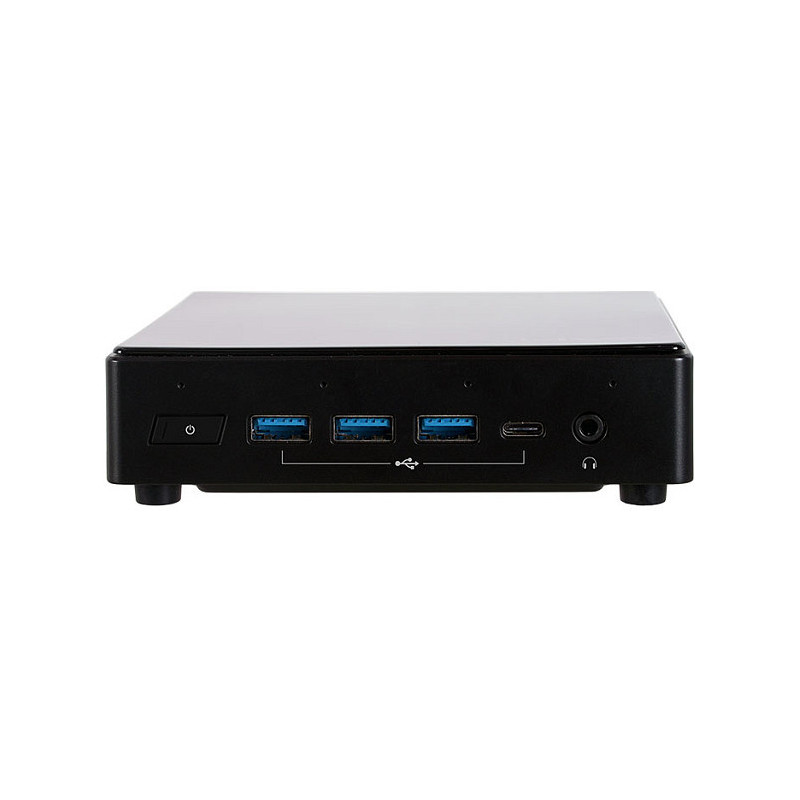

Ports interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.0
Mini DisplayPorts quantity: 1
Combo headphone/mic port: Yes
Ethernet LAN (RJ-45) ports: 2
DC-in jack: Yes

Design

Chassis type: USFF
Product colour: Black
Product type: Mini PC barebone

Processor special features

Embedded options available: No
Intel® AES New Instructions (Intel® AES-NI): Yes
Intel® Quick Sync Video Technology: Yes
Intel® Clear Video HD Technology (Intel® CVT HD): Yes
Intel® Turbo Boost Technology: 2.0
Intel® Hyper Threading Technology (Intel® HT Technology): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel 64: Yes
Intel® My WiFi Technology (Intel® MWT): Yes
Idle States: Yes
Enhanced Intel SpeedStep Technology: Yes
Thermal Monitoring Technologies: Yes
Intel Flex Memory Access: Yes
Intel® Identity Protection Technology (Intel® IPT): Yes
Intel Trusted Execution Technology: No
Execute Disable Bit: Yes
Intel TSX-NI: No
Intel® Secure Key: Yes
Intel Stable Image Platform Program (SIPP): No
Intel® OS Guard: Yes
Intel Clear Video Technology: Yes
Intel Virtualization Technology (VT-x): Yes

Power

Power supply type: External AC adapter
Power supply: 90 W
AC adapter output voltage: 19 V
AC adapter output current: 4.74 A

Weight dimensions

Width: 117 mm
Depth: 128 mm
Height: 35 mm
