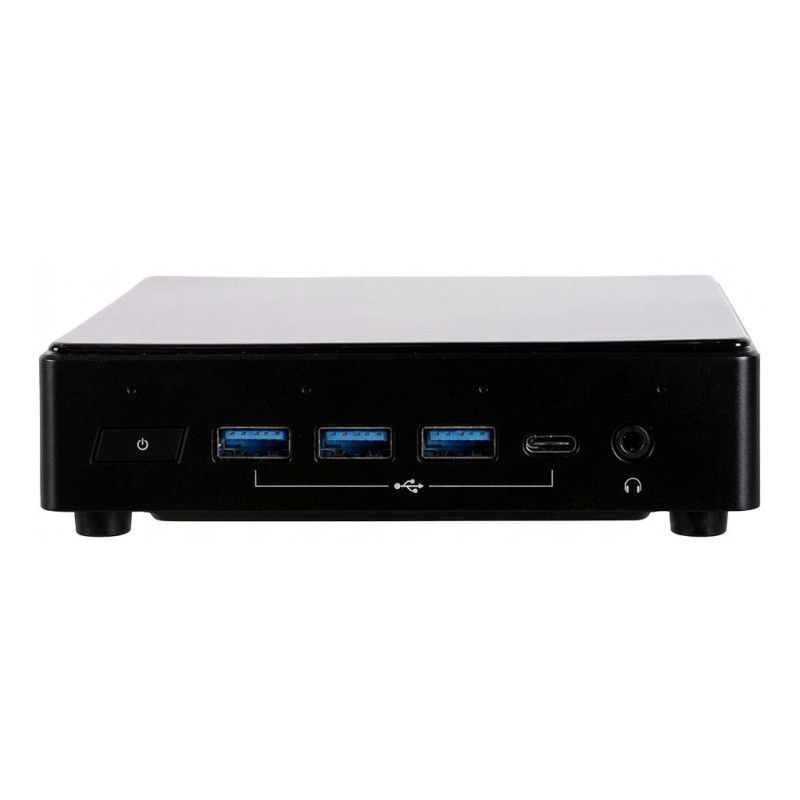

ECS LIVA Z3 Plus

ECS LIVA Z3 Plus. Chassis type: USFF, Product type: Mini PC barebone. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: SSD, Storage drive interface: PCI Express. Ethernet LAN (RJ-45) ports: 2. Wi-Fi standards: Wi-Fi 6 (802.11ax). Power supply: 90 W

Lightning Speed

Intel® Comet Lake-U 10th Gen Intel® Core™ processors feature evolutionary enhancement on the performance and up to 6 cores allowing you to do daily computing task smoothly and more efficiently.

Blazing Connectivity*
802.11ax MU-MIMO provides higher connection speeds up to 10GBps, greater efficiency of data transmission to stream high quality movies and YouTube videos among multiple devices simultaneously.

Get More Done with Alexa
Thanks to four digital microphones built in the system, it recognizes sounds clearly and better to let you manage to control tasks on PC easily through the voice.

Vibrant Visuals
4K resolution at 60 fps gives four times as many pixels as the commonly used 1920 x 1080 resolution presenting much more vivid and clear visuals.

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i3
Processor generation: 10th gen Intel® Core™ i3
Processor model: i3-10110U
Processor cores: 2
Processor threads: 4
Processor boost frequency: 4.1 GHz
Processor frequency: 2.1 GHz
Feature: Built-in processor
Processor lithography: 14 nm
Processor cache: 4 MB
Thermal Design Power (TDP): 15 W
CPU configuration (max): 1

Memory

Memory slots type: SO-DIMM
Number of memory slots: 2
Maximum internal memory: 64 GB
Supported memory clock speeds: 2666 MHz
Supported memory types: DDR4-SDRAM

Storage

Supported storage drive types: SSD
Storage drive sizes supported: M.2
Storage drive interface: PCI Express
Number of storage drives supported: 1

Graphics

Feature: On-board graphics card

Network

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)
Feature: Ethernet LAN
Feature: Wi-Fi

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.0
Mini DisplayPorts quantity: 1
Feature: Combo headphone/mic port
Ethernet LAN (RJ-45) ports: 2
Feature: DC-in jack

Design

Chassis type: USFF
Product colour: Black
Product type: Mini PC barebone

Processor special features

Feature: Intel® AES New Instructions (Intel® AES-NI)
Feature: Intel® Quick Sync Video Technology
Feature: Intel® Clear Video HD Technology (Intel® CVT HD)
Intel® Turbo Boost Technology: 2.0
Feature: Intel® Hyper Threading Technology (Intel® HT Technology)
Feature: Intel Virtualization Technology for Directed I/O (VT-d)
Feature: Intel VT-x with Extended Page Tables (EPT)
Feature: Intel 64
Feature: Intel® My WiFi Technology (Intel® MWT)
Feature: Idle States
Feature: Enhanced Intel SpeedStep Technology
Feature: Thermal Monitoring Technologies
Feature: Intel Flex Memory Access
Feature: Intel® Identity Protection Technology (Intel® IPT)
Feature: Execute Disable Bit
Feature: Intel® Secure Key
Feature: Intel® OS Guard
Feature: Intel Clear Video Technology
Feature: Intel Virtualization Technology (VT-x)

Power

Power supply type: External AC adapter
Power supply: 90 W
AC adapter output voltage: 19 V
AC adapter output current: 4.74 A

Weight & dimensions

Width: 117 mm
Depth: 128 mm
Height: 35 mm
