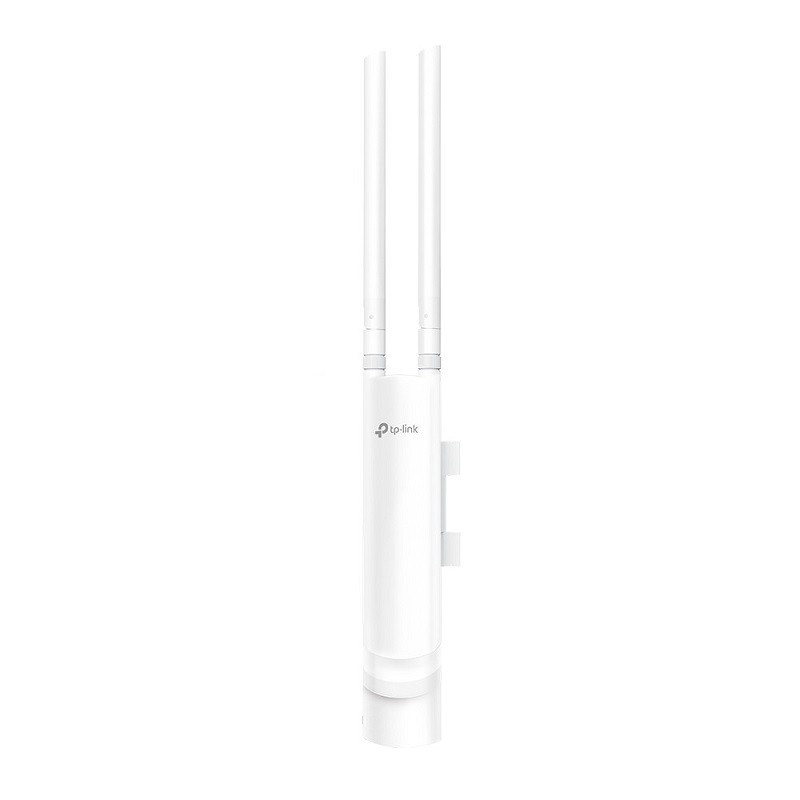

TP-LINK 300Mbps Wireless N Outdoor Access Point

• Built for outdoor Wi-Fi applications


• Up to 300Mbps Wi-Fi with 2x2 MIMO technology


• High transmission power and high gain antennas provide a long-range coverage area


• Durable, weatherproof enclosure to withstand fair and foul weather

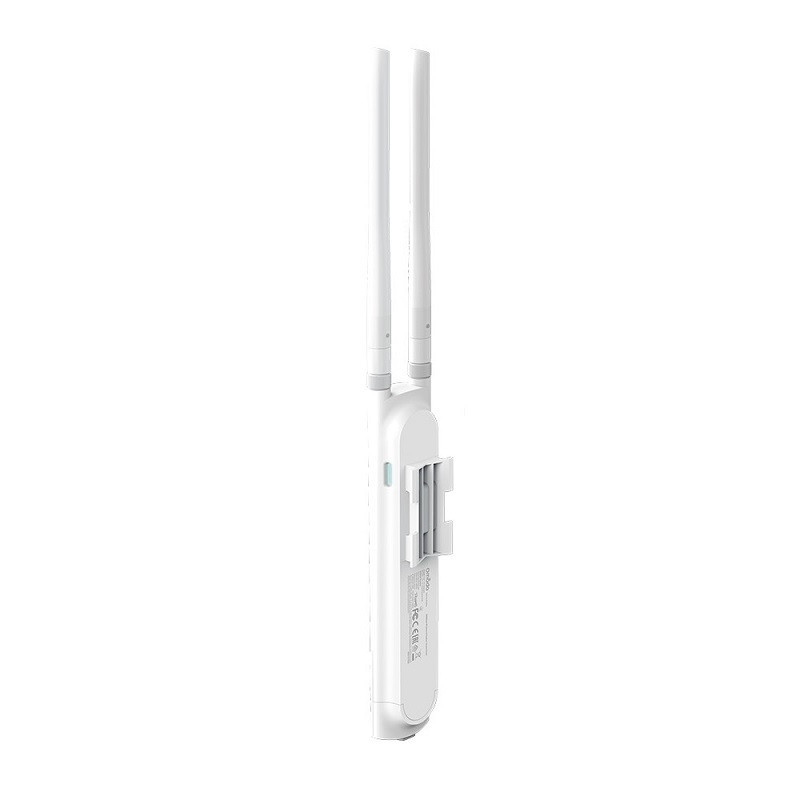

• Passive PoE (Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation


• Free cloud centralized management and Omada app for ultra convenience and easy management


• Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies


• Supports management vlan for an enhanced network management

HARDWARE FEATURES

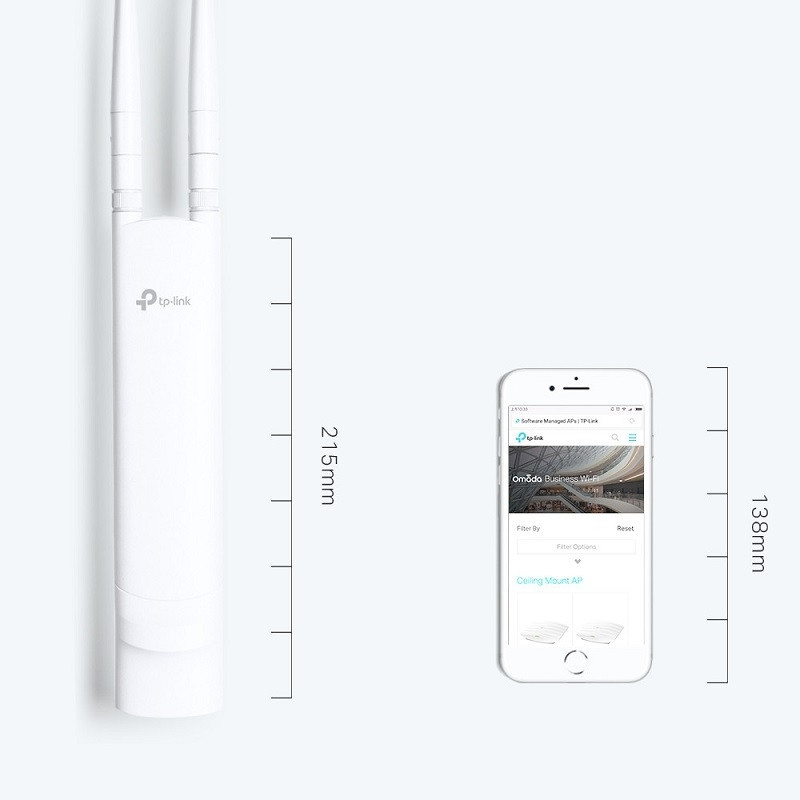

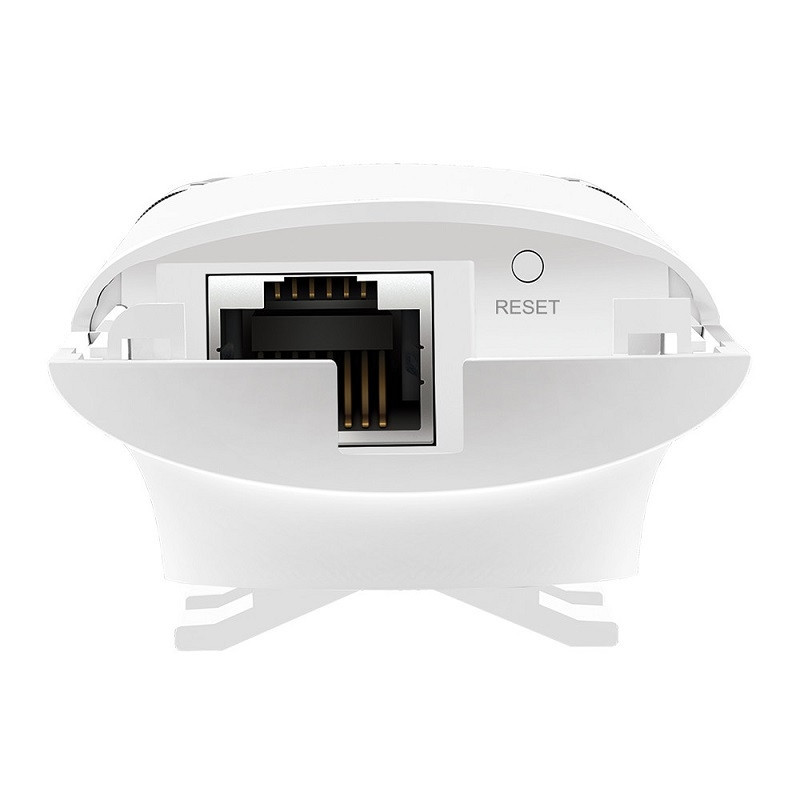

Interface: Fast Ethernet (RJ-45) Port *1（Support Passive PoE） Button: Reset Power Supply: 24V Passive PoE (+4.5pins; -7.8pins. PoE Adapter Included) Power Consumption: 3.12 W Dimensions ( W x D x H ): 8.2 × 3.7 × 1.7 in. (209 × 95 × 42.6 mm) Antenna Type: 2*5dBi External Omni waterproof Weatherproof Enclosure: IP65 Mounting: Pole / Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Standards: IEEE 802.11n/g/b Frequency: 2.4GHz

Signal Rate: 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)

Transmit Power: CE: ≤20dBm (EIRP) FCC: ≤22dBm

Wireless Functions: Multiple SSIDs（Up to 8 SSIDs） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client Wireless Security: Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

MANAGEMENT

Auranet Controller Software: Yes Email Alerts: Yes LED ON/OFF Control: Yes Management MAC Access Control: Yes SNMP: Yes System Logging Local/Remote Syslog: Yes Telnet: Yes Web-based Management: HTTP/HTTPS L3 Management: Yes Multi-site Management: Yes Management VLAN: Yes

OTHERS

Certification: CE, FCC, RoHS

Package Contents: 300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor Passive PoE Adapter Power Cord Mounting Kits Waterproof Rubber Insert Waterproof Antennas Installation Guide

System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Environment: Operating Temperature: -30 ~65 (-22 ~149 ) Storage Temperature: -40 ~70 (-40 ~158 ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
