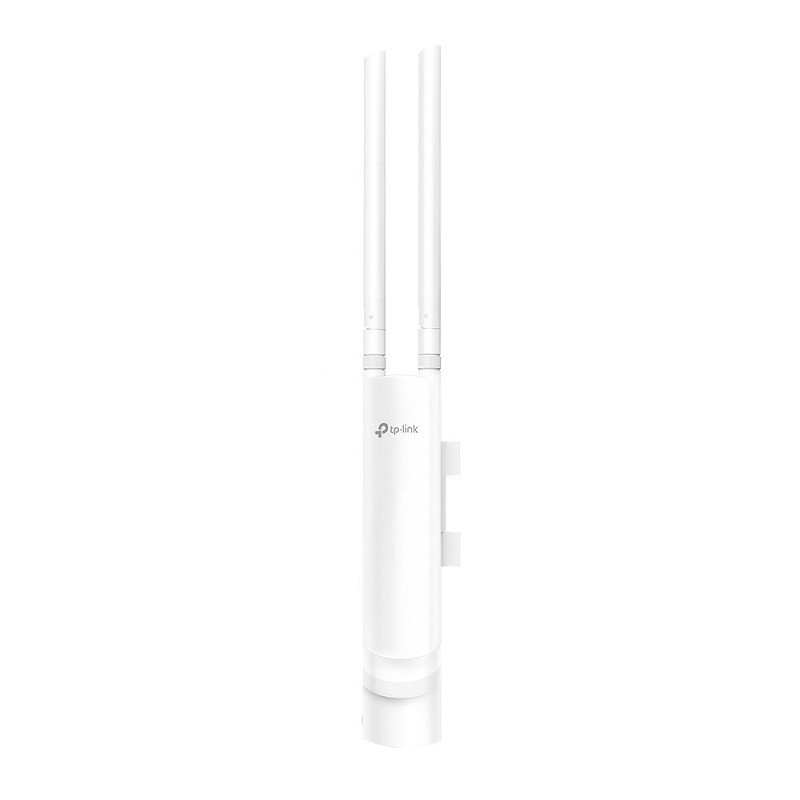

TP-LINK 300Mbps belaidis N lauko prieigos taškas

• Built for outdoor Wi-Fi applications


• Up to 300Mbps Wi-Fi with 2x2 MIMO technology

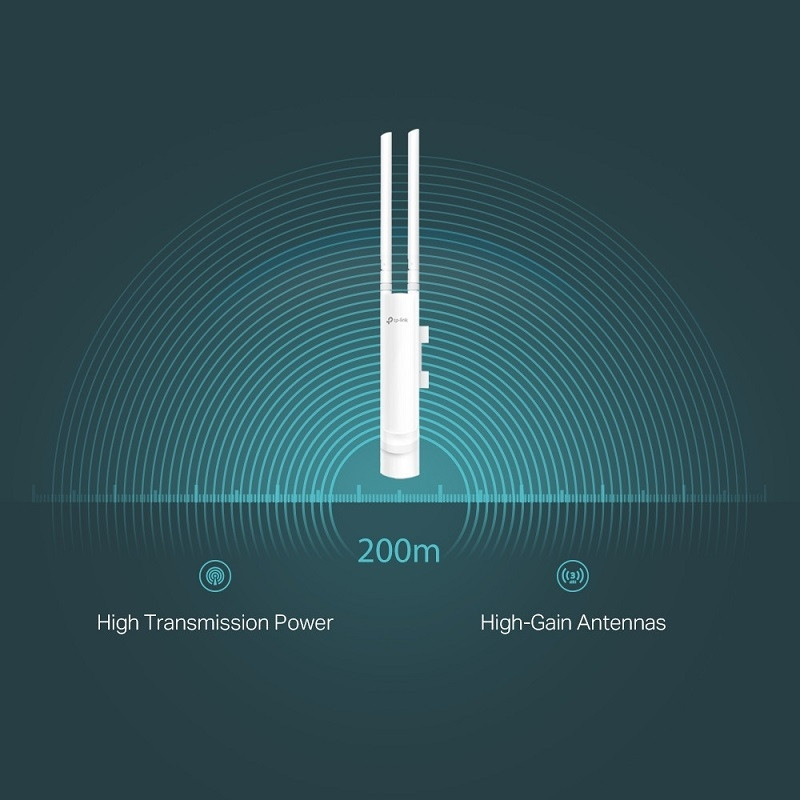

• High transmission power and high gain antennas provide a long-range coverage area


• Durable, weatherproof enclosure to withstand fair and foul weather


• Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation


• Free cloud centralized management and Omada app for ultra convenience and easy management


• Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies


• Supports management vlan for an enhanced network management

HARDWARE FEATURES

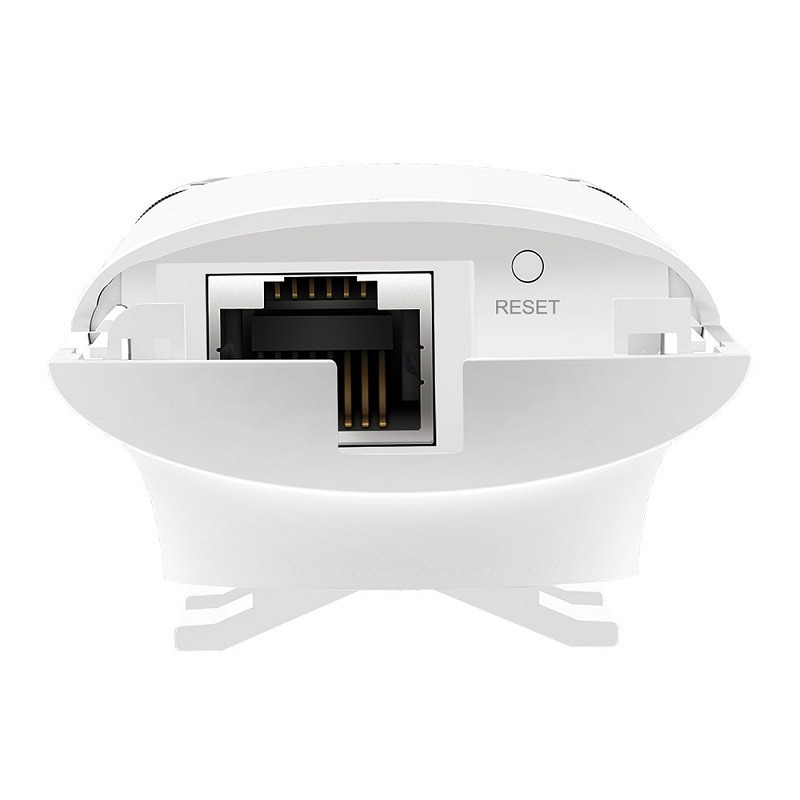

Interface: Fast Ethernet (RJ-45) Port *1（Support Passive PoE）

Button: Reset

Power Supply: 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

Power Consumption: 3.12 W

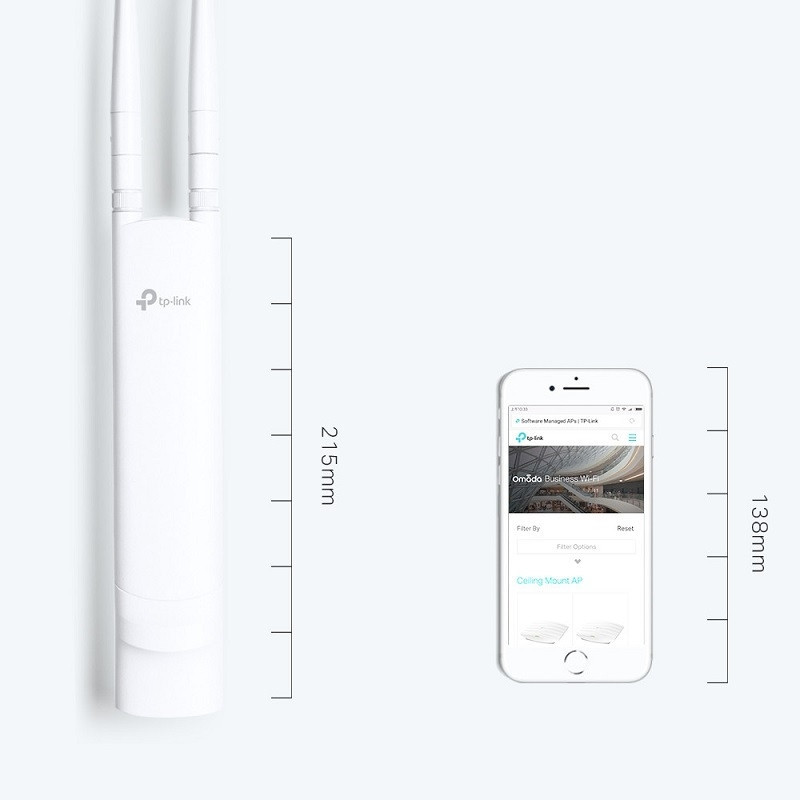

Dimensions ( W x D x H ): 8.2 × 3.7 × 1.7 in. (209 × 95 × 42.6 mm)

Antenna Type: 2*5dBi External Omni waterproof

Weatherproof Enclosure: IP65

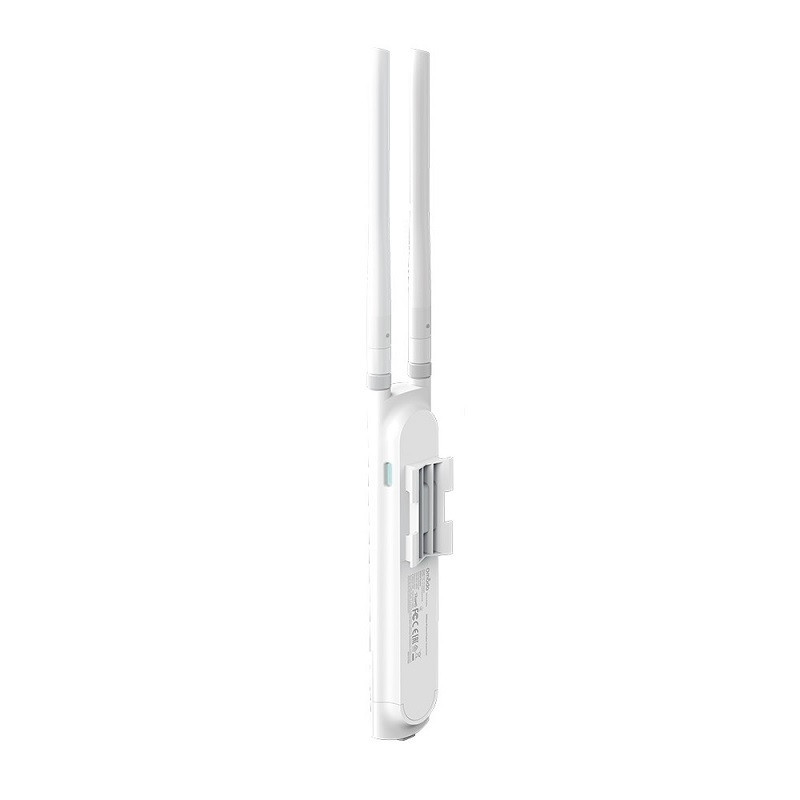

Mounting: Pole / Wall Mounting (Kits included)

WIRELESS FEATURES

Wireless Standards: IEEE 802.11n/g/b

Frequency: 2.4GHz

Signal Rate:

11n: Up to 300Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

Transmit Power:

CE：≤20dBm (EIRP)

FCC：≤22dBm

Wireless Functions:

Multiple SSIDs（Up to 8 SSIDs）

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control （Adjust Transmit Power on dBm）

QoS(WMM)

Load Balance

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client

Wireless Security: Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

64/128/152-bit WEP / WPA / WPA2-Enterprise,

WPA-PSK / WPA2-PSK

MANAGEMENT

Auranet Controller Software: Yes

Email Alerts: Yes

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: Yes

System Logging Local/Remote Syslog: Yes

Telnet: Yes

Web-based Management: HTTP/HTTPS

L3 Management: Yes

Multi-site Management: Yes

Management VLAN: Yes

OTHERS

Certification: CE, FCC, RoHS

Package Contents:

300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor

Passive PoE Adapter

Power Cord

Mounting Kits

Waterproof Rubber Insert

Waterproof Antennas

Installation Guide

System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Environment:

Operating Temperature: -30 ~65 (-22 ~149 )

Storage Temperature: -40 ~70 (-40 ~158 )

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
