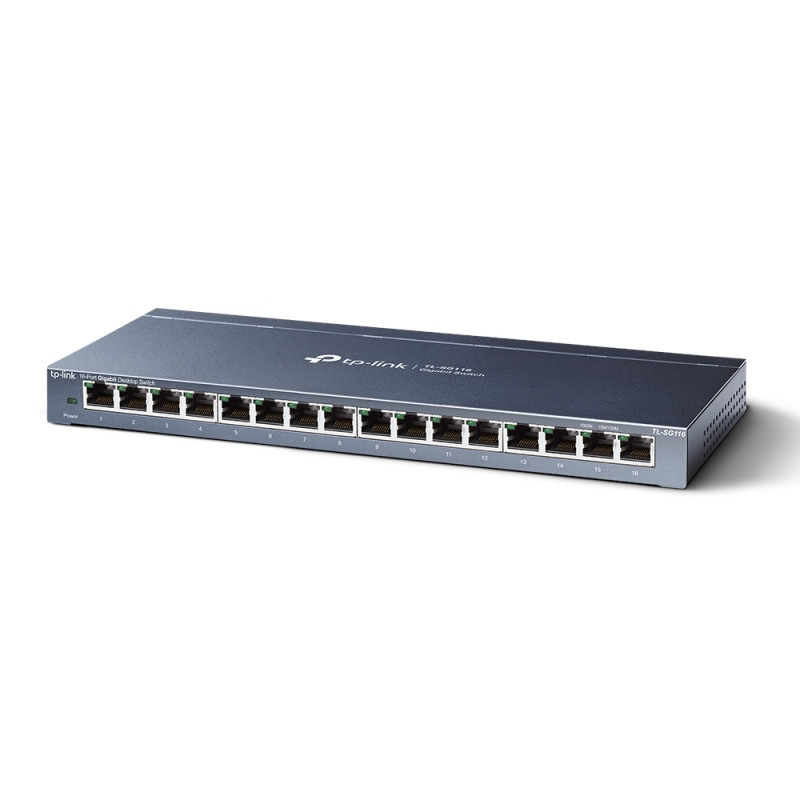

TP-LINK 16-Port Gigabit Desktop Switch

• 16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX


• Green Ethernet technology saves power consumption


• IEEE 802.3x flow control provides reliable data transfer


• Steel housing, desktop or wall-mounting design


• Support 802.1p/DSCP QoS and IGMP Snooping function


• Plug and play, with no configuration needed

HARDWARE FEATURES

Standards and Protocols: IEEE 802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.1p Interface: 16 x 10/100/1000Mbps Ports Auto-Negotiation, Auto-MDI/MDIX Fan Quantity: Fanless External Power Supply: External Power Adapter (Output: 12VDC / 1.0A)

LED Indicator: System Power Link/Act indicators per port built into each RJ-45 port

Dimensions ( W x D x H ): 286 x 112 x 25 mm (11.26 x 4.4 x 1.0 in.) Max Power Consumption: 10W (220V/50Hz) Max Heat Dissipation: 34.12BTU/h

PERFORMANCE

Packet Forwarding Rate: 23.8Mpps MAC Address Table: 8K Packet Buffer Memory: 4.1Mb Jumbo Frame: 10KB

SOFTWARE FEATURES

Advanced Features: Green Technology 802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping

Transfer Method: Store and Forward

OTHERS

Certification: CE, FCC, RoHS

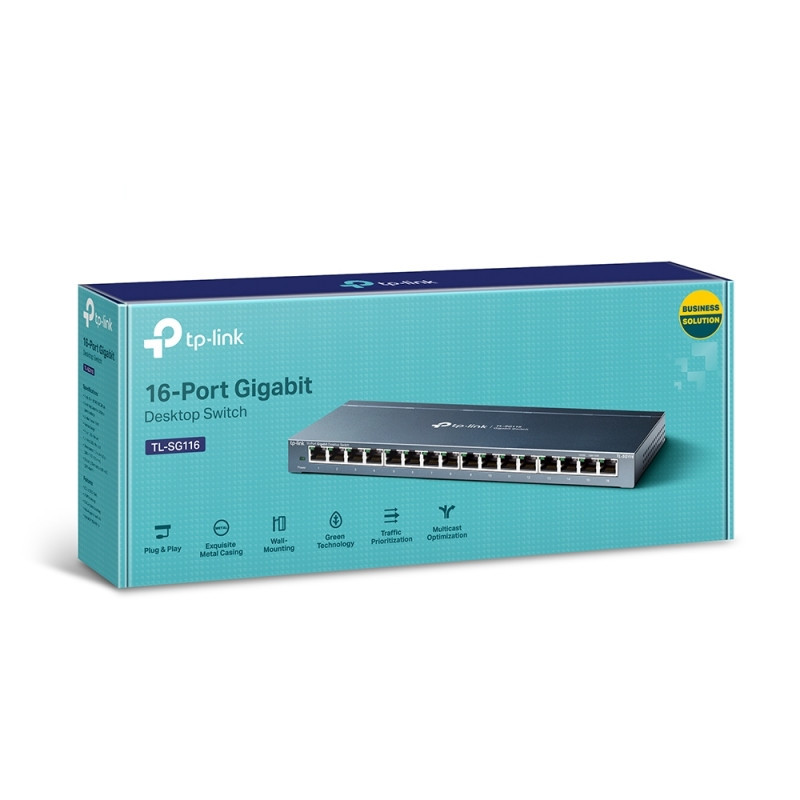

Package Contents: 16-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide Rubber Feet

Environment: Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90%, non-condensing Storage Humidity: 5%~90% non-condensing
