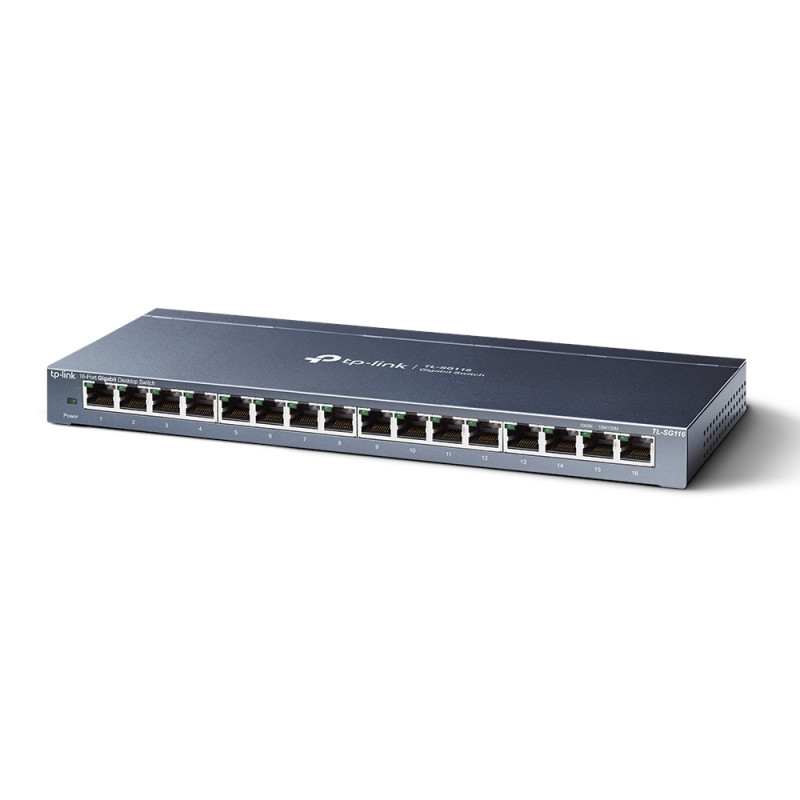

TP-LINK 16 prievadų gigabito darbalaukio komutatorius

• 16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX


• Green Ethernet technology saves power consumption


• IEEE 802.3x flow control provides reliable data transfer


• Steel housing, desktop or wall-mounting design


• Support 802.1p/DSCP QoS and IGMP Snooping function


• Plug and play, with no configuration needed

HARDWARE FEATURES

Standards and Protocols: IEEE 802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.1p

Interface:

16 x 10/100/1000Mbps Ports

Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity: Fanless

External Power Supply: External Power Adapter (Output: 12VDC / 1.0A)

LED Indicator:

System Power

Link/Act indicators per port built into each RJ-45 port

Dimensions ( W x D x H ): 286 x 112 x 25 mm (11.26 x 4.4 x 1.0 in.)

Max Power Consumption: 10W (220V/50Hz)

Max Heat Dissipation: 34.12BTU/h

PERFORMANCE

Packet Forwarding Rate: 23.8Mpps

MAC Address Table: 8K

Packet Buffer Memory: 4.1Mb

Jumbo Frame: 10KB

SOFTWARE FEATURES

Advanced Features:

Green Technology

802.3x Flow Control

802.1p/DSCP QoS

IGMP Snooping

Transfer Method: Store and Forward

OTHERS

Certification: CE, FCC,RoHS

Package Contents:

16-Port 10/100/1000Mbps Desktop Switch

Power Adapter

Installation Guide

Rubber Feet

Environment:

Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10% ~ 90%, non-condensing

Storage Humidity: 5%~90% non-condensing
