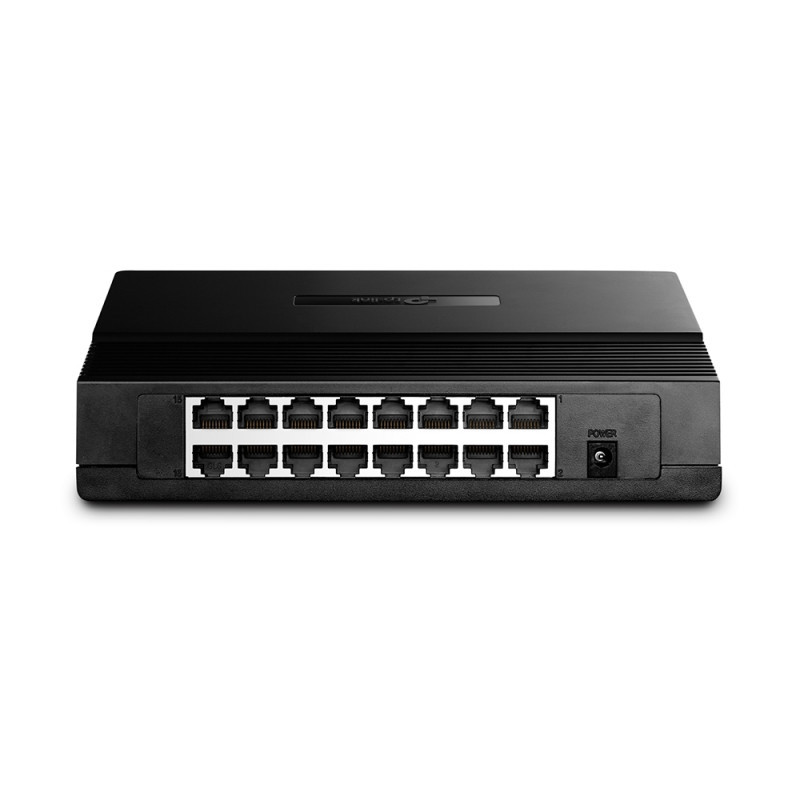

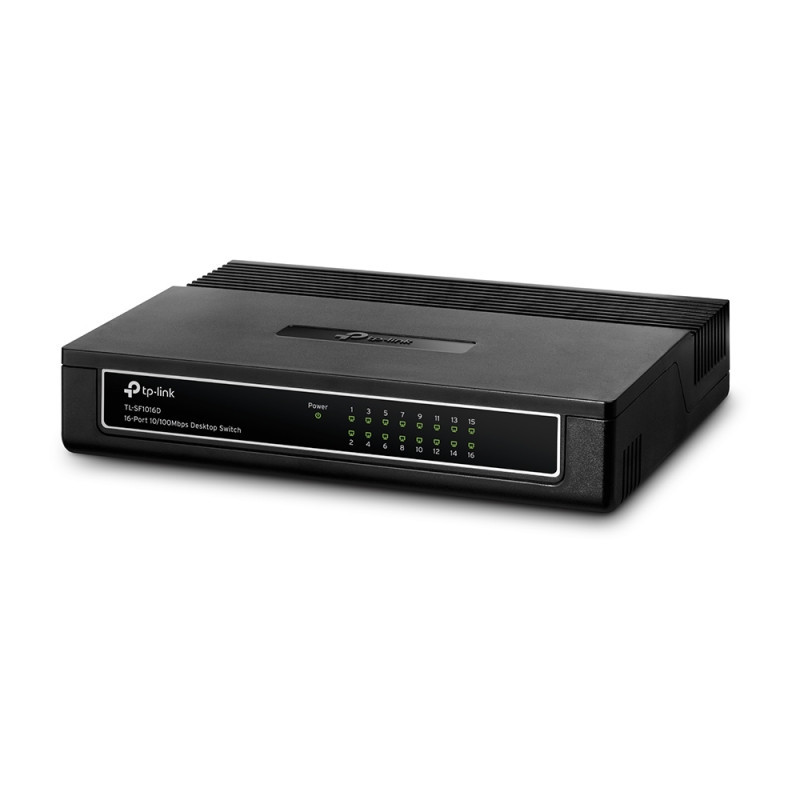

Switch TL-SF1016D

- Innovative energy-efficient technology saves power up to 80% - Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode - Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput - 3.2Gbps Switching Capacity - Auto-MDI/MDIX eliminates the need for crossover cables - Supports MAC address auto-learning and auto-aging - Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware. - Fanless design ensures quiet operation - Desktop or wall-mounting design - Plug and Play design simplifies installation

HARDWARE FEATURES

Interface: 1610/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX

Fan Quantity: Fanless

Power Consumption: Maximum: 3.1W (220V/50Hz)

External Power Supply: 100~240VAC, 50/60Hz

Mac Address Table: 1K

Dimensions ( W x D x H ): 7.9*5.6*1.6 in. (200*142*40mm)

SOFTWARE FEATURES

Transfer Method: Store and Forward

Advanced Functions: Green Technology, saving power up to 80% 802.3X Flow Control, Back Pressure

OTHERS

Certification: FCC, CE, RoHs

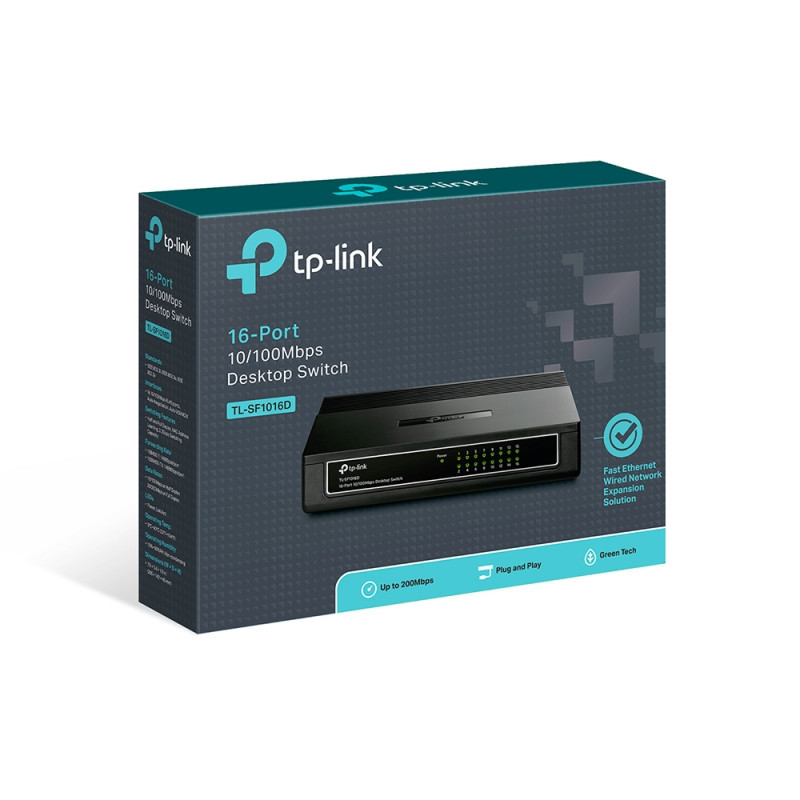

Package Contents: 16-Port 10/10Mbps Desktop Switch TL-SF1016D Power Adapter User Guide

System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.

Environment: Operating Temperature: 0 ~40 (32 ~104 ); Storage Temperature: -40 ~70 (-40 ~158 ); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
