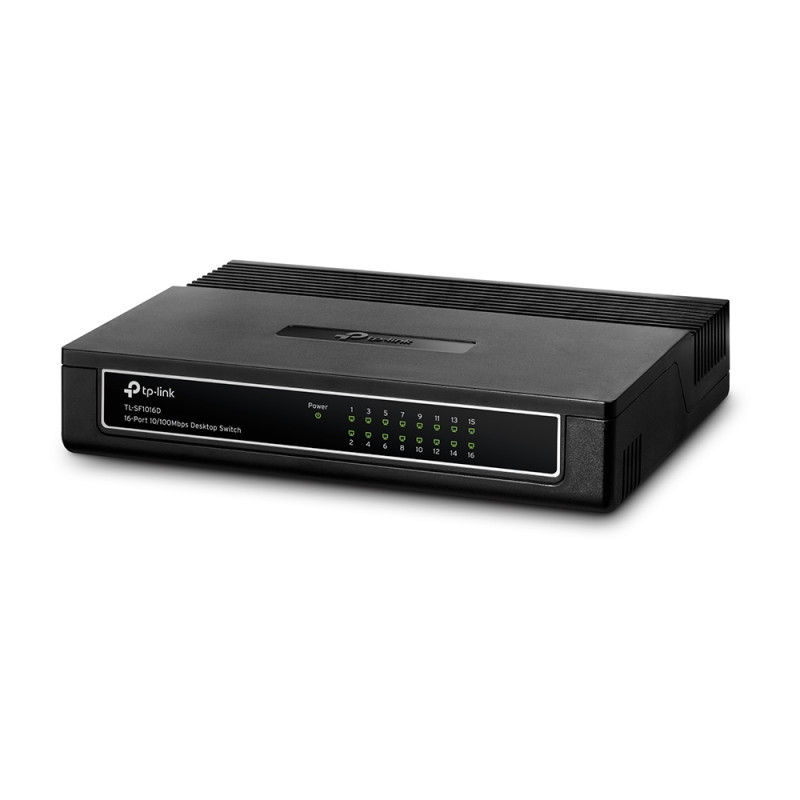

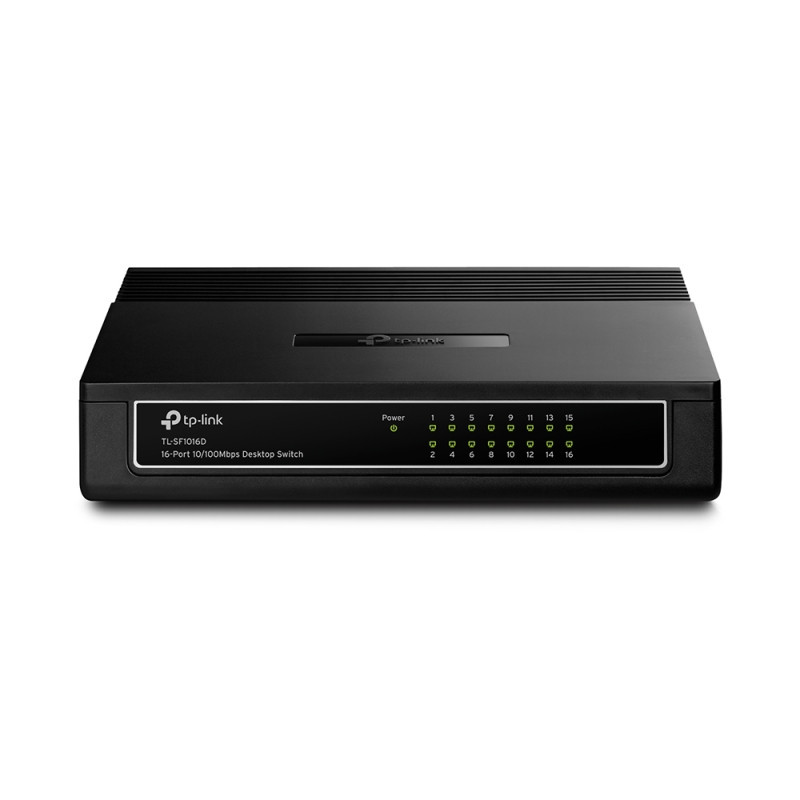

Jungiklis TL-SF1016D

- Innovative energy-efficient technology saves power up to 80%

- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode

- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput

- 3.2Gbps Switching Capacity

- Auto-MDI/MDIX eliminates the need for crossover cables

- Supports MAC address auto-learning and auto-aging

- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.

- Fanless design ensures quiet operation

- Desktop or wall-mounting design

- Plug and Play design simplifies installation

HARDWARE FEATURES

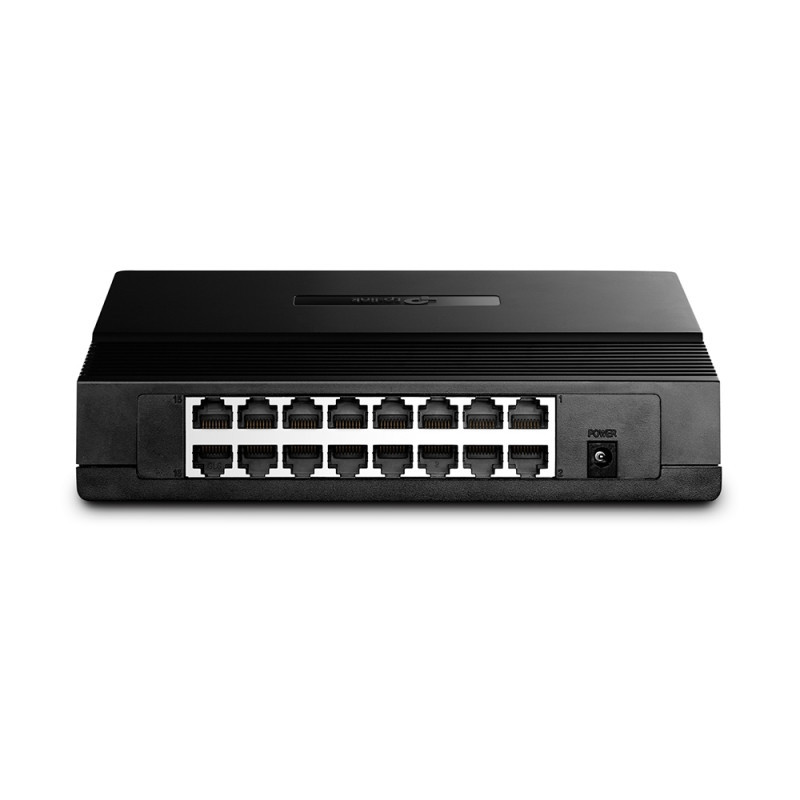

Interface:

1610/100Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Fan Quantity: Fanless

Power Consumption: Maximum: 3.1W (220V/50Hz)

External Power Supply: 100~240VAC, 50/60Hz

Mac Address Table: 1K

Dimensions ( W x D x H ): 7.9*5.6*1.6 in. (200*142*40 mm)

SOFTWARE FEATURES

Transfer Method: Store and Forward

Advanced Functions:

Green Technology, saving power up to 80%

802.3X Flow Control, Back Pressure

OTHERS

Certification: FCC, CE, RoHs

Package Contents:

16-Port 10/10Mbps Desktop Switch TL-SF1016D

Power Adapter

User Guide

System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.

Environment:

Operating Temperature: 0 ~40 (32 ~104 );

Storage Temperature: -40 ~70 (-40 ~158 );

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing
