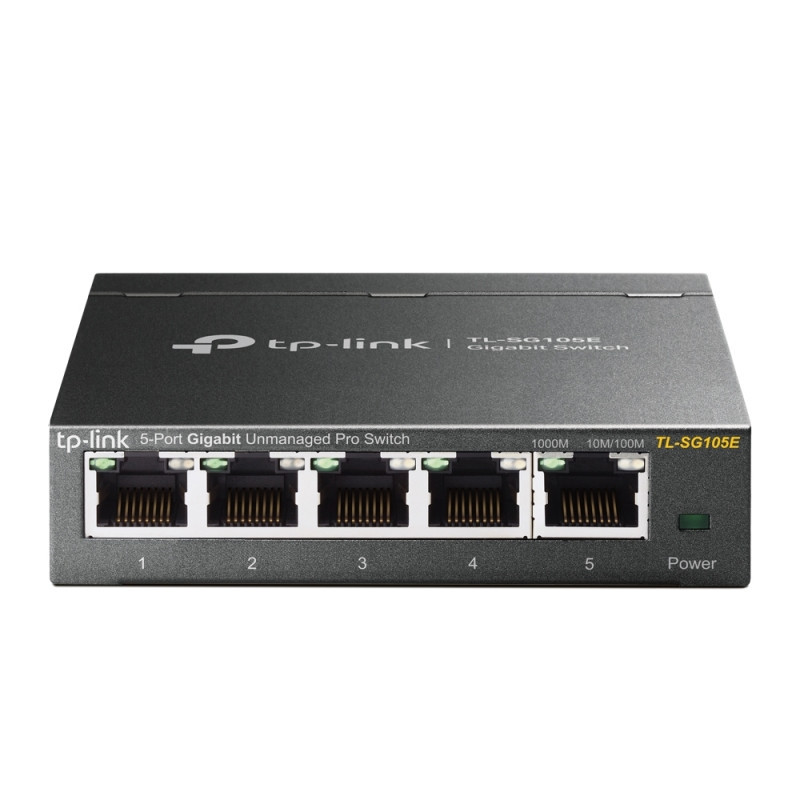

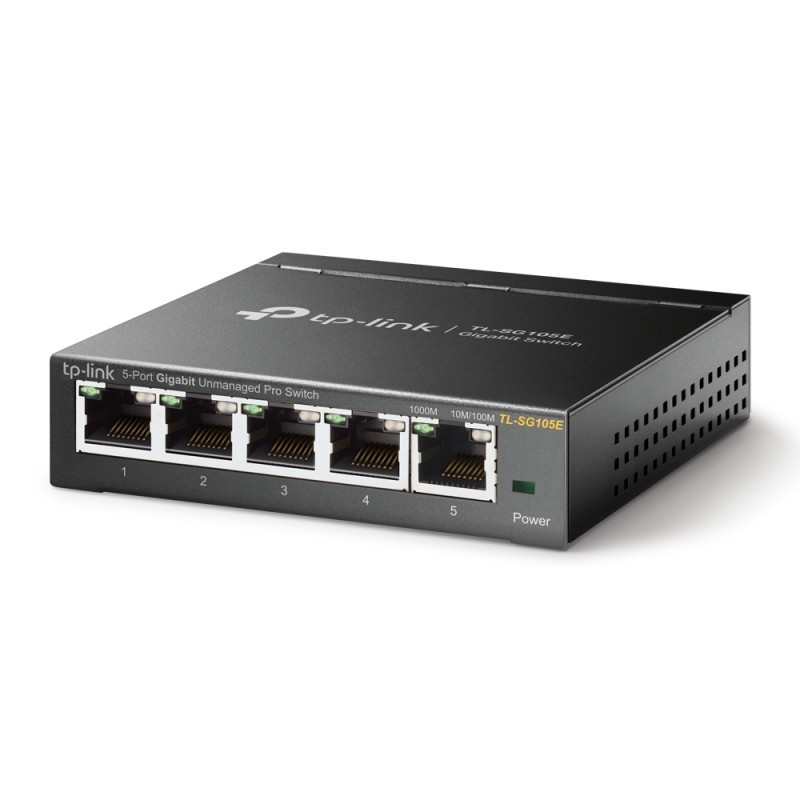

5-Port Gigabit Easy Smart Switch

5 10/100/1000Mbps ports provide instant large file transfers Innovative energy-efficient technology reduces power consumption by up to 57% IEEE 802.3x flow control provides reliable data transfers 15K Jumbo frame improves performance of large data transfers Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics Port-based/802.1p/DSCP QoS2 enable smooth latency-sensitive traffic Abundant VLAN features improve network security via traffic segmentation IGMP Snooping optimizes multicast applications Web-based user interface1 and management utility simplify configuration

HARDWARE FEATURES

Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface: 5 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX

Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity: Fanless

Power Supply: 100-240VAC, 50/60Hz

Power Consumption: Maximum: 2.49W (220V/50Hz)

Dimensions ( W x D x H ): 3.9 * 3.9 *1.0 in. (100 * 98 *25mm)

PERFORMANCE

Packet Forwarding Rate: 7.4Mpps

MAC Address Table: 2K

Packet Buffer Memory: 1.5Mb

Jumbo Frame: 15KB

SOFTWARE FEATURES

Quality of Service: Support Port-based/802.1p/DSCP priority 2 Support 4 priority queues Rate Limit Storm Control

L2 Features: IGMP Snooping V1/V2/V3 Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention

VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN

Transmission Method: Store-And-Forward

OTHERS

Certification: FCC, CE, RoHS

Package Contents: TL-SG105E Power Cord Installation Guide Resource CD Rubber Feet

System Requirements: Microsoft® Windows® for running Utility

Environment: Operating Temperature: 0 ~40 (32 ~104 ) Storage Temperature: -40 ~70 (-40 ~158 ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

1.For V2 and later versions.

2. DSCP QoS is for V2 and later versions.
