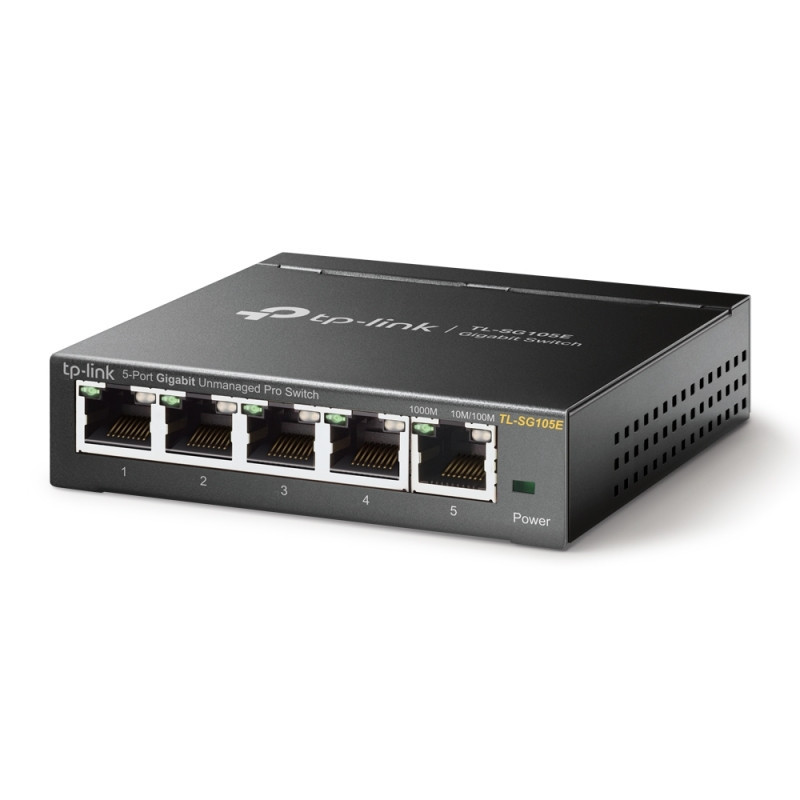

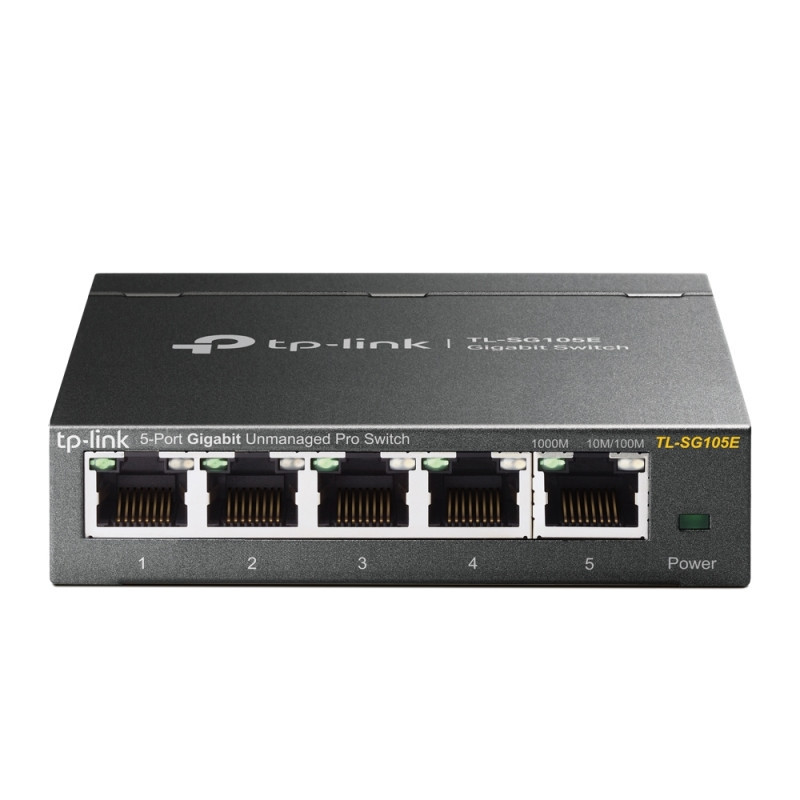

5 prievadų gigabito paprastas išmanusis komutatorius

5 10/100/1000Mbps ports provide instant large file transfers

Innovative energy-efficient technology reduces power consumption by up to 57%

IEEE 802.3x flow control provides reliable data transfers

15K Jumbo frame improves performance of large data transfers

Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics

Port-based/802.1p/DSCP QoS2 enable smooth latency-sensitive traffic

Abundant VLAN features improve network security via traffic segmentation

IGMP Snooping optimizes multicast applications

Web-based user interface1 and management utility simplify configuration

HARDWARE FEATURES

Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface:

5 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Network Media:

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity: Fanless

Power Supply: 100-240VAC, 50/60Hz

Power Consumption: Maximum: 2.49W (220V/50Hz)

Dimensions ( W x D x H ): 3.9 * 3.9 *1.0 in. (100 * 98 *25 mm)

PERFORMANCE

Packet Forwarding Rate: 7.4Mpps

MAC Address Table: 2K

Packet Buffer Memory: 1.5Mb

Jumbo Frame: 15KB

SOFTWARE FEATURES

Quality of Service:

Support Port-based/802.1p/DSCP priority 2

Support 4 priority queues

Rate Limit

Storm Control

L2 Features:

IGMP Snooping V1/V2/V3

Link Aggregation

Port Mirroring

Cable Diagnostics

Loop Prevention

VLAN:

Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

MTU/Port/Tag VLAN

Transmission Method: Store-And-Forward

OTHERS

Certification: FCC, CE, RoHS

Package Contents:

TL-SG105E

Power Cord

Installation Guide

Resource CD

Rubber Feet

System Requirements: Microsoft® Windows® for running Utility

Environment:

Operating Temperature: 0 ~40 (32 ~104 )

Storage Temperature: -40 ~70 (-40 ~158 )

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

1.For V2 and later version.

2.DSCP QoS is for V2 and later version.
