TP-LINK 5-Port 2.5G Desktop Switch with 4-Port PoE++
Product reference: 18-TL-SG105PP-M2

TP-LINK 5-Port 2.5G Desktop Switch with 4-Port PoE++

TP-LINK 5-Port 2.5G Desktop Switch with 4-Port PoE++
TP-LINK 5-Port 2.5G Desktop Switch with 4-Port PoE++
TP-LINK 5-Port 2.5G Desktop Switch with 4-Port PoE++
TP-LINK 5-Port 2.5G Desktop Switch with 4-Port PoE++
TP-LINK 5-Port 2.5G Desktop Switch with 4-Port PoE++
TP-LINK 5-Port 2.5G Desktop Switch with 4-Port PoE++

TP-LINK 5-Port 2.5G Desktop Switch with 4-Port PoE++

Product reference: 18-TL-SG105PP-M2

TP-LINK 5-Port 2.5G Desktop Switch with 4-Port PoE++

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
117,94 €
Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*

  • 5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports

  • With four PoE++ ports, transfers data and power on one single cable

  • Works with IEEE 802.3af/at/bt type3 compliant PDs

  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic

  • Supports PoE Power up to 60 W for each PoE++ port

  • Supports PoE Power up to 123 W for all PoE ports*

  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

  • Plug and Play, no configuration and installation required


*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.


△Numbers after different modes represent the effective ports for that mode.






















































HARDWARE FEATURES
Interface• 5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports • AUTO Negotiation • AUTO MDI/MDIX
Network Media• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan QuantityFanless

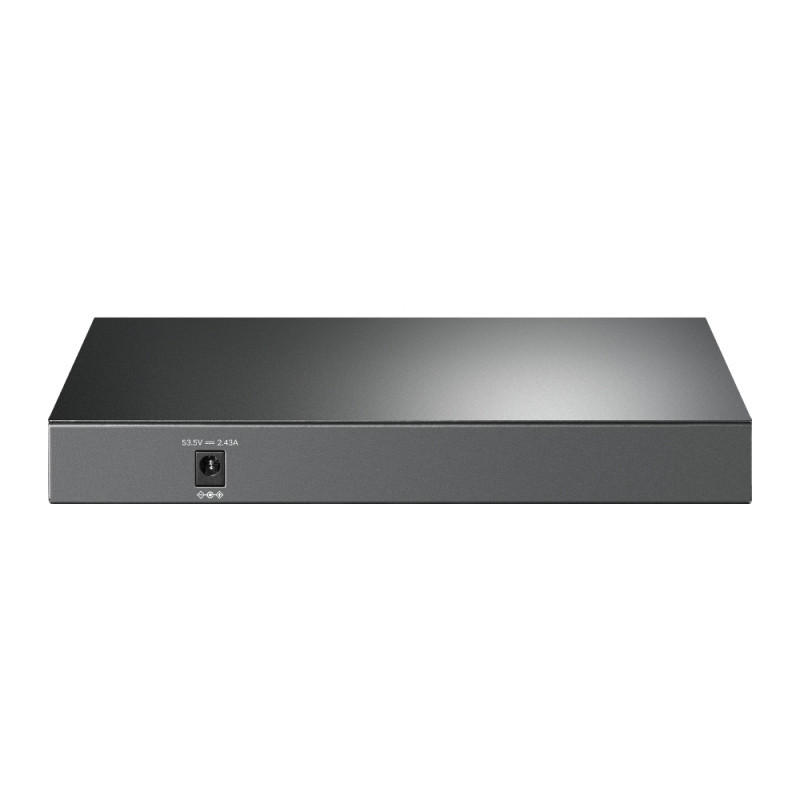

External Power SupplyExternal Power Adapter (Output: 53.5 VDC / 2.43 A)
Packet Forwarding Rate18.6 Mpps
PoE Ports (RJ45)• Standard: 802.3 af/at/bt type3 compliant • PoE++ Ports: Ports 1-4 • Power Supply: 123 W
Mac Address Table4K
Switching Capacity25Gbps
Dimensions (W x D x H)8.2×4.9×1.0 in (209×126×26 mm)
Max Power Consumption• 7.57 W (220/50 Hz. no PD connected) • 143.37 W (220/50 Hz. with 123 W PD connected)
Max Heat Dissipation• 25.81BTU/h (220 V/50 Hz with no PD connected) • 488.89 BTU/h (220 V/50 Hz with 123W PD connected)

















SOFTWARE FEATURES
Advanced Features• Compatible With IEEE 802.3af/at/bt type3 Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • PoE Auto Recovery (Ports 1-4)
Transfer MethodStore-And-Forward





















OTHERS
CertificationFCC, CE, RoHS

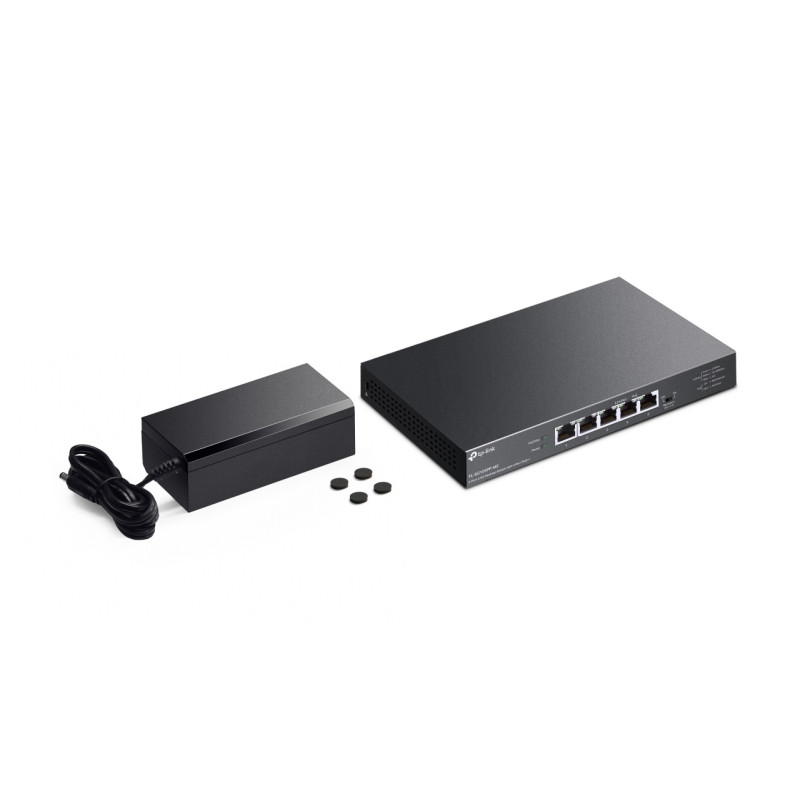

Package Contents• TL-SG105PP-M2 • Power Adapter • Installation Guide • Rubber Feet
Environment• Operating Temperature: 0-40 (32-104 ); • Storage Temperature: -40-70 (-40-158 ) • Operating Humidity: 10-90% RH non-condensing • Storage Humidity: 5-90% RH non-condensing
