TP-LINK 5 prievadų 2.5G stalinis komutatorius su 4 prievadų PoE++
Prekės kodas: 18-TL-SG105PP-M2

TP-Link 5 prievadų 2.5G stalinis komutatorius su 4 prievadų PoE++

TP-LINK 5 prievadų 2.5G stalinis komutatorius su 4 prievadų PoE++

Prekės kodas: 18-TL-SG105PP-M2

TP-Link 5 prievadų 2.5G stalinis komutatorius su 4 prievadų PoE++

Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
  • Įtraukti į patikusias prekes
  • Pridėta į patikusias prekes
  • Pašalinta iš patikusų prekių
Įtraukti į palyginimą
117,94
Prekė sandelyje

Garantija
12 mėn.

Pristatymas iš Lietuvos
per 2 - 4*
d. d.

Jūsų žinutė sėkmingai išsiųsta!
Užpildykite privalomus laukus*

  • 5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports

  • With four PoE++ ports, transfers data and power on one single cable

  • Works with IEEE 802.3af/at/bt type3 compliant PDs

  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic

  • Supports PoE Power up to 60 W for each PoE++ port

  • Supports PoE Power up to 123 W for all PoE ports*

  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

  • Plug and Play, no configuration and installation required


*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.


△Numbers after different modes represent the effective ports for that mode.






















































HARDWARE FEATURES
Interface• 5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports

• AUTO Negotiation

• AUTO MDI/MDIX
Network Media• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)
Fan QuantityFanless

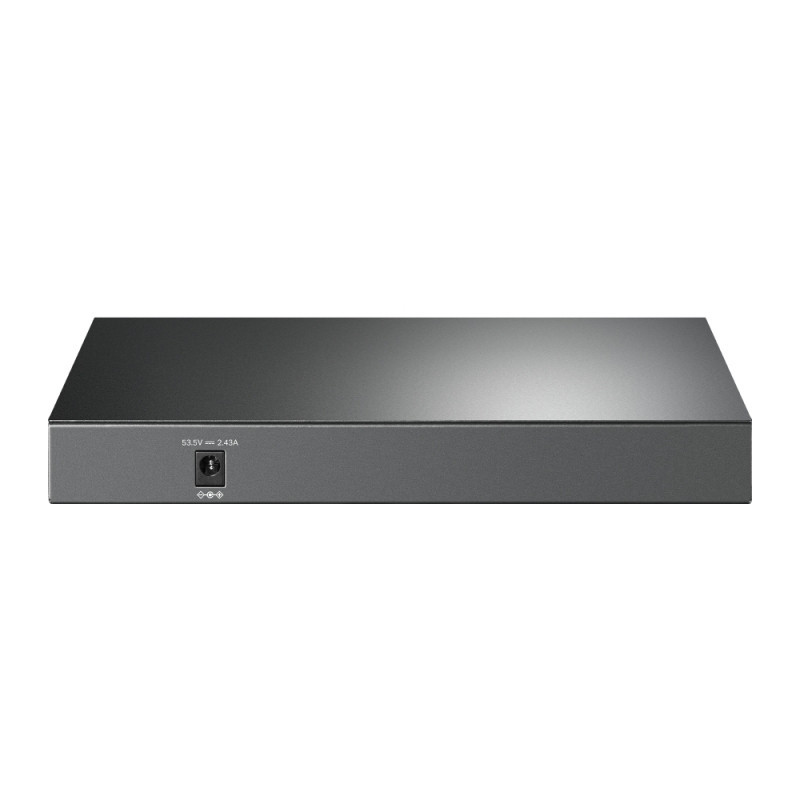

External Power SupplyExternal Power Adapter (Output: 53.5 VDC / 2.43 A)
Packet Forwarding Rate18.6 Mpps
PoE Ports (RJ45)• Standard: 802.3 af/at/bt type3 compliant

• PoE++ Ports: Ports 1-4

• Power Supply: 123 W
Mac Address Table4K
Switching Capacity25 Gbps
Dimensions ( W x D x H )8.2×4.9×1.0 in (209×126×26 mm)
Max Power Consumption• 7.57 W (220/50 Hz. no PD connected)

• 143.37 W (220/50 Hz. with 123 W PD connected)
Max Heat Dissipation• 25.81BTU/h (220 V/50 Hz with no PD connected)

• 488.89 BTU/h (220 V/50 Hz with 123W PD connected)

















SOFTWARE FEATURES
Advanced Features• Compatible With IEEE 802.3af/at/bt type3 Compliant PDs

• Mac Address Auto-Learning And Auto-Aging

• IEEE 802.3x Flow Control

• 802.1p/DSCP QoS

• IGMP Snooping

• PoE Auto Recovery (Ports 1-4)
Transfer MethodStore-And-Forward





















OTHERS
CertificationFCC, CE, RoHS

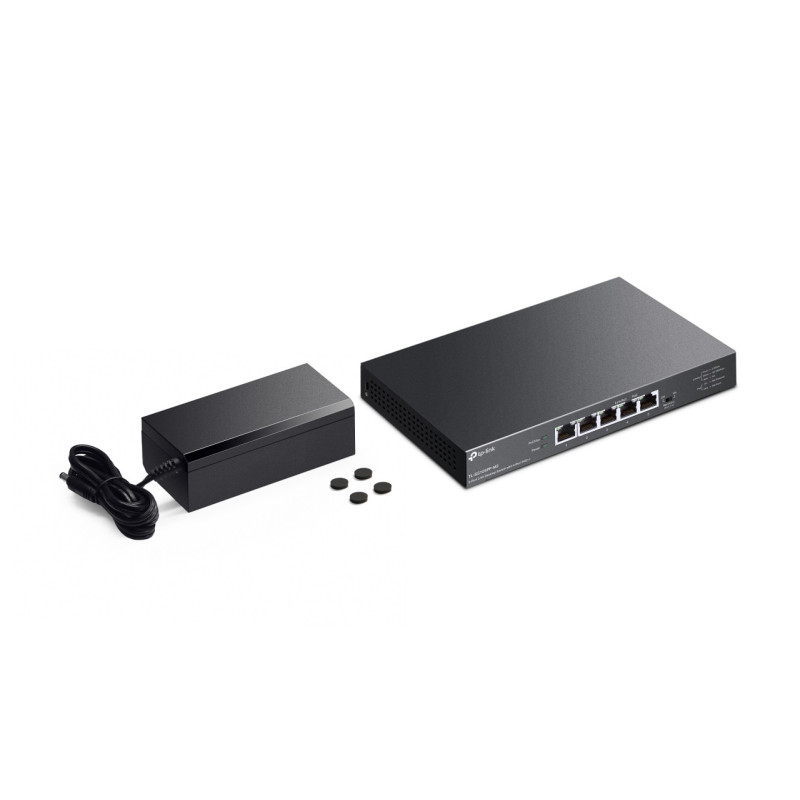

Package Contents• TL-SG105PP-M2

• Power Adapter

• Installation Guide

• Rubber Feet
Environment• Operating Temperature: 0-40 (32-104 );

• Storage Temperature: -40-70 (-40-158 )

• Operating Humidity: 10-90% RH non-condensing

• Storage Humidity: 5-90% RH non-condensing
