TP-LINK 5-Port 10 / 100Mbps Desktop Switch with 4-Port PoE+
Product reference: 18-LS105LP

TP-LINK 5-Port 10/100Mbps Desktop Switch with 4-Port PoE+

TP-LINK 5-Port 10 / 100Mbps Desktop Switch with 4-Port PoE+
TP-LINK 5-Port 10 / 100Mbps Desktop Switch with 4-Port PoE+
TP-LINK 5-Port 10 / 100Mbps Desktop Switch with 4-Port PoE+
TP-LINK 5-Port 10 / 100Mbps Desktop Switch with 4-Port PoE+
TP-LINK 5-Port 10 / 100Mbps Desktop Switch with 4-Port PoE+
TP-LINK 5-Port 10 / 100Mbps Desktop Switch with 4-Port PoE+

TP-LINK 5-Port 10 / 100Mbps Desktop Switch with 4-Port PoE+

Product reference: 18-LS105LP

TP-LINK 5-Port 10/100Mbps Desktop Switch with 4-Port PoE+

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
20,39 €
Product in warehouse

Guarantee
12 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

  • 4× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port*

  • 41W total PoE budget*

  • Up to 250m data and power transmitting range under Extend Mode**

  • Automatically reboots your dropped or unresponsive PoE-powered devices.

  • Simply plug and play for instant connectivity with no configuration required.

  • Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

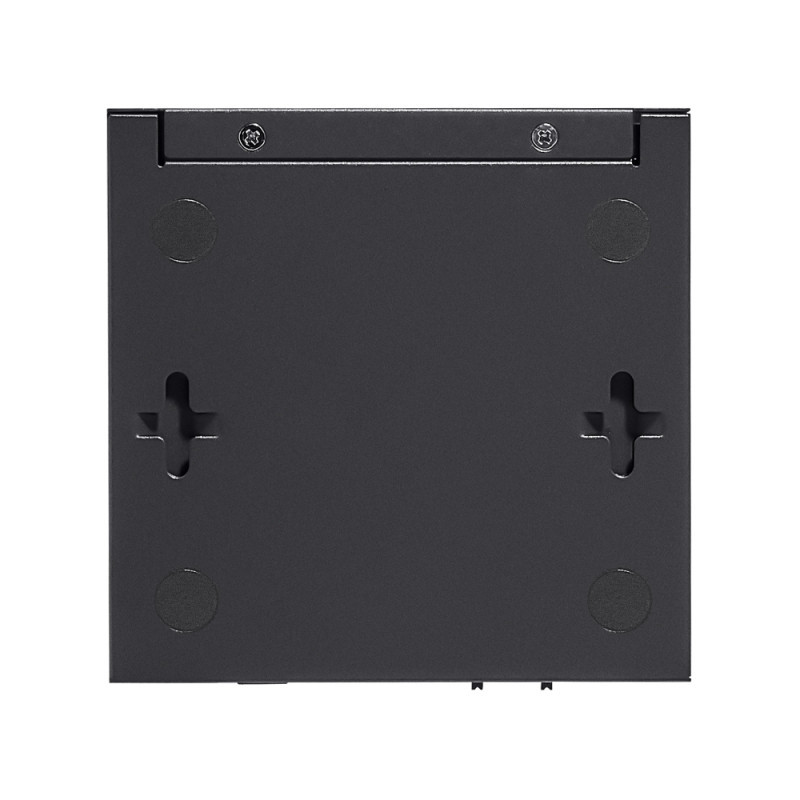

  • Desktop / Wall-mounting


*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.


**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to the power consumption of PoE-powered devices or the cable quality and type.


△Numbers after different modes represent the effective ports for that mode.


HARDWARE FEATURES
Interface • 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af PoE Ports) • AUTO Negotiation • AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Installation • Desktop • Wall Mounting
Power Supply External Power Adapter (Output: 53.5VDC / 0.81A)
PoE Ports (RJ45) • Standard: 802.3 af compliant • PoE Ports: Ports 1-4, up to 15.4 W PoE output per port • Power Supply: 41 W
LED Indicator • Power • Link/Act • PoE Status • PoE MAX
Dimensions (W x D x H) 3.9×3.9×1.0 in (100×98×25 mm)
Max Power Consumption • 2.40 W (220 V/50 Hz no PD connected) • 46.45 W (220 V/50 Hz with 41 W PD connected)
Max Heat Dissipation • 8.15 BTU/h (220 V/50 Hz no PD connected) • 157.93 BTU/h (220 V/50 Hz with 41 W PD connected)

PERFORMANCE
Switching Capacity 1 Gbps
Packet Forwarding Rate 0.744 Mpps
MAC Address Table 2K
Jumbo Frame 2 KB

SOFTWARE FEATURES
Advanced Features • Extend Mode: Ports 1-4 • PoE Auto Recovery: Ports 1-4 • Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning and Auto-Aging • IEEE 802.3x Flow Control • Green Technology
Transfer Method Store and Forward

OTHERS
Certification CE, FCC, RoHS
Package Contents • LS105LP • Power Adapter • Installation Guide
Environment • Operating Temperature: 0-40 (32-104 ) • Storage Temperature: -40-70 (-40-158 ) • Operating Humidity: 10-90% RH non-condensing • Storage Humidity: 5-90% RH non-condensing
