TP-LINK 5 prievadų 10 / 100 Mbps stalinis komutatorius su 4 prievadų PoE+
Prekės kodas:
18-LS105LP
TP-LINK 5 prievadų 10/100Mbps stalinis komutatorius su 4 prievadų PoE+
TP-LINK 5 prievadų 10 / 100 Mbps stalinis komutatorius su 4 prievadų PoE+
Prekės kodas:
18-LS105LP
TP-LINK 5 prievadų 10/100Mbps stalinis komutatorius su 4 prievadų PoE+
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
- Įtraukti į patikusias prekes
- Pridėta į patikusias prekes
- Pašalinta iš patikusų prekių
Garantija
12 mėn.
Pristatymas iš Lietuvos
per 2 - 4*
d. d.
Netaikoma
- 4× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port*
- 41 W total PoE budget*
- Up to 250m data and power transmitting range under Extend Mode**
- Automatically reboots your dropped or unresponsive PoE-powered devices.
- Simply plug and play for instant connectivity with no configuration required.
- Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

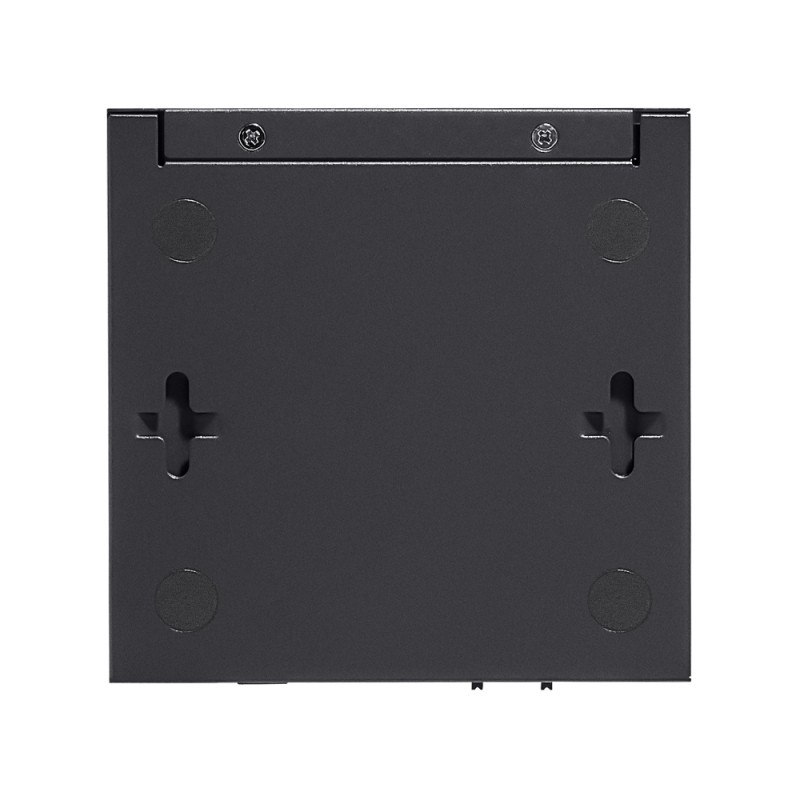

- Desktop / Wall-mounting
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to the power consumption of PoE-powered devices or the cable quality and type.
△Numbers after different modes represent the effective ports for that mode.
| HARDWARE FEATURES | |
|---|---|
| Interface | • 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af PoE Ports) • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Installation | • Desktop • Wall Mounting |

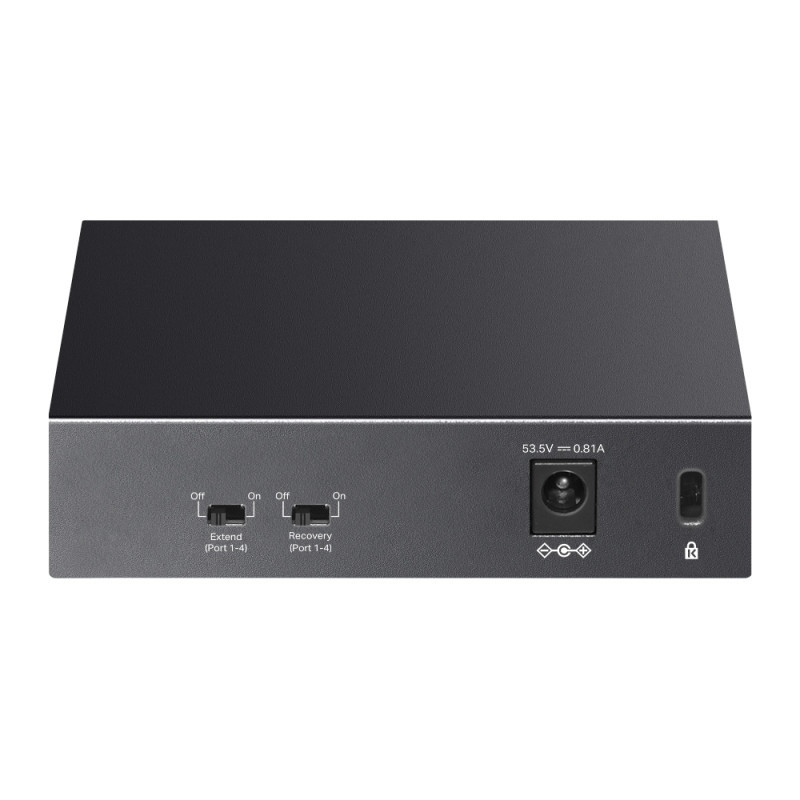

| Power Supply | External Power Adapter (Output: 53.5VDC / 0.81A) |
| PoE Ports (RJ45) | • Standard: 802.3 af compliant • PoE Ports: Ports 1-4, up to 15.4 W PoE output per port • Power Supply: 41 W |
| LED Indicator | • Power • Link/Act • PoE Status • PoE MAX |
| Dimensions ( W x D x H ) | 3.9×3.9×1.0 in (100×98×25 mm) |
| Max Power Consumption | • 2.40 W (220 V/50 Hz no PD connected) • 46.45 W (220 V/50 Hz with 41 W PD connected) |
| Max Heat Dissipation | • 8.15 BTU/h (220 V/50 Hz no PD connected) • 157.93 BTU/h (220 V/50 Hz with 41 W PD connected) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 1 Gbps |
| Packet Forwarding Rate | 0.744 Mpps |
| MAC Address Table | 2K |
| Jumbo Frame | 2 KB |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | • Extend Mode: Ports 1-4 • PoE Auto Recovery: Ports 1-4 • Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning and Auto-Aging • IEEE 802.3x Flow Control • Green Technology |
| Transfer Method | Store and Forward |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • LS105LP • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0-40 (32-104 ) • Storage Temperature: -40-70 (-40-158 ) • Operating Humidity: 10-90% RH non-condensing • Storage Humidity: 5-90% RH non-condensing |
