Switch, TELTONIKA, TSW202000000, Type L2, PoE+ ports 8, 240 Watts, TSW202
Product reference: 2-4779051840281

Switch, TELTONIKA, TSW202000000, Type L2, PoE+ ports 8, 240 Watts, TSW202

Product reference: 2-4779051840281
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
136,77
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

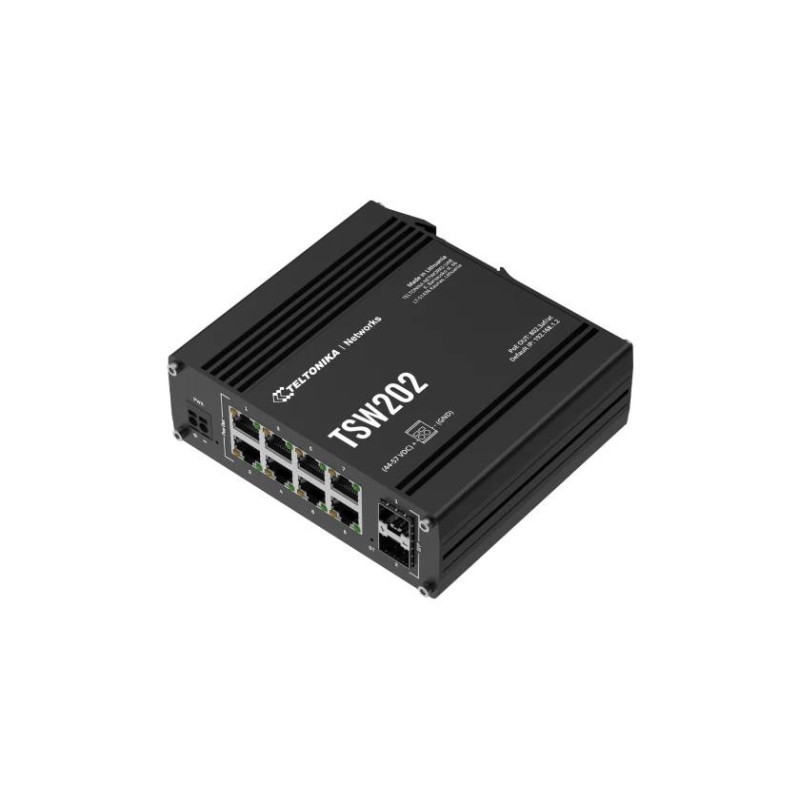

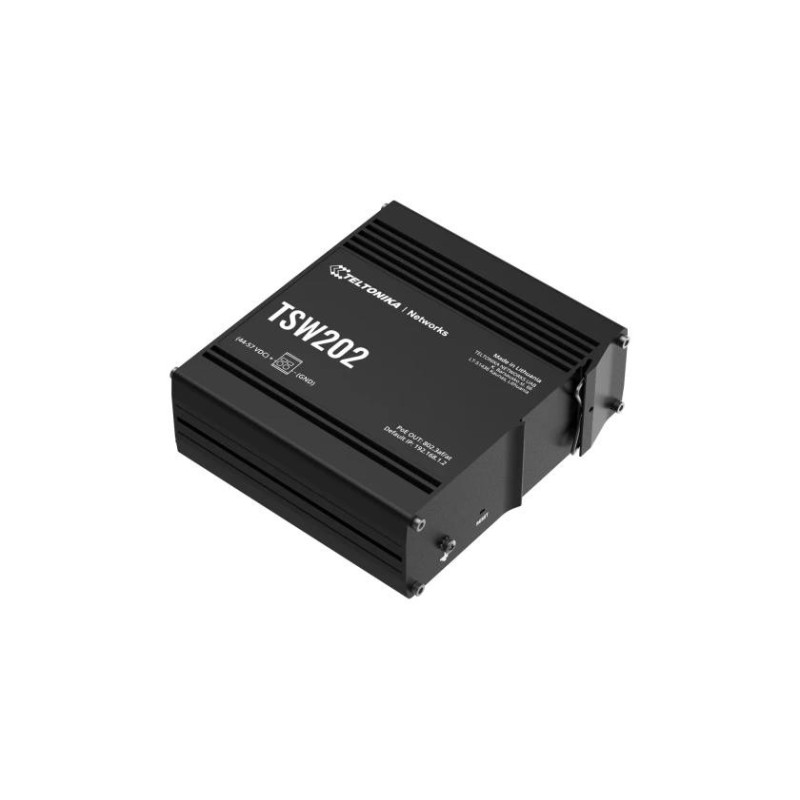

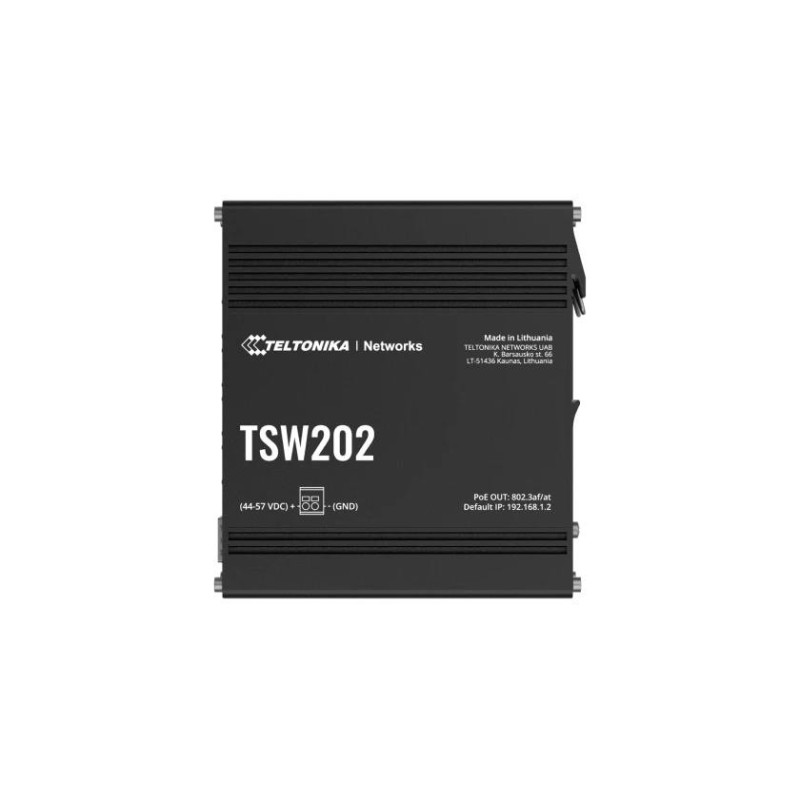

TSW202 is the first-ever managed industrial switch from Teltonika Networks, giving you greater control over how data flows through your network and the role its ports perform in your solution. Define their settings, routing, port mirroring, and more with simplicity and ease.

PoE+ with 30 W max power per port and 240 W total PSE makes the TSW202 centralize your power supply. PoE Management gives you more control over the power distribution of your solution, letting you turn PoE on or off on selected ports.

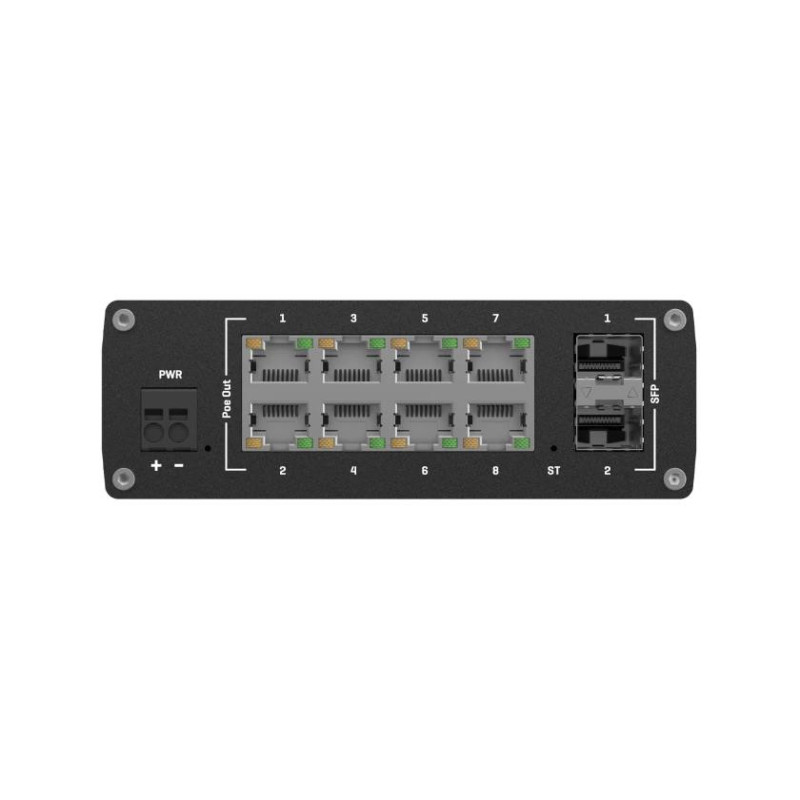

The switch is equipped with 8 Gigabit Ethernet VLAN ports, allowing for management, configuration, and monitoring of your network. Additional software features like QoS enhance effective bandwidth management and network traffic classifying and prioritizing.

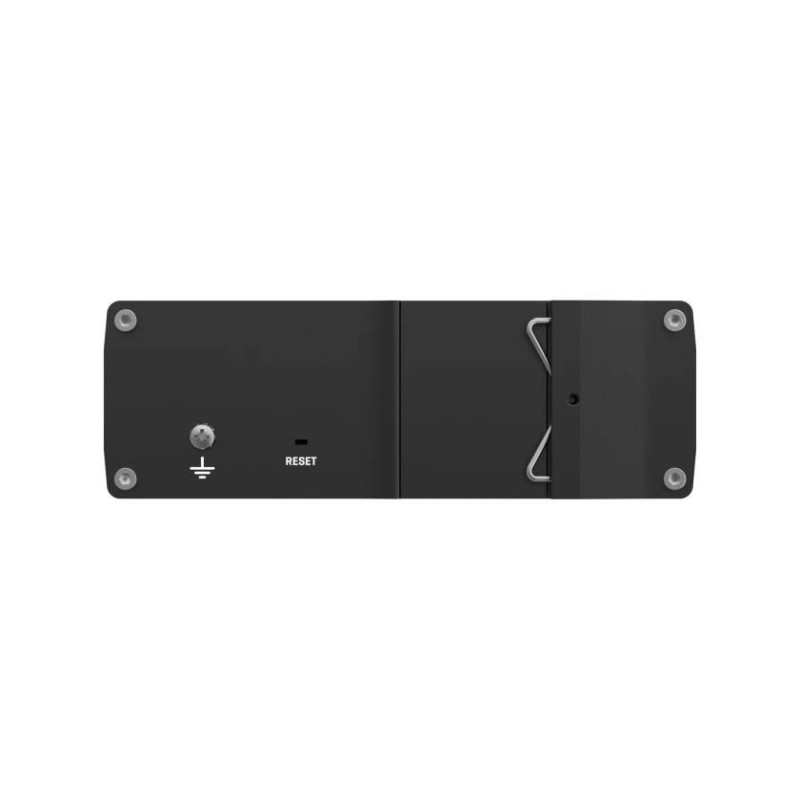

Designed for industrial environments, the TSW202 features an integrated DIN rail bracket, rugged aluminum housing, and extreme temperature and vibration resistance for maximum durability with ease of installation.

  • MANAGED SWITCH
  • PoE+
  • SFP
  • GIGABIT ETHERNET

10G support No
Active link detection Yes
Auto-negotiation Yes
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Depth 44.2 mm
DHCP features DHCP client
DIN rail mounting Yes
Full duplex Yes
Gigabit Ethernet (copper) ports quantity 8
Height 122 mm
Housing material Aluminium
IGMP snooping Yes
Installed SFP modules quantity 2
International Protection (IP) code IP30
Jumbo frames 10000
Jumbo frames support Yes
LED indicators Power/Status
Link aggregation Yes
MAC address table 8000 entries
Model TSW202
Model name TSW202000000
Networking standards IEEE 802.1p/IEEE 802.3af/IEEE 802.3at/IEEE 802.3z
Operating temperature (T-T) -40 - 75 °C
Port mirroring Yes
Power connector Terminal block (3-pin)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 8
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet (PoE) type supported Active PoE
Power supply included No
Product colour Aluminium/Blue
Quality of Service (QoS) support Yes
Rack mounting No
Reset button Yes
Stackable No
Summary Teltonika TSW202. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 2. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z. Power connector: Terminal block (3-pin). Power over Ethernet (PoE)
Switch layer L2
Switch type Managed
Switching capacity 20 Gbit/s
Total Power over Ethernet (PoE) budget 240 W
Unit Box Height 0.135
Unit Box Length 0.135
Unit Box Width 0.05
Unit Calculated Volume 0.0009112 cubm
Unit Calculated Weight 0.64 kg
Units per Shipping Box 1
Vendor Homepage teltonika-networks.com/products/ethernet-switches/tsw202
VLAN support Yes
Web-based management Yes
Weight 610 g
Width 132 mm
