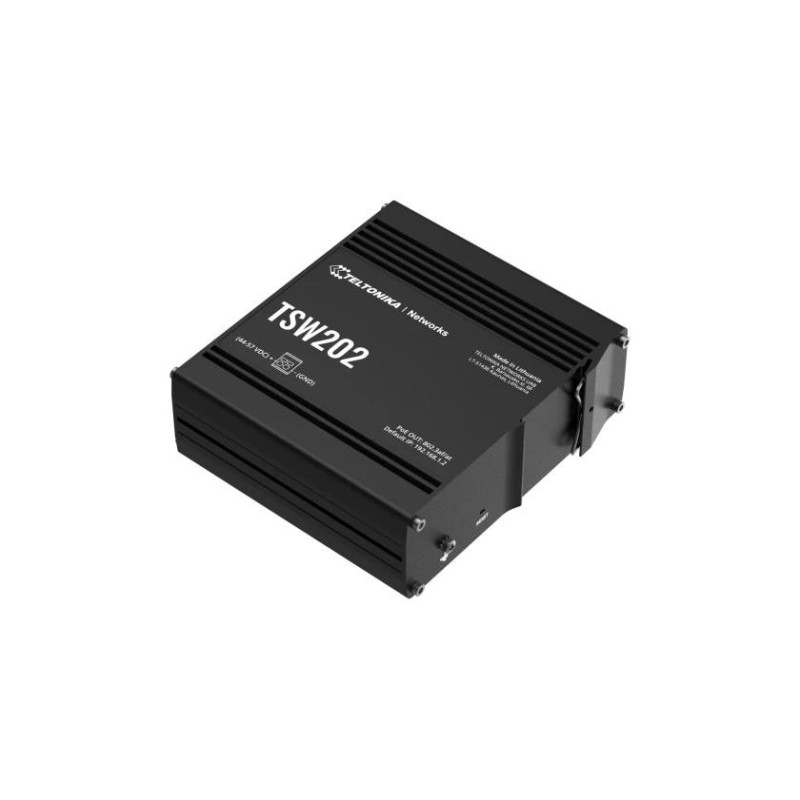

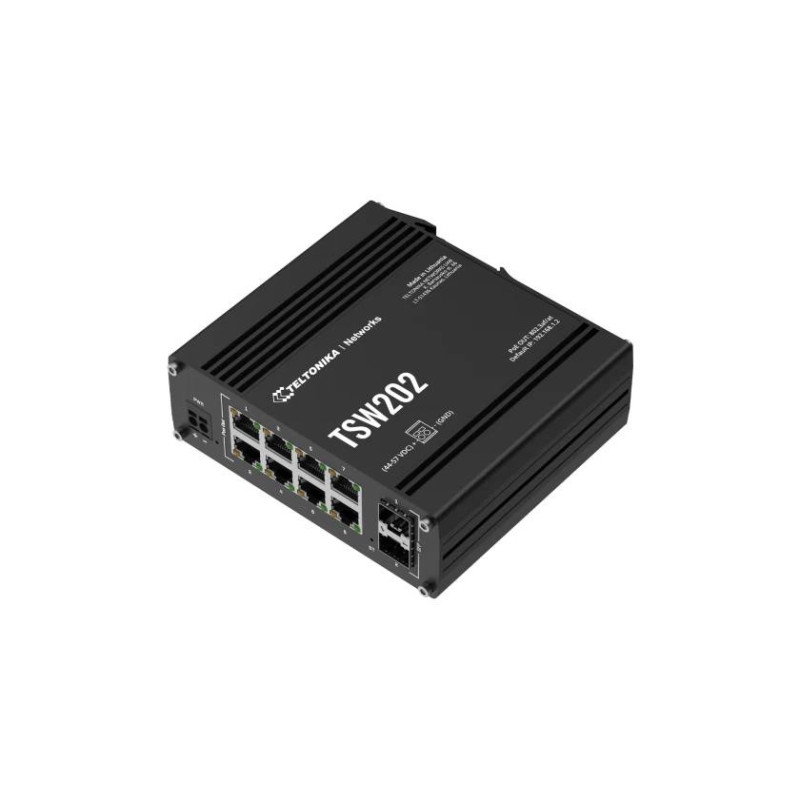

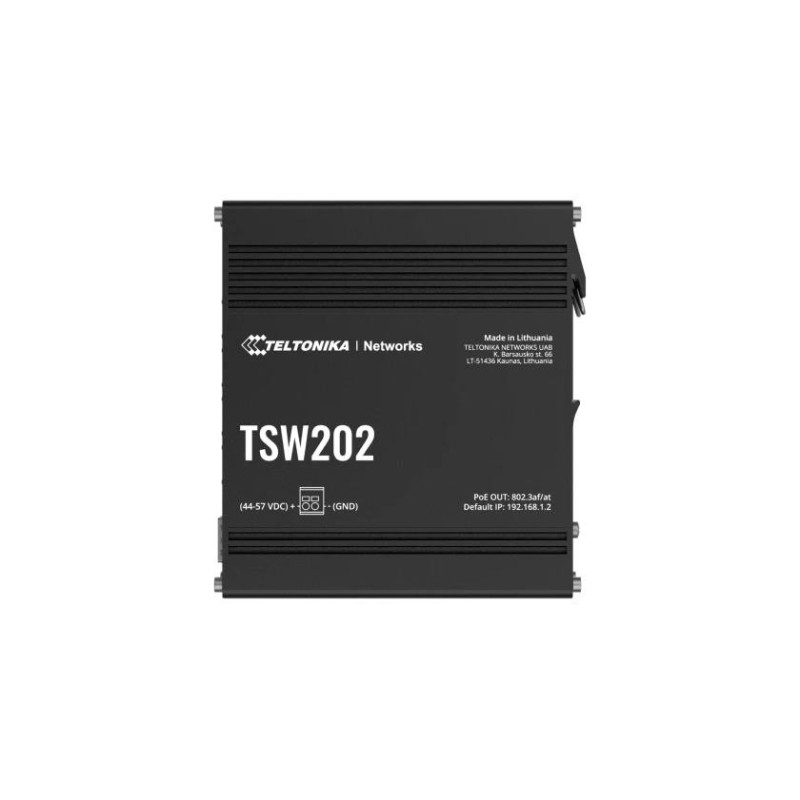

TSW202 is the first-ever managed industrial switch from Teltonika Networks, giving you greater control over how data flows through your network and the role its ports perform in your solution. Define their settings, routing, port mirroring, and more with simplicity and ease.
PoE+ with 30 W max power per port and 240 W total PSE makes the TSW202 centralize your power supply. PoE Management gives you more control over the power distribution of your solution, letting you turn PoE on or off on selected ports.

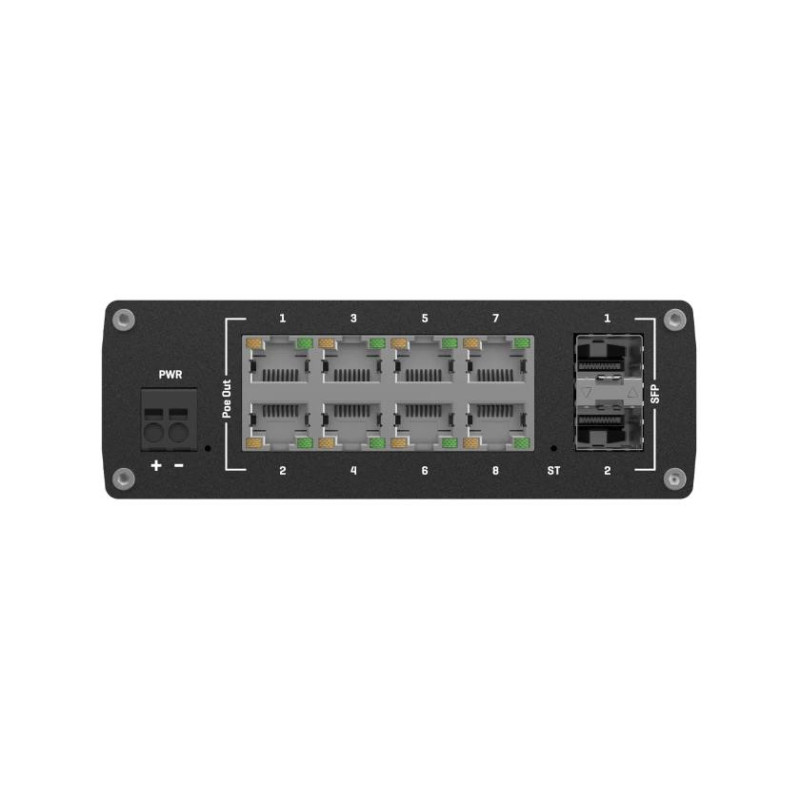

The switch is equipped with 8 Gigabit Ethernet VLAN ports, allowing for management, configuration, and monitoring of your network. Additional software features like QoS enhance effective bandwidth management and network traffic classifying and prioritizing.

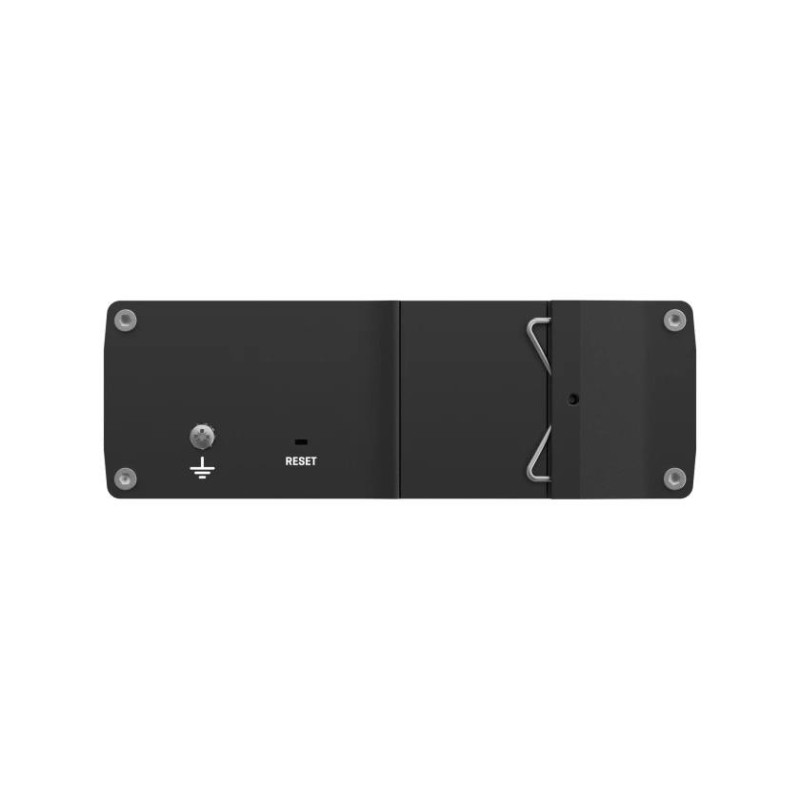

Designed for industrial environments, the TSW202 features an integrated DIN rail bracket, rugged aluminum housing, and extreme temperature and vibration resistance for maximum durability with ease of installation.
| 10G support | No |
| Active link detection | Yes |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Depth | 44.2 mm |
| DHCP features | DHCP client |
| DIN rail mounting | Yes |
| Full duplex | Yes |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Height | 122 mm |
| Housing material | Aluminium |
| IGMP snooping | Yes |
| Installed SFP modules quantity | 2 |
| International Protection (IP) code | IP30 |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| LED indicators | Power/Status |
| Link aggregation | Yes |
| MAC address table | 8000 entries |
| Model | TSW202 |
| Model name | TSW202000000 |
| Networking standards | IEEE 802.1p/IEEE 802.3af/IEEE 802.3at/IEEE 802.3z |
| Operating temperature (T-T) | -40 - 75 °C |
| Port mirroring | Yes |
| Power connector | Terminal block (3-pin) |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) type supported | Active PoE |
| Power supply included | No |
| Product colour | Aluminium/Blue |
| Quality of Service (QoS) support | Yes |
| Rack mounting | No |
| Reset button | Yes |
| Stackable | No |
| Summary | Teltonika TSW202. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 2. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z. Power connector: Terminal block (3-pin). Power over Ethernet (PoE) |
| Switch layer | L2 |
| Switch type | Managed |
| Switching capacity | 20 Gbit/s |
| Total Power over Ethernet (PoE) budget | 240 W |
| Unit Box Height | 0.135 |
| Unit Box Length | 0.135 |
| Unit Box Width | 0.05 |
| Unit Calculated Volume | 0.0009112 cubm |
| Unit Calculated Weight | 0.64 kg |
| Units per Shipping Box | 1 |
| Vendor Homepage | teltonika-networks.com/products/ethernet-switches/tsw202 |
| VLAN support | Yes |
| Web-based management | Yes |
| Weight | 610 g |
| Width | 132 mm |
