Switch, DAHUA, S3228-24GT-375, Switch type Unmanaged, Switch layer L2, Rack mounting Yes, 26xRJ-45 ports, RJ-45 Ports Ty
Product reference: 2-6923172531018

Switch, DAHUA, S3228-24GT-375, Switch type Unmanaged, Switch layer L2, Rack mounting Yes, 26xRJ-45 ports, RJ-45 Ports Ty

Product reference: 2-6923172531018
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
251,85 €
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

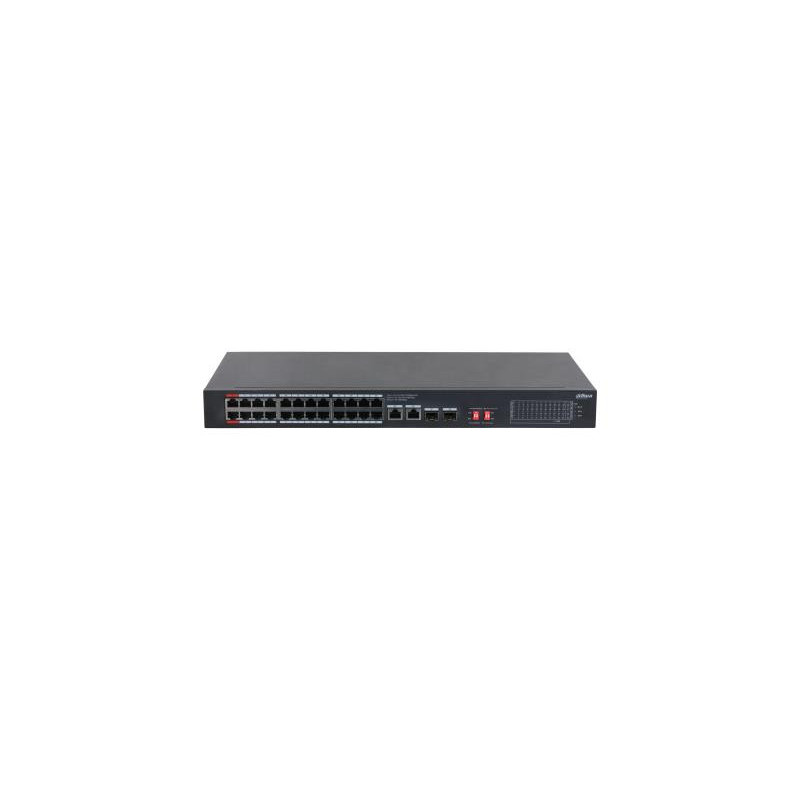

The PoE Switch is an unmanaged switch equipped with a high-performance switching engine and large cache, ensuring smooth transmission of video streams. It features four DIP switches and supports PoE Watchdog, long-distance PoE, VIP port, and port isolation functions. The red port supports IEEE 802.3bt and Hi-PoE standards and can deliver up to 90 W. The device operates reliably within a temperature range of −10 °C to 55 °C and provides EMC compliance along with protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses, and other types of interference.

BT 90W (Red Port)
The red ports support IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, and Hi-PoE standards with a maximum output power of up to 90 W per port, making them suitable for powering high-consumption devices.

Long Distance PoE
Each PoE port supports transmission distances of up to 250 m, meeting long-range wired transmission requirements, with bandwidth adjusted to 10 Mbps for extended reach.

PoE Watchdog
This innovative feature automatically detects port status and restarts failed ports when a connection exception occurs, enabling intelligent operation and maintenance while significantly reducing manual servicing costs.

Port Isolation
Devices connected to different ports are prevented from communicating with each other without the need for VLAN configuration. This protects data from leakage through PoE ports and isolates broadcast storms, ensuring a safer and more stable network environment.

Application Scenarios
Suitable for deployment in houses, factories, offices, and similar environments.

  • 24 × RJ-45 10/100/1000 Mbps (PoE) ports, 2 × RJ-45 10/100/1000 Mbps (uplink) ports and 2 × SFP 1000 Mbps (uplink) ports
  • Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards
  • PoE watchdog real-time monitors camera statues and automatically reboots faulty network cameras
  • Up to 250 m transmission distance
  • Supports VIP ports, prioritizing transmission for port1 to port8

AC įėjimo dažnis 50/60 Hz
AC įėjimo įtampa 100 - 240 V
Adreso lentelės dydis 8000 įrašai
Aukštis 44 mm
Bendrosios galios per Eternetą (PoE) charakteriskos 360 W
Bruto svoris 3.5 kg
Darbo santykinės drėgmės diapazonas 10 - 90 %
Darbo temperatūros diapazonas (TT) -10 - 55 °C
Eterneto LAN duomenų perdavimo norma 10,100,1000 Mbit/ai
Galios suvartojimas (maks.) 400 W
Ilgis 220 mm
Jumbo Frames palaikymas Taip
Korpuso medžiaga Plienas
Maitinimas per Eternetą (PoE) Taip
Maitinimo per Eternetą (PoE) prievadų skaičius 24
Maitinimo šaltinis AC
Model name S3228-24GT-375
Optinių perjungimo blokų tipas Gigabitinis eternetas
Pagrindinių perjungimo RJ-45 eterneto prievadų skaičius 26
Pagrindinių perjungimo RJ-45 eterneto prievadų tipas Gigabit Ethernet (10/100/1000)
Paketo buferio atmintis 4 MB
Paketo svoris 3260 g
Pakuotės aukštis 90 mm
Pakuotės gylis 342 mm
Pakuotės plotis 540 mm
Perjungimo pajėgumas 52 Gbit/s
Perjungimo sluoksnis L2
Perjungimo tipas Ne-valdomas
Persiuntimo dažnis 41.66 Mpps
Plotis 440 mm
Pridėtas maitinimo šaltinis Taip
Produkto spalva Juoda
Sandėliavimo santykinis drėgmės diapazonas 5 - 95 %
Sandėliavimo temperatūros norma (T-T) -40 - 75 °C
Shipping Box Depth 54 cm
Shipping Box Height 34.5 cm
Shipping Box Weight 3.5 kg
Shipping Box Width 10 cm
Stovo montavimas Taip
Summary Dahua Technology PoE S3228-24GT-375. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 26. Switching optical modules type: Gigabit Ethernet. Installed SFP modules quantity: 2. MAC address table: 8000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE). Rack mounting
Svoris 2660 g
Tinklo standartai IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Unit Box Height 0.345
Unit Box Length 0.54
Unit Box Width 0.1
Unit Brutto Volume 0.01863 cubm
Vendor Homepage https://transmission.dahuasecurity.com/en/product-list/Business/Switches/PoESwitchForSecurity/S3228-24GT-375
Vieneto aukštis 34.5 cm
Vieneto gylis 54 cm
Vieneto plotis 10 cm
Vienetų skaičius vienoje siuntimo dėžėje 1
Įdiegtų SFP modulių kiekis 2
Įvesties srovė 7 A
"Jumbo" kadrai 15
