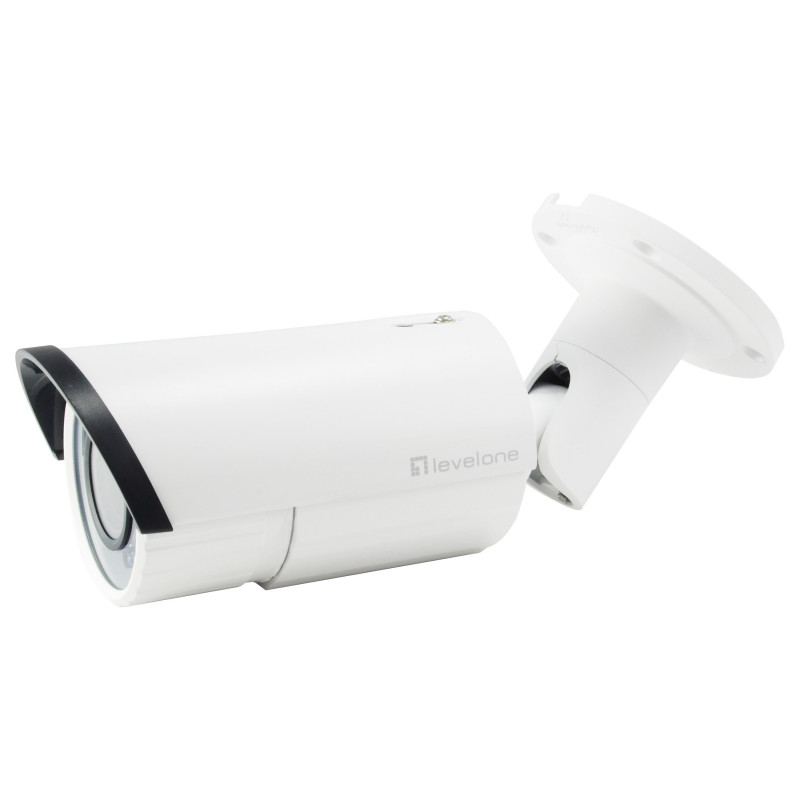

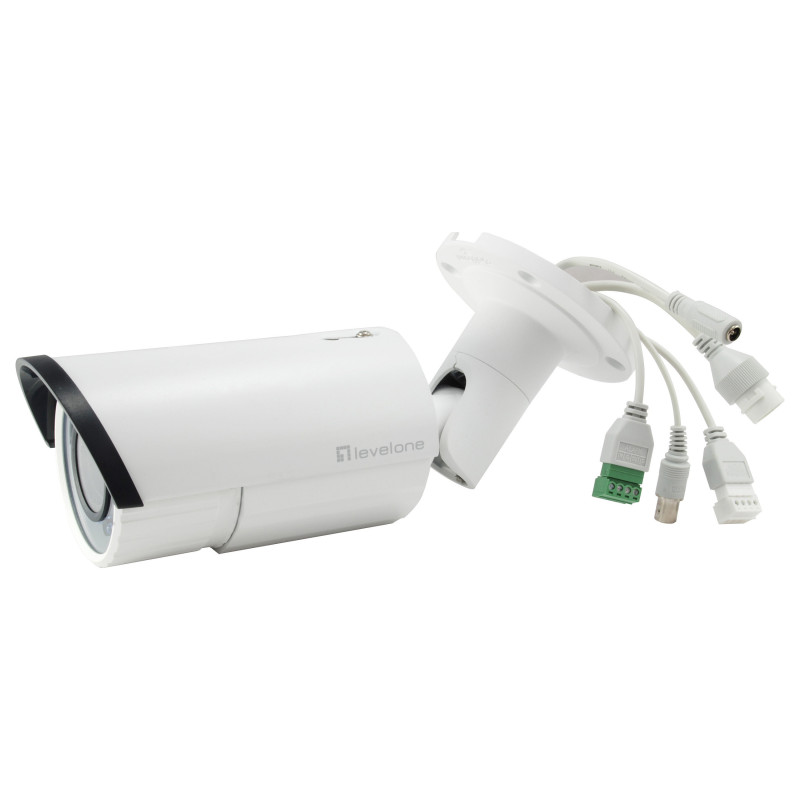

LevelOne FCS-5060 security camera

LevelOne GEMINI Zoom IP Network Camera, 2-Megapixel, two-way audio, 4X Optical Zoom, 802.3af PoE, Indoor/Outdoor. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Field of view (FOV) angle: 106°, Camera shutter speed: 1/3 - 1/10000 s. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 4x, Focal length range: 2.8 - 12 mm, Focus: Motorized
The LevelOne FCS-5060 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP66 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 2-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-5060 should be an essential part of any security deployment that requires smart, reliable outdoor cameras.

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Infrared (IR) cut-off filter: Yes
Certification: CE,FCC

Design

Form factor: Bullet

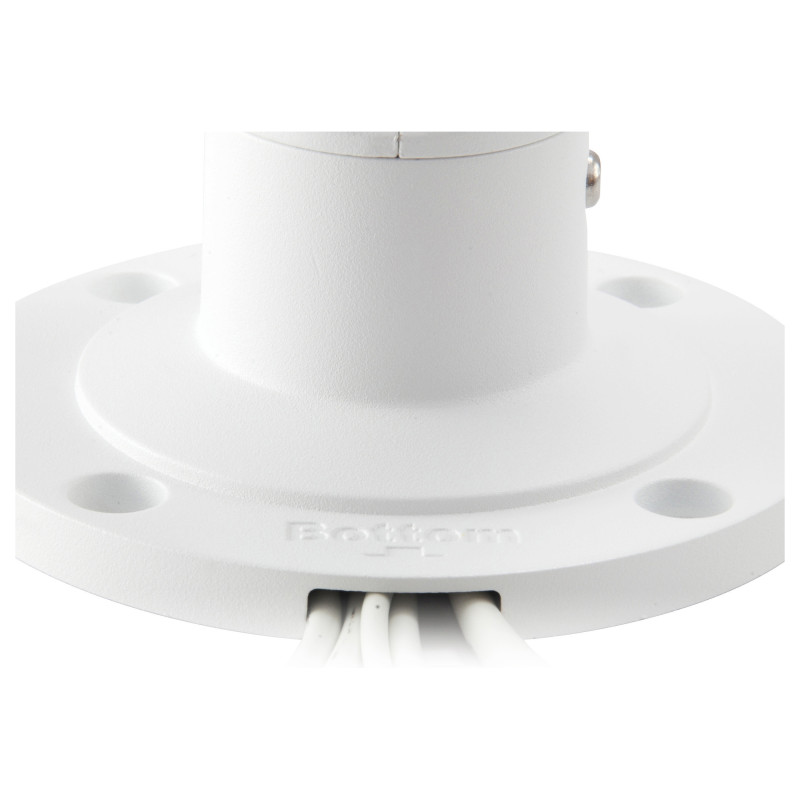

Mounting type: Ceiling/wall
Product colour: White
International Protection (IP) code: IP66
Country of origin: China

Camera

Minimum illumination: 0 lx
Field of view (FOV) angle: 106°
Camera shutter speed: 1/3 - 1/10000 s

Image sensor

Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Zoom capability: Yes
Optical zoom: 4x
Number of lenses: 1
Focal length range: 2.8 - 12 mm
Focus: Motorized
Focus adjustment: 1.4

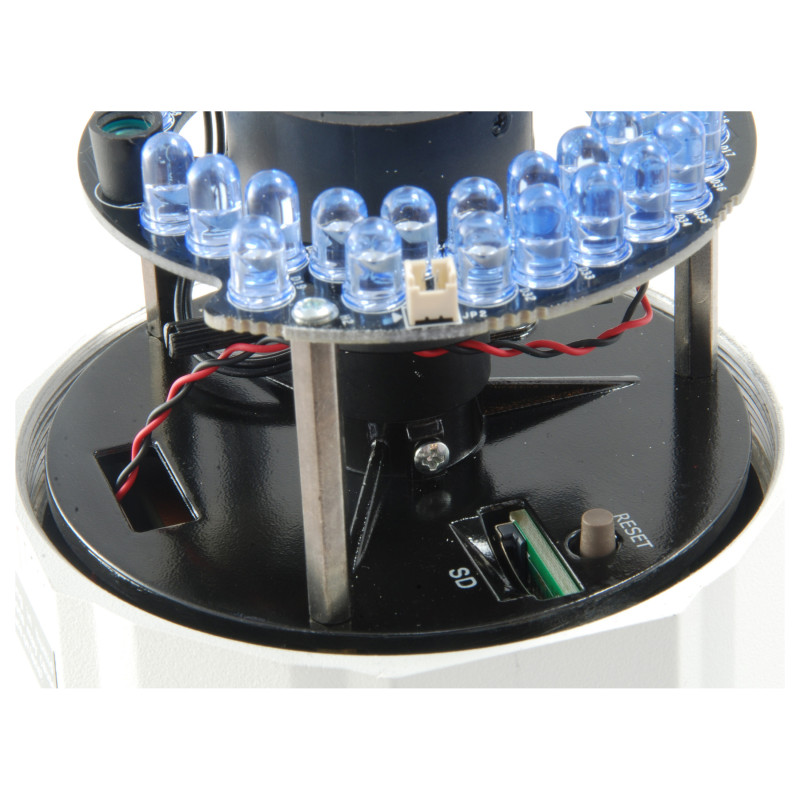

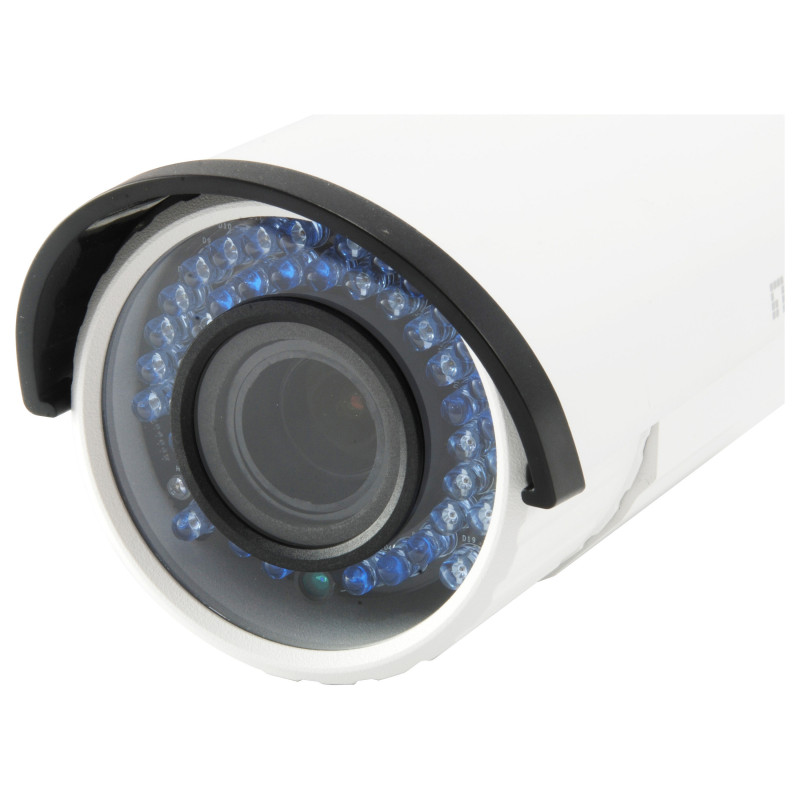

Night vision

Night vision: Yes
Night vision distance: 30 m
LED type: IR

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video formats supported: MP4
Video compression formats: H.264, H.264+, M-JPEG
Supported graphics resolutions: 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate: 30 fps
Video streaming: Yes
Noise reduction: Yes
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Flip mirror: Yes
Portrait mode: Yes
Privacy masking: Yes
Time stamp overlay: Yes
Text caption overlay: Yes
Back Light Compensation (BLC): Yes

Audio

Voice codecs: G.711, G.722.1, G.726

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Supported network protocols: IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS,Unicast
Wi-Fi: No
Bluetooth: No
Number of users: 20 user(s)
Streaming method: Multicast

Storage

Card reader integrated: Yes
Compatible memory cards: SD, SDHC, SDXC
Maximum memory card size: 128 GB

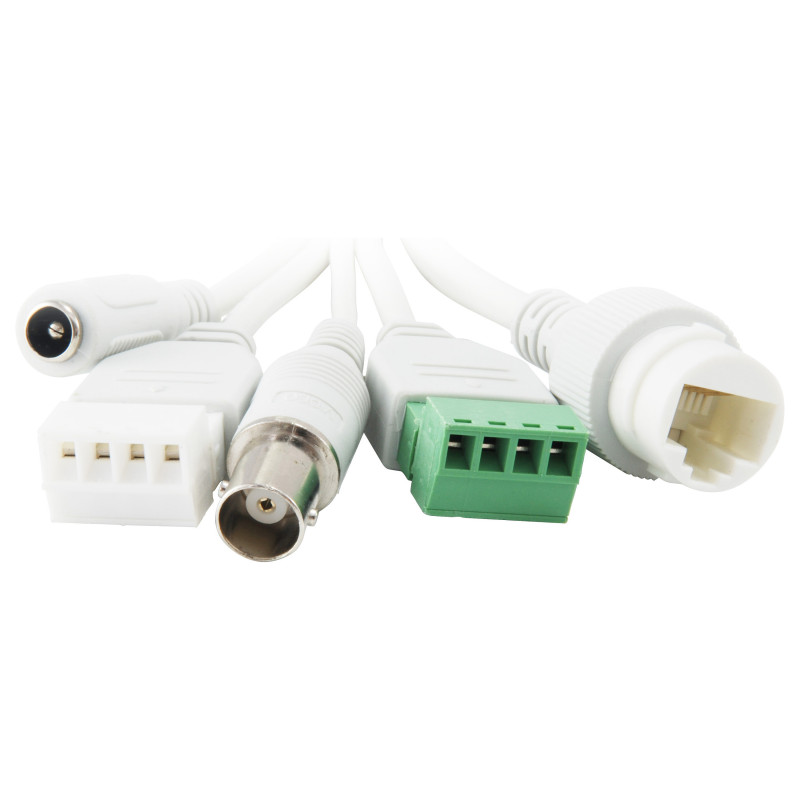

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
Composite video out: 1
Terminal block port: Yes

Security

Video motion detection: Yes

Management features

Reset button: Yes
Cable management: Yes

Power

Power source type: PoE
Power consumption (typical): 5.5 W
Power consumption (max): 7.5 W
DC output voltage: 12
Power over Ethernet (PoE): Yes

Operational conditions

Operating temperature (T-T): 30 - 60 °C
Operating relative humidity (H-H): 0 - 95%

System requirements

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64

Weight dimensions

Width: 105 mm
Depth: 258.6 mm
Height: 95 mm
Weight: 1.2 kg

Packaging data

Package width: 386 mm
Package depth: 156 mm
Package height: 155 mm
Package weight: 1.33 kg
Package type: Box

Packaging content

Number of cameras: 1
Resource CD: Yes

Technical details

Iris: Yes

Logistics data

Harmonized System (HS) code: 85258900
Master (outer) case width: 490 mm
Master (outer) case length: 400 mm
Master (outer) case height: 500 mm
Master (outer) case gross weight: 11.9 kg
Products per master (outer) case: 9 pc(s)
