„LevelOne FCS-5060“ apsaugos kamera

LevelOne GEMINI Zoom IP Network Camera, 2-Megapixel, two-way audio, 4X Optical Zoom, 802.3af PoE, Indoor/Outdoor. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Field of view (FOV) angle: 106°, Camera shutter speed: 1/3 - 1/10000 s. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 4x, Focal length range: 2.8 - 12 mm, Focus: Motorized

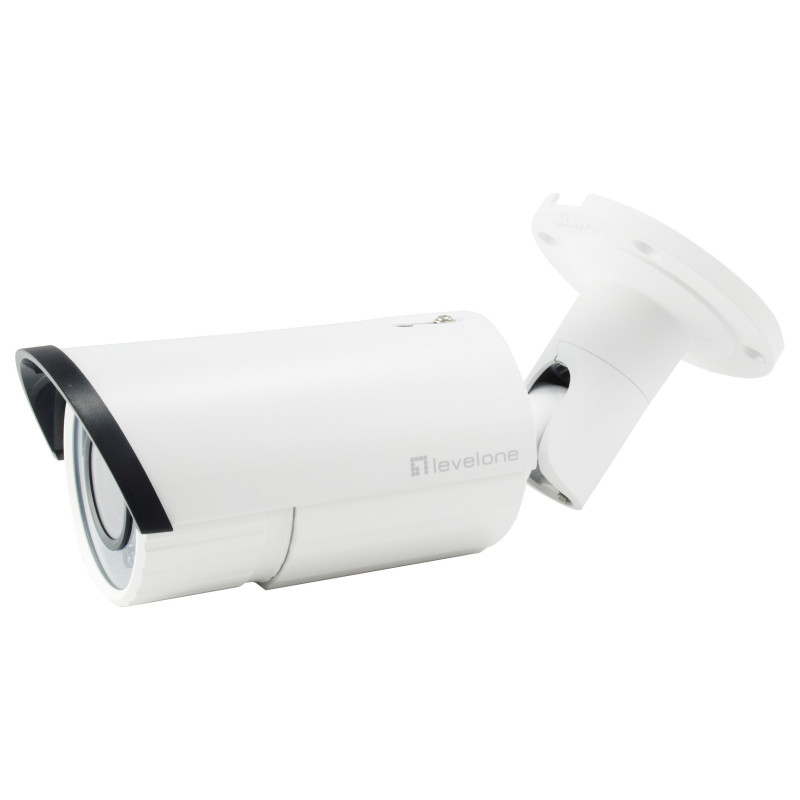

The LevelOne FCS-5060 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP66 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 2-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-5060 should be an essential part of any security deployment that requires smart, reliable outdoor cameras.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Infrared (IR) cut-off filter
Certification: CE,FCC

Design

Form factor: Bullet
Mounting type: Ceiling/wall
Product colour: White
International Protection (IP) code: IP66
Country of origin: China

Camera

Minimum illumination: 0 lx
Field of view (FOV) angle: 106°
Camera shutter speed: 1/3 - 1/10000 s

Image sensor

Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Feature: Zoom capability
Optical zoom: 4x
Number of lenses: 1
Focal length range: 2.8 - 12 mm
Focus: Motorized
Focus adjustment: 1.4

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR

Video

Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video formats supported: MP4
Video compression formats: H.264, H.264+, M-JPEG
Supported graphics resolutions: 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Flip & mirror
Feature: Portrait mode
Feature: Privacy masking
Feature: Time stamp overlay
Feature: Text caption overlay
Feature: Back Light Compensation (BLC)

Audio

Voice codecs: G.711, G.722.1, G.726

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Supported network protocols: IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS,Unicast
Number of users: 20 user(s)
Streaming method: Multicast

Storage

Feature: Card reader integrated
Compatible memory cards: SD, SDHC, SDXC
Maximum memory card size: 128 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Composite video out: 1
Feature: Terminal block port

Security

Feature: Video motion detection

Management features

Feature: Reset button
Feature: Cable management

Power

Power source type: PoE
Power consumption (typical): 5.5 W
Power consumption (max): 7.5 W
DC output voltage: 12
Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): 30 - 60 °C
Operating relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 105 mm
Depth: 258.6 mm
Height: 95 mm
Weight: 1.2 kg

Packaging data

Package width: 386 mm
Package depth: 156 mm
Package height: 155 mm
Package weight: 1.33 kg
Package type: Box

Packaging content

Number of cameras: 1
Feature: Resource CD

Technical details

Feature: Iris

Logistics data

Harmonized System (HS) code: 85258900
Master (outer) case width: 490 mm
Master (outer) case length: 400 mm
Master (outer) case height: 500 mm
Master (outer) case gross weight: 11.9 kg
Products per master (outer) case: 9 pc(s)
