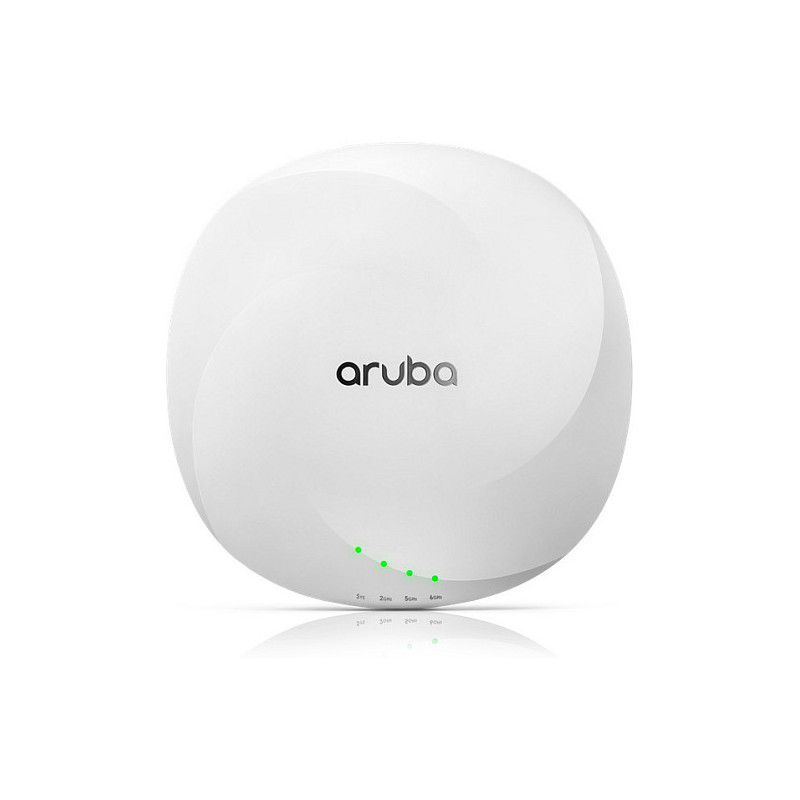

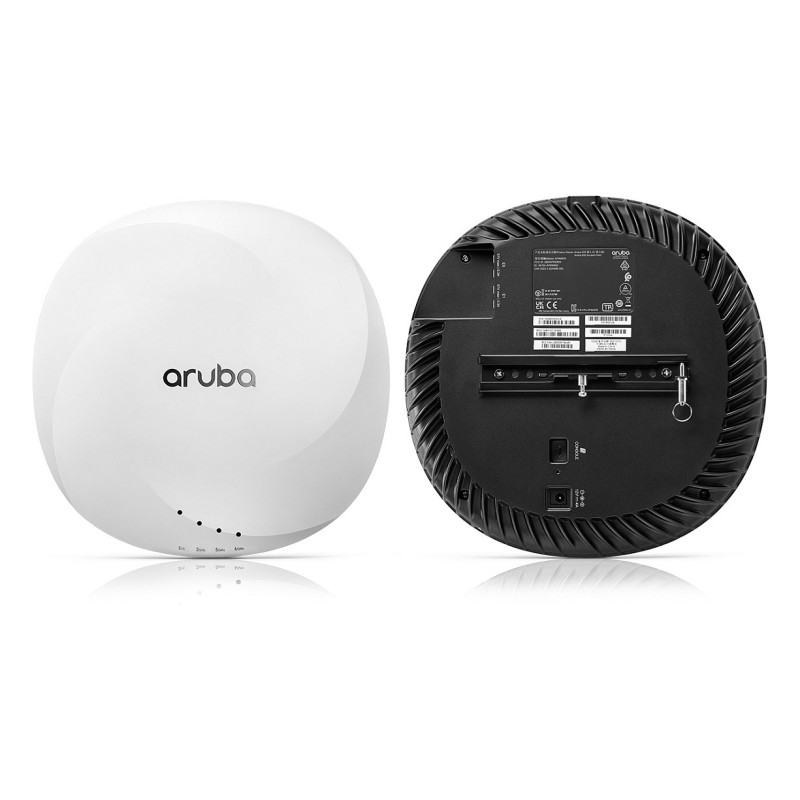

HPE Aruba Networking AP-655 (RW) Tri Radio 4x4 802.11ax Wi-Fi 6E Internal Antennas Campus AP

HPE Aruba Networking AP-655 (RW) Tri Radio 4x4 802.11ax Wi-Fi 6E Internal Antennas Campus AP. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 4800 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Ethernet LAN data rates: 5000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 22.7 W
The HPE Aruba Networking 650 Series Campus Access Points are our flagship Wi-Fi 6E access points (APs) that take advantage of the 6 GHz band for greater capacity, wider channels, and interference-free spectrum. Designed to meet the demands of bandwidth-hungry video, a growing numbers of client and Internet of Things (IoT) devices, and the growth of cloud services, these high-performance Wi-Fi 6E APs provide comprehensive tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver up to 7.8 Gbps combined aggregate data rate. The 650 series includes ultra tri-band (UTB) filtering to help minimize channel interference and dual configurable 5 Gbps Ethernet ports to mitigate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity. Up to seven 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications such as high-definition video and AR/VR applications. The 650 series includes a limited lifetime warranty.
What is new supporting point:
IoT-ready with support for Bluetooth Low Energy (BLE) and Zigbee
Patented UTB filtering enhances the use of 5 GHz and 6 GHz bands
4x4 MIMO radios to deliver peak performance and increased capacity using multi-user (MU-MIMO) and orthogonal frequency-division multiple access (OFDMA) (uplink and downlink for both)
High availability with dual 5 Gbps wired ports for redundant Ethernet and power
Built-in GPS receivers and intelligent software enable APs to self-locate and act as reference points for more accurate indoor location measurements
Flagship Wi-Fi 6E APs provide tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver up to 7.8 Gbps combined aggregate data rate

Features

2.4 GHz: Yes
5 GHz: Yes
6 GHz: Yes
Maximum data transfer rate: 4800 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 2400 Mbit/s
Maximum data transfer rate (6 GHz): 4800 Mbit/s
Ethernet LAN data rates: 5000 Mbit/s
Frequency band: 20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 7.8 Gbps
Bandwidth: 160 GHz
Networking standards: IEEE 802.11ax, IEEE 802.11mc
Channels quantity: 3 channels
Bluetooth: Yes
Channel bandwidth: 160 MHz
Bluetooth version: 5.0
Bluetooth Low Energy (BLE): Yes
Automatic channel selection: Yes
Auto MDI/MDI-X: Yes
MIMO: Yes
MIMO type: Multi User MIMO
Spread spectrum method: DSSS
Wi-Fi Multimedia (WMM)/(WME): Yes
VLAN support: Yes
Maximal-Ratio Combining (MRC): Yes
Cyclic Delay Diversity (CDD): Yes
Cyclic Shift Diversity (CSD): Yes
Dynamic Frequency Selection (DFS): Yes
Data unit aggregation: A-MPDU, A-MSDU
Trusted Platform Module (TPM): Yes
BeamForming: Yes
MACsec support: No

Security

Security algorithms: WPA, WPA2, WPA3
Access Control List (ACL): Yes

Management features

Access point management: On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service

Ports interfaces

Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 1
USB connector type: USB Type-A
DC-in jack: Yes

Power

Power over Ethernet (PoE): Yes
DC voltage range: 12 V
Power consumption (typical): 20.2 W
Power consumption (max): 22.7 W

Design

Placement: Ceiling
Product colour: White
Reset button: Yes
LED indicators: Status, System
Recommended usage: Indoor

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antenna gain level (max): 4.8 dBi

Performance

Compatible operating systems: AP-654 (excluding 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.11.2.0, HPE Aruba Networking Wireless Operating System 10.6.0.0 AP-654 (including 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.12.0.0, HPE Aruba Networking Wireless Operating System 10.7.0.01 AP-655: HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.10.0.1, HPE Aruba Networking Wireless Operating System 10.4.0.0 Standard power product class operation of the AP-654 is only supported on HPE Aruba Networking Wireless Operating System software release 10.7.0.0 and later deployments and HPE Aruba Networking Wireless Operating System software release 8.12.0.0 and later deployments that include a HPE Aruba Networking Virtual Mobility Conductor. SP operation is not supported on Instant OS deployments or 8.x OS deployments without a HPE Aruba Networking Virtual Mobility Conductor.

Certificates

Compliance certificates: Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD)
Certification: UL2043 plenum rating Wi-Fi Alliance Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3 -Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 6)

Weight dimensions

Width: 260 mm
Depth: 56 mm
Height: 260 mm
Weight: 1.8 kg

Packaging data

Package width: 285 mm
Package depth: 285 mm
Package height: 95 mm
Package weight: 2.3 kg

Packaging content

Quantity per pack: 1 pc(s)

Other features

I/O ports: Ports E0, E1: Ethernet wired network ports (RJ-45) U0: USB 2.0 host interface (Type A connector) Kensington security slot Serial console interface (proprietary, micro B USB physical jack)
Weight (imperial): 1.8 kg (3.97 lbs)

Operational conditions

Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -25 - 55 °C
Storage relative humidity (H-H): 10 - 100%

Sustainability

Sustainability compliance: Yes
