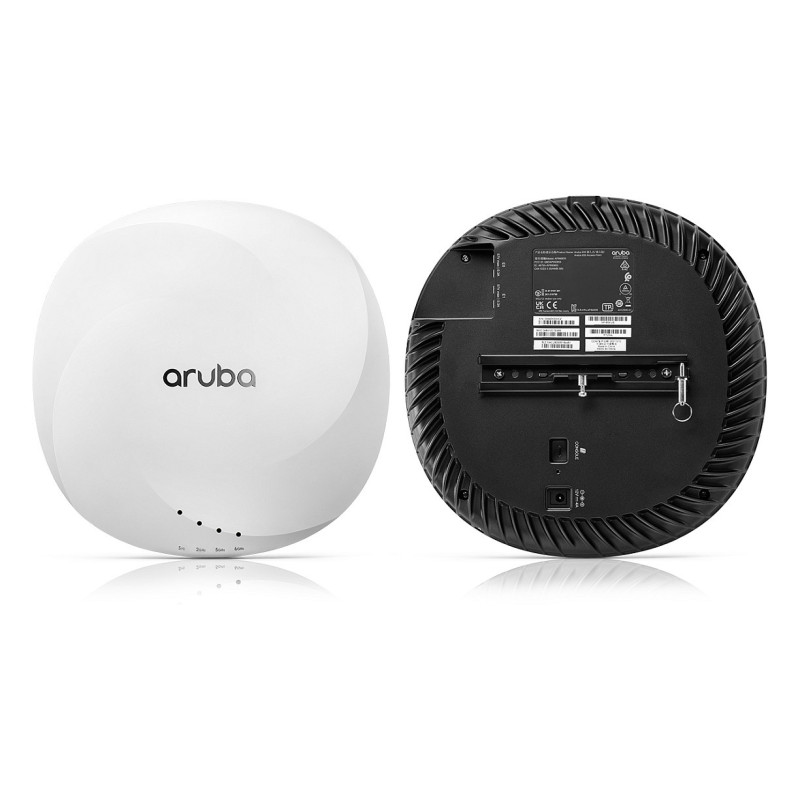

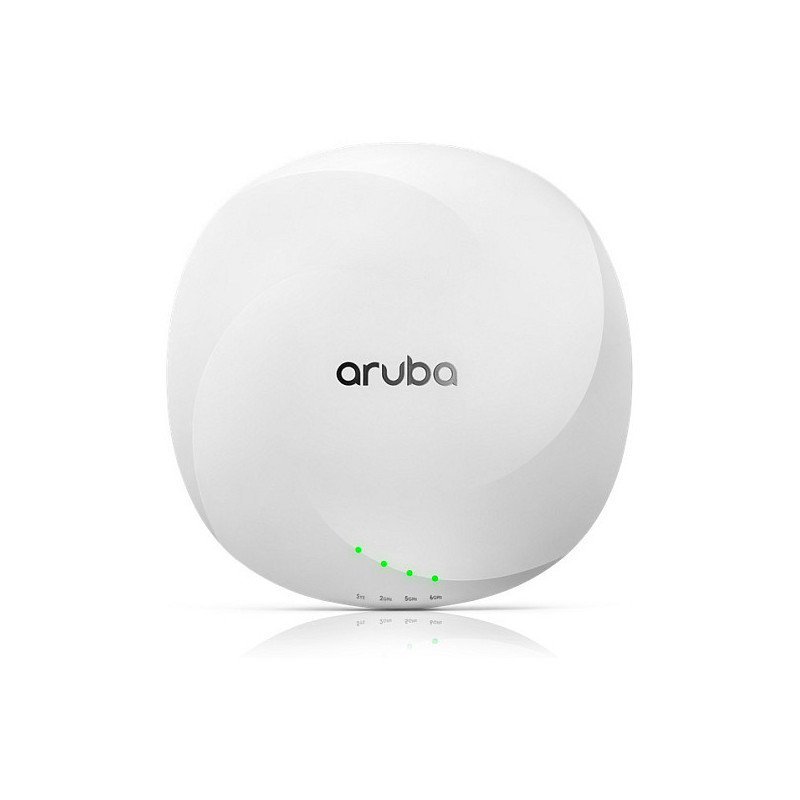

HPE Aruba Networking AP-655 (RW) Tri Radio 4x4 802.11ax Wi-Fi 6E vidinės antenos Campus AP

HPE Aruba Networking AP-655 (RW) Tri Radio 4x4 802.11ax Wi-Fi 6E Internal Antennas Campus AP. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 4800 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Ethernet LAN data rates: 5000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 22.7 W

The HPE Aruba Networking 650 Series Campus Access Points are our flagship Wi-Fi 6E access points (APs) that take advantage of the 6 GHz band for greater capacity, wider channels, and interference-free spectrum. Designed to meet the demands of bandwidth-hungry video, a growing numbers of client and Internet of Things (IoT) devices, and the growth of cloud services, these high-performance Wi-Fi 6E APs provide comprehensive tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver up to 7.8 Gbps combined aggregate data rate. The 650 series includes ultra tri-band (UTB) filtering to help minimize channel interference and dual configurable 5 Gbps Ethernet ports to mitigate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity. Up to seven 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications such as high-definition video and AR/VR applications. The 650 series includes a limited lifetime warranty.

What is new supporting point:
IoT-ready with support for Bluetooth Low Energy (BLE) and Zigbee
Patented UTB filtering enhances the use of 5 GHz and 6 GHz bands
4x4 MIMO radios to deliver peak performance and increased capacity using multi-user (MU-MIMO) and orthogonal frequency-division multiple access (OFDMA) (uplink and downlink for both)
High availability with dual 5 Gbps wired ports for redundant Ethernet and power
Built-in GPS receivers and intelligent software enable APs to self-locate and act as reference points for more accurate indoor location measurements
Flagship Wi-Fi 6E APs provide tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver up to 7.8 Gbps combined aggregate data rate

Features

Feature: 2.4 GHz
Feature: 5 GHz
Feature: 6 GHz
Maximum data transfer rate: 4800 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 2400 Mbit/s
Maximum data transfer rate (6 GHz): 4800 Mbit/s
Ethernet LAN data rates: 5000 Mbit/s
Frequency band: 20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 7.8 Gbps
Bandwidth: 160 GHz
Networking standards: IEEE 802.11ax, IEEE 802.11mc
Channels quantity: 3 channels
Feature: Bluetooth
Channel bandwidth: 160 MHz
Bluetooth version: 5.0
Feature: Bluetooth Low Energy (BLE)
Feature: Automatic channel selection
Feature: Auto MDI/MDI-X
Feature: MIMO
MIMO type: Multi User MIMO
Spread spectrum method: DSSS
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: VLAN support
Feature: Maximal-Ratio Combining (MRC)
Feature: Cyclic Delay Diversity (CDD)
Feature: Cyclic Shift Diversity (CSD)
Feature: Dynamic Frequency Selection (DFS)
Data unit aggregation: A-MPDU, A-MSDU
Feature: Trusted Platform Module (TPM)
Feature: BeamForming

Security

Security algorithms: WPA, WPA2, WPA3
Feature: Access Control List (ACL)

Management features

Access point management: On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 1
USB connector type: USB Type-A
Feature: DC-in jack

Power

Feature: Power over Ethernet (PoE)
DC voltage range: 12 V
Power consumption (typical): 20.2 W
Power consumption (max): 22.7 W

Design

Placement: Ceiling
Product colour: White
Feature: Reset button
LED indicators: Status, System
Recommended usage: Indoor

Antenna

Antenna type: Internal
Antenna direction type: Omni-directional
Antenna gain level (max): 4.8 dBi

Certificates

Compliance certificates: Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD)

Weight & dimensions

Width: 260 mm
Depth: 56 mm
Height: 260 mm
Weight: 1.8 kg

Packaging data

Package width: 285 mm
Package depth: 285 mm
Package height: 95 mm
Package weight: 2.3 kg

Packaging content

Quantity per pack: 1 pc(s)

Other features

Weight (imperial): 1.8 kg (3.97 lbs)

Operational conditions

Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -25 - 55 °C
Storage relative humidity (H-H): 10 - 100%

Sustainability

Feature: Sustainability compliance
