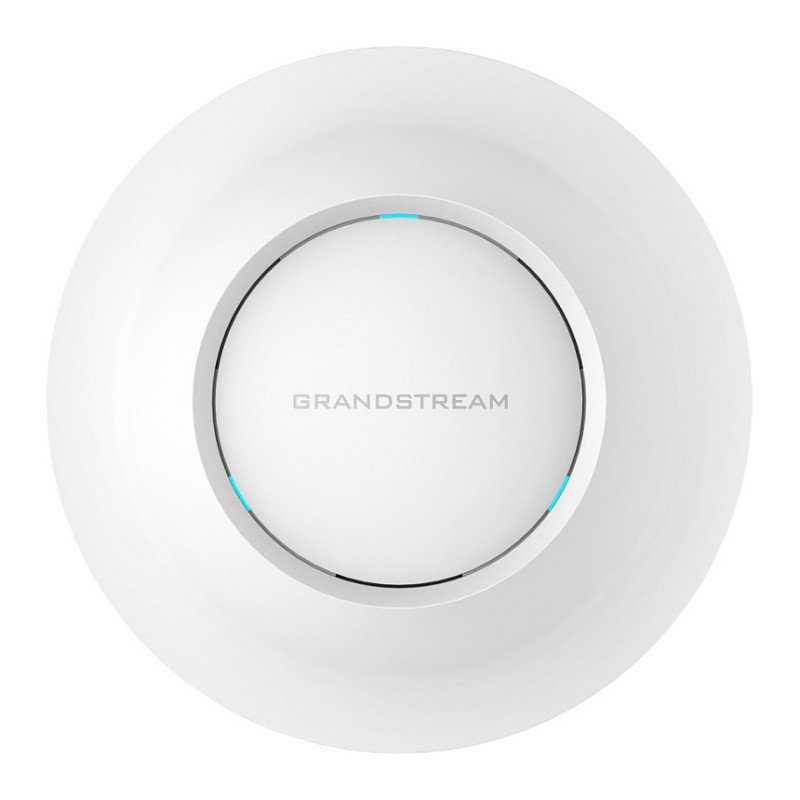

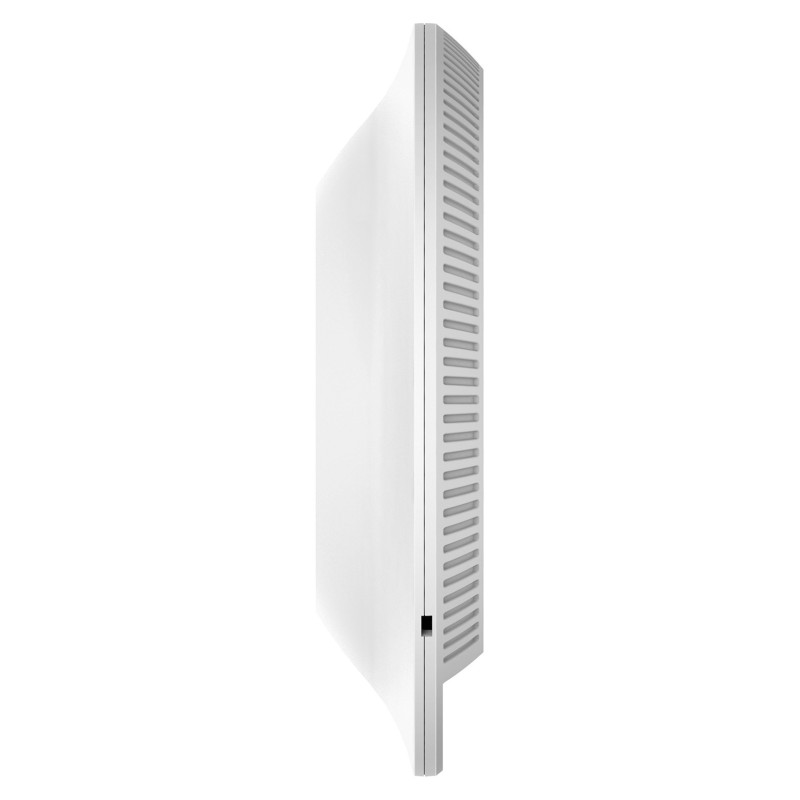

Grandstream Networks GWN7630 wireless access point

Grandstream Networks GWN7630. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2330 Mbit/s. Security algorithms: WEP, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 16.5 W
The GWN7630 is a high-performance 802.11ac Wave-2 Wi-Fi access point for small to medium sized businesses, multiple floor offices, commercial locations and branch offices. It offers dual-band 4×4:4 MU-MIMO technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7630 uses a controller-less distributed network management design in which the controller is embedded within the product's web user interface. The GWN7630 is also supported by GWN.Cloud, Grandstream's free cloud Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream's Wi-Fi-capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 200+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7630 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.

Features

2.4 GHz: Yes
5 GHz: Yes
Maximum data transfer rate: 2330 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 2.412 - 2.484; 5.18 - 5.825 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Number of users: 200 user(s)
Channel bandwidth: 80 MHz
MIMO: Yes
MIMO type: Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME): Yes
VLAN support: Yes
Quality of Service (QoS) support: Yes
Maximum outdoor range: 175 m
Transmitting power: 27 dBmW
Receiver sensitivity: 2.4G802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS75G802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS

Security

Security algorithms: WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Number of SSID supported: 15

Protocols

Supported network protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

Ports interfaces

Ethernet LAN (RJ-45) ports: 2

Power

Power over Ethernet (PoE): Yes
Power consumption (max): 16.5 W

Design

Placement: Ceiling, Wall
Product colour: White
Cable lock slot: Yes
Cable lock slot type: Kensington
Reset button: Yes
LED indicators: Status

Antenna

Antenna type: Internal
Antennas quantity: 4
Antenna gain level (max): 5 dBi

Certificates

Certification: FCC, CE, RCM, IC

Weight dimensions

Width: 205.3 mm
Depth: 205.3 mm
Height: 45.9 mm
Weight: 590 g

Packaging data

Package width: 258 mm
Package depth: 247 mm
Package height: 86 mm
Package weight: 930 g

Packaging content

Quantity per pack: 1 pc(s)
Mounting kit: Yes
Quick start guide: Yes

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 60 °C

Logistics data

Harmonized System (HS) code: 85176990
