Axis 01766-001 security camera

Axis 01766-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Stainless steel, Form factor: Dome. Lens viewing angle, horizontal: 125°, Lens viewing angle, vertical: 95°, Camera shutter speed: 1/32500 - 1/5 s. Sensor type: CMOS, Optical sensor size: 25.4 / 2.5 mm (1 / 2.5"). Fixed focal length: 2.4 mm

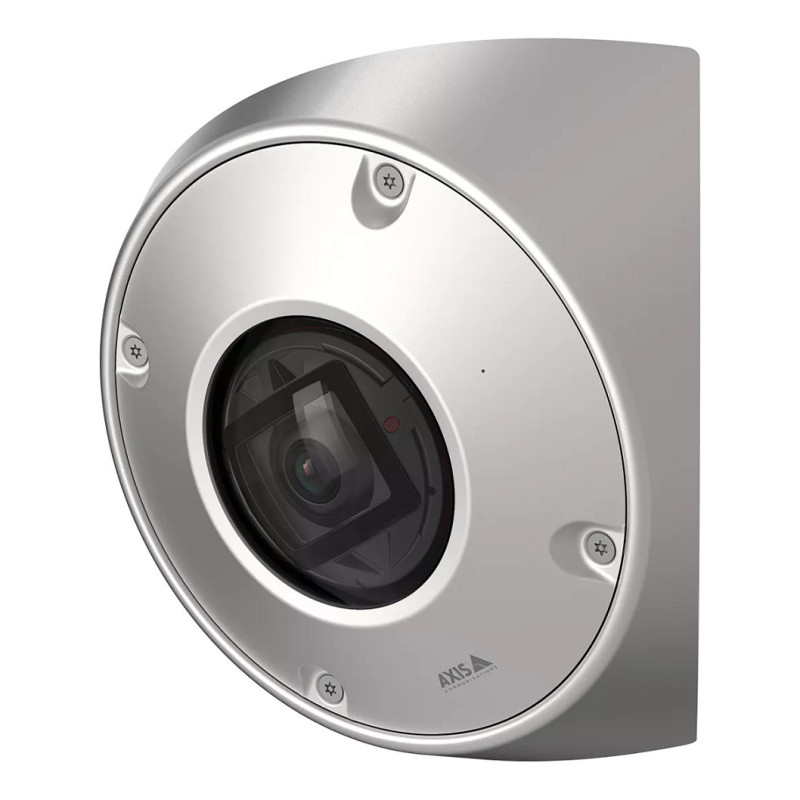

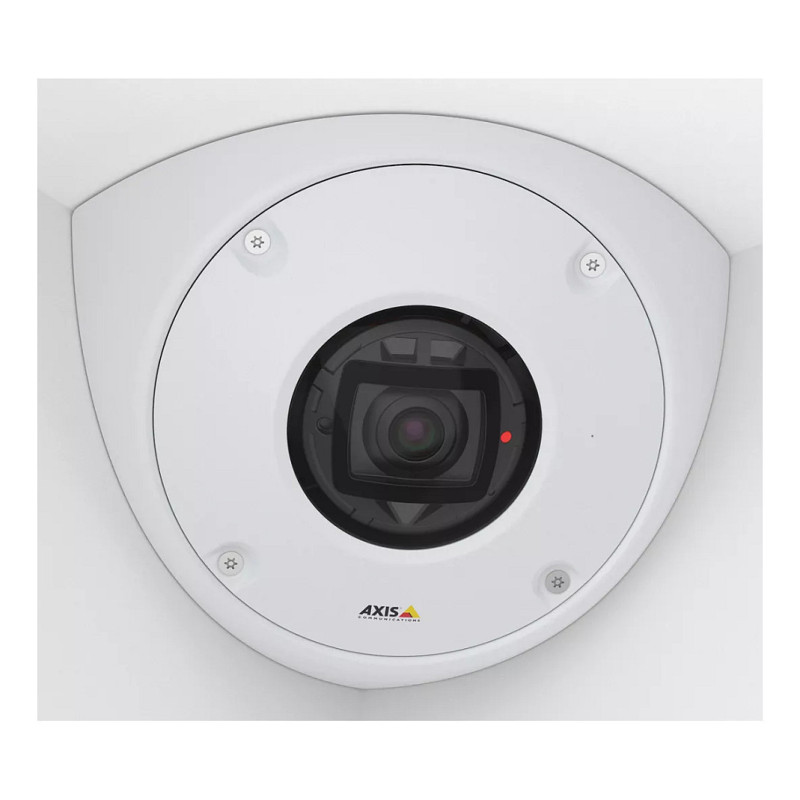

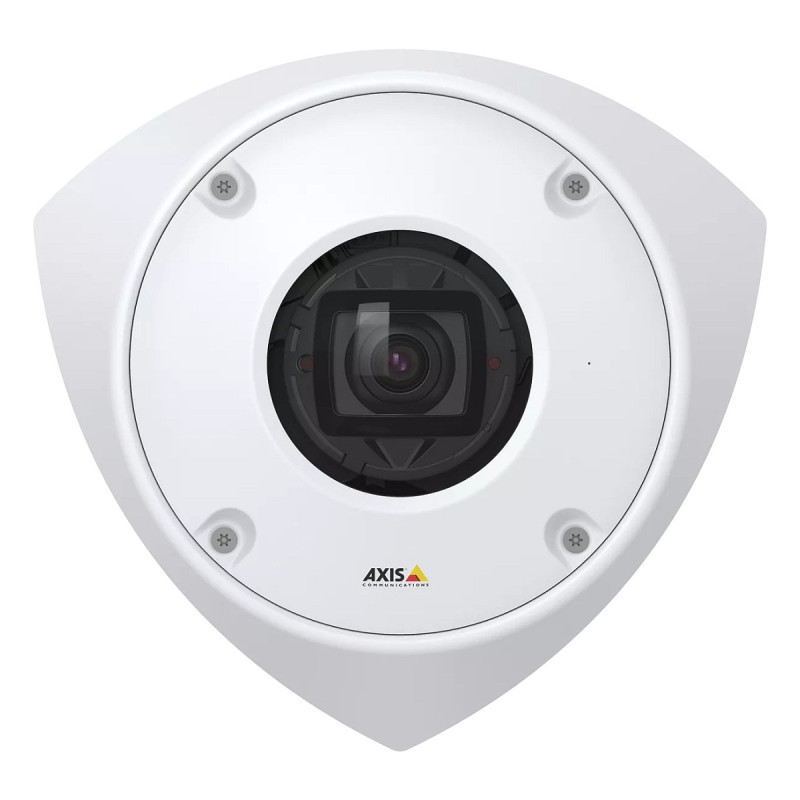

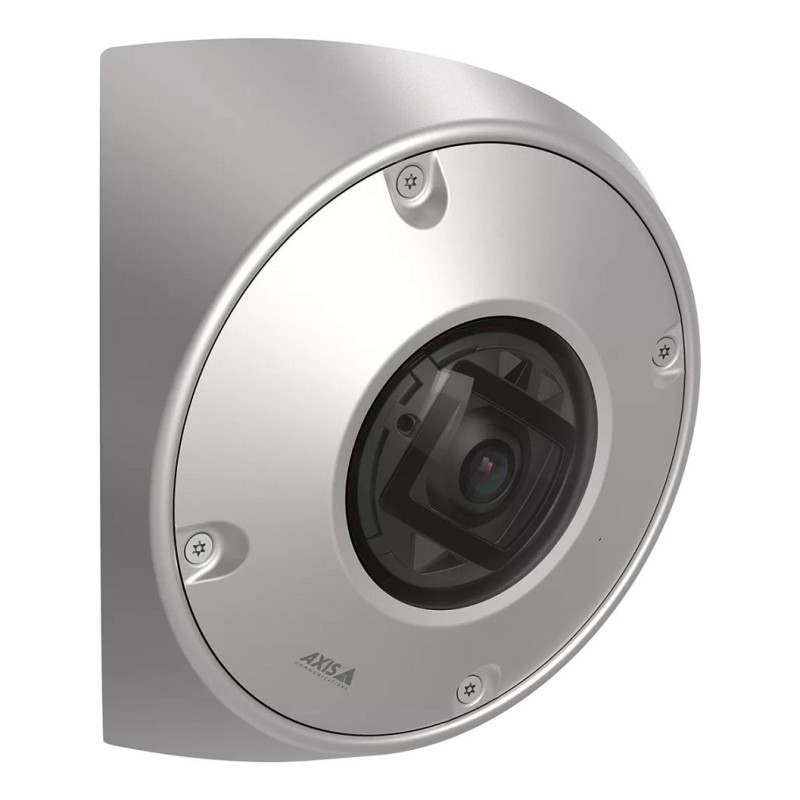

AXIS Q9216-SLV is a compact and robust ligature-resistant (anti-ligature) corner-mount camera that delivers 4 MP video quality. It covers 125 degrees horizontally and 95 degrees vertically, with no blind spots. Featuring invisible IR illumination, it's ideal for covert video surveillance in complete darkness. With an IK11/IP66 rated casing, it also includes a removable built-in microphone and an indication LED. The camera has polygonal privacy masking, which allows for flexible coverage and helps ensure occupant privacy is respected. Furthermore, signed firmware and a Trusted Platform Module (TPM, FIPS 140-2 level 2 certified) help prevent unauthorized access and safeguard your system.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
PTZ control: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Certification: EN 50130-4, EN 55032 A, EN 55035, IEC/EN 61000-6-1,IEC/EN 61000-6-2, FCC 15 B A,ICES-3(A)/NMB-3(A), VCCI A, KC KN-32 A, KC KN-35, RCM AS/NZS CISPR 32 A, CISPR 24, CISPR 35IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN 62471EN 50130-5 I, IEC 60068-2-1, IEC 60068-2-2,IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27,IEC 60068-2-78, IEC/EN 60529 IP66, EN 60529 IP69,ISO 20653 IP6K9K, IEC/EN 62262 IK10+, NEMA 250 4XNIST SP500-267

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: Stainless steel
Housing material: Stainless steel
International Protection (IP) code: IP66, IP69, IP69K
IK code: IK10+

Camera

Minimum illumination: 0 lx
Lens viewing angle, horizontal: 125°
Lens viewing angle, vertical: 95°
Camera shutter speed: 1/32500 - 1/5 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.5 mm (1 / 2.5")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Number of lenses: 1
Fixed focus: Yes
Maximum aperture number: 2
Fixed focal length: 2.4 mm

Night vision

Night vision: Yes
Night vision distance: 15 m
LED type: IR
Infra-red wavelength: 940 nm

Video

Maximum resolution: 2304 x 1728 pixels
Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG
Supported graphics resolutions: 320 x 240, 2304 x 1728
Frame rate: 30 fps
Video streaming: Yes
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Text caption overlay: Yes
Bit rate control: Variable Bit Rate (VBR)

Audio

Audio system: 2-way
Audio system full duplex: Yes
Sample rate: 48 kHz
Built-in microphone: Yes
Voice codecs: G.711, G.726, OPUS

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols: IPv4,IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, SIP
Wi-Fi: No
Bluetooth: No

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 512 MB
Internal memory: 1024 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
HDMI ports quantity: 1
Terminal block port: Yes

Security

Password protection: Yes
Video motion detection: Yes
IP address filtering: Yes
Security algorithms: EAP-TLS, FIPS 140-2
HTTPS encryption: Yes

Power

Power source type: PoE
Power consumption (typical): 4.7 W
Power consumption (max): 10.8 W

Weight dimensions

Width: 209 mm
Depth: 176 mm
Height: 131 mm
Weight: 1.6 kg

Packaging content

Number of cameras: 1

Logistics data

Harmonized System (HS) code: 85258900
