Axis 01766-001 apsaugos kamera

Axis 01766-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Stainless steel, Form factor: Dome. Lens viewing angle, horizontal: 125°, Lens viewing angle, vertical: 95°, Camera shutter speed: 1/32500 - 1/5 s. Sensor type: CMOS, Optical sensor size: 25.4 / 2.5 mm (1 / 2.5"). Fixed focal length: 2.4 mm

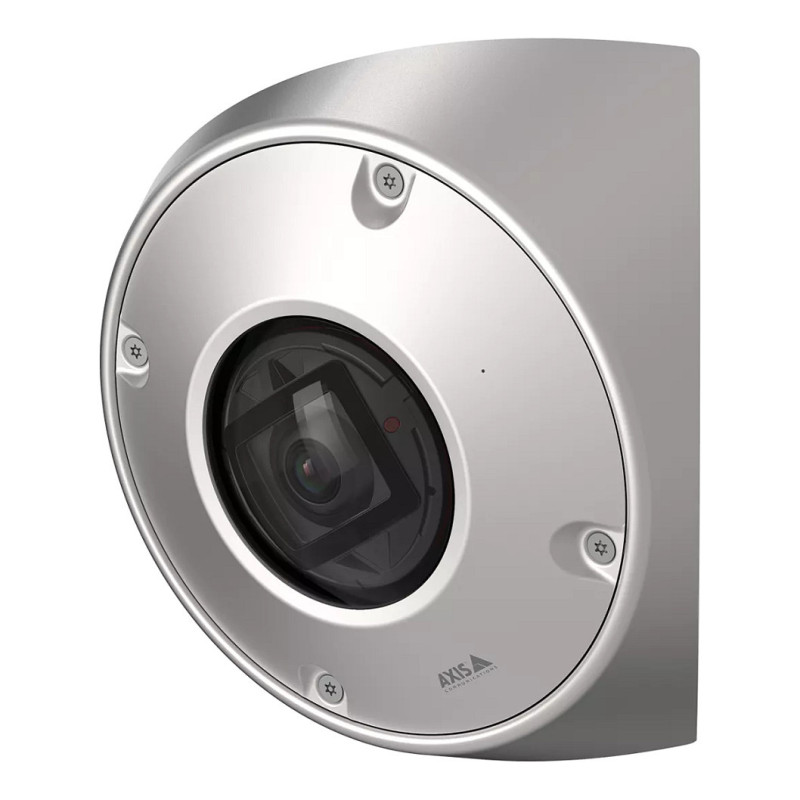

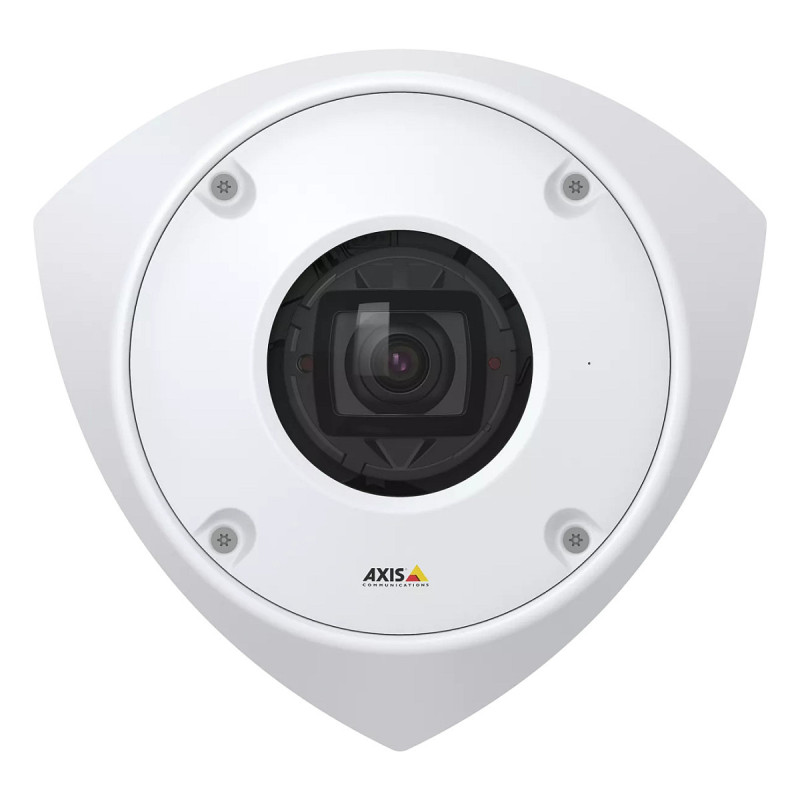

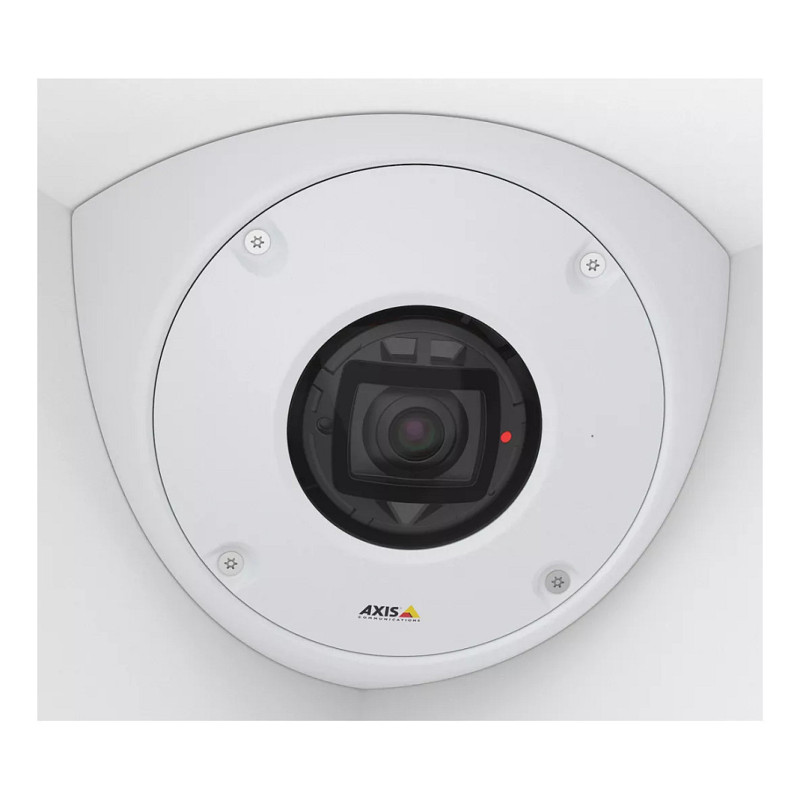

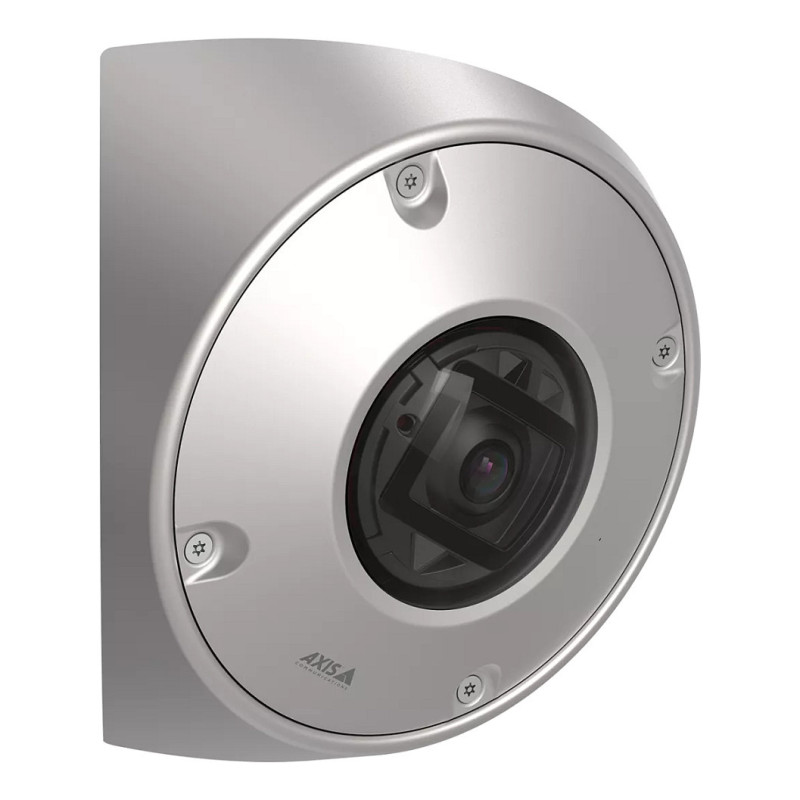

AXIS Q9216-SLV is a compact and robust ligature-resistant (anti-ligature) corner-mount camera that delivers 4 MP video quality. It covers 125 degrees horizontally and 95 degrees vertically, with no blind spots. Featuring invisible IR illumination, it's ideal for covert video surveillance in complete darkness. With an IK11/IP66 rated casing, it also includes a removable built-in microphone and an indication LED. The camera has polygonal privacy masking, which allows for flexible coverage and helps ensure occupant privacy is respected. Furthermore, signed firmware and a Trusted Platform Module (TPM, FIPS 140-2 level 2 certified) help prevent unauthorized access and safeguard your system.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: PTZ control
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: Stainless steel
Housing material: Stainless steel
International Protection (IP) code: IP66, IP69, IP69K
IK code: IK10+

Camera

Minimum illumination: 0 lx
Lens viewing angle, horizontal: 125°
Lens viewing angle, vertical: 95°
Camera shutter speed: 1/32500 - 1/5 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.5 mm (1 / 2.5")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 1
Feature: Fixed focus
Maximum aperture number: 2
Fixed focal length: 2.4 mm

Night vision

Feature: Night vision
Night vision distance: 15 m
LED type: IR
Infra-red wavelength: 940 nm

Video

Maximum resolution: 2304 x 1728 pixels
Video compression formats: AVC, H.264, H.265, HEVC, M-JPEG
Supported graphics resolutions: 320 x 240, 2304 x 1728
Frame rate: 30 fps
Feature: Video streaming
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Feature: Text caption overlay
Bit rate control: Variable Bit Rate (VBR)

Audio

Audio system: 2-way
Feature: Audio system full duplex
Sample rate: 48 kHz
Feature: Built-in microphone
Voice codecs: G.711, G.726, OPUS

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 512 MB
Internal memory: 1024 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Microphone in
HDMI ports quantity: 1
Feature: Terminal block port

Security

Feature: Password protection
Feature: Video motion detection
Feature: IP address filtering
Security algorithms: EAP-TLS, FIPS 140-2
Feature: HTTPS encryption

Power

Power source type: PoE
Power consumption (typical): 4.7 W
Power consumption (max): 10.8 W

Weight & dimensions

Width: 209 mm
Depth: 176 mm
Height: 131 mm
Weight: 1.6 kg

Packaging content

Number of cameras: 1

Logistics data

Harmonized System (HS) code: 85258900
