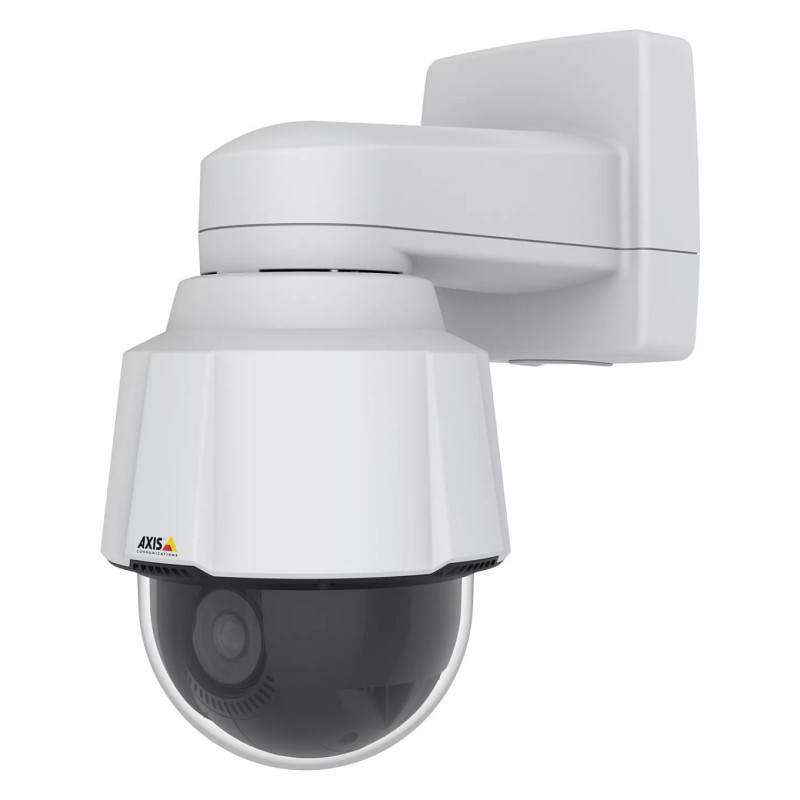

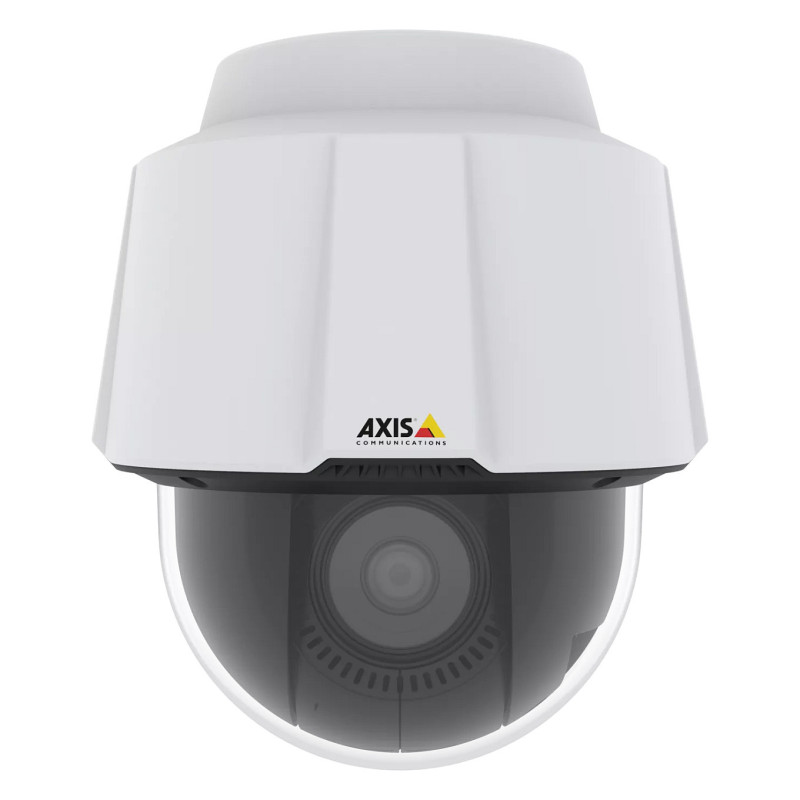

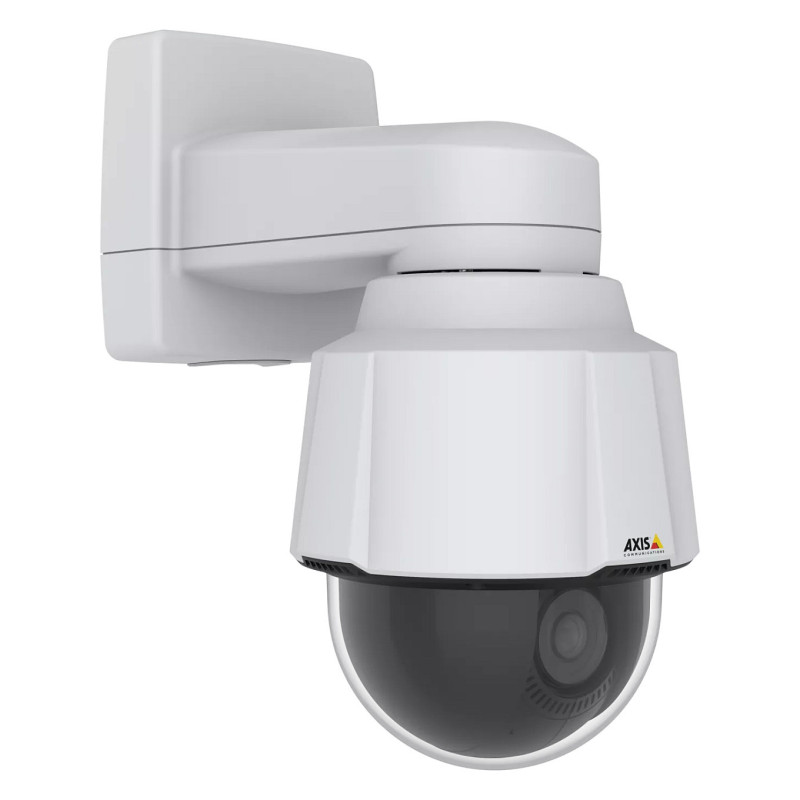

Axis 01681-001 security camera

Axis 01681-001. Type: IP security camera, Placement supported: Indoor outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.02 lx, Lens viewing angle, horizontal: 58.7°, Lens viewing angle, vertical: 35.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 32x, Digital zoom: 12x, Focal length range: 4.3 - 137.6 mm
AXIS P5655-E PTZ Network Camera is a cost-effective, high performance PTZ with HDTV 1080p and 32x optical zoom. It features Forensic WDR for clarity even when there's both dark and light areas in the scene. And, Lightfinder 2.0 to capture low-light images with more saturated colors and sharper images of moving objects. It offers electronic image stabilization and enhanced security features including signed firmware and secure boot. With IP66, NEMA 4X and IK10 ratings it's resistant to both harsh weather conditions and impacts. Plus, you get two-way audio, I/O ports and extended capabilities for advanced analytics.

Performance

Type: IP security camera
Placement supported: Indoor outdoor
Connectivity technology: Wired
PTZ control: Yes
Preset points: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Alarm input/output: Yes
Certification: NEMA 4X, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IS 13252, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 ClassIEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-30, EC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, NIST SP500-267

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: Black, White
Housing material: Aluminium
Protection features: Shock resistant
International Protection (IP) code: IP66
IK code: IK10
Weatherproof: Yes
Fog proof: Yes

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.02 lx
Lens viewing angle, horizontal: 58.7°
Lens viewing angle, vertical: 35.7°
Tilt angle range: 0 - 180°
Tilt speed: 350 °/sec
Pan range: 0 - 360°
Pan speed: 350 °/sec
Camera shutter speed: 1/66500 - 2 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Zoom capability: Yes
Optical zoom: 32x
Digital zoom: 12x
Number of lenses: 1
Focal length range: 4.3 - 137.6 mm
Auto focus: Yes
Maximum aperture number: 4
Minimum aperture number: 1.4

Video

Maximum resolution: 1920 x 1080 pixels
Video formats supported: AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions: 320 x 180, 1920 x 1080 (HD 1080)
Supported video modes: 1080p
Frame rate: 60 fps
Video streaming: Yes
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Privacy masking: Yes
Text caption overlay: Yes
Image stabilizer: Yes
Bit rate control: Variable Bit Rate (VBR)

Audio

Audio system: 2-way
Audio formats supported: ADPCM, LC-AAC, LPCM, PCM
Sample rate: 48 kHz
Audio detection: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, LLDP, CDP
Streaming method: Multicast

Storage

Card reader integrated: Yes
Compatible memory cards: SD, SDHC, SDXC
Flash memory: 512 MB
Internal memory: 1024 MB

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
DC-in jack: Yes

Security

Password protection: Yes
Video motion detection: Yes
IP address filtering: Yes
HTTPS encryption: Yes

Power

Power source type: DC, PoE
Power consumption (typical): 10.5 W
Power consumption (max): 19 W

Operational conditions

Operating temperature (T-T): -30 - 55 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 100%

Weight dimensions

Width: 188 mm
Depth: 188 mm
Height: 217 mm
Weight: 2.5 kg

Packaging content

Number of cameras: 1
Mounting kit: Yes
Manual: Yes

Logistics data

Harmonized System (HS) code: 85258900
