8-Port Gigabit Easy Smart Switch with 4-Port PoE+

• 8 x 10/100/1000Mbps ports provide instant large file transfers; • Equipped with 4 802.3af PoE ports with up to 15.4W for each port; • Supports PoE power up to 55W for all PoE ports; • IEEE 802.3x flow control provides reliable data transfers; • 15KB Jumbo frame improves performance of large data transfers; • Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics; • Port/802.1p/DSCP QoS enable smooth latency-sensitive traffic; • Abundant VLAN features improve network security via traffic segmentation; • IGMP Snooping optimizes multicast applications; • Web-based user interface and Easy Smart Configuration Utility simplify configuration.

Hardware Features:

• Standards and Protocols: * IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af; * IEEE 802.3x, IEEE 802.1q, IEEE 802.1p;

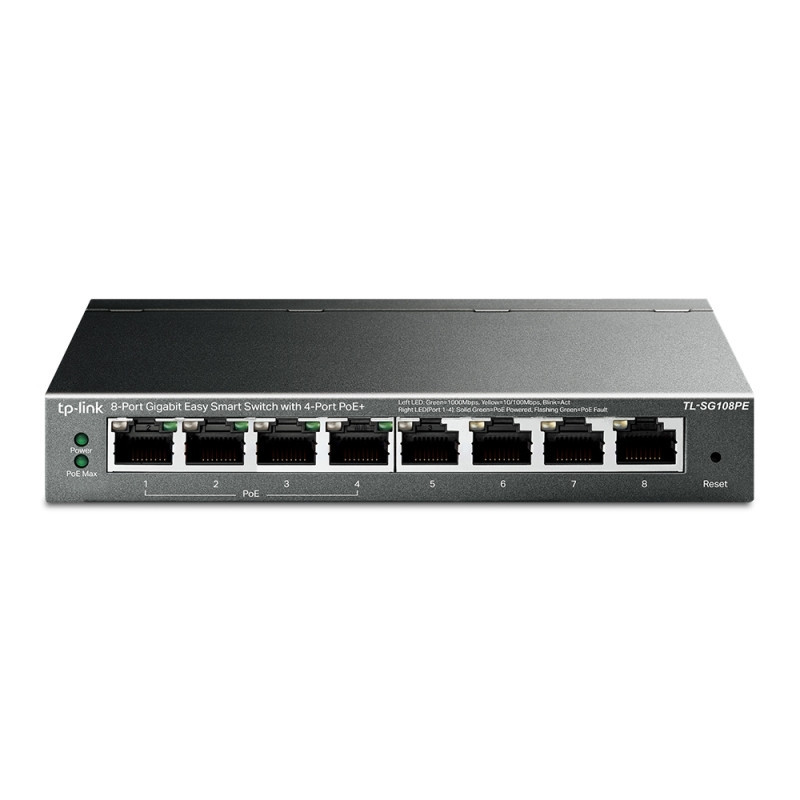

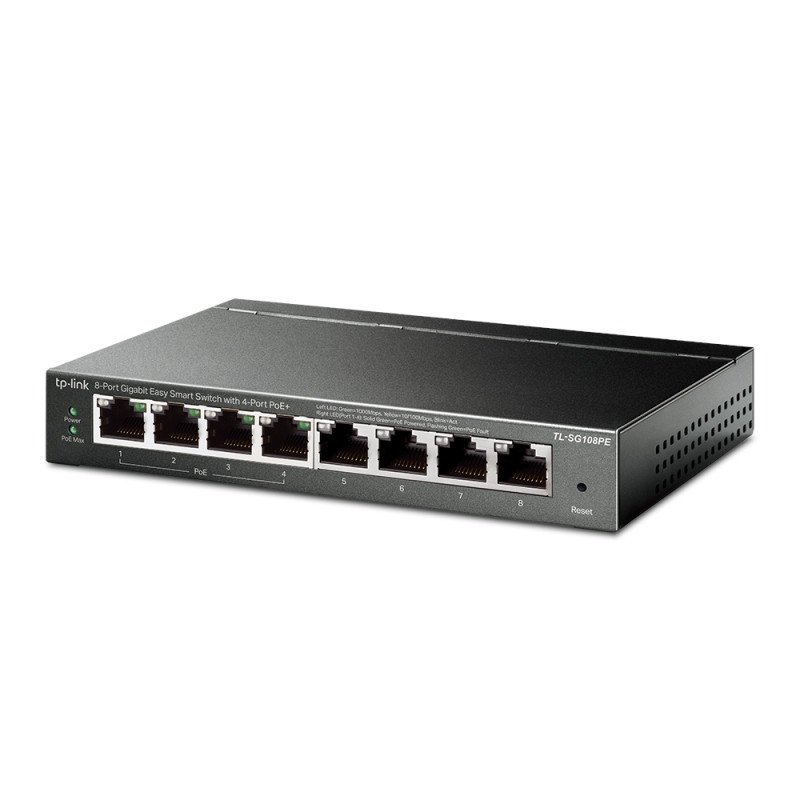

• Interface: * 8 10/100/1000Mbps RJ45 Ports; * AUTO Negotiation/AUTO MDI/MDIX;

• Network Media: * 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); * EIA/TIA-568 100Ω STP (maximum 100m); * 100BASE-TX: UTP category 5, 5e cable (maximum 100m); * EIA/TIA-568 100Ω STP (maximum 100m); * 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); * EIA/TIA-568 100Ω STP (maximum 100m);

• Fan Quantity: Fanless;

• Power Supply: External Power Adapter (Output: 48VDC / 1.25A);

• Power Consumption: Maximum (PoE on): 65.2W (220V/50Hz);

• Maximum (PoE off): 5.2W (220V/50Hz);

• PoE+ Ports(RJ45);

• PoE Ports (RJ45): * Standard: 802.3 af compliant; • PoE Ports: Port 1- Port 4; • PoE Power Budget: 55W;

Performance:

• Switching Capacity: 16Gbps;

• Packet Forwarding Rate: 11.9Mpps;

• MAC Address Table: 4K;

• Packet Buffer Memory: 1.5Mb;

• Jumbo Frame: 15KB.

Software features:

• Quality of Service: * Support Port-Based/802.1p/DSCP priority; • Support 4 priority queues; • Rate Limit; • Storm Control;

• L2 Features: * IGMP Snooping V1/V2/V3; * Link Aggregation; * Port Mirroring; * Cable Diagnostics; * Loop Prevention;

• VLAN: * Supports up to 32 VLANs simultaneously (out of 4K VLAN Ids); * MTU/Port/Tag VLAN;

• Management: * Web-based GUI; * Easy Smart Configuration Utility;

• Transmission Method: Store-And-Forward.

Others:

• Certification: FCC, CE, RoHS;

• Package Contents: * TL-SG108PE; * Power Adapter; * Installation Guide; * Resource CD; * Rubber Feet;

• System Requirements: Microsoft® Windows® for running Utility;

• Environment: * Operating Temperature: 0 ~40 (32 ~104 ); * Storage Temperature: -40 ~70 (-40 ~158 ); * Operating Humidity: 10%~90%RH non-condensing; * Storage Humidity: 5%~95%RH non-condensing.
