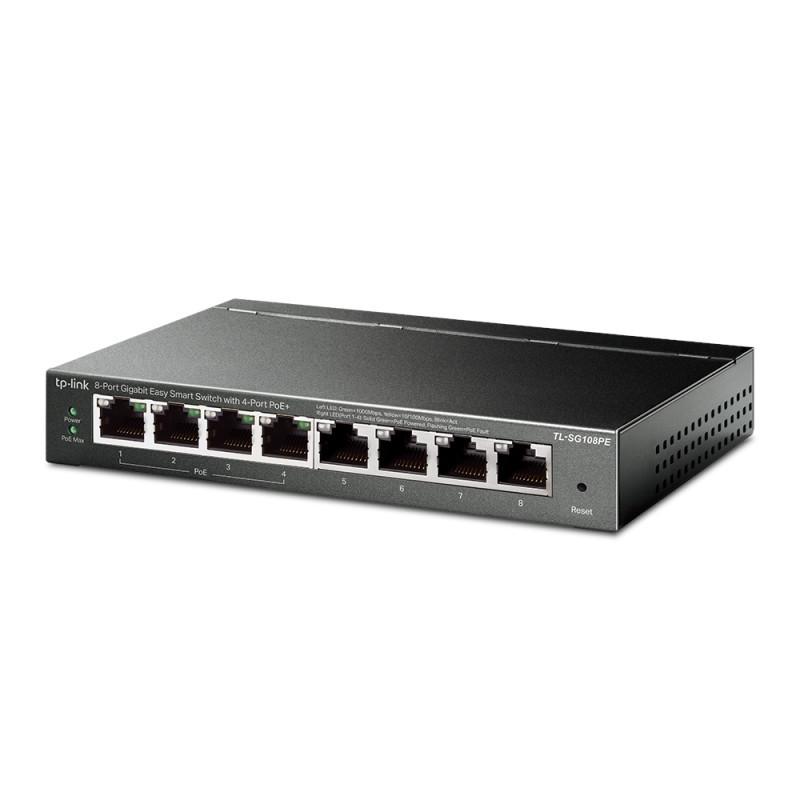

8 prievadų gigabito paprastas išmanusis komutatorius su 4 prievadų „PoE+“

• 8 x 10/100/1000Mbps ports provide instant large file transfers;

• Equipped with 4 802.3af PoE ports with up to 15.4W for each port;

• Supports PoE power up to 55W for all PoE ports;

• IEEE 802.3x flow control provides reliable data transfers;

• 15KB Jumbo frame improves performance of large data transfers;

• Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics;

• Port/802.1p/DSCP QoS enable smooth latency-sensitive traffic;

• Abundant VLAN features improve network security via traffic segmentation;

• IGMP Snooping optimizes multicast applications;

• Web-based user interface and Easy Smart Configuration Utility simplify configuration.

Hardware Features:

• Standards and Protocols:

* IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af;

* IEEE 802.3x, IEEE 802.1q, IEEE 802.1p;

• Interface:

* 8 10/100/1000Mbps RJ45 Ports;

* AUTO Negotiation/AUTO MDI/MDIX;

• Network Media:

* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m);

* EIA/TIA-568 100Ω STP (maximum 100m);

* 100BASE-TX: UTP category 5, 5e cable (maximum 100m);

* EIA/TIA-568 100Ω STP (maximum 100m);

* 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m);

* EIA/TIA-568 100Ω STP (maximum 100m);

• Fan Quantity: Fanless;

• Power Supply: External Power Adapter(Output: 48VDC / 1.25A);

• Power Consumption: Maximum (PoE on): 65.2W (220V/50Hz);

• Maximum (PoE off): 5.2W (220V/50Hz);

• PoE+ Ports(RJ45);

• PoE Ports (RJ45):

* Standard: 802.3 af compliant;

• PoE Ports: Port 1- Port 4;

• PoE Power Budget: 55W;

Performance:

• Switching Capacity: 16Gbps;

• Packet Forwarding Rate: 11.9Mpps;

• MAC Address Table: 4K;

• Packet Buffer Memory: 1.5Mb;

• Jumbo Frame: 15KB.

Software features:

• Quality of Service:

* Support Port-Based/802.1p/DSCP priority;

• Support 4 priority queues;

• Rate Limit;

• Storm Control;

• L2 Features:

* IGMP Snooping V1/V2/V3;

* Link Aggregation;

* Port Mirroring;

* Cable Diagnostics;

* Loop Prevention;

• VLAN:

* Supports up to 32 VLANs simultaneously (out of 4K VLAN Ids);

* MTU/Port/Tag VLAN;

• Management:

* Web-based GUI;

* Easy Smart Configuration Utility;

• Transmission Method: Store-And-Forward.

Others:

• Certification: FCC, CE, RoHS;

• Package Contents:

* TL-SG108PE;

* Power Adapter;

* Installation Guide;

* Resource CD;

* Rubber Feet;

• System Requirements: Microsoft® Windows® for running Utility;

• Environment:

* Operating Temperature: 0 ~40 (32 ~104 );

* Storage Temperature: -40 ~70 (-40 ~158 );

* Operating Humidity: 10%~90%RH non-condensing;

* Storage Humidity: 5%~95%RH non-condensing.
