MONITOR ACC DESK MOUNT 17-27" / DS70-700BL1 NEOMOUNTS

Product reference: 2-8717371449261

You have 3 products in compare list, please remove someone and try again

Add to favorites products
Added to favorites products
Removed to favorites product

Add to compare

101,96 €

Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Ask about product

Your message has been successfully sent!

Fill in the required fields*

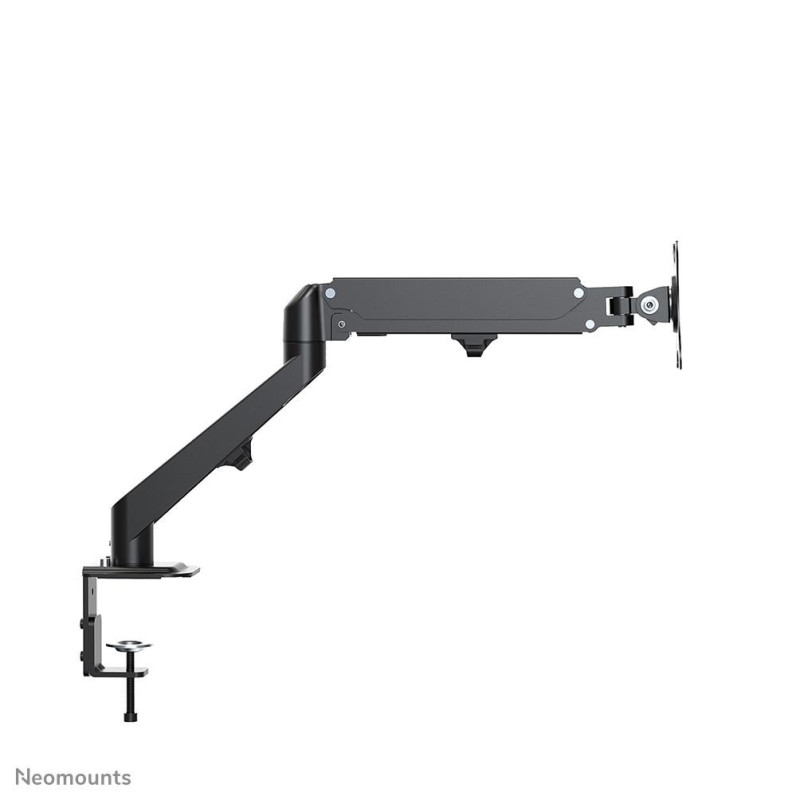

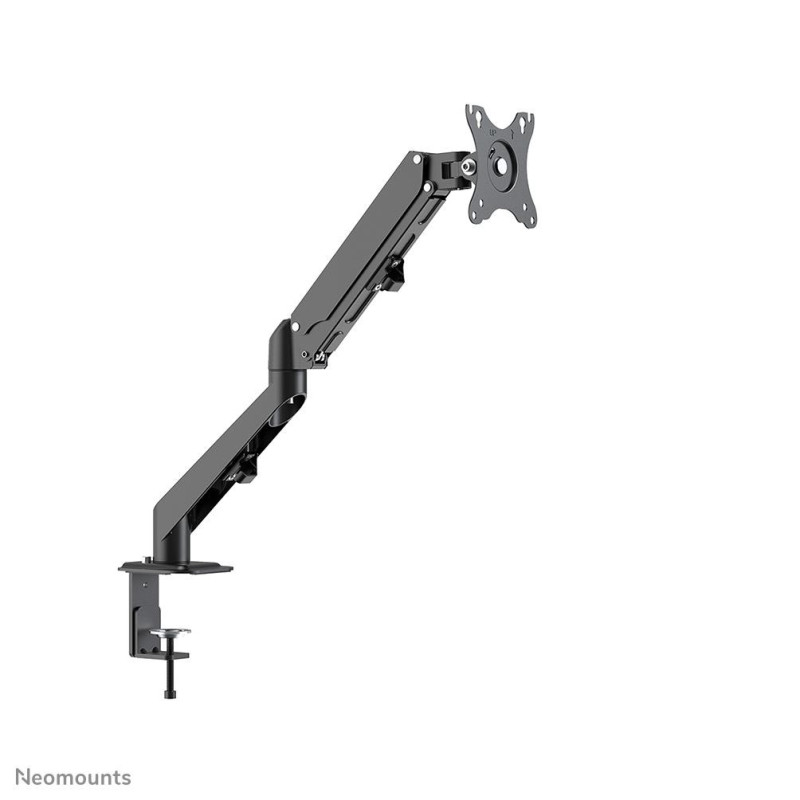

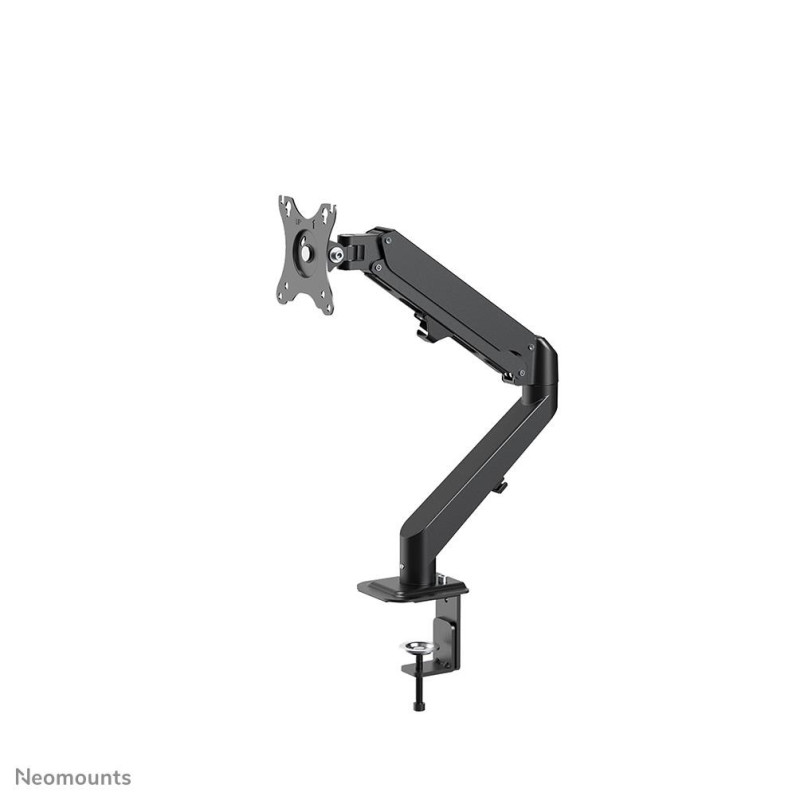

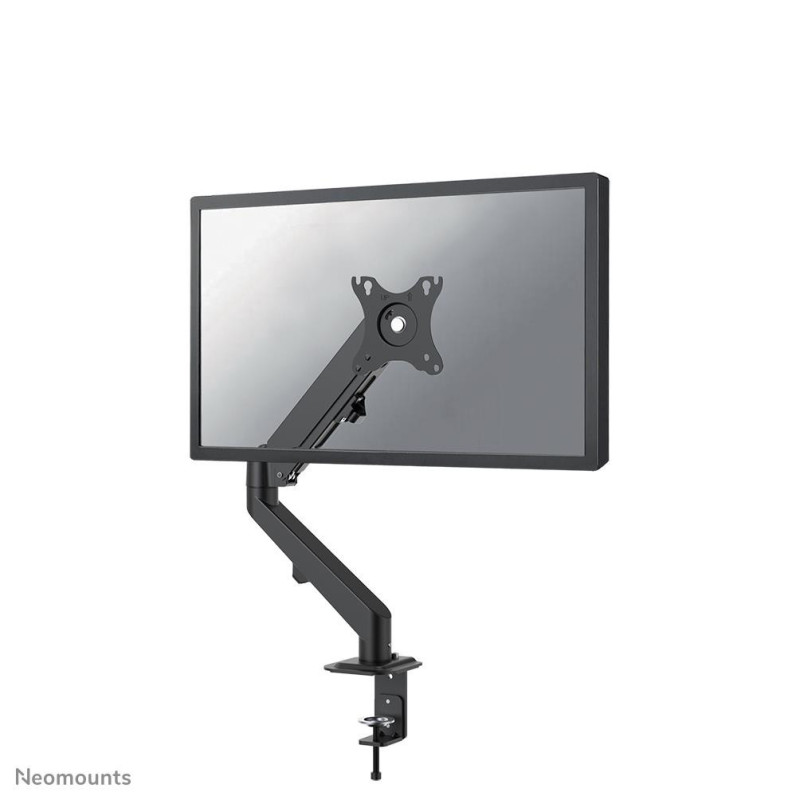

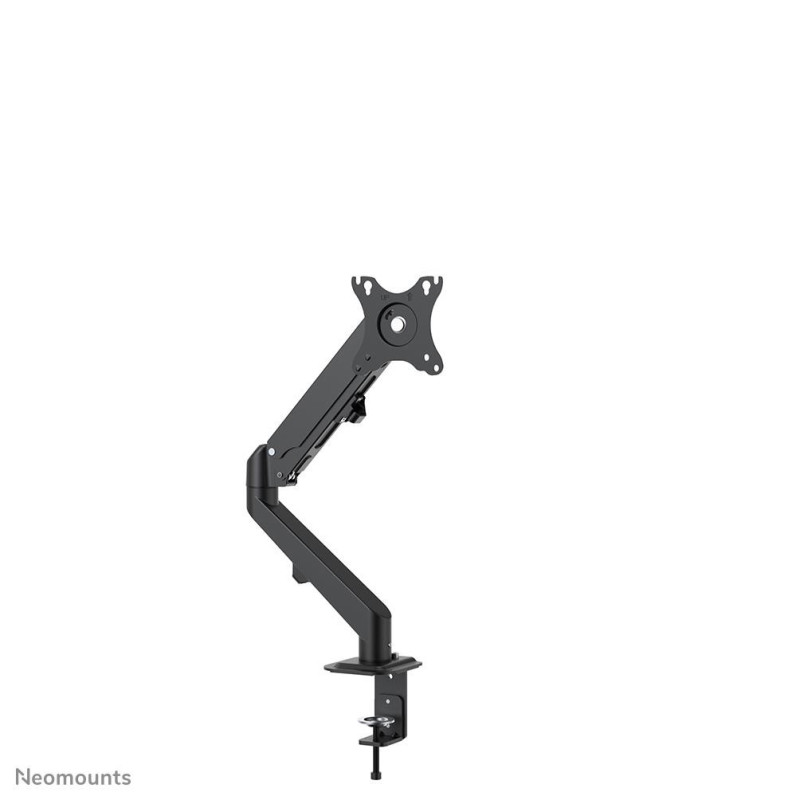

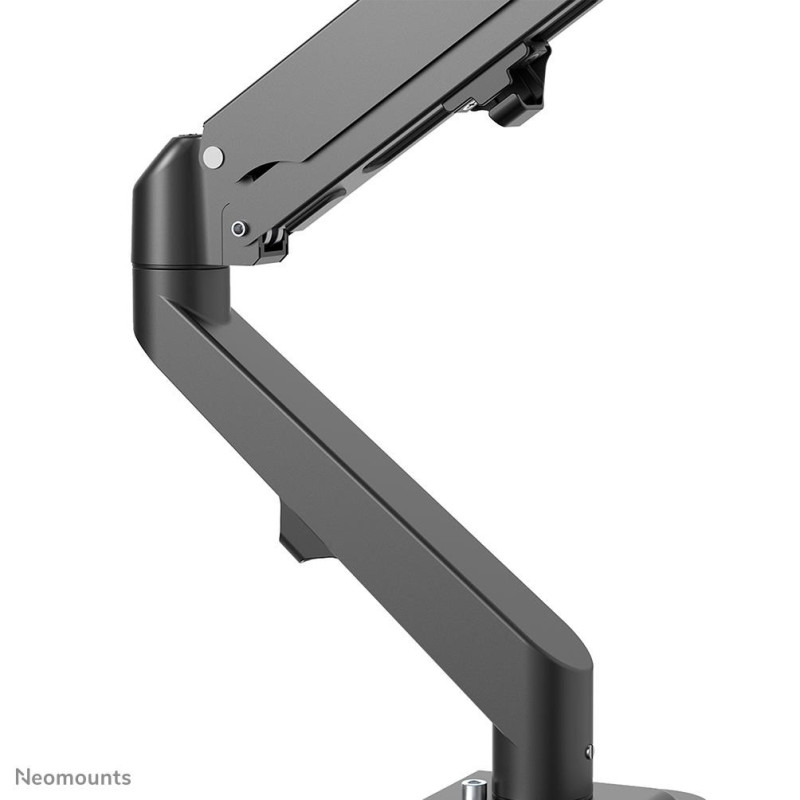

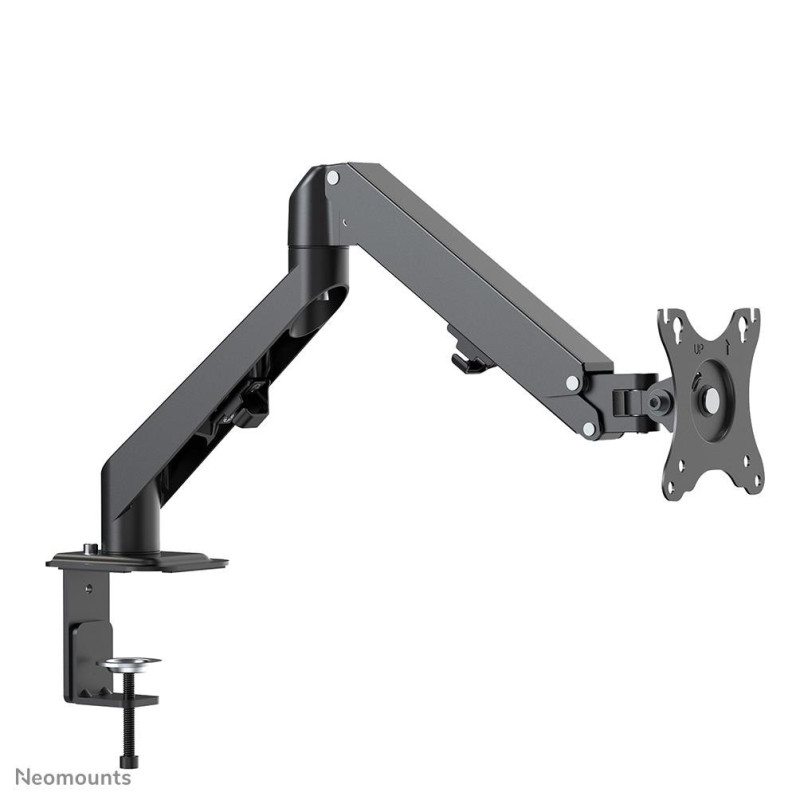

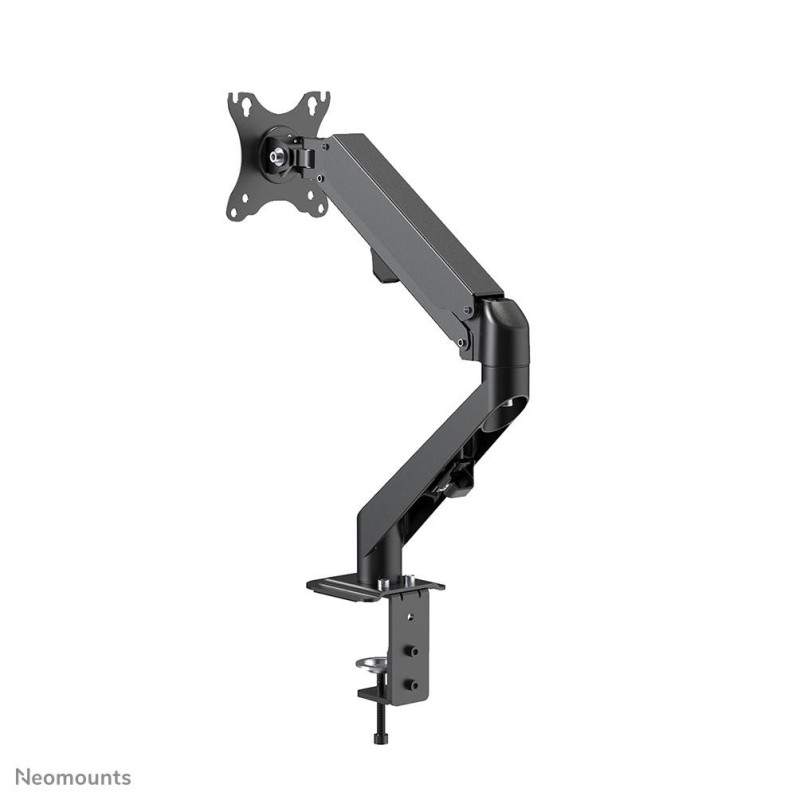

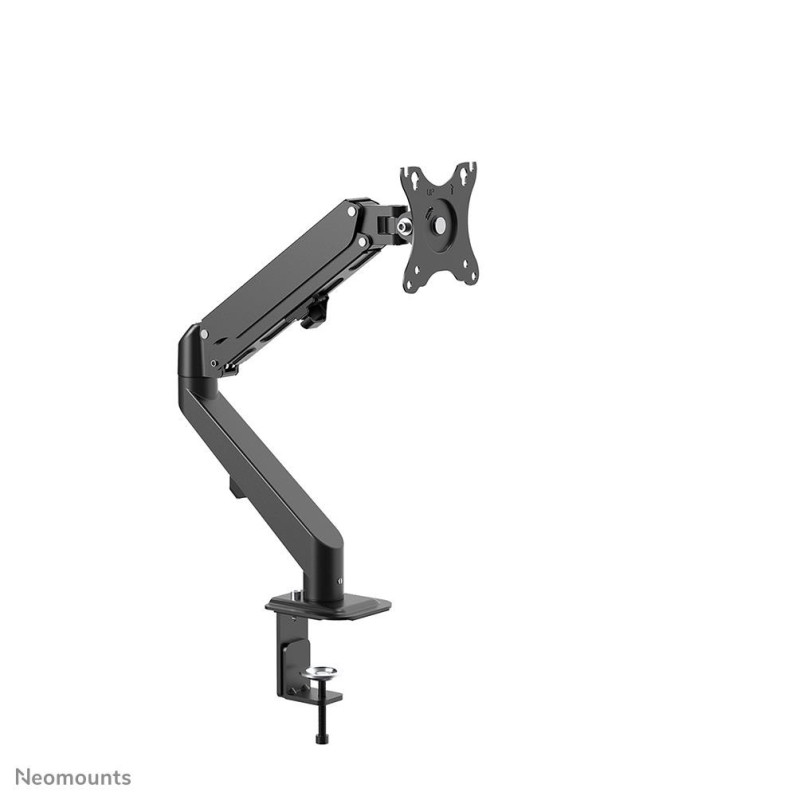

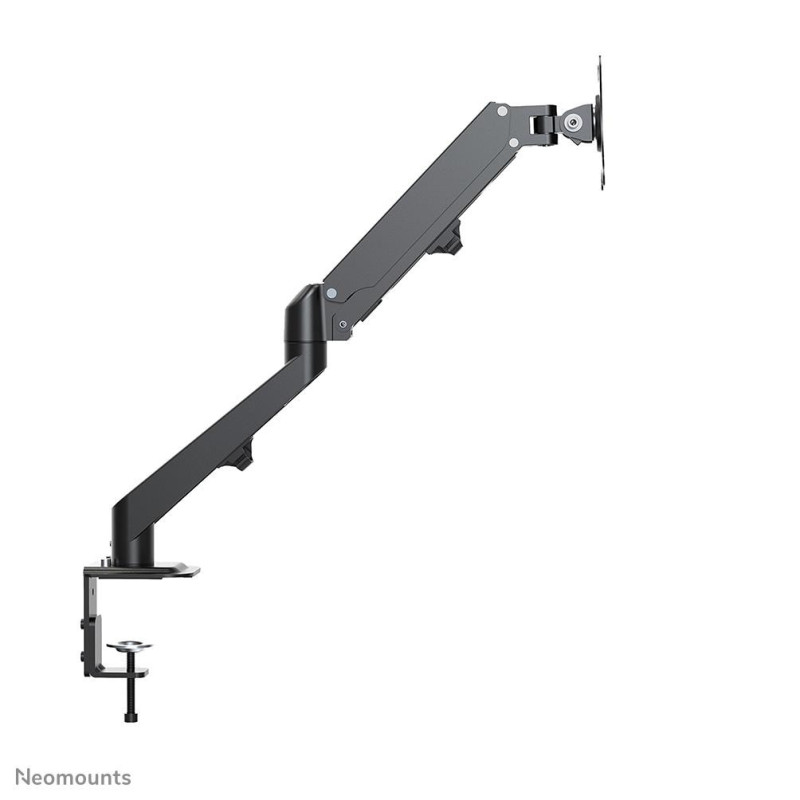

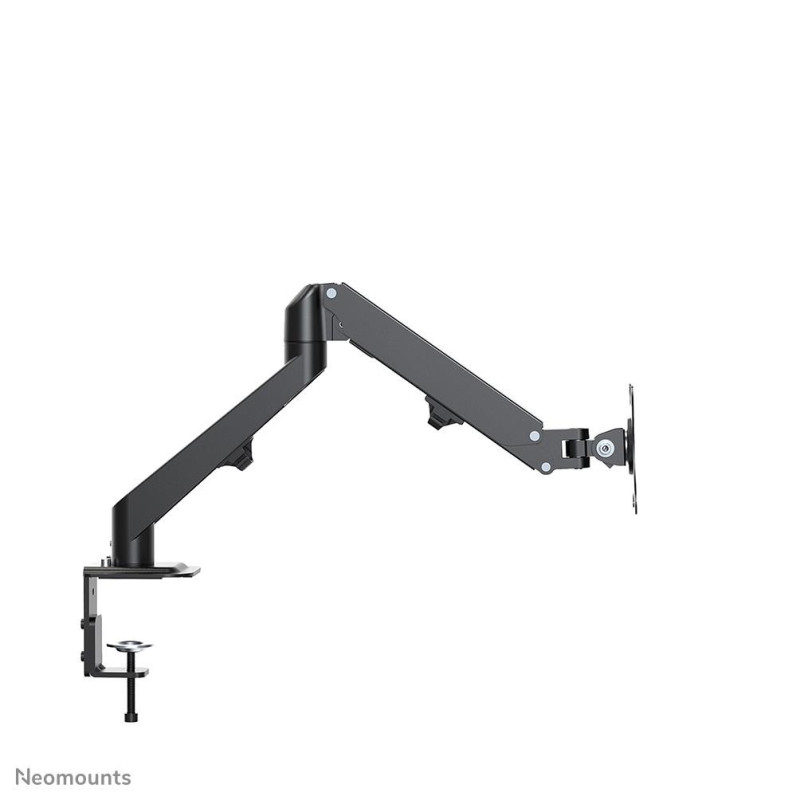

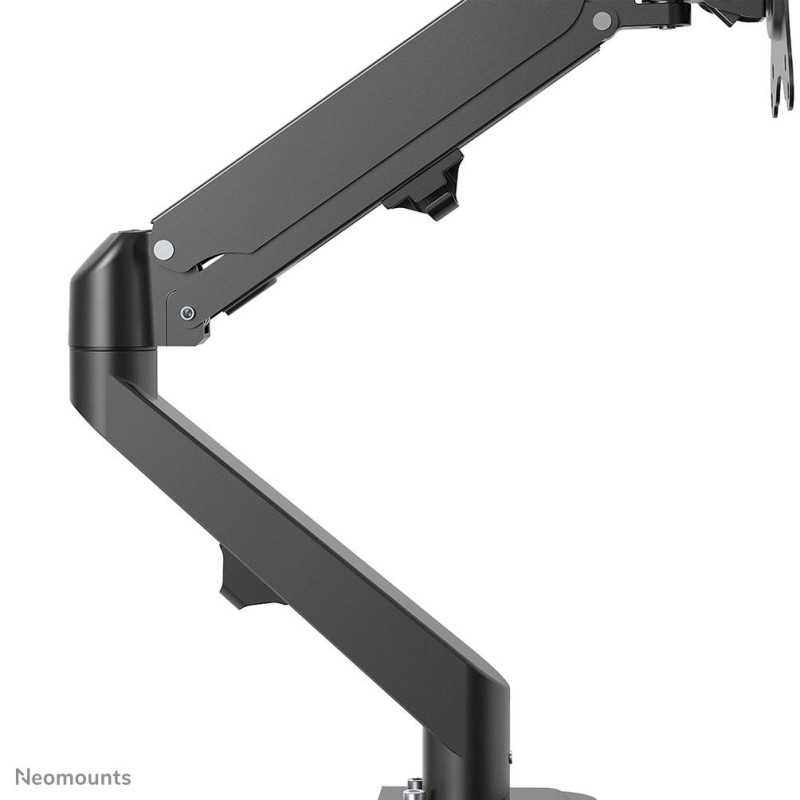

The Neomounts DS70-700BL1 is a full motion desk mount for one flat screen up to 27" with a maximum weight capacity of 7 kg. The versatile tilt (135°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screen. Additionally, the mount features gas spring height adjustment (15,2-40,2 cm) and depth adjustment (0-48 cm), to create the perfect working position.

The DS70-700BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates.

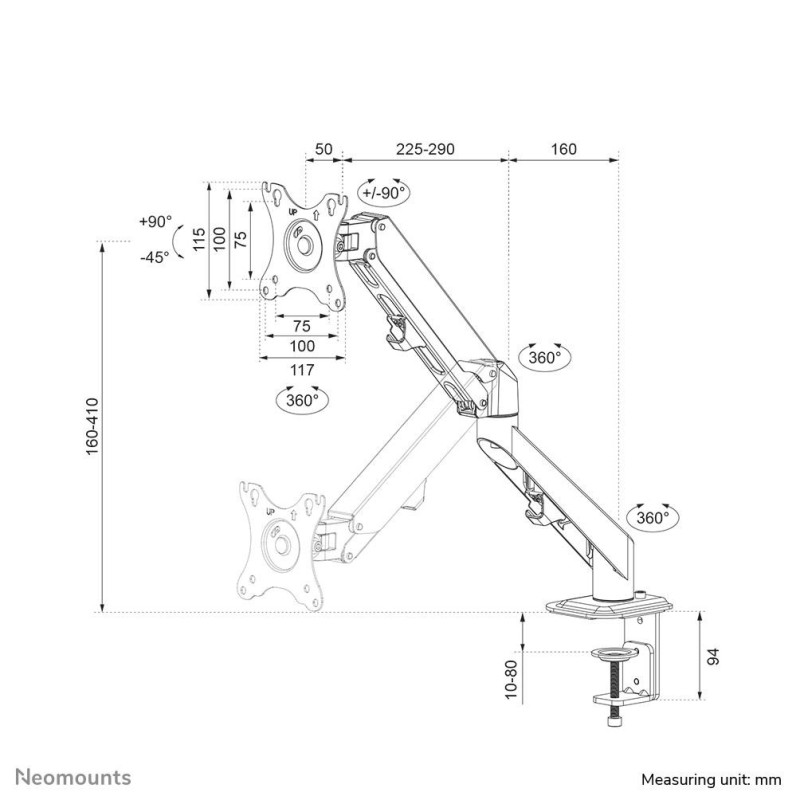

Adjustable depth	Yes
Angle of rotation	360 °

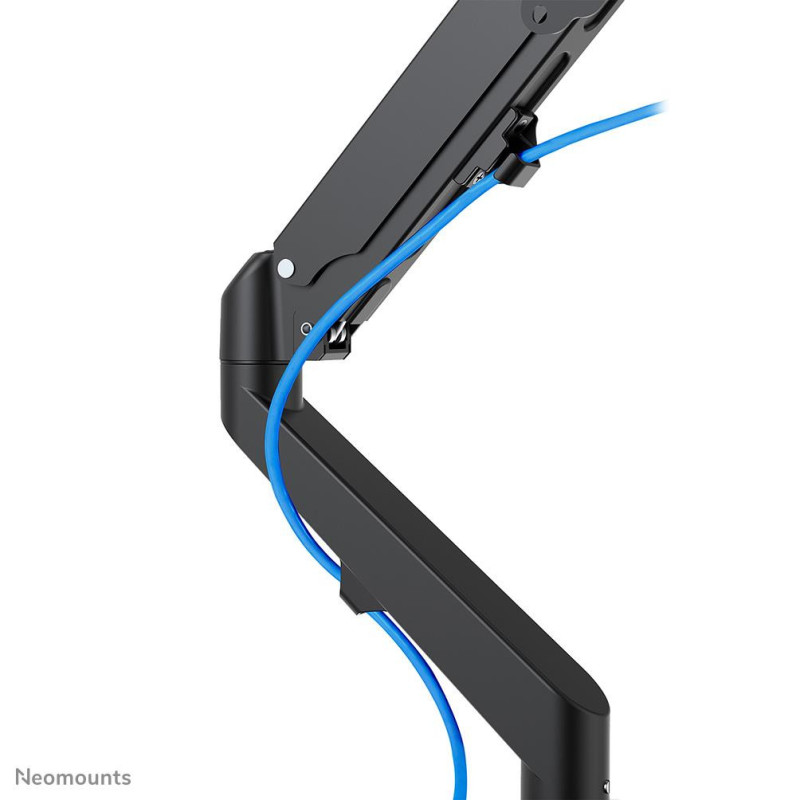

Cable management	Yes
Country of origin	China
Depth	542 mm
Depth adjustment range	0 - 480 mm
Desk thickness (max)	80 mm
Desk thickness (min)	10 mm
Harmonized System (HS) code	7326909890
Height	566 mm
Height adjustment	Yes

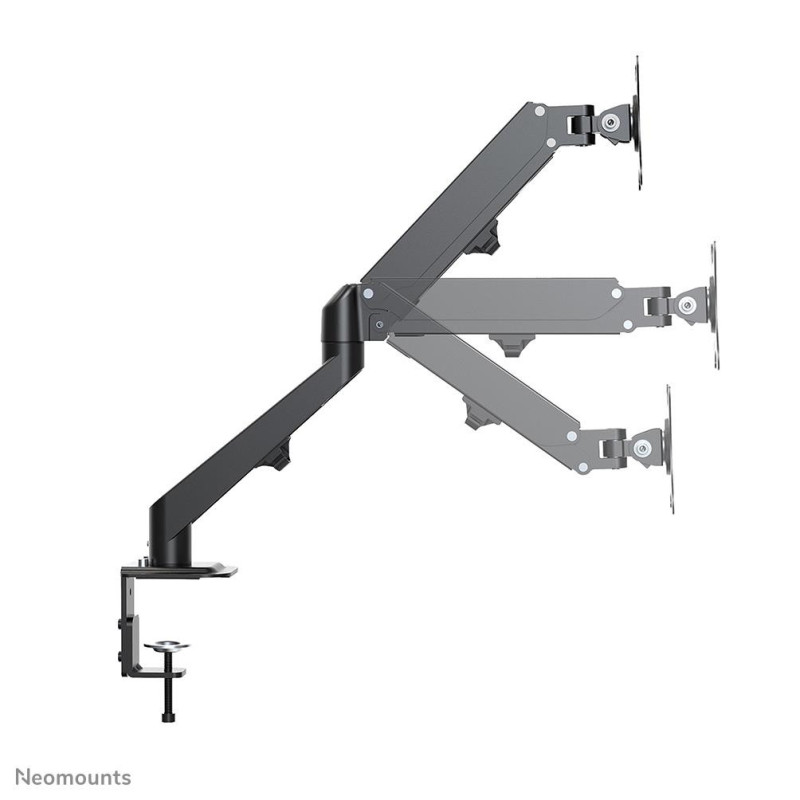

Height adjustment range	152 - 402 mm
Height adjustment type	Gas spring
Housing material	Steel
Master (outer) case gross weight	2500 g
Master (outer) case height	90 mm
Master (outer) case length	270 mm
Master (outer) case net weight	2100 g
Master (outer) case width	405 mm
Maximum screen size	27 "
Maximum VESA mount	100 x 100 mm
Maximum weight capacity	7 kg
Maximum weight capacity (per curved/ultra-wide display)	7 kg
Maximum weight capacity (per display)	7 kg
Minimum screen size	17 "
Minimum VESA mount	75 x 75 mm
Minimum weight	2 kg
Mounting	Clamp
Mounting type	Desk
Number of displays supported	1
Orientation	Landscape/Portrait
Package depth	270 mm
Package height	90 mm
Package net weight	2500 g
Package weight	2500 g
Package width	405 mm
Panel mounting interface	100 x 100/75 x 75 mm
Pivot angle	-180 - 180 °
Product colour	Black
Products per master (outer) case	1 pc(s)
Products per pallet (EU)	135 pc(s)
Quantity per pack	1 pc(s)
Rotating	Yes
Summary	Neomounts DS70-700BL1 Monitor arm 17-27" - gas spring. Mounting: Clamp, Maximum weight capacity: 7 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 90°. Product colour: Black
Swivel angle range	-90 - 90 °
Swivelling	Yes
Tilt adjustment	Yes
Tilt angle range	-45 - 90 °
Unit Box Height	0.1
Unit Box Length	0.41
Unit Box Width	0.28
Unit Calculated Volume	0.01148 cubm
Unit Calculated Weight	2.48 kg
Units per Shipping Box	1
Vendor Homepage	https://www.neomounts.com/default.asp?pageid=44&artdetail=DS70-700BL1
Weight	2100 g
Width	117 mm
