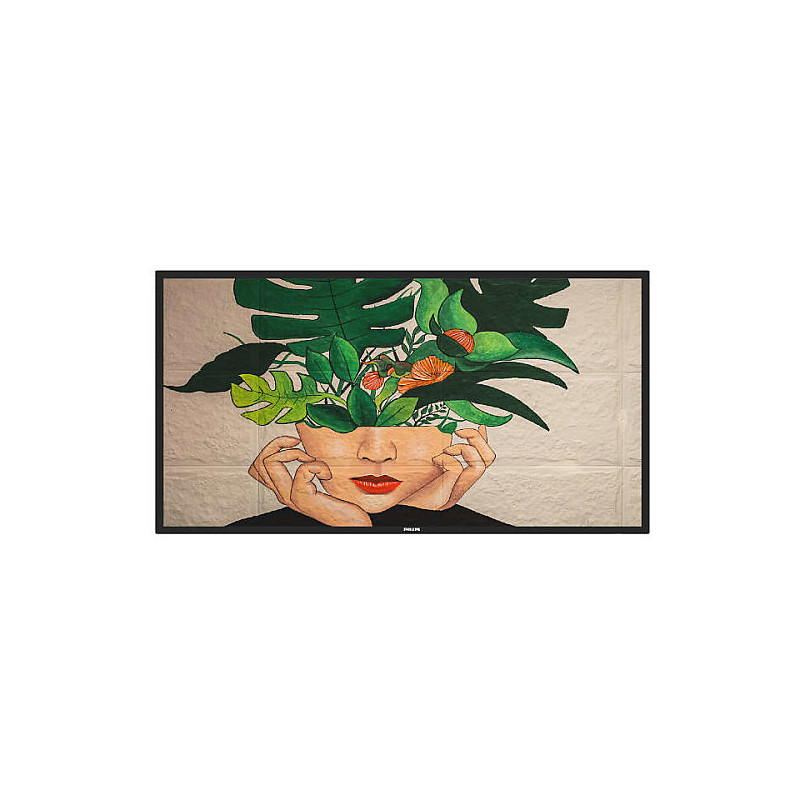

Philips Signage Solutions D-Line

Philips Signage Solutions D-Line. Product design: Digital signage flat panel. Display diagonal: 127 cm (50"), Display technology: VA, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Product colour: Black
Operate, monitor and maintain with CMND and Control
Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.
FailOver ensures that content is always playing
From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.
SmartPower for energy saving
The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.
Schedule what you want, when you want with SmartPlayer
Turn your USB into a true cost-effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display. Create your playlist and schedule your content via the on-screen menu, and enjoy your own playlists anytime, anywhere.
Optional OPS Slot
Open Pluggable Specification is an industry-standard slot into which you can add an OPS-compatible media player. This gives you the ability to upgrade or change your hardware whenever you need to. Turning your display into an all-in-one digital signage solution has become simplicity itself.

Display

Display diagonal: 127 cm (50")
Display technology: VA
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Touchscreen: No
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 4000:1
Contrast ratio (dynamic): 500000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.2854 x 0.2854 mm
Display diagonal (metric): 125.7 cm
Native refresh rate: 60 Hz
Haze rate: 25%

Ports interfaces

HDMI ports quantity: 3
HDMI version: 2.0
HDMI input ports quantity: 2
HDMI output ports quantity: 1
DVI port: Yes
DVI-I ports quantity: 1
DisplayPorts quantity: 2
DisplayPorts in: 1
DisplayPorts out: 1
USB port: Yes
USB ports quantity: 2
USB version: 2.0
Ethernet LAN (RJ-45) ports: 1
Number of speaker outputs: 1
RS-232C: Yes

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
VESA mounting: Yes
Panel mounting interface: 400 x 400 mm

Performance

Purpose: Universal
On Screen Display (OSD): Yes
Number of OSD languages: 18
On Screen Display (OSD) languages: Arabic, Simplified Chinese, Traditional Chinese, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish
Open Pluggable Specification (OPS): Yes
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 91 W
Power consumption (standby): 0.5 W
Power consumption (max): 190 W
Energy efficiency class (SDR): G
Energy consumption (SDR) per 1000 hours: 85 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A to G

Computer system

Computer system: No
Built-in processor: No
Video formats supported: H.264, H.265, MPEG
Audio formats supported: AAC, AAC HE
Image formats supported: BMP, JPEG, PNG

Weight dimensions

Display width: 1128.4 mm
Display depth: 63.5 mm
Display height: 649 mm
Display weight: 14.8 kg

Packaging content

Remote control included: Yes
Batteries included: Yes
Cables included: AC, IR sensor, RS-232

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3000 m

Certificates

Certification: FCC, Class ACCCCBBSMIEMFVCCIPSBEnergyStar 8.0ETLCECPEAC

Logistics data

Harmonized System (HS) code: 85285210

Network

Ethernet LAN: Yes
Wi-Fi: No

Features

Wall mountable: Yes

Technical details

Energy saving functions: Smart Power
Keyboard control: Hidden, Lockable
Signal loop through: DisplayPort, RS232, HDMI, IR Loop through
Set depth (inch): 6.35 cm (2.5")
Set height (inch): 64.9 cm (25.6")
Set width (inch): 112.8 cm (44.4")
Sustainability compliance: Yes
Warranty period: 3 year(s)
Compliance certificates: CE, RoHS

Other features

Quick start guide: Yes
Network controllable: RS232/RJ-45
Screen saving functions: Yes
Screws included: Yes
Bezel width: 1.49 cm
