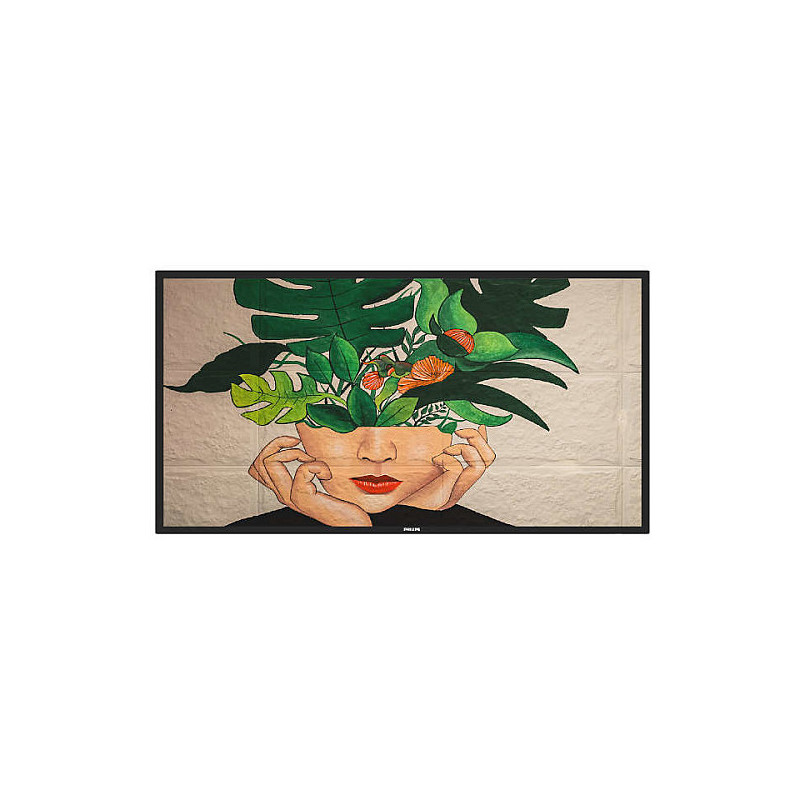

„Philips Signage Solutions“ D linija

Philips Signage Solutions D-Line. Product design: Digital signage flat panel. Display diagonal: 127 cm (50"), Display technology: VA, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Product colour: Black

Operate, monitor and maintain with CMND and Control
Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

FailOver ensures that content is always playing
From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.

SmartPower for energy saving
The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

Schedule what you want, when you want with SmartPlayer
Turn your USB into a true cost-effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display. Create your playlist and schedule your content via the on-screen menu, and enjoy your own playlists anytime, anywhere.

Optional OPS Slot
Open Pluggable Specification is an industry-standard slot into which you can add an OPS-compatible media player. This gives you the ability to upgrade or change your hardware whenever you need to. Turning your display into an all-in-one digital signage solution has become simplicity itself.

Display

Display diagonal: 127 cm (50")
Display technology: VA
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 4000:1
Contrast ratio (dynamic): 500000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.2854 x 0.2854 mm
Display diagonal (metric): 125.7 cm
Native refresh rate: 60 Hz
Haze rate: 25%

Ports & interfaces

HDMI ports quantity: 3
HDMI version: 2.0
HDMI input ports quantity: 2
HDMI output ports quantity: 1
Feature: DVI port
DVI-I ports quantity: 1
DisplayPorts quantity: 2
DisplayPorts in: 1
DisplayPorts out: 1
Feature: USB port
USB ports quantity: 2
USB version: 2.0
Ethernet LAN (RJ-45) ports: 1
Number of speaker outputs: 1
Feature: RS-232C

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 400 x 400 mm

Performance

Purpose: Universal
Feature: On Screen Display (OSD)
Number of OSD languages: 18
Feature: Open Pluggable Specification (OPS)
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 91 W
Power consumption (standby): 0.5 W
Power consumption (max): 190 W
Energy efficiency class (SDR): G
Energy consumption (SDR) per 1000 hours: 85 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A to G

Computer system

Video formats supported: H.264, H.265, MPEG
Audio formats supported: AAC, AAC HE
Image formats supported: BMP, JPEG, PNG

Weight & dimensions

Display width: 1128.4 mm
Display depth: 63.5 mm
Display height: 649 mm
Display weight: 14.8 kg

Packaging content

Feature: Remote control included
Feature: Batteries included
Cables included: AC, IR sensor, RS-232

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3000 m

Certificates

Certification: FCC, Class ACCCCBBSMIEMFVCCIPSBEnergyStar 8.0ETLCECPEAC

Logistics data

Harmonized System (HS) code: 85285210

Network

Feature: Ethernet LAN

Features

Feature: Wall mountable

Technical details

Energy saving functions: Smart Power
Keyboard control: Hidden, Lockable
Signal loop through: DisplayPort, RS232, HDMI, IR Loop through
Set depth (inch): 6.35 cm (2.5")
Set height (inch): 64.9 cm (25.6")
Set width (inch): 112.8 cm (44.4")
Feature: Sustainability compliance
Warranty period: 3 year(s)
Compliance certificates: CE, RoHS

Other features

Feature: Quick start guide
Network controllable: RS232/RJ-45
Feature: Screen saving functions
Feature: Screws included
Bezel width: 1.49 cm
