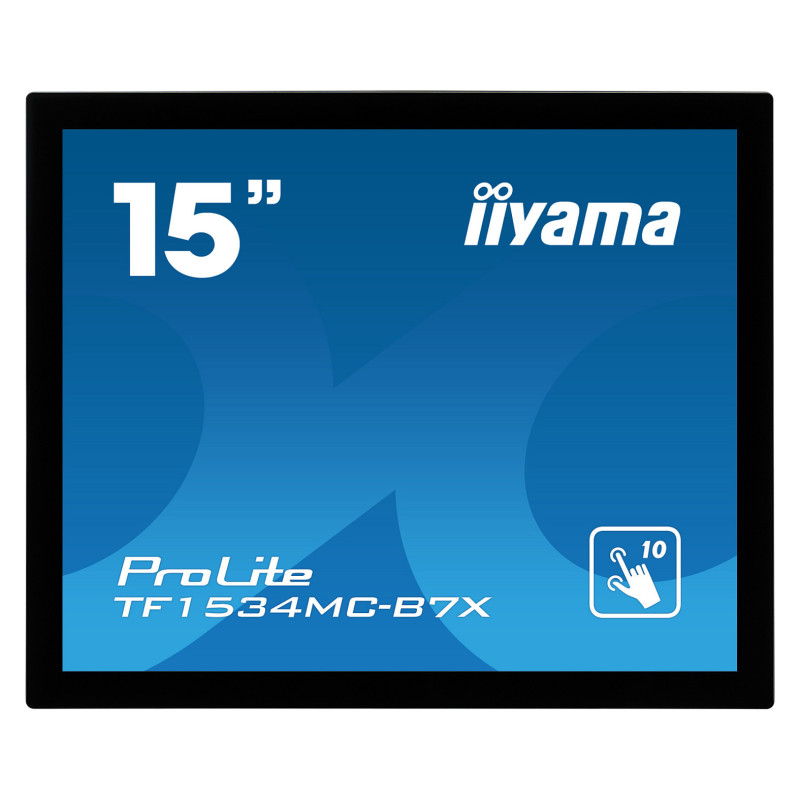

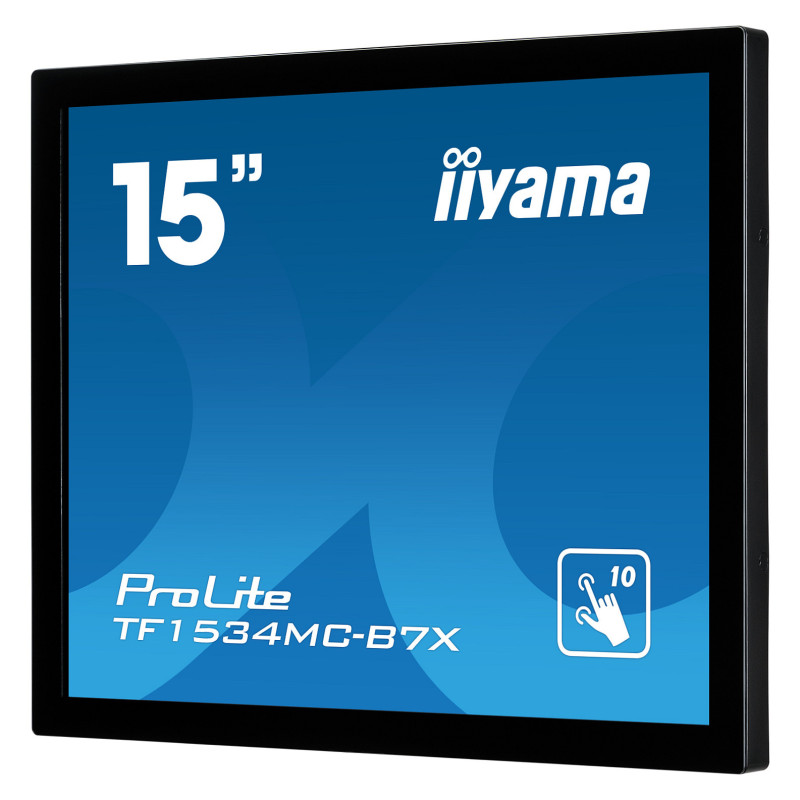

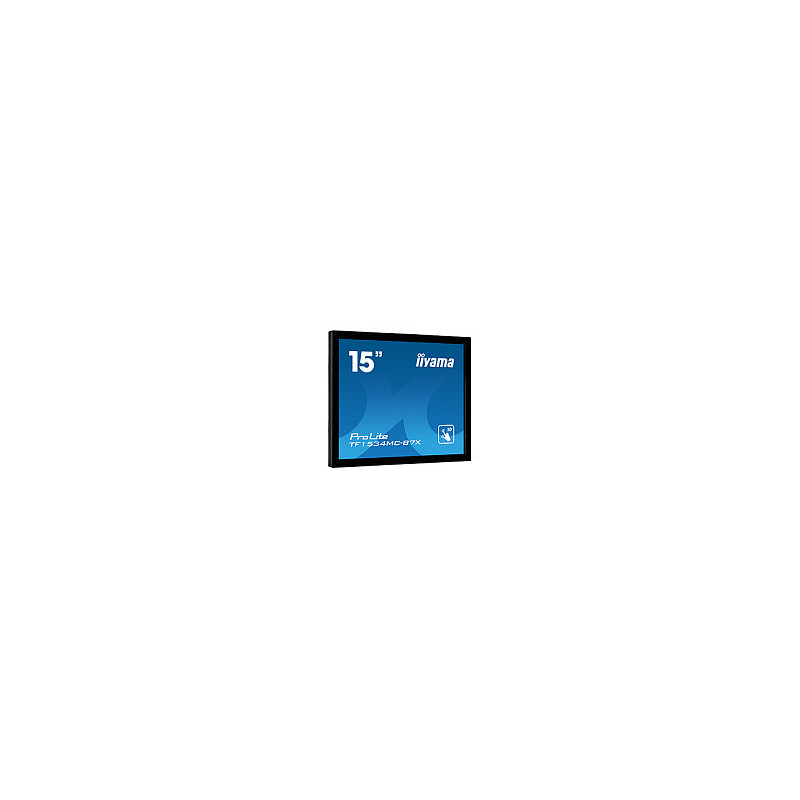

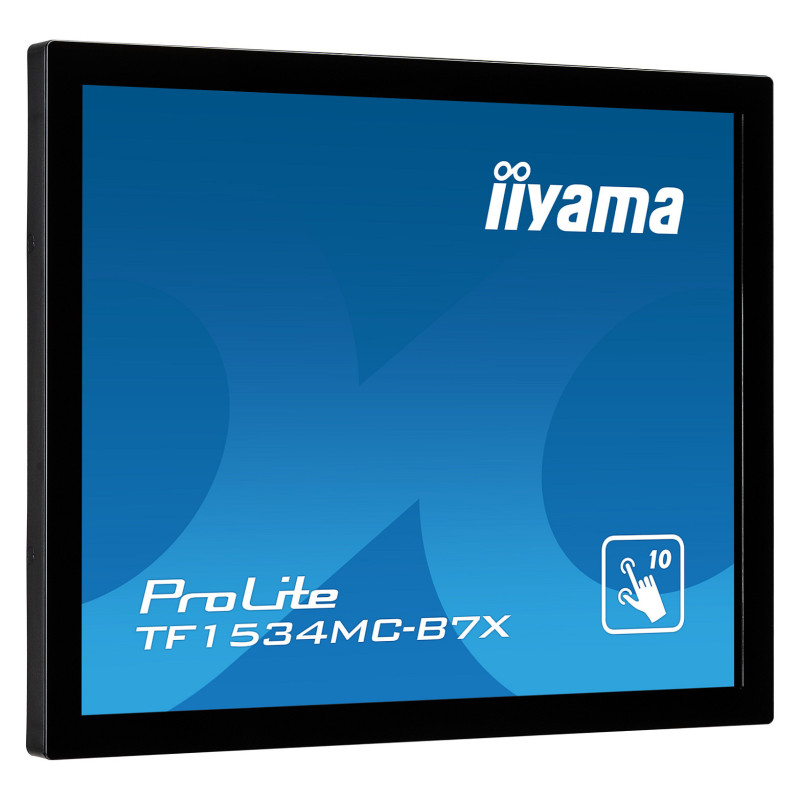

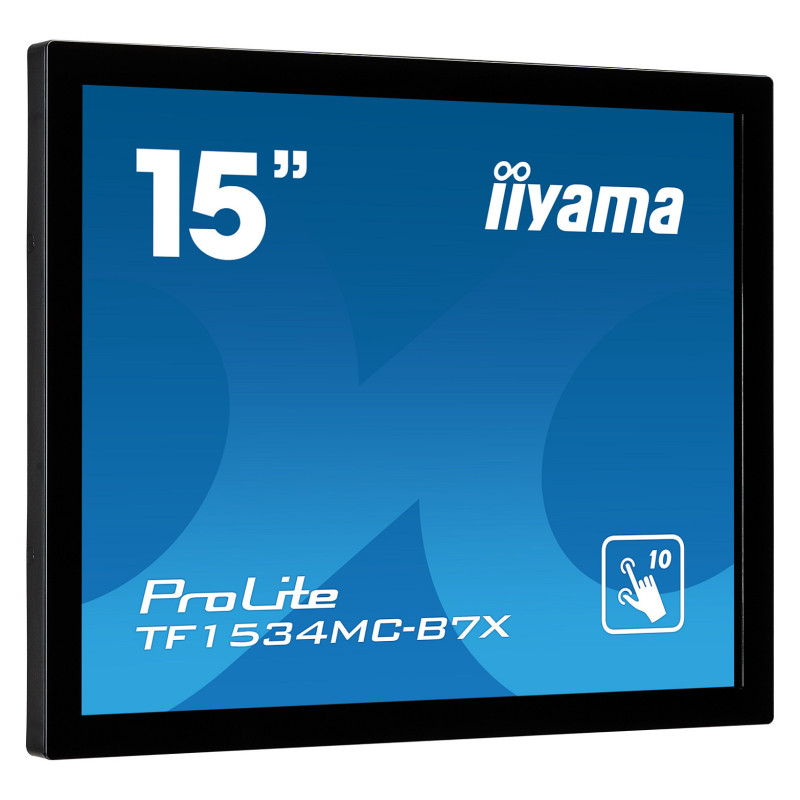

iiyama TF1534MC-B7X computer monitor

iiyama TF1534MC-B7X. Display diagonal: 38.1 cm (15"), Display resolution: 1024 x 768 pixels, HD type: XGA, Display technology: LED, Response time: 8 ms, Native aspect ratio: 4:3, Viewing angle, horizontal: 170°, Viewing angle, vertical: 160°. VESA mounting. Product colour: Black

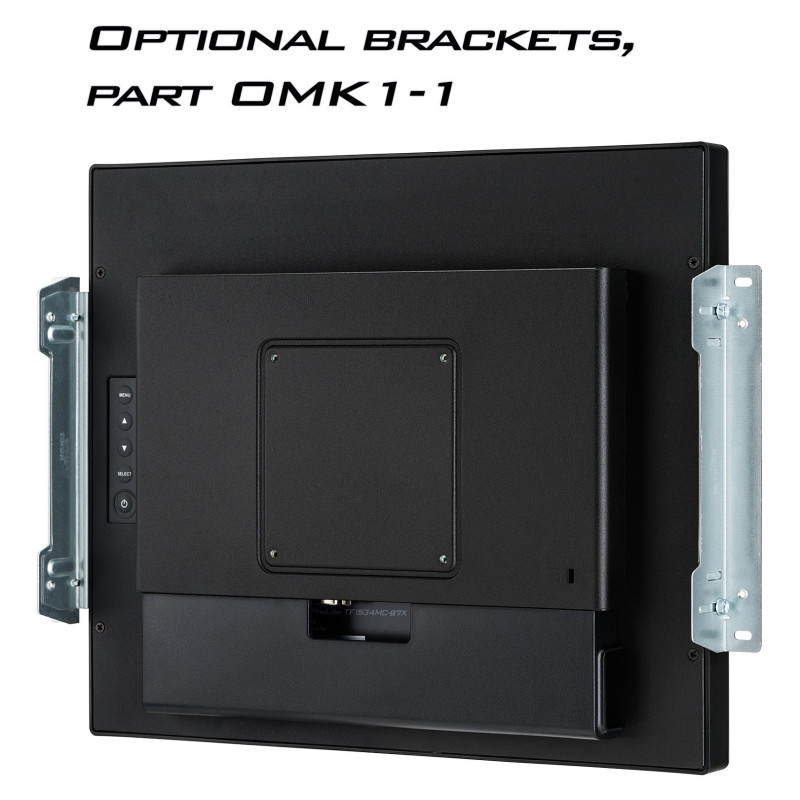

The ProLite TF1534MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant from the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail. For ease of integration, the monitor can be equipped with optional external mounting brackets ( OMK1-1 ).

Display

Display diagonal: 38.1 cm (15")
Display resolution: 1024 x 768 pixels
HD type: XGA
Native aspect ratio: 4:3
Display technology: LED
Panel type: TN
Touchscreen: Yes
Touchscreen type: Multi-user
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 370 cd/m²
Display brightness: 330 cd/m²
Response time: 8 ms
Screen shape: Flat
Contrast ratio (typical): 700:1
Viewing angle, horizontal: 170°
Viewing angle, vertical: 160°
Display number of colours: 16.2 million colours
Pixel pitch: 0.297 x 0.297 mm
Horizontal scan range: 31.4 - 60 kHz
Viewable size, horizontal: 30.4 cm
Viewable size, vertical: 22.8 cm
Display diagonal (metric): 38 cm
Surface hardness: 7H

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No
Palm rejection: Yes

Design

Product colour: Black
Front bezel colour: Black

Ports interfaces

USB Touch port: Yes
VGA (D-Sub) ports quantity: 1
HDMI: Yes
HDMI ports quantity: 1
DisplayPorts quantity: 1
HDCP: Yes

Ergonomics

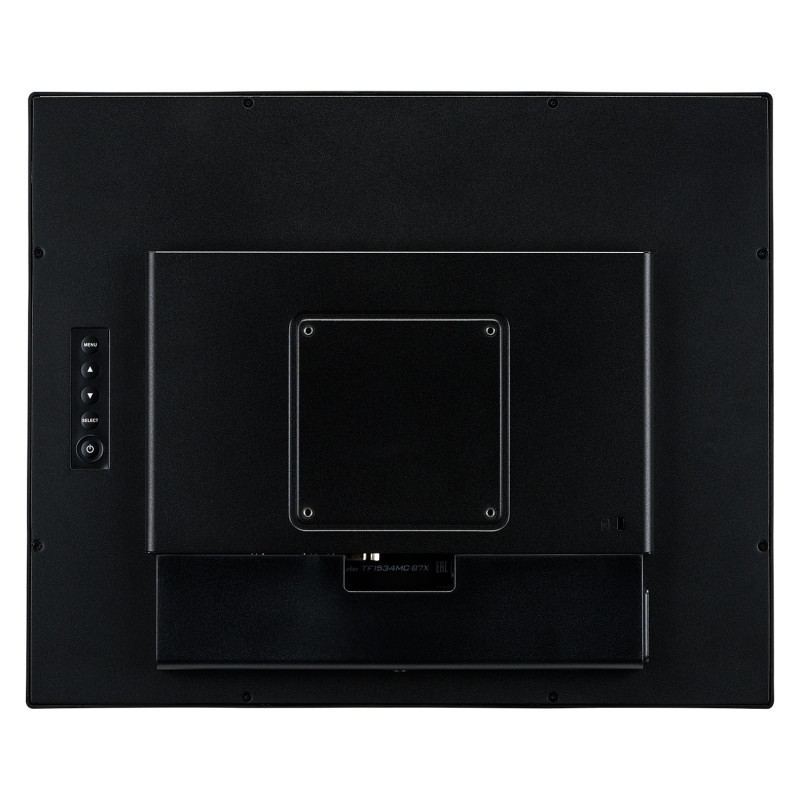

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
Wall mountable: Yes
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages: 7

Power

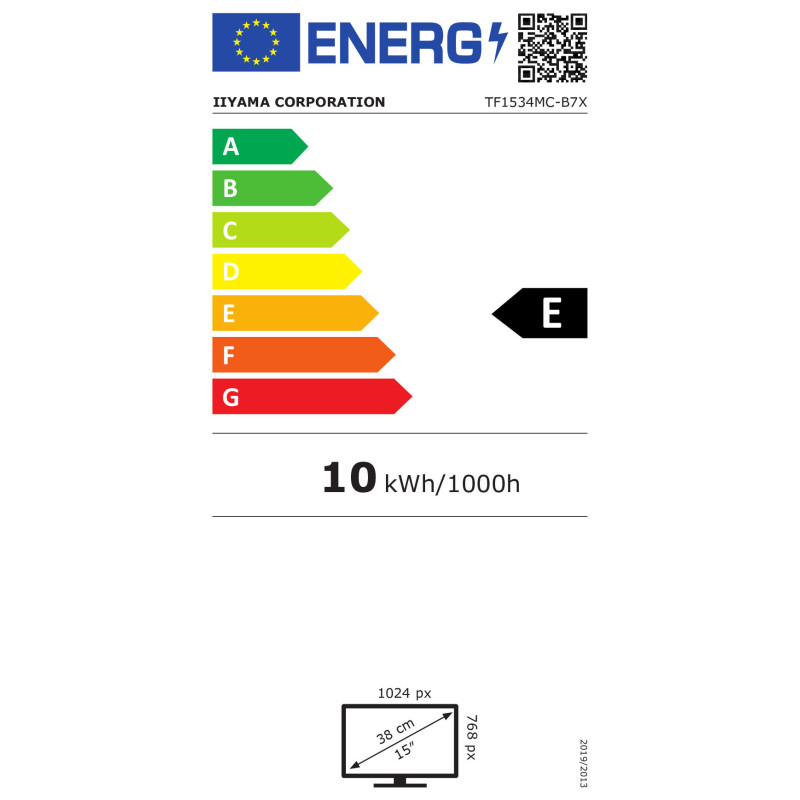

Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 10 kWh
Power consumption (typical): 9 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G

Weight dimensions

Width (with stand): 337.5 mm

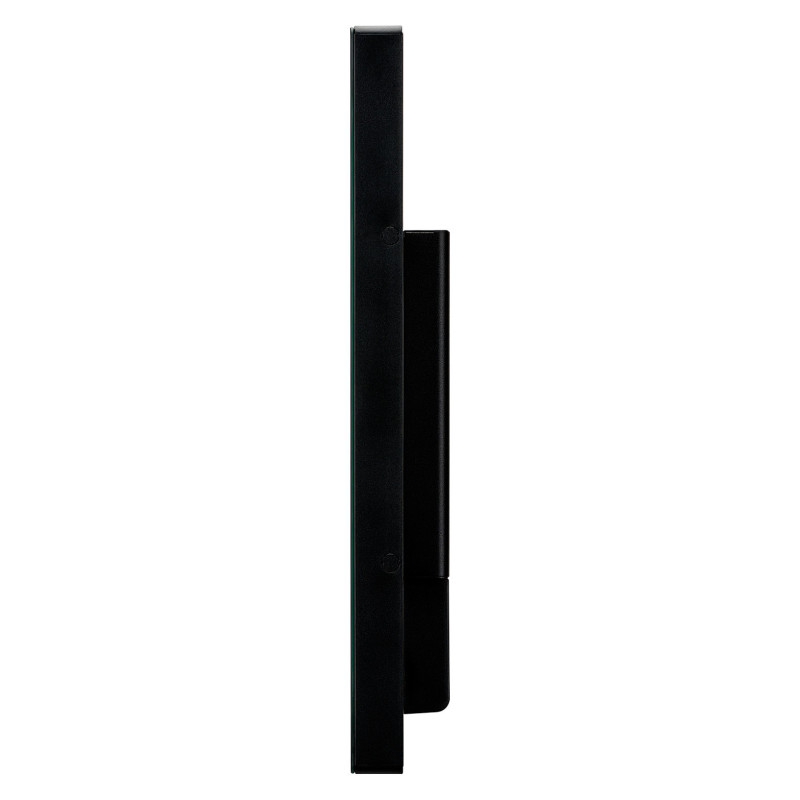

Depth (with stand): 44.5 mm
Height (with stand): 265.5 mm
Weight (with stand): 2.7 kg
Width (without stand): 337.5 mm
Depth (without stand): 44.5 mm
Height (without stand): 265.5 mm
Weight (without stand): 2.7 kg

Packaging data

Package width: 435 mm
Package depth: 165 mm
Package height: 335 mm
Package weight: 4 kg

Packaging content

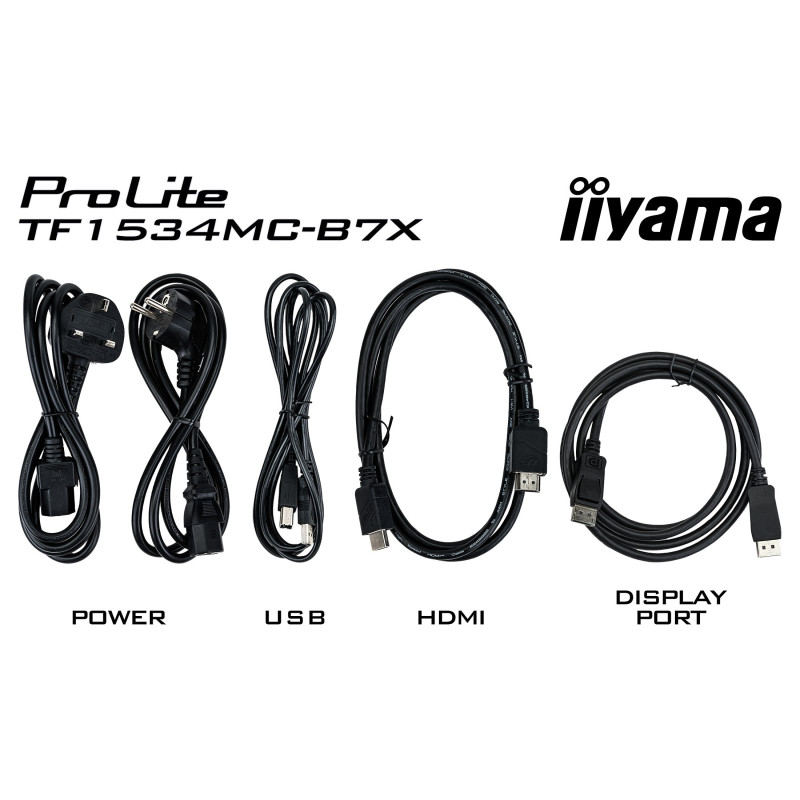

Cables included: AC, USB, HDMI, DisplayPort
Quick start guide: Yes

Sustainability

Sustainability certificates: ErP

Other features

International Protection (IP) code: IP65
Compatible operating systems: All iiyama monitors are Plug Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
AC adapter included: Yes
Display viewable area (HxV): 304 x 228 mm
User controls: picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
Brightness: 330 cd/m²
Packaging content: AC adapter
Active display area (W x H): 304 x 228 mm
Touch method: stylus, finger, glove (latex)
Weight: 2.7 kg
Height: 265.5 mm
Width: 337.5 mm
Depth: 44.5 mm
Control panel: Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, WEEE

Logistics data

Products per pallet: 78 pc(s)
Pallet net width: 91 cm
Pallet net length: 198.7 cm
Pallet net height: 114 cm
Harmonized System (HS) code: 85285210
