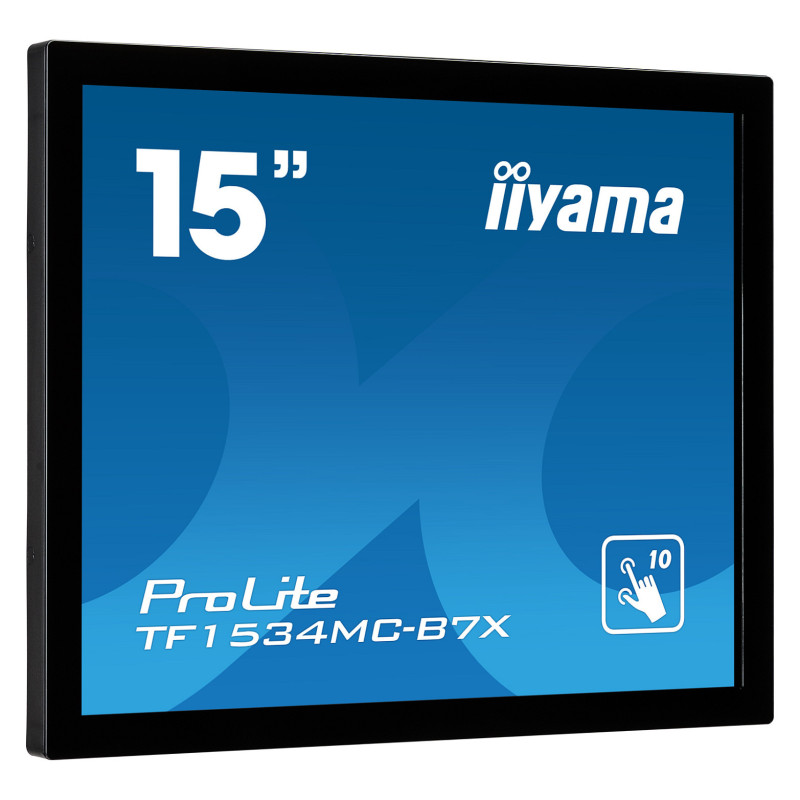

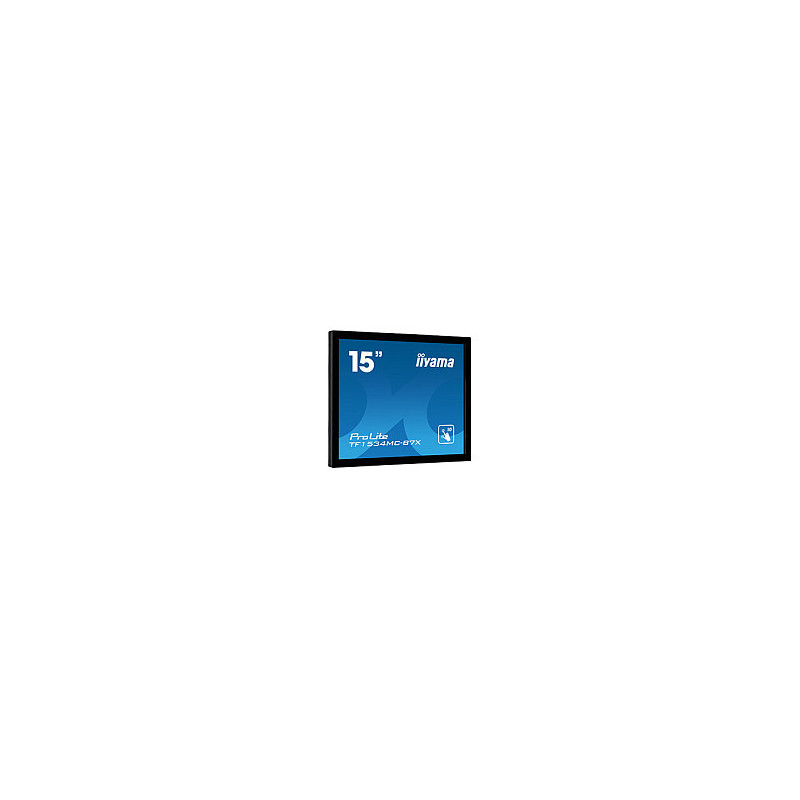

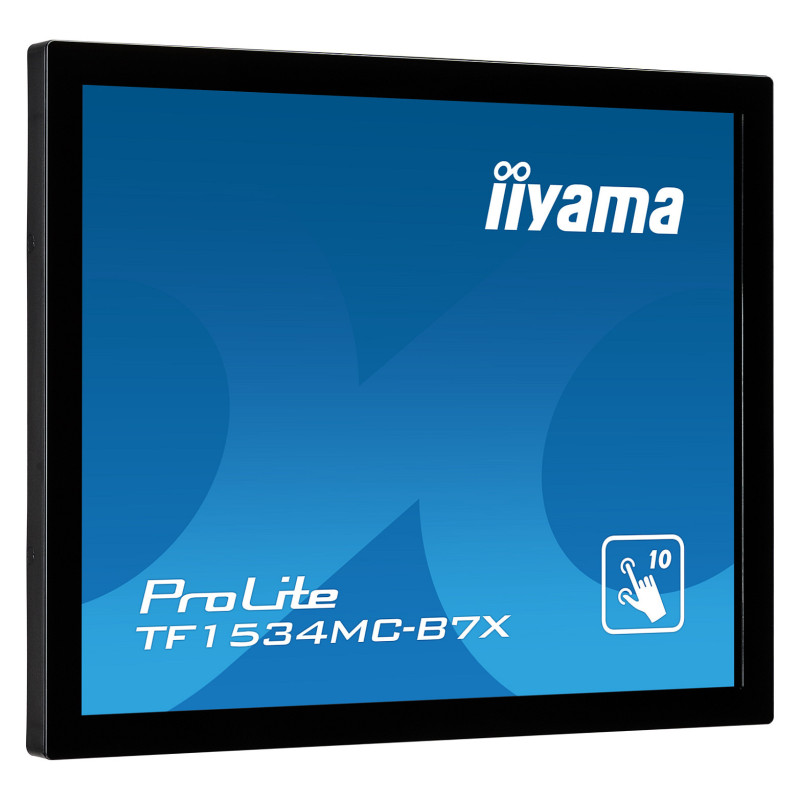

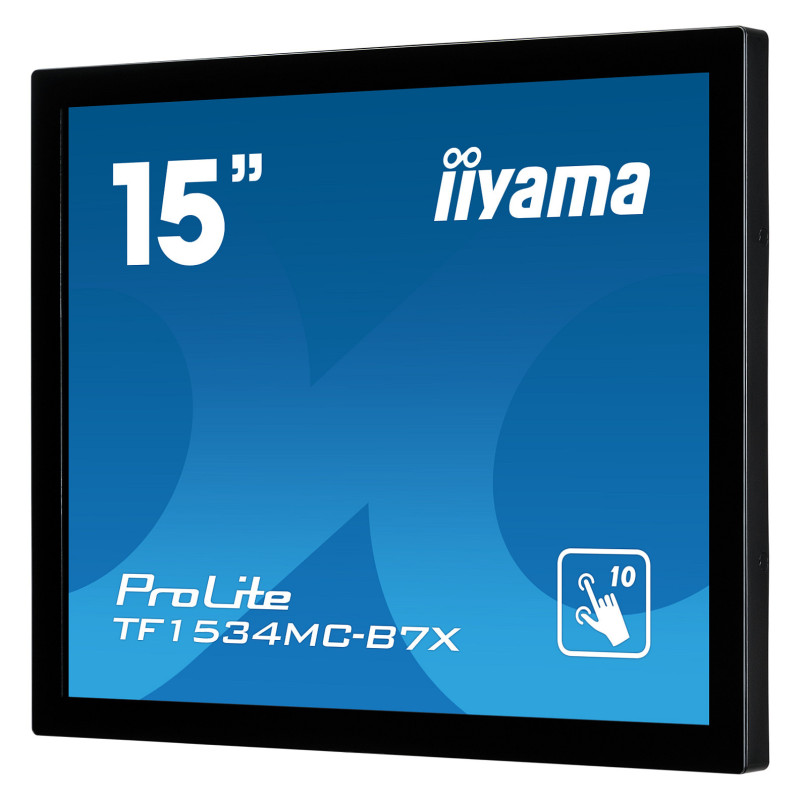

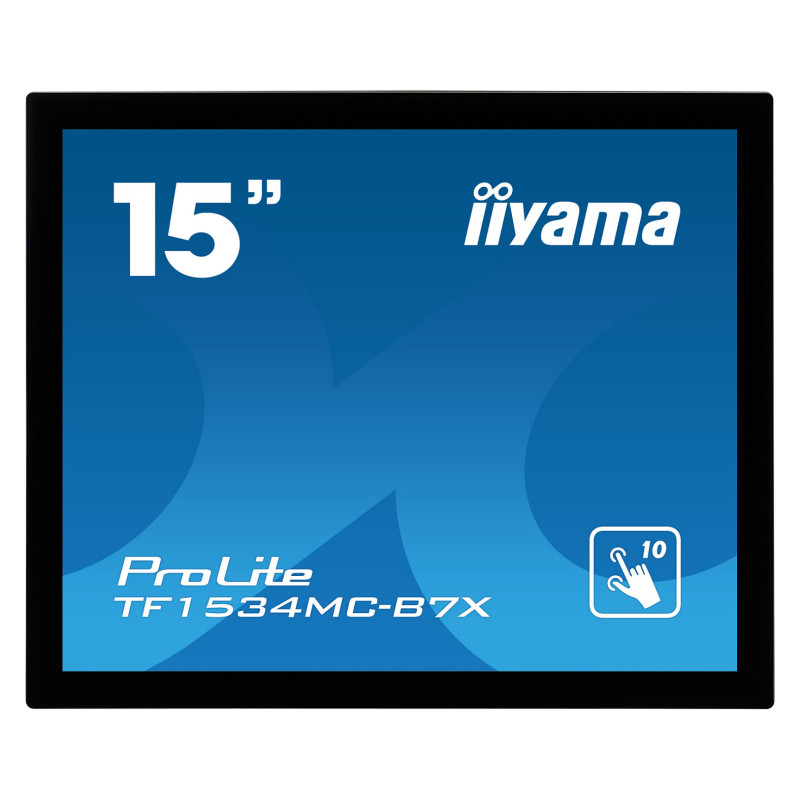

„iiyama TF1534MC-B7X“ kompiuterio monitorius

iiyama TF1534MC-B7X. Display diagonal: 38.1 cm (15"), Display resolution: 1024 x 768 pixels, HD type: XGA, Display technology: LED, Response time: 8 ms, Native aspect ratio: 4:3, Viewing angle, horizontal: 170°, Viewing angle, vertical: 160°. VESA mounting. Product colour: Black

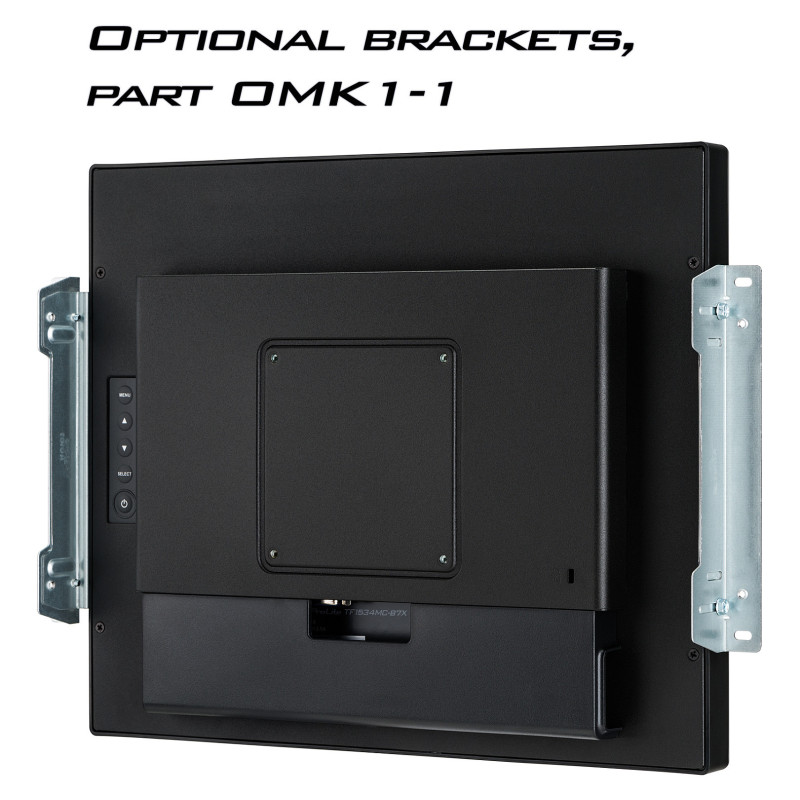

The ProLite TF1534MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant from the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail. For ease of integration, the monitor can be equipped with optional external mounting brackets ( OMK1-1 ).

Display

Display diagonal: 38.1 cm (15")
Display resolution: 1024 x 768 pixels
HD type: XGA
Native aspect ratio: 4:3
Display technology: LED
Panel type: TN
Feature: Touchscreen
Touchscreen type: Multi-user
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 370 cd/m²
Display brightness: 330 cd/m²
Response time: 8 ms
Screen shape: Flat
Contrast ratio (typical): 700:1
Viewing angle, horizontal: 170°
Viewing angle, vertical: 160°
Display number of colours: 16.2 million colours
Pixel pitch: 0.297 x 0.297 mm
Horizontal scan range: 31.4 - 60 kHz
Viewable size, horizontal: 30.4 cm
Viewable size, vertical: 22.8 cm
Display diagonal (metric): 38 cm
Surface hardness: 7H

Performance

Feature: Palm rejection

Design

Product colour: Black
Front bezel colour: Black

Ports & interfaces

Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: HDCP

Ergonomics

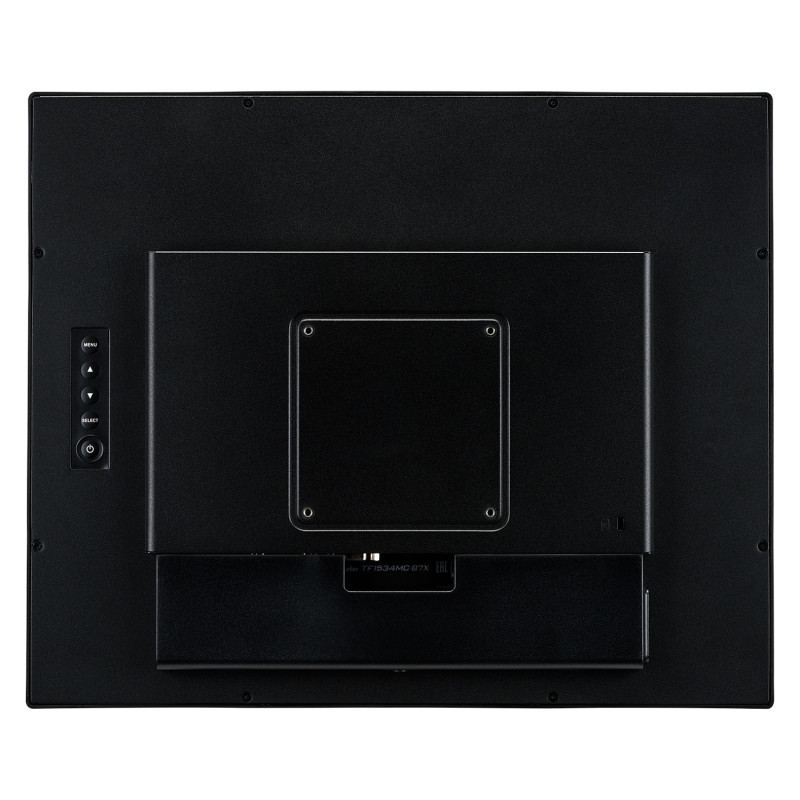

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Wall mountable
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages: 7

Power

Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 10 kWh
Power consumption (typical): 9 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G

Weight & dimensions

Width (with stand): 337.5 mm

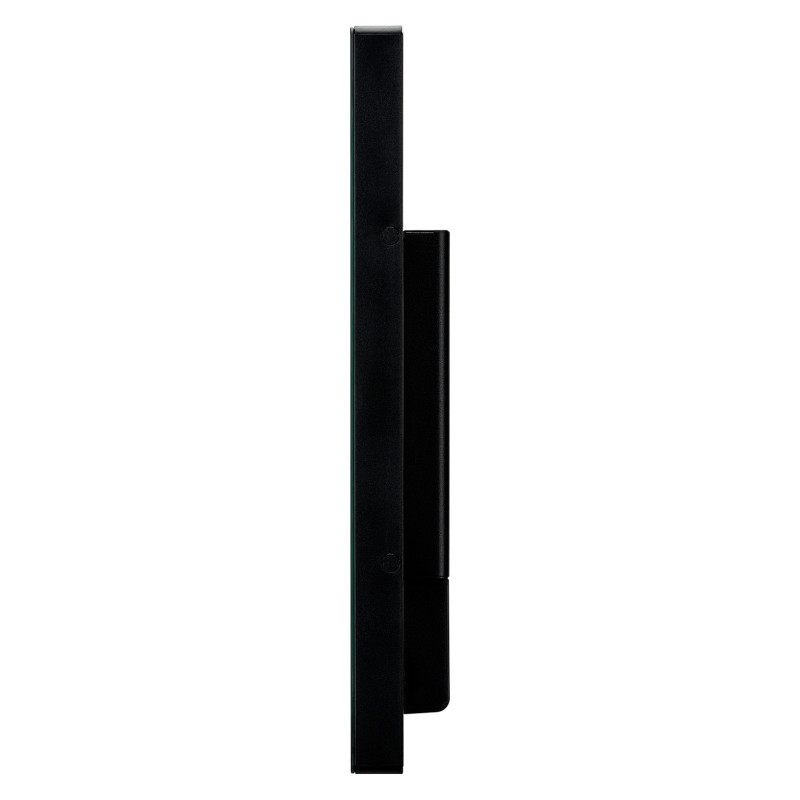

Depth (with stand): 44.5 mm
Height (with stand): 265.5 mm
Weight (with stand): 2.7 kg
Width (without stand): 337.5 mm
Depth (without stand): 44.5 mm
Height (without stand): 265.5 mm
Weight (without stand): 2.7 kg

Packaging data

Package width: 435 mm
Package depth: 165 mm
Package height: 335 mm
Package weight: 4 kg
USB cable length: 1.8 m

Packaging content

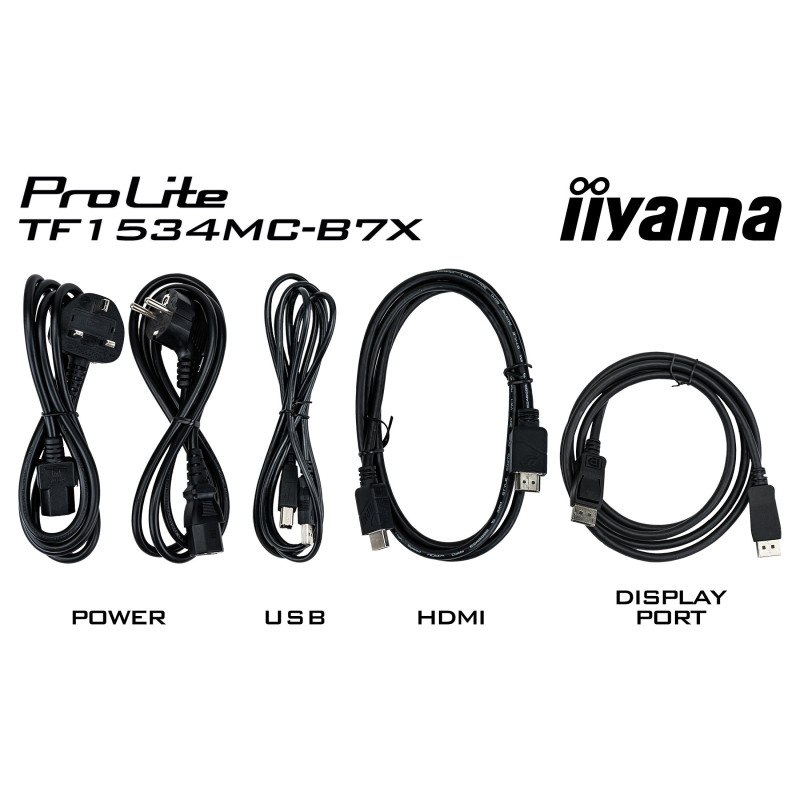

Cables included: AC, USB, HDMI, DisplayPort
Feature: Quick start guide
DisplayPort cable length: 1.8 m
HDMI cable length: 1.8 m
Power cable length: 1.8 m

Sustainability

Sustainability certificates: ErP

Other features

International Protection (IP) code: IP65
Positional accuracy: 2 mm
Feature: AC adapter included
Display viewable area (HxV): 304 x 228 mm
Brightness: 330 cd/m²
Packaging content: AC adapter
Active display area (W x H): 304 x 228 mm
Weight: 2.7 kg
Touch method: stylus, finger, glove (latex)
Height: 265.5 mm
Width: 337.5 mm
Depth: 44.5 mm
Control panel: Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, WEEE
Mean time between failures (MTBF): 50000 h

Logistics data

Products per pallet: 78 pc(s)
Pallet net width: 91 cm
Pallet net length: 198.7 cm
Pallet net height: 114 cm
Harmonized System (HS) code: 85285210
