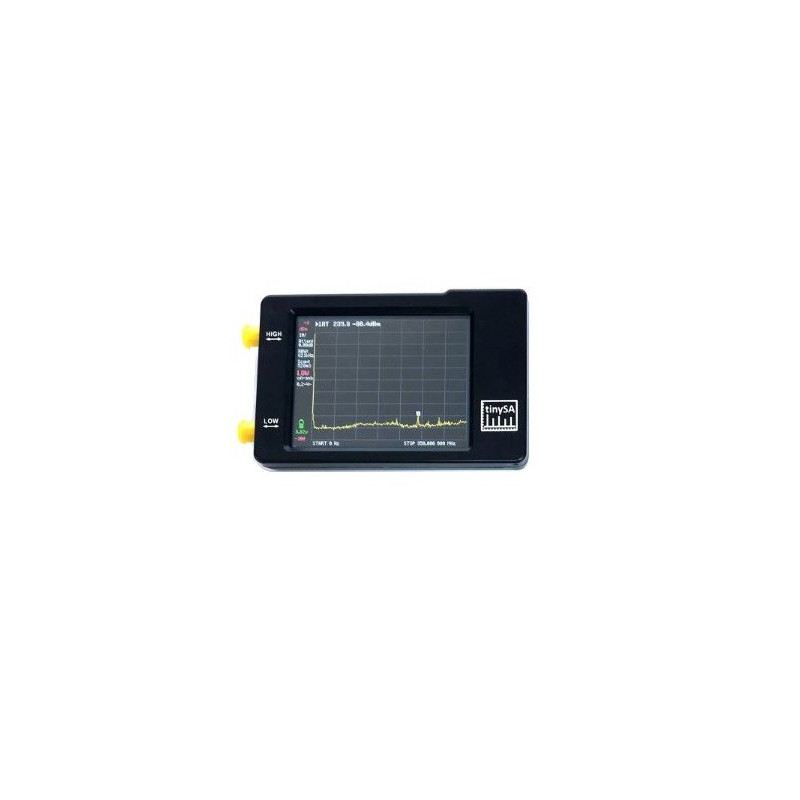

Spectrum analyzer

Spectrum analyzer

• User interface:


• The screen resolution is 320*240 pixels.


• Screen diagonal 2.8 inches.


• 16 bits per RGB pixel.


• Resistive touch control.


• Yog switch control.


• USB serial port management.


• Optional TTL USART port (SW not yet installed) on internal PCB.


• Linear power supply to avoid switching noise.

Low Input Mode Specifications:

• Input frequency range from 100 kHz to 350 MHz (with some limitations up to 10 kHz).


• Input impedance 50 ohms when input attenuation is set to 10 dB or more.


• Selectable manual and automatic input attenuation from 0 dB to 31 dB in 1 dB steps.


• Absolute maximum input level +10 dBm with 0 dB internal attenuation.


• Absolute maximum short-term peak input power +20 dBm with 30 dB internal attenuation.


• A maximum input power of +5 dBm is offered with internal attenuation in automatic mode.


• best measurements maintain input power below -25 dBm.


• The input intercept point for third-order modulation products (IIP3) is +15 dBm with 0 dB internal attenuation.


• 1 dB compression point at -1 dBm, with 0 dB internal attenuation.


• The power detector has a resolution of 0.5 dB and linearity versus frequency of +/-1 dB.


• Absolute power level accuracy after power level calibration +/- 1 dB.


• The minimum visible signal using a 30 kHz resolution bandwidth is -102 dBm.


• Frequency accuracy equal to the selected resolution frequency band.


• Phase noise -90 dB/Hz at 100 kHz offset and -115 dB/Hz at 1MHz offset.


• Activate free dynamic range when using 70 dB 30 kHz resolution bandwidth.


• Manually selectable filters with resolution of 3, 10, 30, 100, 300, 600 kHz. Automatic selection of one of 57 resolution filters.


• Screen resolution - 51, 101, 145 or 290 measurement points.


• Scanning speed exceeds 1000 points per second using the highest resolution filters.


• Automatic optimization of actual scan points to ensure coverage of the entire scan range, regardless of the selected resolution bandwidth.


• A boost suppression option to assess whether certain signals are internally generated or actually present in the input signal.


• After a small HW modification, demodulated audio can be listened to.

High input mode specification:

• Input frequency range from 240MHz to 960MHz.


• The input impedance depends on the frequency and varies from 50 ohms.


• Since there is no input bandpass filter, strong input signals outside the 240-960 MHz range can distort the bandpass signals.


• Absolute maximum input level without +10 dBm attenuation.


• The input point of the third-order modulation products (IIP3) is -5 dBm without internal attenuation.


• 1 dB compression point at -6 dBm without internal attenuation.


• The power detector has a resolution of 0.5 dB and linearity over frequency of +/-1 dB.


• Absolute power level accuracy after power level calibration +/- 1 dB.


• The minimum visible signal using a 30 kHz resolution bandwidth is 115 dBm.


• Frequency accuracy equal to the selected resolution bandwidth.


• Activate free dynamic range when using 30 kHz resolution bandwidth of 50 dB.


• Manually selectable resolution filters 3, 10, 30, 100, 300, 600 kHz. Automatic selection of one of 57 resolution filters.


• A frequency-dependent input attenuator is selectable from 25 dB to 40 dB. The power level error increases to +/- 10 dB when this attenuator is activated.


• Screen resolution 51, 101, 145 or 290 measurement points.


• Scanning speed exceeds 1000 points/second using the highest resolution filters.


• Automatic optimization of actual scan points to ensure coverage of the entire scan range, regardless of the bandwidth of the selected resolution.


• After a small HW modification, you can listen to demodulated sound.

Low Output Mode Specifications:

• Sinusoidal output with harmonics below -40 dB of the fundamental.


• Output frequency range from 100 kHz to 350 MHz.


• Level accuracy +/- 2 dB across the entire output frequency range.


• Output frequency resolution 156 Hz below 47 MHz output or 312 Hz above 47 MHz output.


• The output level is selectable in 1 dB steps from -76 dBm to -6 dBm.


• Selectable AM, narrow FM and wide FM modulation with frequencies from 50 Hz to 6 kHz or slow sweep through a selectable frequency range.


• Selects the output level transition over the maximum range of the total output level.

High Output Mode Specifications:

• Square wave output.


• Output frequency range from 240MHz to 960MHz.


• Output frequency resolution 156 Hz below 480 MHz output or 312 Hz above 480 MHz output.


• The output level is selected in a variable step from -38 dBm to +9 dBm.


• Selectable narrow FM and wide FM modulation with frequencies between 50 Hz and 6 kHz or slow sweep over a selectable frequency range.

Link generator specification:

• Optional square wave output with a fundamental of -25 dBm connected to the high input/output.


• The frequency can be set to 1MHz, 2MHz, 4MHz, 10MHz, 15MHz or 30MHz.

Battery specification:

• Charging time is maximum 1 hour using a minimum 500 mA USB port or USB charger.


• Operation with a fully charged battery for at least 2 hours.
