Steering wheel adapter for Skoda models Quadlock Multilead Audience OEM HU

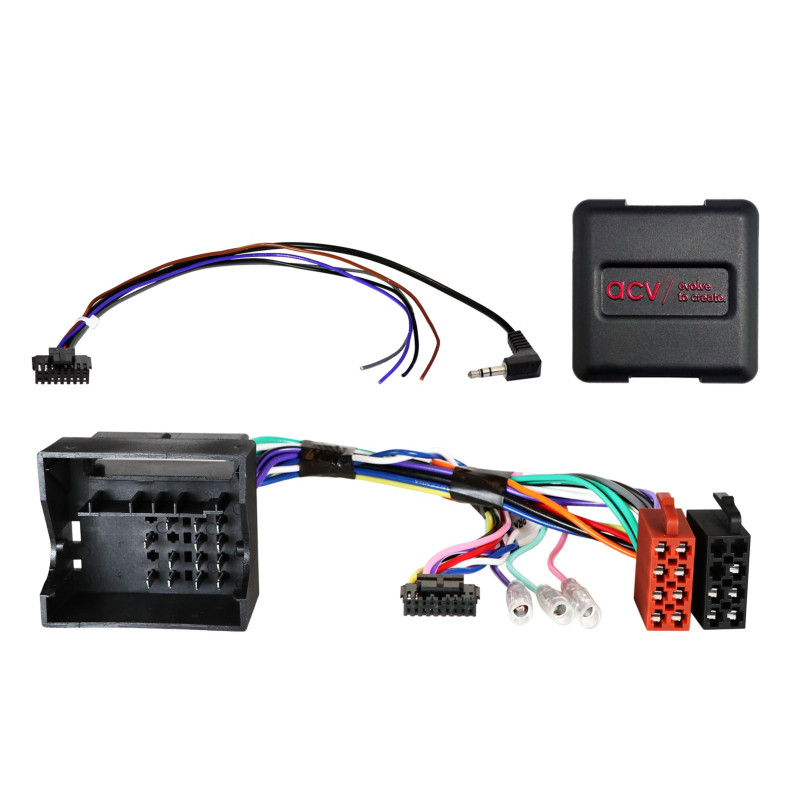

Skoda steering wheel control adapter

This adapter allows you to retain the original steering wheel remote control functions when replacing your factory radio with an aftermarket one. This allows you to conveniently and safely adjust volume, change stations, or skip tracks without taking your hands off the wheel.

Product features:

• Service CAN bus

• Connector Quadlock 40-pin Skoda

• Remote control output: 3.5mm jack / loose cable

• Device compatibility OEM Audience / Stream

• Incompatible with systems Technisat

• Regulation by DIP switches for the radio manufacturer (see BDA manual)

Available signals:

• Red: +12V (ignition terminal 15)

• Orange: +12V (lighting terminal 58)

• Purple and white: +12V (reversing signal)

• Pink: speed signal

• Green: ground (GND / handbrake signal)

Output load capacity: max. 250 mA
Relay resistance: min. 75-150 Ω

Compatible Skoda vehicles:

• Fabia (5J) - 03.2007-04.2010

• Fabia (5J) - 06.2010-06.2014

• Octavia II (1Z) - 06.2004-05.2009

• Roomster (5J) - 09.2006-02.2015

Assembly instructions:

1. Check the functions and settings of the original device.

2. Remove the radio with the power off.

3. Configure the interface and cable connections according to the instructions.

4. Connect the installation to the vehicle - connect the power cable last.

5. Configure the interface and radio according to the manufacturer's instructions.

6. Test all steering wheel remote control functions.

Important:

• Installation and configuration changes may only be performed by persons with appropriate qualifications.

• Incorrect connections may void your warranty or damage your device.

• Reimported vehicles or vehicles with different software may be functionally incompatible.
