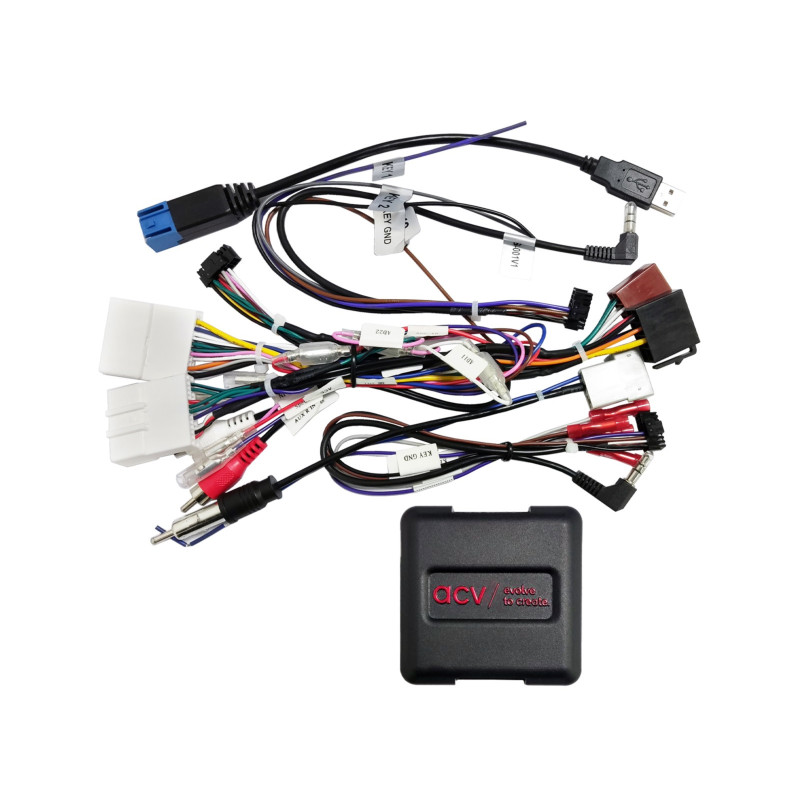

Adapter for Nissan steering wheel model 20Pin / 24Pin Multilead USB / AUX

The adapter allows you to retain the original steering wheel control functions when replacing the factory radio with a retrofitted head unit (HU).

Depending on the vehicle equipment, the scope of functions and the software of the retrofitted HU unit, individual functions may be omitted or replaced by others.

• Compare the wiring harness connectors shown in the photos with the connectors in your car - make sure they match visually and technically.

• Check if one of the listed original head units was factory installed.

• Before installation, verify the vehicle's functionality, settings and operation of the SWC system.

Connectors:

• Nissan: 20-pin / 32-pin

• OEM antenna > DIN connector (m)

• OEM AUX > RCA connector (m) (red/white)

• OEM USB > USB-A

• Blue: +12V antenna

• Vehicles without OEM 360° camera system

Attention:
Before installation, check the correct AUX assignment by measuring with the OEM HU.

Supported features:

• Date/time setting

• DIP switches for the manufacturer of the retrofit unit (see instructions)

• Micra (K14) 03/2017 - 08/2019*

• Pulsar (C13) 10/2014 - 06/2018

• Qashqai (J11) 03/2014 - 07/2017**

• Titan (H61) 2015 - 2019

• X-Trail (T32) 07/2014 - 07/2017

*vehicles without OEM PDC/OEM camera
** vehicles with Acenta model equipment

• Red: +12V ignition terminal (15)

• Orange: +12V lighting terminal (58)

• Purple/White: +12V Reverse Signal

• Pink: Speed ​​pulse signal

• Green: GND parking brake signal

Output load capacity: max. 250 mA
Current demand above 250 mA:

1. Relay coil resistance min. 75 Ohm

2. Relay coil resistance min. 150 Ohm

Verification:
