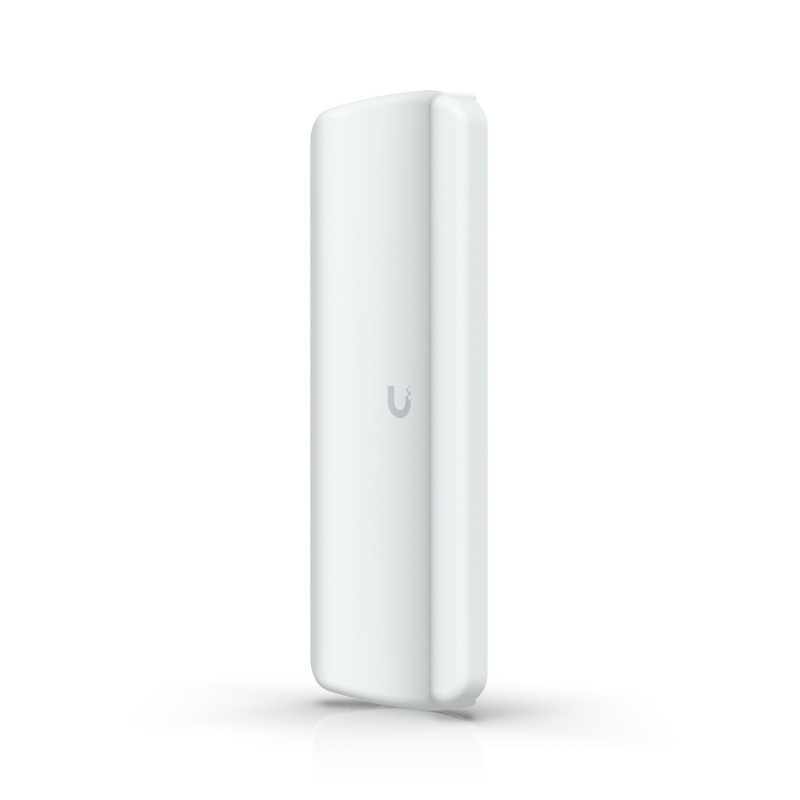

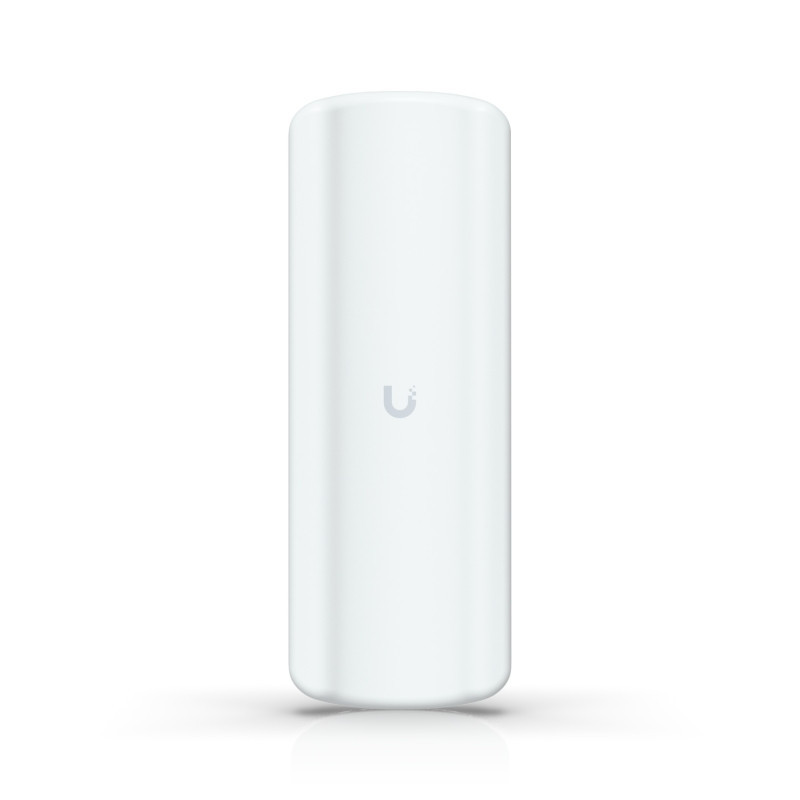

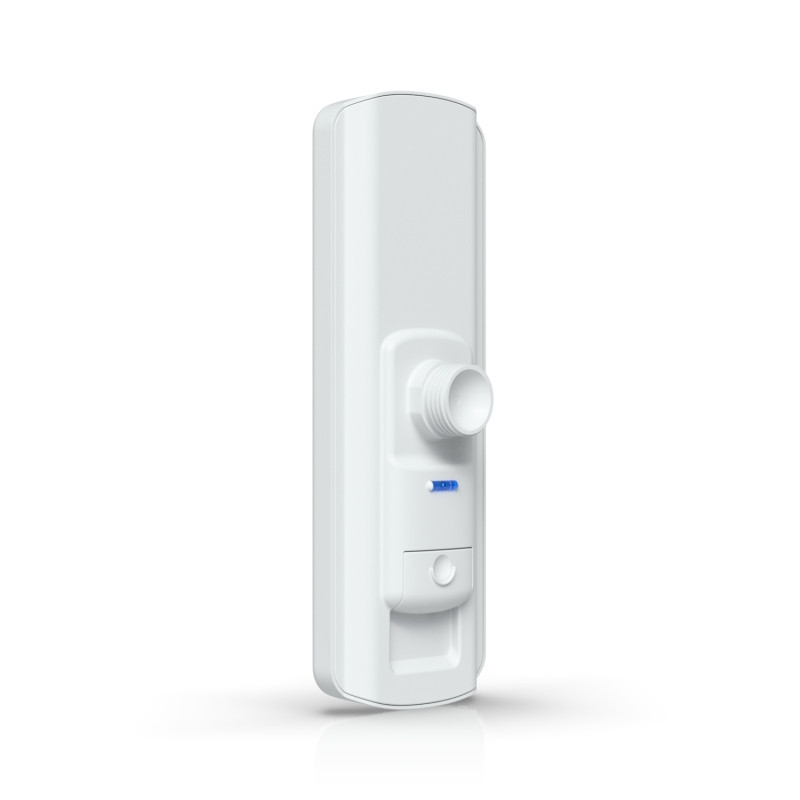

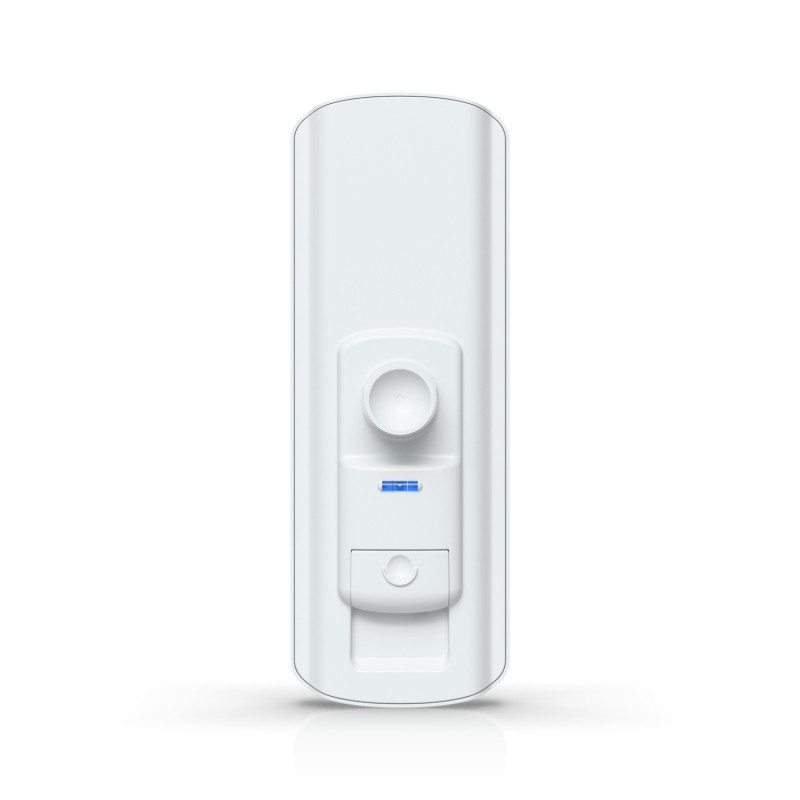

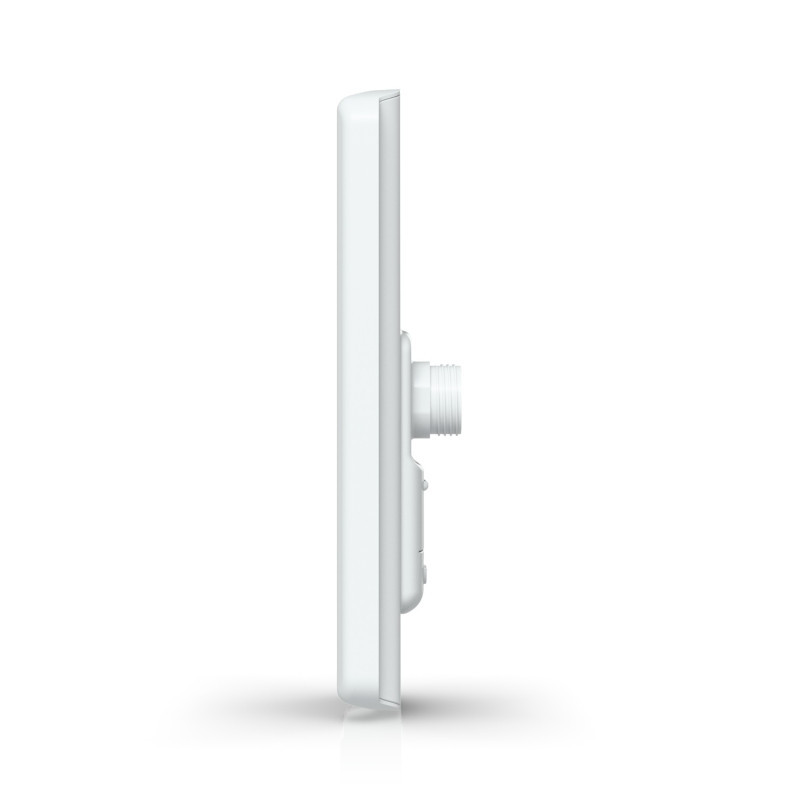

UBIQUITI UniFi 5 GHz Device Bridge Pro Sector

High-Performance Wireless ConnectivityThe Ubiquiti Device Bridge Pro Sector (UDB-Pro-Sector) is a high-performance wireless backhaul device designed for enterprise-grade point-to-point and point-to-multipoint connectivity over the 5 GHz frequency band. It utilizes advanced 802.11a/n/ac Wi-Fi standards with a 2x2 MIMO antenna system to deliver real data rates of up to 867 Mbps, supporting distances exceeding 5 kilometers with stable throughput and minimal latency. Its built-in 19 dBi directional antenna provides focused signal transmission, improving interference rejection and link quality. This makes the device ideal for inter-building links, remote site integration, and infrastructure bridging in both urban and rural settings. Seamless integration is achieved through UniFi Auto-Link technology, which automates device pairing with UniFi gateways, switches, and controllers, streamlining deployment. All system operations, from configuration to monitoring, are handled via the UniFi Network Controller, allowing for unified, scalable management of all network components.

Durable ConstructionPurpose-built for outdoor applications, the UDB-Pro-Sector is enclosed in a UV-resistant polycarbonate housing rated IPX6, which provides protection against heavy rain, dust ingress, and harsh environmental exposure. It is capable of operating in temperatures ranging from -40°C to +60°C, ensuring year-round reliability in extreme climates. The device is also rated to withstand wind loads of up to 69 N at wind speeds of 200 km/h, making it suitable for deployment on rooftops, towers, and exposed locations. These mechanical and environmental protections safeguard the internal electronics against moisture, solar radiation, and mechanical stress. Furthermore, integrated diagnostic tools such as signal strength visualization and spectrum analysis are accessible through the UniFi Controller, allowing IT administrators to perform fine-tuned optimizations. Combined, these features make the UDB-Pro-Sector an ideal choice for high-availability networking in mission-critical or industrial outdoor environments.

Dimensions: 360.9 x 129.6 x 71.4 mm (14.2 x 5.1 x 2.8')

WiFi Standard: WiFi 5

Spatial Streams: 2

Coverage Area: 5 km (3.1 mi)

Mounting Locations: Pole

Weatherproofing: IPX6

Power Method: PoE

Performance

MIMO:

5 GHz: 2 x 2

Max. Data Rate:

5 GHz: 400 Mbps (BW40)

Antenna Gain:

5 GHz: 17 dBi

Max. TX Power:

5 GHz: 25 dBm

Max. Conducted TX Power: 25 dBm (Combined)

Supported Data Rates:

802.11ac (WiFi 5): 6.5 Mbps to 400 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40)

802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Hardware

Wireless Security: WPA2 AES

Max. Power Consumption: 6W

Supported Voltage Range: 42.5—57V DC

Networking Interface: (1) GbE RJ45 port

Antennas: Internal

Management:

Ethernet

WiFi

Channel Bandwidth: 20/40 MHz

Wind Loading: 128.2N at 200 km/h

Weight: Device: 782 g (1.7 lb) With mount: 835 g (1.8 lb)

Enclosure Material: UV-stabilized polycarbonate

Mount Material: UV-stabilized polycarbonate, stainless steel

Pole Mount Diameter: 0.9—2.4' (24—60 mm)

Button: (1) Factory-reset

LEDs:

System: Power, Ethernet

NDAA Compliant: Yes

Certifications: CE, FCC, IC

Operating Frequency: 5150 - 5875 MHz (Worldwide)

Ambient Operating Temperature: -40 to 60° C (-40 to 140° F)

Ambient Operating Humidity: 5 to 95% noncondensing
