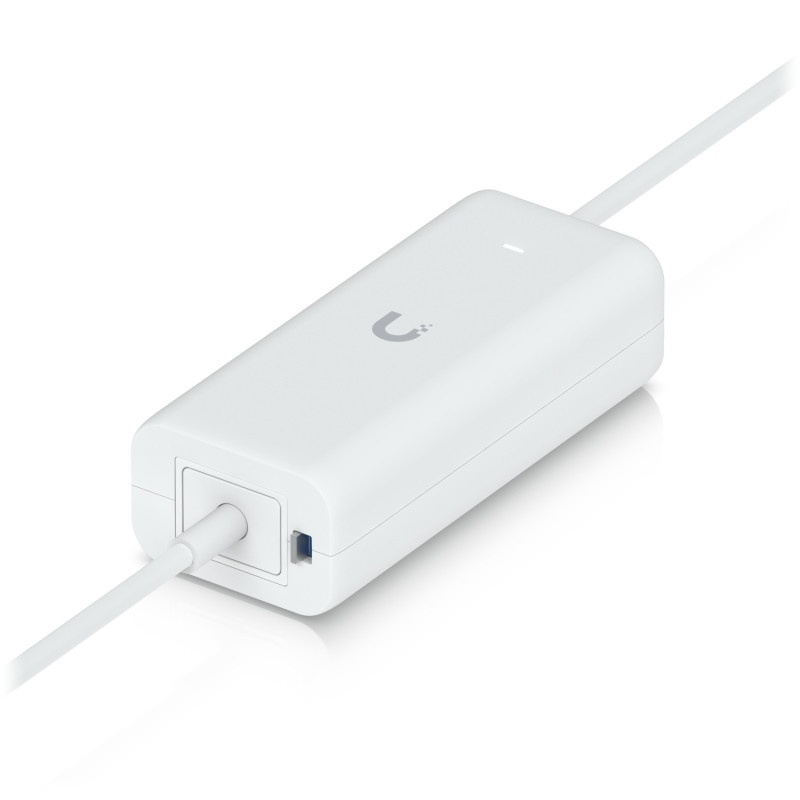

UBIQUITI PoE Integrated AC Adapter

An AC adapter with integrated PoE, enabling the UniFi Cloud Gateway device to support PoE output on a single port.

- Delivers up to 30W of PoE+

- Supports wall mount, DIN rail and floating mount (DIN rail and floating mount sold separately)

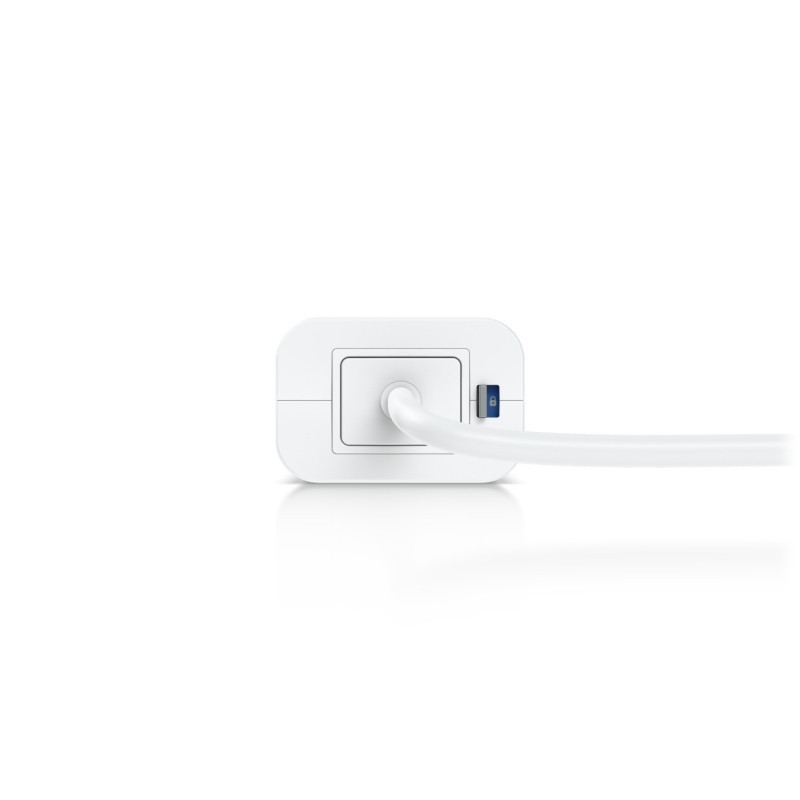

- Lockable latch designed for power cord security

Compatibility:

UCG-Ultra

UCG-Max

UXG-Lite

UXG-Max

UX

UX7

Dimensions: 46 x 62 x 42 mm (5.7 x 2.4 x 1.7')

Weight: 358 g (12.6 oz)

Length: Cable: 150 cm (4.9 ft) total, including 30 cm split Type-C/Ethernet ends Power cord: 180 cm (5.9 ft)

Output Voltage:

Type-C: 5V@ 5A

PoE+: 48V@ 0.65A

Rated Voltage: 100—240V AC @ 50/60Hz

Gigabit LAN Port: Yes

4-pair Powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

Clamping Protection: 11V data, 60V power

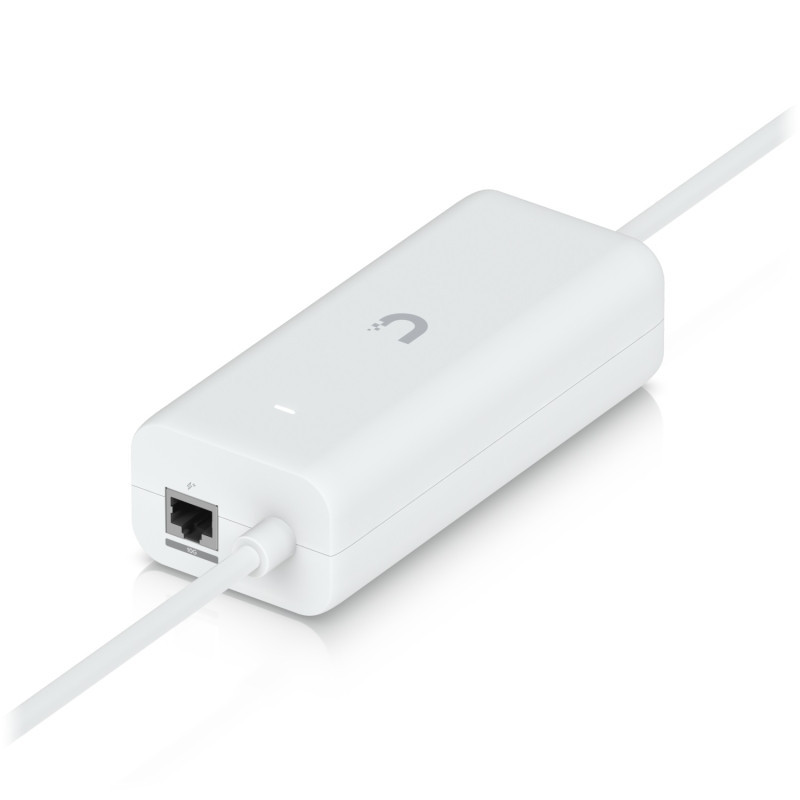

Data In / PoE: RJ45 shielded socket

Input Current: 1.5A max.

Inrush Current: 120A

Efficiency: 82%

Switching Frequency: 65 kHz

Output Ripple: 1% max.

Line Regulation: ≤ 5%

Load Regulation: ≤ 5%

Max. Surge Discharge: 1500A (8/20 μs) power

Peak Pulse Current: 36A (10/1000 μs) data

Response Time: <1 ns

Shunt Capacitance: <5 pF data

Surge Protection: Difference and common mode

Ambient Storage Temperature: -30 to 70°C (-22 to 158° F)

Ambient Operating Temperature: 0 to 40° C (32 to 104° F)

Ambient Operating Humidity: 10 to 95% noncondensing

NDAA Compliant: Yes

Certifications: CE, FCC, IC, UL, UKCA, CCC, KC, RoHS
