PeE-Tester PoE-Detector V7

•


  Smaller. simpler, and smarter.Those three words express the whole philosophy behind our redesign of the classic PoE Tester.





•

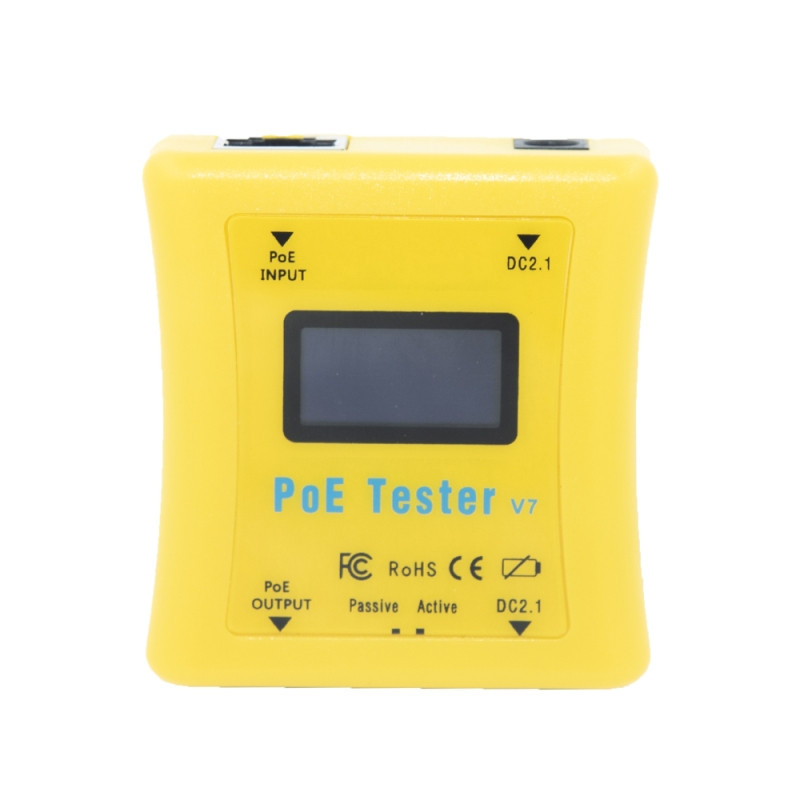

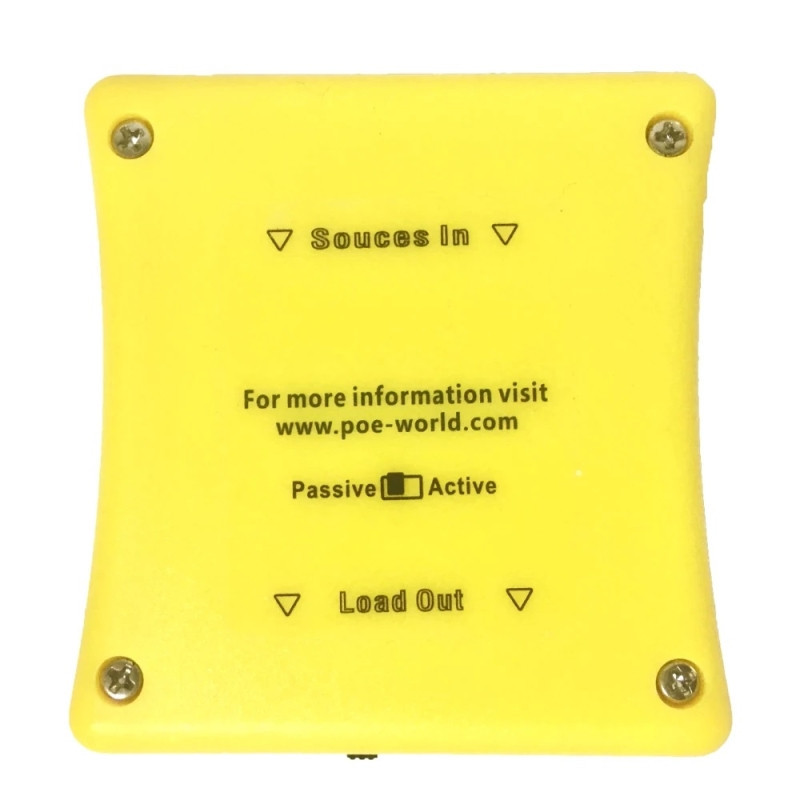

  Ergonomic Body Design.A new curved body design that's 25% smaller than the original PoE Tester makes the V7 easier to hold and use in every situation.





•


  High-quality LCD Display.The new scrolling LCD displays more information at once and can be read in full daylight.





•


  Simplified Operation.Thanks to automatic mode and polarity detection, V7 requires only one RJ45 input.





•


  802.3bt Support.4-pair testing capability makes it ready for the new IEEE 802.3bt PoE standard.





•


  Increased Testing Range.Measures DC power supply voltages from 3.5 to 57 volts and current up to 280 watts at 57 volts.




Data compatibility- 10/100 and gigabit data rates

- Data passes without modification through the tester

- An RF transformer separates the power and data from all 4 pairs on the input, measures the values and re-inserts power onto the output data

- Measure power without interruption of data

- Works with managed or unmanaged Ethernet switches, or injectors

- Works with midspan or endspan PoE systems

Power compatibilityAll PoE modes and also DC voltages from 3.5 volts to 57 volts

PoE Device simulationForce a PoE switch to activate

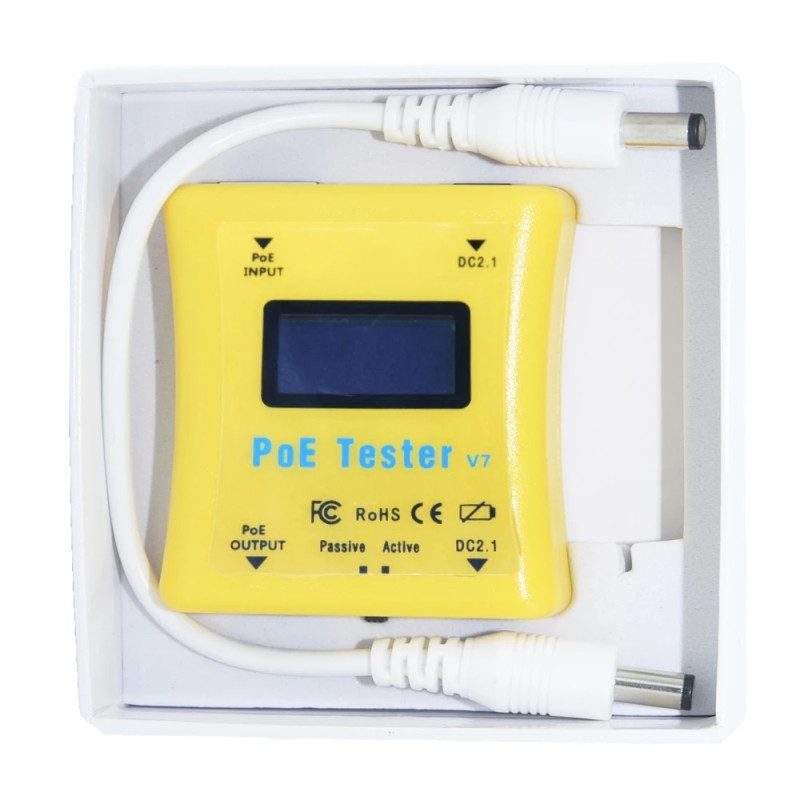

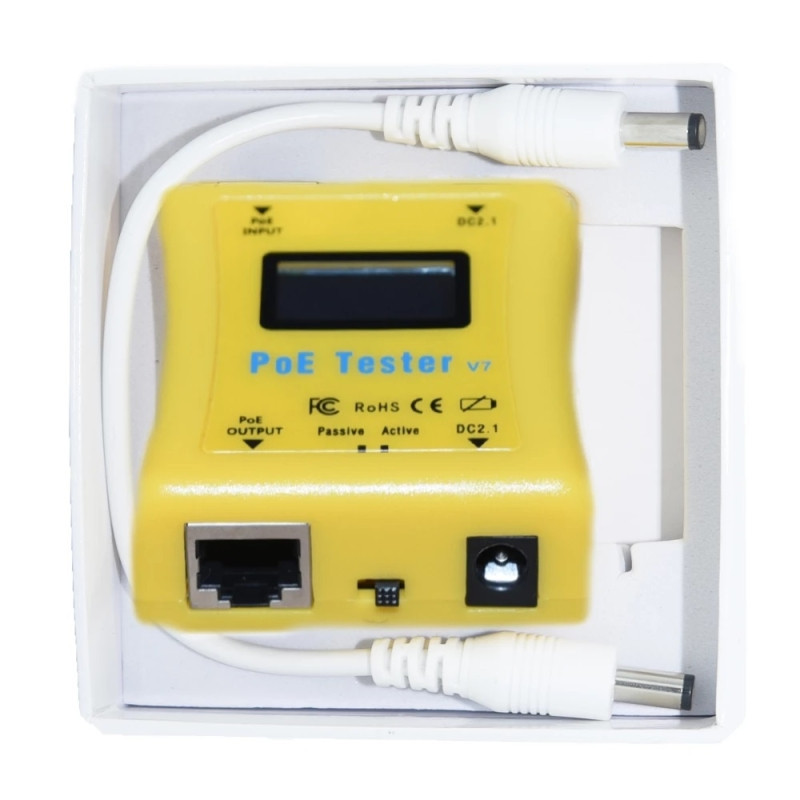

2.1 x 5.5mm input/output for PSU testingUse the included 2.1mm jumper cable for inline testing

One Volt and AmmeterThe DC input andPoE inputs share the same measurement tool. PoE voltages will be output on both DC connectors so do not mix DC and PoE testing

4 Display Modes- Mode A - shows the status of pins 1,2 and 3,6 from the RJ45 In to RJ45 Out

- Mode B - shows the status of pins 4,5 and 7,8 from the RJ45 In to RJ45 Out

- DC testing shows the status from the 2.1mm DC plug In to DC plug Out

- 802.3af simulation causes an 802.3af or 802.3at switch to activate. Note - only 802.3af mode will be activated

Voltage Range - 2% accuracy- 802.3af simulation - 44 to 56 volts

- Mode A passive - 4 to 56 volts

- Mode B passive - 4 to 56 volts

- DC connector - 3.5 to 57 volts

Amps measured- 2% accuracy- Mode A and Mode B - 0 to 1500 ma

- DC connector - 0 to 5 ampsNo Fuse protectionThere are no fuses inside - please do not exceed the rated values

Battery Free operationThe Tester requires just 200 mW for operation, taking power from the PoE source (4 mA at 48v, 8 mA at 24v)

Reverse Power warning- Mode A input can be either polarity. Note - the output polarity will be converted to pins 3,6 + and 1,2 minus

- Mode B will only work if pins 4,5 are +. Use the WS-CS-RJ45 adapter for reverse passive polarity injectors

- DC mode is center positive. Reverse polarity will damage the Tester

Output Voltage warning- The tester operates as a splitter, therefore up to 48 volts can be output on both DC jacks. Don't mix PoE testing and DC supply testing

- The RJ45 output voltage is rectified and will be 0.5 volts lower than the input
