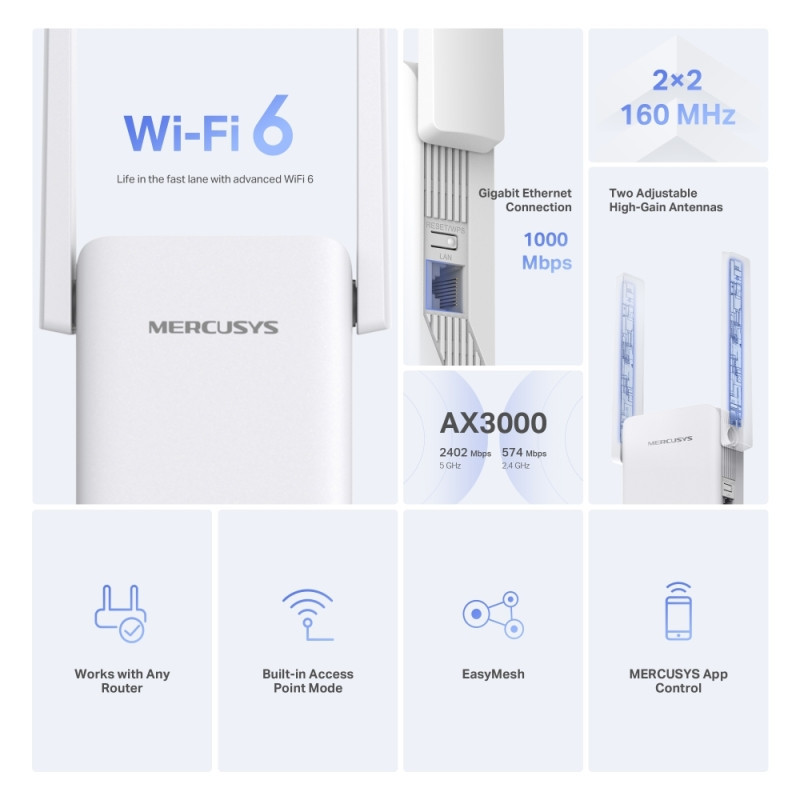

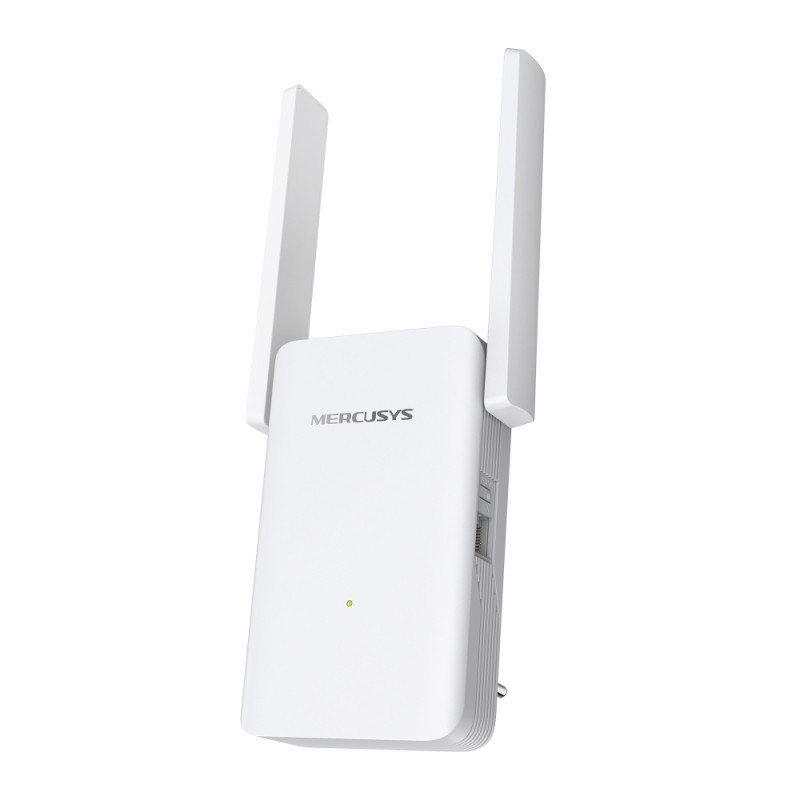

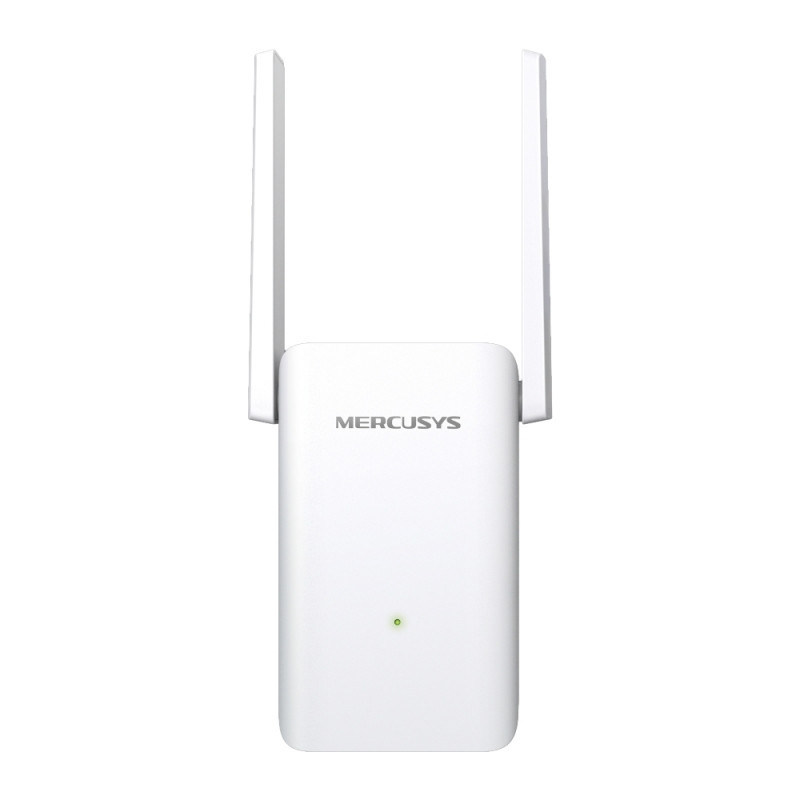

MERCUSYS AX3000 Wi-Fi 6 Range Extender

• Dual Band Speeds up to 3000 Mbps -2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.


• Armed with WiFi 6 -Improves virtually every aspect of your network: speed, efficiency, and capacity.


• Gigabit Wired Connection -Provides speedy wired connections for PCS, IPTVS.and game consoles.


• Works with Any Routers -To Extend WiFi to Where You Need It Most.


• Easy One-Touch Setup -Press the WPS button to expand your Wi-Fi coverage in seconds.


• Built-In Access Point Mode -Works as RE mode and AP mode.


• Manage Your Network with App -Set up in minutes and manage your Wi-Fi at home or away through your iOS or Android devices.

Wireless

Wireless Standards: IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz

Frequency: 2.4GHz and 5GHz

WiFi Speeds: 574 Mbps at 2.4GHz, 2402 Mbps at 5GHz

Reception Sensitivity:

5GHz:

11a 6Mbps:-97dBm

11a 54Mbps:-78dBm

11ax HE20 MCS0: -96dBm

11ax HE20 MCS11: -66dBm

11ax HE40 MCS0: -93dBm

11ax HE40 MCS11: -62dBm

11ax HE80 MCS0: -90dBm

11ax HE80 MCS11: -60dBm

11ax HE160 MCS11: -58dBm

2.4GHz:

11g 6Mbps:-96dBm

11g 54Mbps:-78dBm

11ax HE20 MCS0: -96dBm

11ax HE20 MCS11: -66dBm

11ax HE40 MCS0: -93dBm

11ax HE40 MCS11: -62dBm

Wireless Security: WEP, WPA, WPA2, WPA3-PSK

Hardware

Dimensions: 138.6 × 100.3 × 68.4 mm

Interfaces: 1 Gigabit Ethernet Port

Button: WPS / Reset Button

Antenna Type: 2× External Antennas

Power Consumption: 13W

Others

Certifications: RoHS

Package Contents:

Wi-Fi Range Extender ME80X

Quick Installation Guide

Environment:

Operating Temperature: 0°C~40°C (32°F~104°F)

Operating Humidity: 10%~90% Non-Condensing
