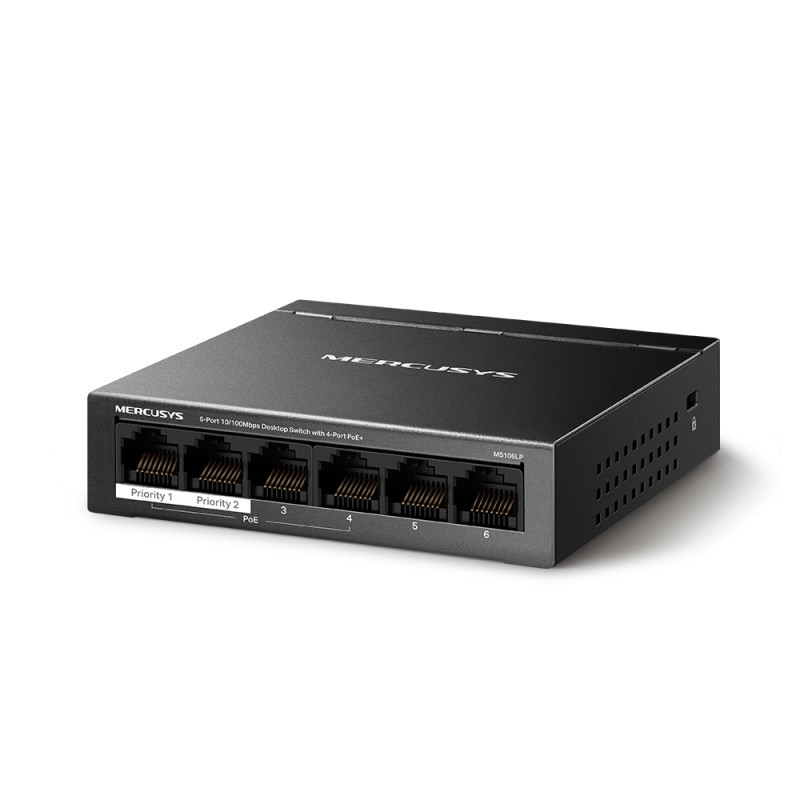

„Mercusys“ 6 prievadų 10 / 100 Mbps stalinis komutatorius su 4 prievadų „PoE+“

• 6 Ports: 6× 10/100 Mbps RJ45 ports with 4 PoE+ ports

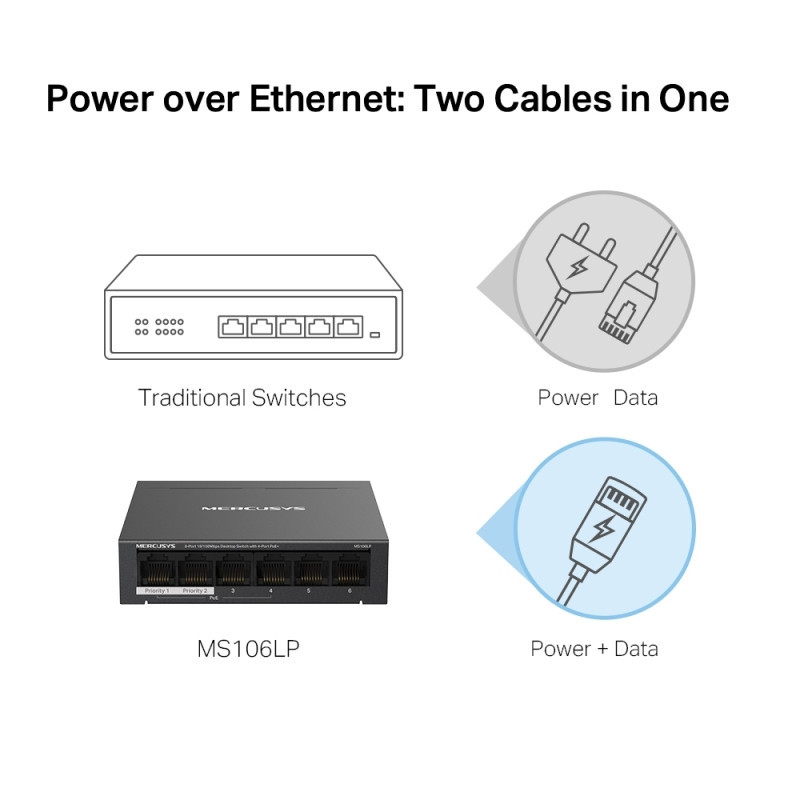

• Two Cables in One: With four PoE+ ports, transfers data and power on one single cable


• High Power PoE+: Support PoE Power up to 30 W for each PoE port and 40 W for all PoE ports*


• 2× Uplink Ports: MS106LP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.


• Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**


• Isolation Mode: One click to divide traffic for specific ports for stability and security


• Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs


• Durable Metal Casing: Allows for efficient heat dissipation and long network life


• Plug and Play: Simple to use and saves time and effort


• PoE Auto Recovery : Automatically reboots your dropped or unresponsive PoE-powered devices

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Hardware

Dimensions: 99.8*98*25mm

PoE Ports:

RJ45

Standard: Compliant with 802.3 af/at Powered Devices

PoE Ports: Port 1- Port 4

PoE Power Budget: 40 W

Interfaces: 6× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

External Power Supply: External Power Adapter (Output: 53.5V/0.81A)

Installation: Desktop, Wall Mount

Standards and Protocols: IEEE 802.3x Flow Control

Data Rates:

10/100 Mbps at Half Duplex

20/200 Mbps at Full Duplex

Jumbo Frame: 2 KB

Mac Address Table: 2K

Max Power Consumption:

1.87W（220 V / 50 Hz, no PD connected)

44.8W（220 V / 50 Hz, with 40W PD connected)

Max Heat Dissipation:

6.34 BTH/h (no PD connected)

152.32 BTH/h (with 40W PD connected）

Others

Package Contents:

• 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ (MS106LP)

• Power Adapter

• Quick Installation Guide

Environment:

Operating Temperature: 0 ~40 (32 ~104 )

Storage Temperature: -40 ~70 (-40 ~158 )

Operating Humidity: 10%~90% RH non-condensing

Storage Humidity: 5%~95% RH non-condensing
