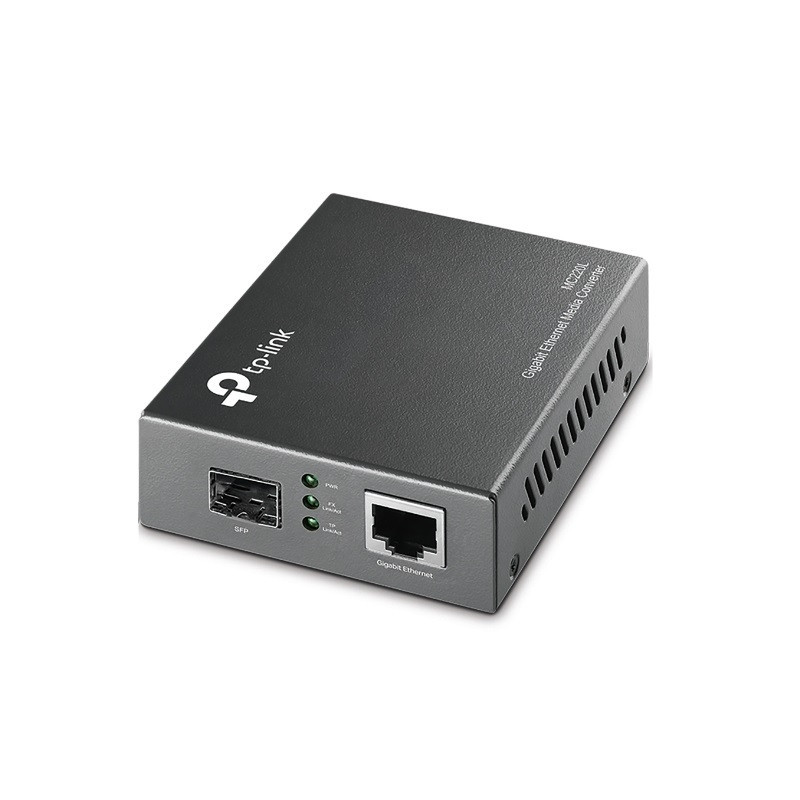

Media converter MC220L

•Works at 1000Mbps in Full-Duplex mode for both TX port and FX port

•Supports auto MID/MID-X for TX port

•Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely

•Provides switch configuration of Force /Auto transfer mode for FX port

•FX port support hot-swappable

•Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber

•Easy-to-view LED indicators provide status to monitor network activity easily

•External power supply

Standards and Protocols

IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x

Basic Function

Full Duplex Flow Control (IEEE 802.3x)

Extends fiber distance up to 0.5km using 50/125um fiber, 0.22km using 62.5/125um fiber)

Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely

Ports

1 Gigabit SFP Slot

1 1000M RJ45 port (Auto MDI/MDIX)

Network Media

1000BASE-T UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-FX Multi-mode Fiber

LED Indicators PWR, LINK, RX

Safety Emission FCC, CE

Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

Environment Operating Temperature: 0 ~40 (32 ~104 )

Storage Temperature: -40 ~70 (-40 ~158 )

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Power Supply External Power Adapter
