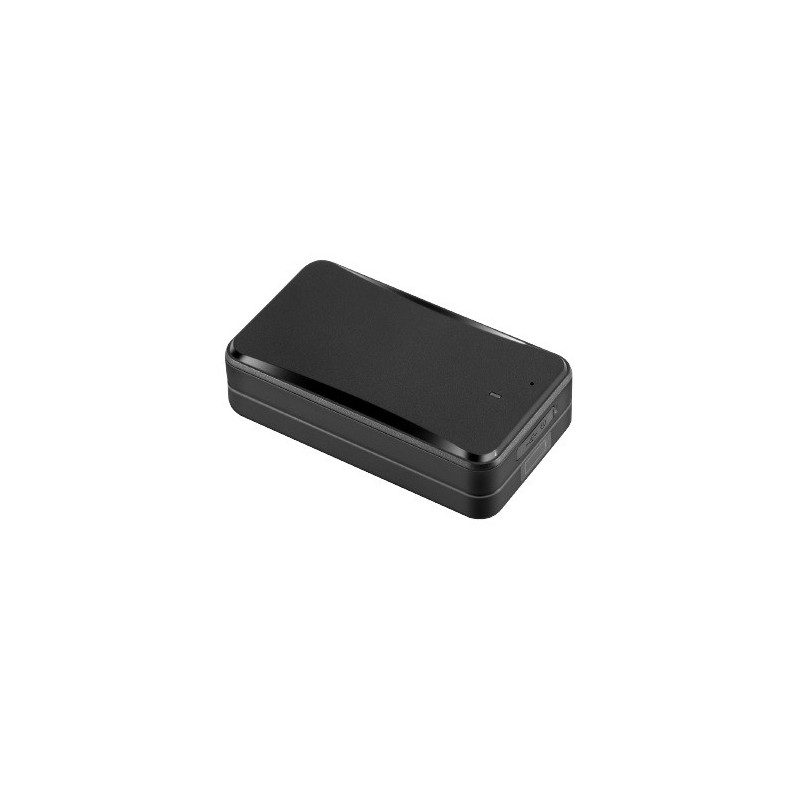

Magnetic GPS Tracking Device, Lbs, 4g, 10000mah

Magnetic GPS tracking device, LTE 4G, GSM, 10000mAh battery.Features:

• Location determination via GPS+BDS+LBS ensures that the device's position is accurately displayed on the cloud platform.


• LTE 4G connection with backup GSM (2G) support ensures constant connectivity in almost all cases.


• Remote listening: An unobtrusive microphone allows you to remotely listen to sounds around your device.


• The device also supports instant alerts for suspicious events such as device removal, unusual vibration, etc. The abundance of sensors and alerts help you track your vehicle reliably.


• Long battery life and fast charging: 10,000mAh rechargeable battery with selectable working mode ensures ultra-long standby time.


• Supported BT configuration allows quick and easy device settings using the iOS app.


• IP65 outdoor resistance, robust and reliable construction ensures stable operation in difficult conditions.


• Strong magnetic base: the device attaches easily, quickly and securely to a metal surface.


• Suitable for application scenarios such as car rental, fleet management, logistics transportation, etc.

Technical data:

• Navigation system: GPS+BDS+LBS.


• Tracking sensitivity: -165dBm.


• Signal reception sensitivity: -148dBm.


• Positioning accuracy: < 2.5m CEP.


• Communication network: LTE Cat 1/ GSM.


• GSM frequency: 850/900/1800/1900 MHz.


• LTE-FDD: B1/ B2/ B3/ B4/ B5/ B7/ B8/ B28/ B66.

Time to first fix (TTFF):

• Coordinate acquisition time when the time and last location coordinate are known (hot start) <1 sec.


• Coordinate acquisition time when the initial coordinate and time are not known (cold start) <32 sec.


• Battery: 10000mAh/3.7V industrial grade lithium polymer battery.


• Battery modes: timer tracking mode / smart tracking mode / power saving mode.


• Standby time: up to 2 years.


• LED: 1x operating mode (red), 4x battery (blue).


• Warnings: low battery / device damage / vibration / cover removal / power off.


• Supported SIM card: nano SIM.


• Operating temperature: -20°C ~ +70°C.


• Humidity: 5~95%RH (non-condensing).


• Sensor: accelerometer.


• Bluetooth protocol: BLE5.0.


• Size: 108.5 x 61.1 x 30mm.


• Weight: 260g.


• Safety class: IP65.
