Reversing camera dedicated to Honda Civic

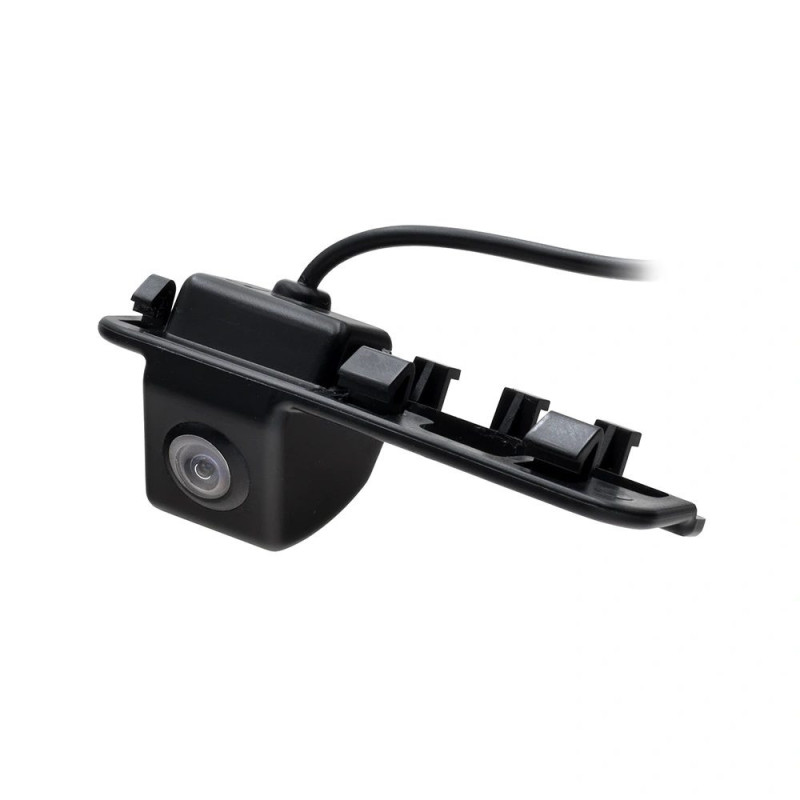

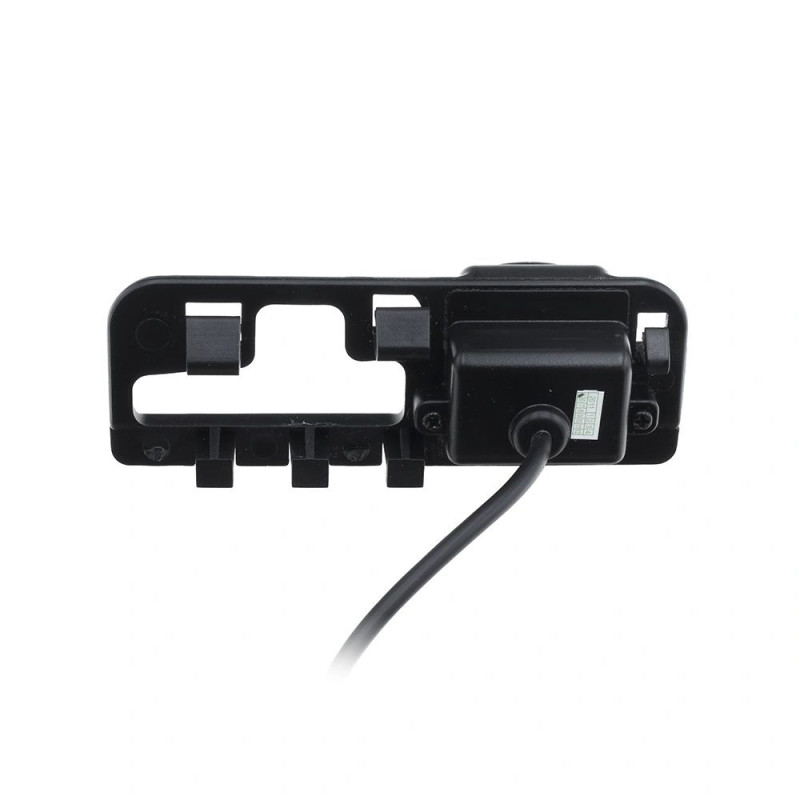

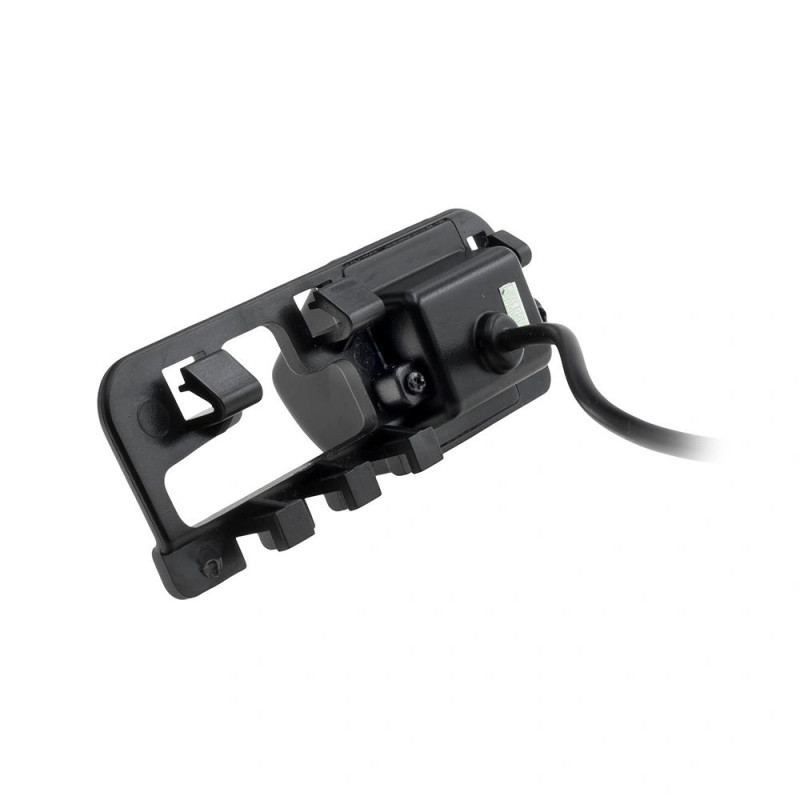

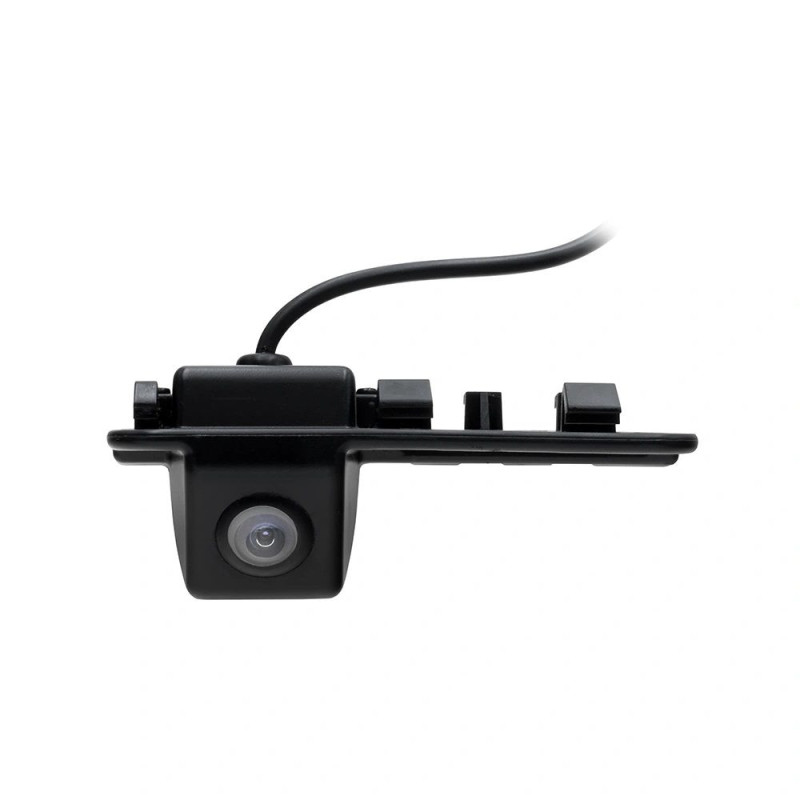

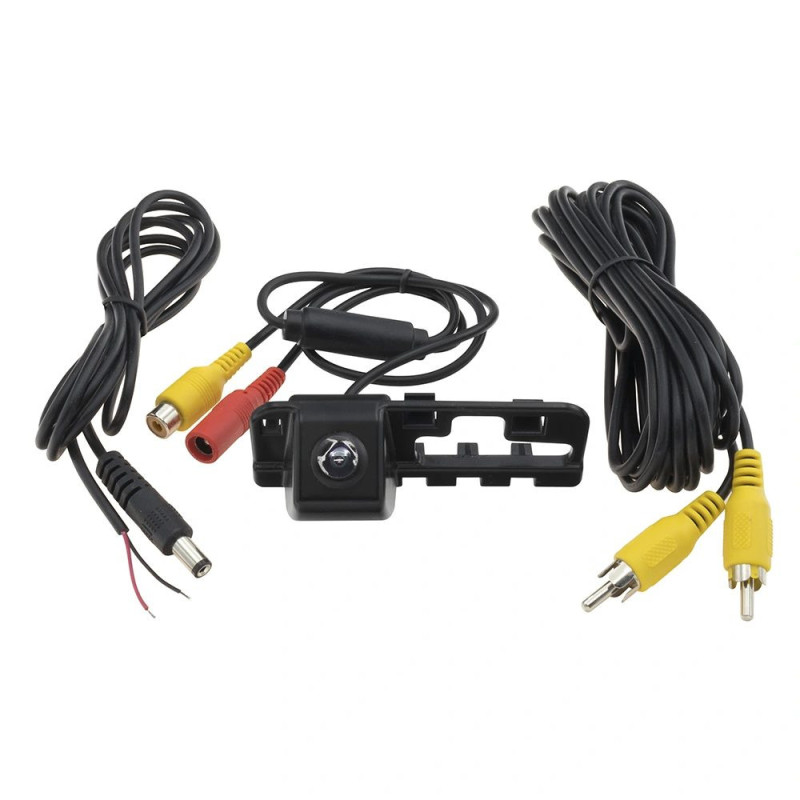

A shock-resistant rearview camera for the Honda Civic. The camera replaces the license plate light. The device connects to any monitor with a video input. The monitor displays an image with a scale indicating the distance to an obstacle.

Technical data

• Converter: 1/3" CMOS
• System: NTSC
• Horizontal resolution: 420TVL
• Effective pixels: 510*492
• Tenderness: 0.4lux/F1.2
• Signal to noise ratio: > 48dB
• Gain control: AGC
• Backlight compensation: BLC
• Shutter speed: 1/50-1/100000s
• Viewing angle: 120°
• Mirror function: The image is seen as in a rear-view mirror with a scale that makes it easier to judge distances
• Camera power cable length: 1.5m
• Length of the included video cable: 5.5m
• Degree of protection: IP: IP67
• Video output: 1.0Vp-p,75 ohms 1.0Vp-p,75 ohms
• Power supply: 12V
• Power consumption: 130-150mA
• Working temperature: -20 to +75°C
• Storage temperature: -30 to +85°C
• Housing Material: Polycarbonate
