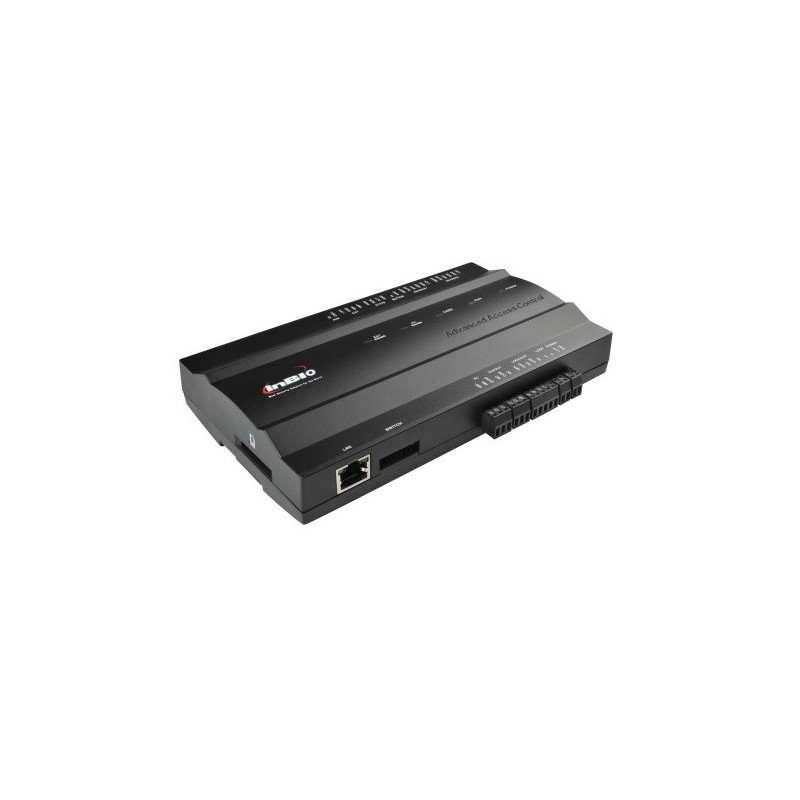

ZKTECO Single door access controller INBIO160

Single door access controller INBIO160, Wiegand 26bit, LAN, RS-485. Features: An access controller with unique features such as fingerprint verification and advanced access control functions that can be managed via TCP/IP communication over LAN or WAN networks. The distance between the controller and RS485 readers can be more than 800m. Data is saved even in the event of a power failure. The controller continues to operate if the network connection is lost. By connecting an RS485 reader, the controller can authenticate users with multiple verification modes, such as fingerprint, card, and password, to ensure a higher level of security. Technical data: Number of users: 30,000. Event database capacity: 100,000. Fingerprint capacity: 3,000. Number of doors supported: 1. Number of supported readers: 4 (2x RS-485 readers, 2x Wiegand 26bit). Reader types: 26bit Wiegand, RS-485 FR series. Inputs: 3 (exit button, door sensor, aux input). Relays: 2 (1x for lock + 1x aux output). Connections: TCP/IP; RS-485. Processor: 400MHz 32bit CPU. Memory: RAM 32MB / Flash 128MB. Power supply: 9.6V-14.4V DC. Weight: 3.6 kg. Mounting: on the wall. Dimensions: 350x90x300 mm. Operating temperature: 0°C~ +45°C. Operating humidity: 20%-80%RH. Warranty:24 months
