Zestaw konektorów i rurek termokurczliwych 678 szt. AMIO-03031

Set of 350 insulated connectors plus 328 heat shrink tubes

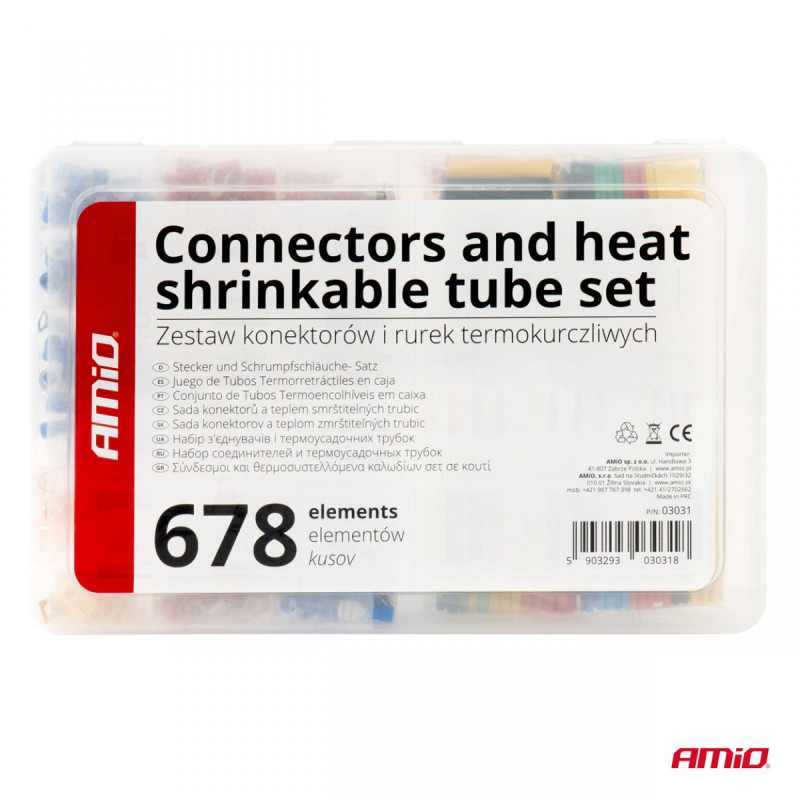

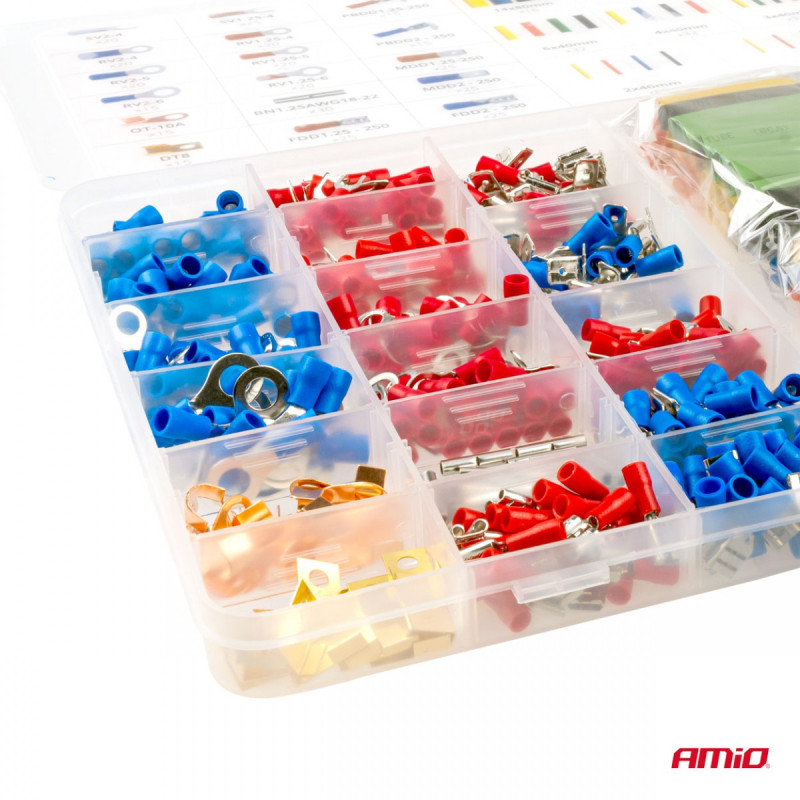

A set of connectors and heat shrink tubing. The set contains 687 pieces of various components. The set includes ring connectors, spade connectors, female connectors, male connectors, and wire connectors in insulated and non-insulated versions. Additionally, the set includes 328 pieces of heat shrink tubing in sizes ranging from 1 to 14 mm². The entire set is packaged in a plastic organizer.

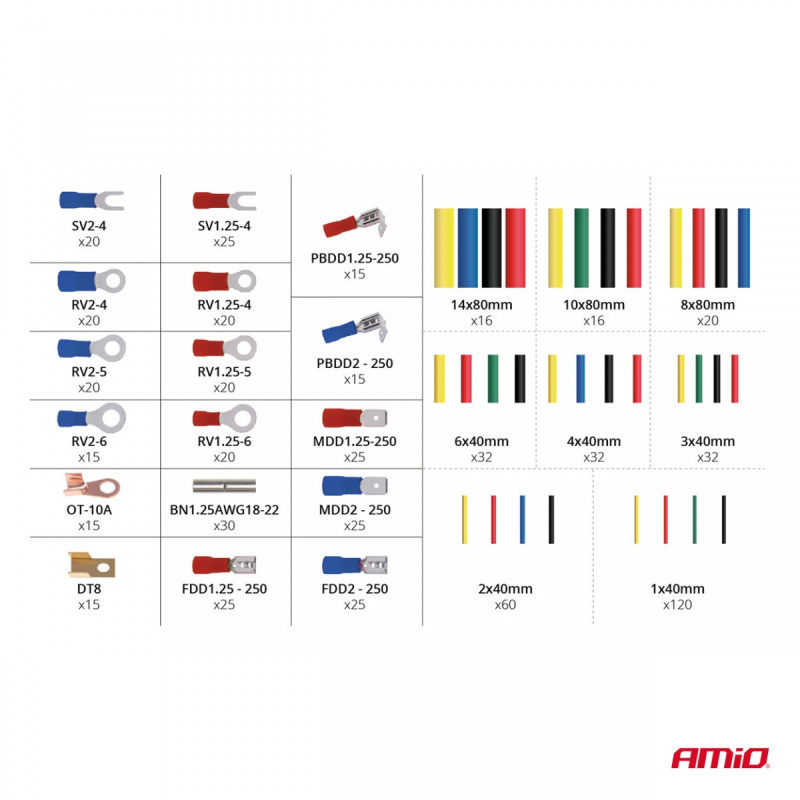

Connectors:

• red eyelet connector M4 0.5 - 1.5 mm2 - 20 pieces
• red eyelet connector M5 0.5 - 1.5 mm2 - 20 pieces
• red eyelet connector M6 0.5 - 1.5 mm2 - 20 pieces
• blue eyelet connector M4 1.5 - 2.5 mm2 - 20 pieces
• blue eyelet connector M5 1.5 - 2.5 mm2 - 20 pieces
• blue eyelet connector M6 1.5 - 2.5 mm2 - 15 pieces
• red M4 spade connector - 25 pieces
• blue M4 spade connector - 20 pieces
• female connector red 6.3 mm 0.5 - 1.5 mm2 - 20 pieces
• red slide connector 6.3 mm 0.5 - 1.5 mm2 - 20 pieces
• female connector blue 6.3 mm 1.5 - 2.5 mm2 - 20 pieces
• blue slide connector 6.3 mm 1.5 - 2.5 mm2 - 20 pieces
• connector sleeve splitter red 6.3 mm 0.5 - 1.5 mm2 - 15 pieces
• connector sleeve splitter blue 6.3 mm 1.5 - 2.5 mm2 - 15 pieces
• BN1.25AWG18-22 wire connector - 30 pieces
• M4 DT8 eyelet connector - 15 pieces
• OT-10A eyelet connector - 15 pieces

Heat shrink tubing:

• 120pcs x φ1.0 x 40mm (yellow, black, red, green)
• 60pcs x φ2.0 x 40mm (yellow, black, red, blue)
• 32pcs x φ3.0 x 40mm (yellow, black, red, green)
• 32pcs x φ4
