Zestaw czujników parkowania czujniki cofania LED GRAF 8 sensorów czarne wewnętrzne 16,5 mm AMIO-02258

The parking sensor is a device that aids in parking and reversing a vehicle. It operates on the principle of sonar—it emits ultrasonic waves that, when reflected from an obstacle, allow the vehicle to determine the distance between itself and the obstacle. When reversing, the device accurately detects obstacles in the vehicle's path and warns the driver with an audible signal.

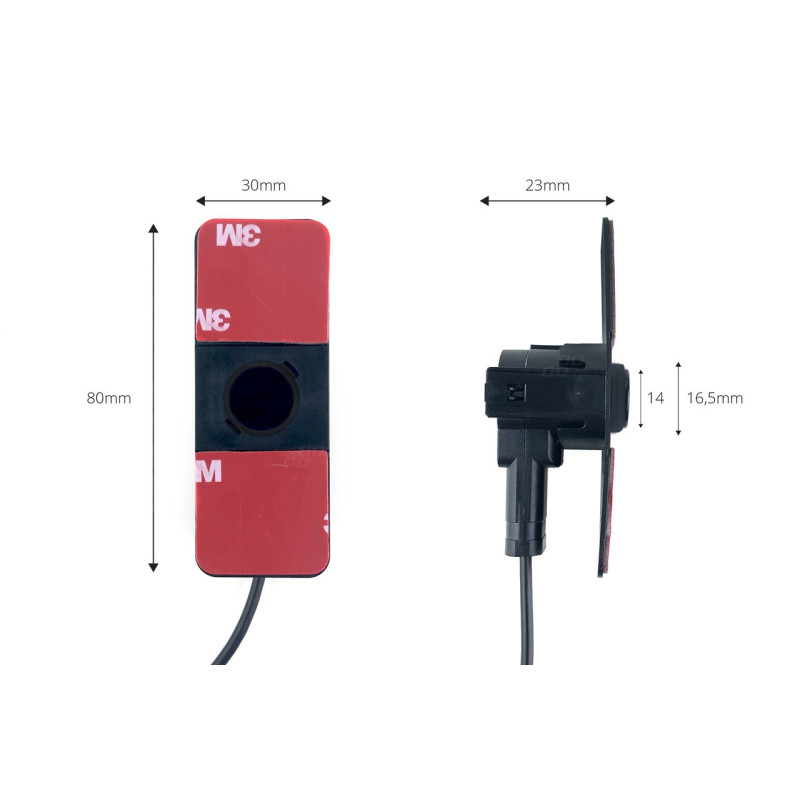

The new sensors are mounted on the inside of the bumper and do not protrude beyond its outline. Their small size makes them very attractive. The sensors are paintable. It is recommended to apply a maximum of two thin, even coats of paint.

The LED-GRAF display indicates the distance to obstacles with an accuracy of tenths of a meter. It also has a built-in loudspeaker (buzzer) that can be muted completely using a switch on the housing.

Display size: 7.5 x 5.5 x 2.5cm

Cable length: ~5m

The set includes:

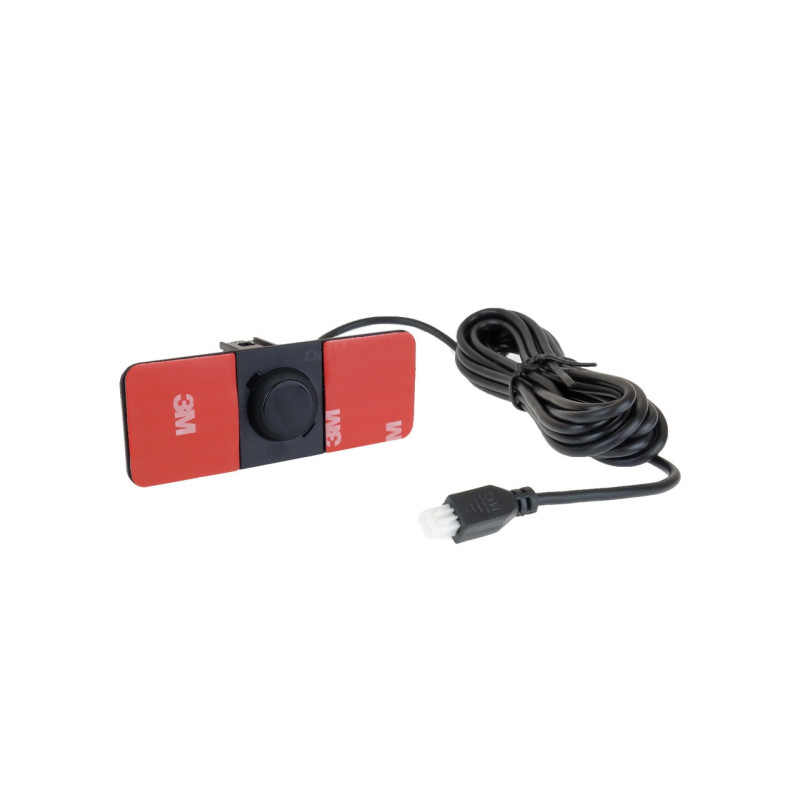

• 8 sensors (black internal 16.5mm)
• LED-GRAF display with built-in buzzer

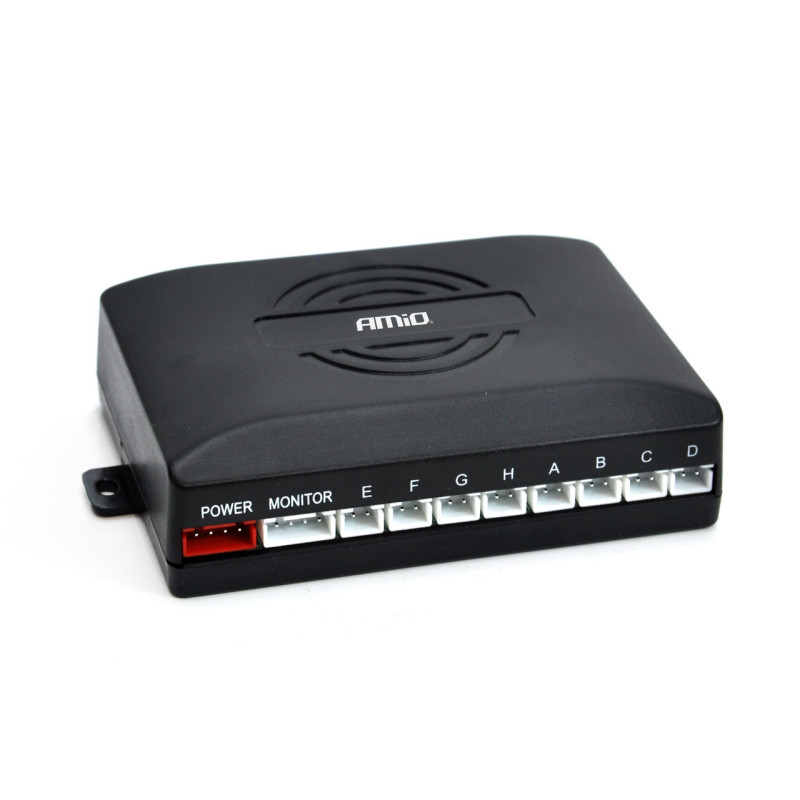

• 8-sensor control unit
• hole saw for drilling holes in the bumper.
• assembly instructions

Full specifications:

Operating range/sensitivity

0-2.5m

Power supply

12V

Working frequency

40KHz

Operating temperature

-30 ° C - +70 ° C

Mounting diameter

16.5mm
