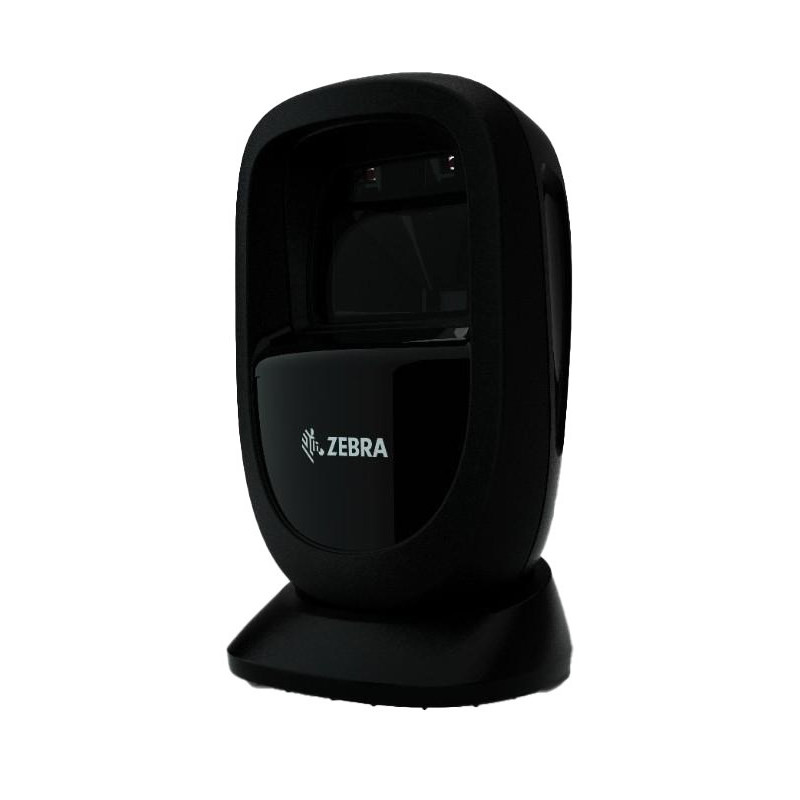

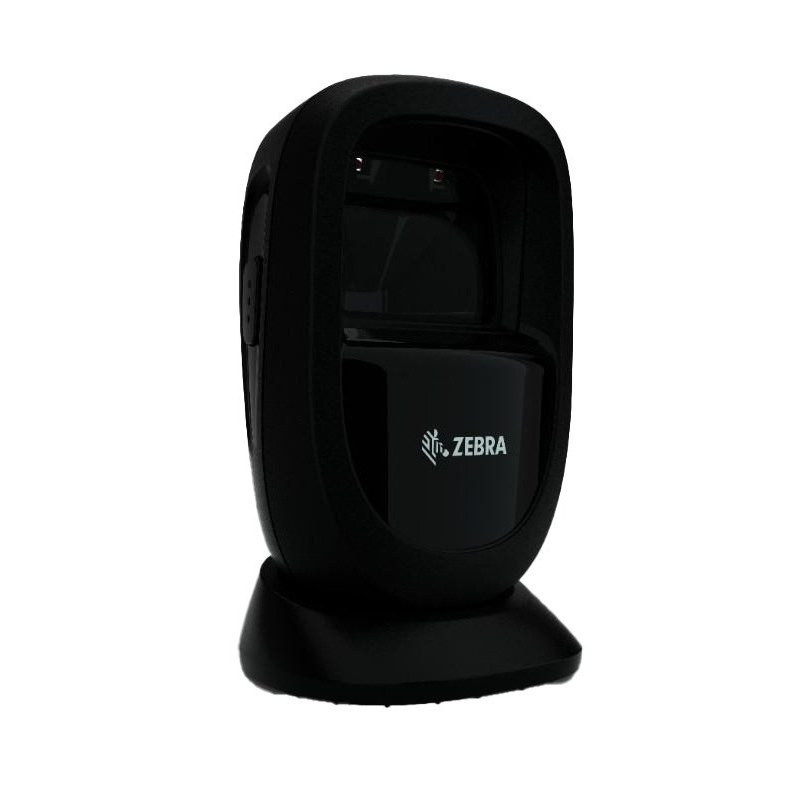

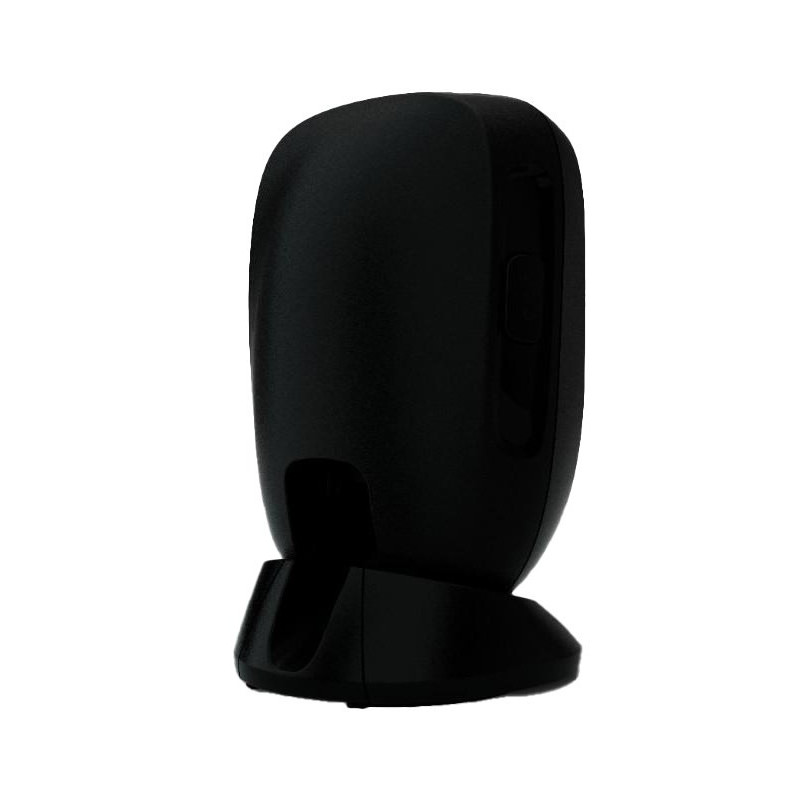

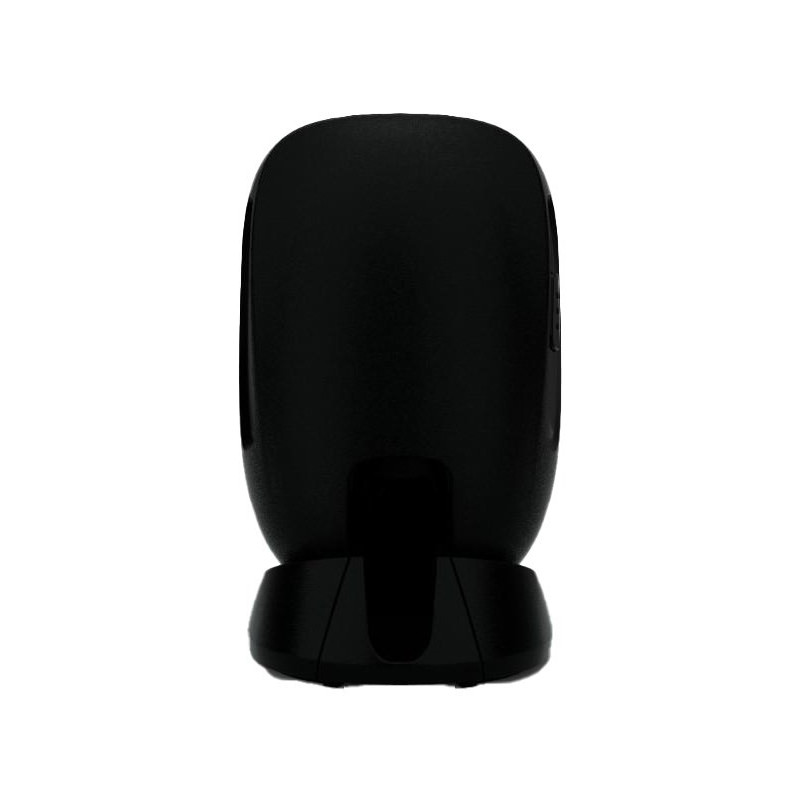

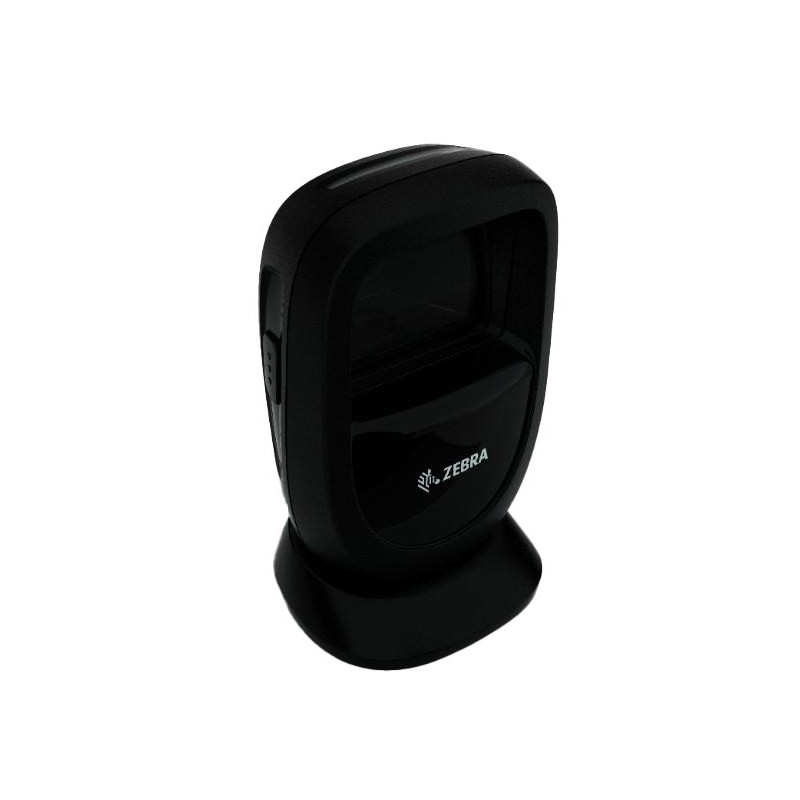

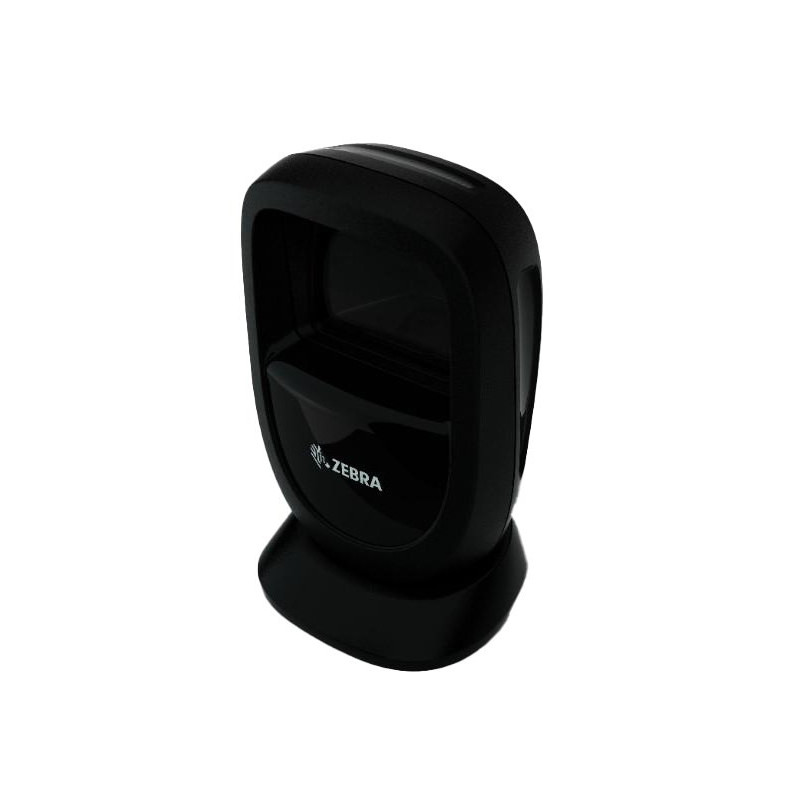

Zebra DS9308-SR Fixed bar code reader 1D / 2D LED Black
Product reference:
6-DS9308-SR4U2100AZE
Zebra DS9308-SR Fixed bar code reader 1D / 2D LED Black
Zebra DS9308-SR Fixed bar code reader 1D / 2D LED Black
Product reference:
6-DS9308-SR4U2100AZE
Zebra DS9308-SR Fixed bar code reader 1D / 2D LED Black
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery in
8 - 13
business days
| Power source type | RS-232 USB |
| Input voltage | 5.5 V |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight | 318 g |
| Depth | 83 mm |
| Height | 145 mm |
| Width | 86 mm |
| Certification | EN 50581:2012, RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015, UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0), EN 62471:2008 (LED), FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Standard interfaces | RS-232, USB |
| Connectivity technology | Wired |
| Harmonized System (HS) code | 84716070 |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Pitch reading angle | -60 - 60° |
| 2D (matrix & stacked) barcodes supported | Han Xin PDF417 TLC-39 Composite Codes Data Matrix MaxiCode QR Code Micro QR Code Aztec Code MicroPDF417 Dot Code A |
| Light levels (direct sunlight) | 0 - 107700 lx |
| Linear (1D) barcodes supported | Codabar Code 128 Code 11 EAN-13 MSI Code 93 U.P.C. GS1 DataBar Code 39 |
| Scanner type | 1D/2D |
| Type | Fixed bar code reader |
| Working distance | 66 cm |
| Sensor type | LED |
